BS 1414 Gate Valve Explained for Industrial Applications

You need a dependable way to control flow in your work. The bs 1414 gate valve lets you stop flow exactly and keeps pressure drop low. Didtek is a trusted maker with lots of skill and can change valves to fit your needs. Knowing the details of each bs standard valve helps you pick the best one for your job.

Tip: Picking the right bs 1414 valve makes your system work better and keeps it safe.

BS 1414 Gate Valve Overview

Definition and Purpose

Sometimes you need a valve to stop or let flow happen. The bs 1414 gate valve helps you do this. It uses a wedge-shaped disc that moves down to block fluid. When the valve is closed, the disc stops the flow. When the valve is open, fluid moves easily with little resistance. This design keeps pressure drop low and gives full isolation when needed.

Here is a simple look at how the bs 1414 standard describes this valve:

You can use the bs 1414 gate valve in many fields. These include oil and gas, marine, and pharmaceuticals. Didtek has many types of these valves, like wedge gate valves and long stem gate valves, to fit what you need.

Key Features

The bs 1414 gate valve is strong and works well. It is made from good materials, so it lasts longer and fights rust. Didtek uses ASTM A216 WCB for strength and long life. The full bore design lets lots of fluid move with little pressure loss. The bolted bonnet helps keep the valve sealed even when pressure is high.

Here are some main features you will see in a bs 1414 gate valve:

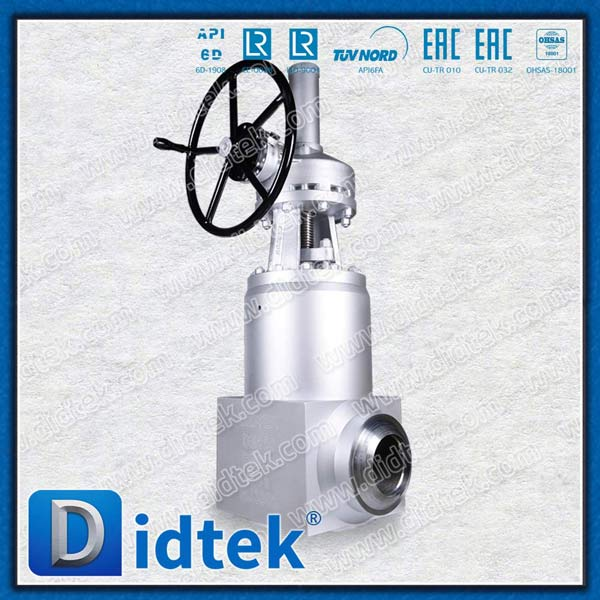

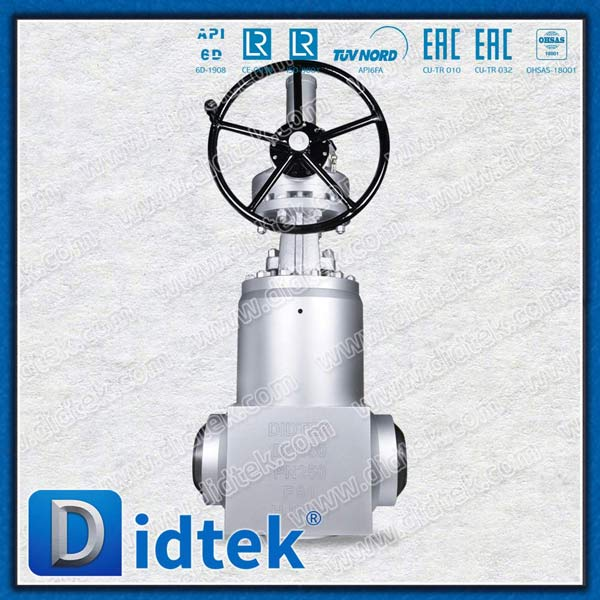

Didtek gives you choices for OEM and ODM solutions. You can get a valve that fits your system. You can also pick different types, like pressure seal gate valves and slab gate valves, for your needs.

Industry Standards

You should know the standards before picking a valve. The bs 1414 standard sets rules for steel wedge gate valves used in petroleum, petrochemical, and related fields. It covers things like size, pressure class, and design. For example, a bs 1414 valve may have these details:

You might hear about other gate valve standards, like API 600. API 600 is for oil and gas and gives more technical details. BS 1414 is used in petroleum and refining. The main difference is bs 1414 does not have as many technical details as API 600, but it still gives you trusted rules for picking your valve.

When you pick a bs 1414 gate valve from Didtek, you get a product that meets these standards. You also get Didtek’s skill and many choices, which help you find the right valve for your job.

Specifications

Materials

You need to pick the right materials for your bs 1414 gate valve. The material changes how well the valve works in different places. Didtek gives you many material choices to fit your needs. Stainless steel is good if you need high corrosion resistance. It works well with strong chemicals. For marine jobs, you can use bronze, ductile iron, or cast iron. These materials help stop rust and keep flow smooth. In power plants, pressure seal gate valves help prevent leaks and make maintenance easy. You should also think about temperature. The right material lets the valve work from -272 to 675 degrees Celsius. Always match the material to your medium and pressure for the best results.

Didtek can change materials for your order. You can ask for OEM or ODM solutions to fit your system.

Size and Pressure Ratings

You need to know the size and pressure ratings before you pick a valve. The bs 1414 standard covers many sizes and pressure classes. Didtek has gate valves from 25 mm (1 inch) up to 100 mm (4 inches) and more. You can get pressure classes from Class 150 to Class 2500. This helps you match the valve to your system.

You can ask Didtek for special sizes or ratings. The team can change the gate valve specifications to fit your project.

End Connections

You have different choices for end connections with bs 1414 gate valves. Each type fits different jobs. Didtek offers:

• Flanged ends for easy installation and removal

• Butt-weld ends for strong, leak-proof joints

• Socket-weld ends for smaller pipes

• Screwed ends for simple connections

• Wafer ends for compact systems

You can use these valves in oil and gas, water treatment, chemical plants, pulp and paper, mining, and slurry systems. You should pick the end connection that fits your pipeline and process.

Construction

The way your bs 1414 gate valve is built matters for safety and quality. The standard sets rules for design and build. Didtek follows these rules to make sure each valve is strong and reliable. Here is what you get:

• Strong design for long service life

• Careful testing and inspection for every valve

• Clear markings and documents for each specification, including materials and test results

You can trust your valve meets industry safety and quality standards. Didtek can also change construction features to fit your needs.

Operation Modes

You can pick how to operate your bs 1414 gate valve. Didtek offers several modes:

Manual operation works well for simple systems. Bevel gear operation helps with bigger valves. Electric actuation lets you control the valve from far away. Didtek also has pneumatic actuators if you need them. Each mode gives you different levels of efficiency and safety. When fully open, the valve lets fluid move easily. This lowers pressure drop and makes the system work better. You should always check the valve body markings for safe use. The design, like single or double gates, can change how the valve works and how safe it is.

Tip: Always match the operation mode to your system’s needs for the best performance and safety.

You can ask Didtek for custom actuation options. The team will help you pick the best solution for your job.

Applications

Industrial Uses

The bs 1414 gate valve is used in many big industries. This valve helps control flow where safety is important. Here are some places that use this valve:

1. Water and Wastewater Treatment: These valves help move water in plants and pipes.

2. Oil and Gas: People use bs 1414 gate valves to keep pipelines safe.

3. Power Generation: These valves help keep flow steady in power plants.

4. Industrial Process Control: They are used in chemical plants, food factories, and drug companies to control flow and pressure.

Didtek can make each valve special for your industry. You can pick different materials or ways to use the valve. This helps you get the best results for your work.

Performance Benefits

You want a valve that works well and is easy to use. The bs 1414 gate valve has many good points. When open, it lets all the flow go through. This means you do not lose much pressure. You can also stop flow all the way if you need to. The valve stays strong, even when flow is fast. You can use this valve in tough places because it does not rust or wear out fast. Didtek lets you pick electric or manual ways to use the valve. You can choose what works best for your system. The valve lasts a long time and does not need much fixing.

Tip: Pick the right valve for your system to keep things safe and working well.

Comparison with Other Standards

You might wonder how the bs 1414 gate valve is different from other types like API 600. The table below shows some main points:

You can trust the bs 1414 gate valve for many jobs. It works well and fits lots of systems. Didtek helps you find the right valve for your needs, no matter what you do.

You get lots of good things when you pick a bs 1414 gate valve for your work:

1. Better safety keeps your team and machines safe.

2. Higher efficiency helps your system work well.

3. More reliability means you spend less on repairs.

4. Following bs standards gives you more chances.

Didtek gives you strong products and special choices. If you need help picking a valve, you can ask about types, designs, or how to use it best for your job.

FAQ

What industries use BS 1414 gate valves?

BS 1414 gate valves are used in many industries. You see them in oil and gas, marine, water treatment, and pharmaceutical jobs. These valves help control flow and keep systems safe.

Can you customize a Didtek gate valve for my project?

Yes, Didtek can make a gate valve just for you. You can ask for special materials, sizes, or ways to use the valve. The team gives OEM and ODM choices to fit your needs.

How do I choose the right material for my valve?

Pick the valve material that matches your fluid and temperature. Use stainless steel for fluids that cause rust. For marine jobs, bronze or ductile iron is best. Didtek can help you pick the right one.

What operation modes are available?

You can pick manual, bevel gear, electric, or pneumatic operation. Your choice depends on your system’s size and how you want to use the valve.

How do BS 1414 valves compare to API 600 valves?

BS 1414 valves use British rules. API 600 valves use American rules. Both work well in many jobs. Pick the one that fits your project best.
