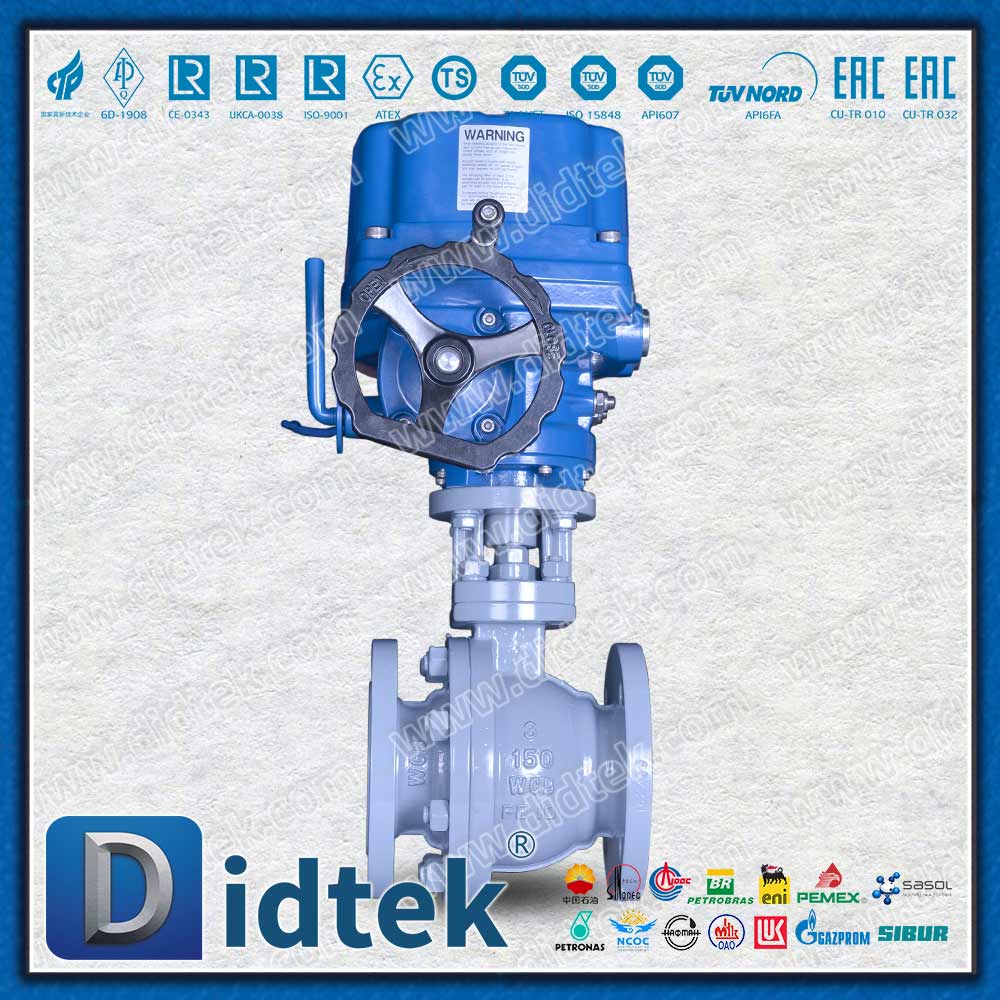

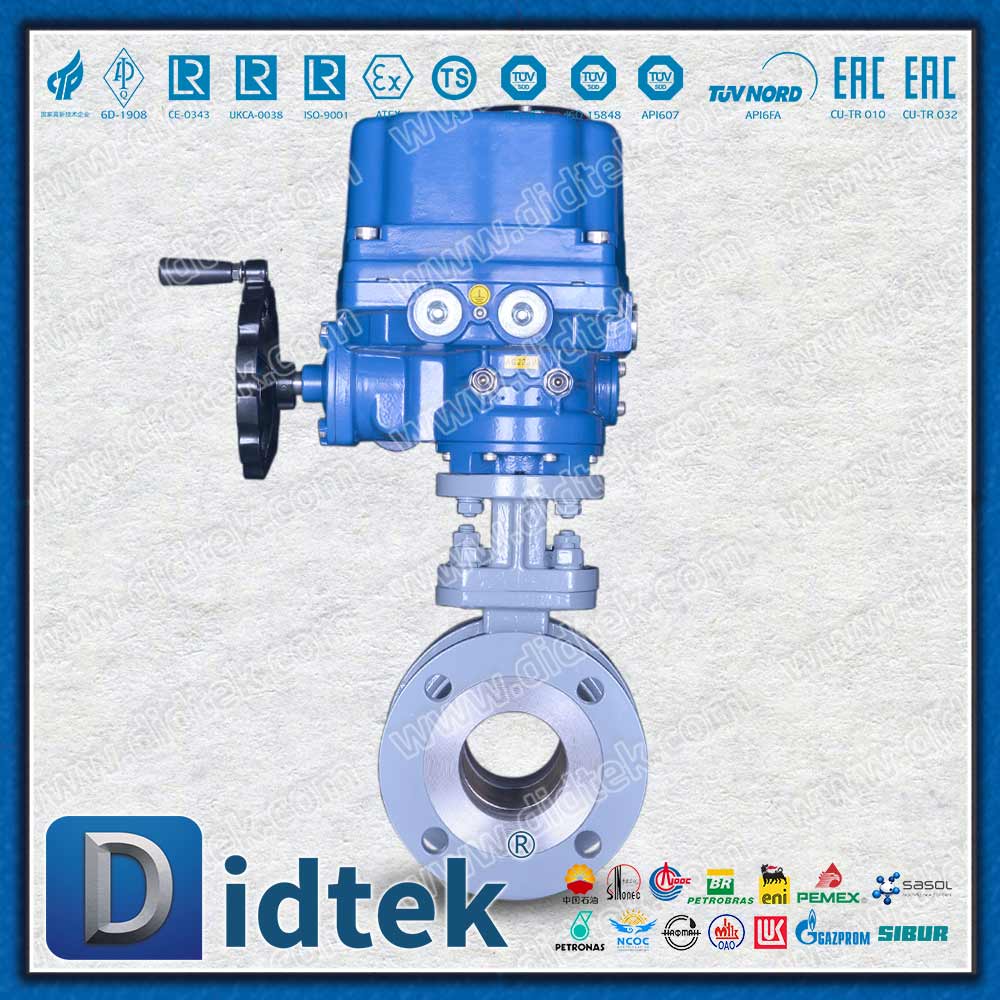

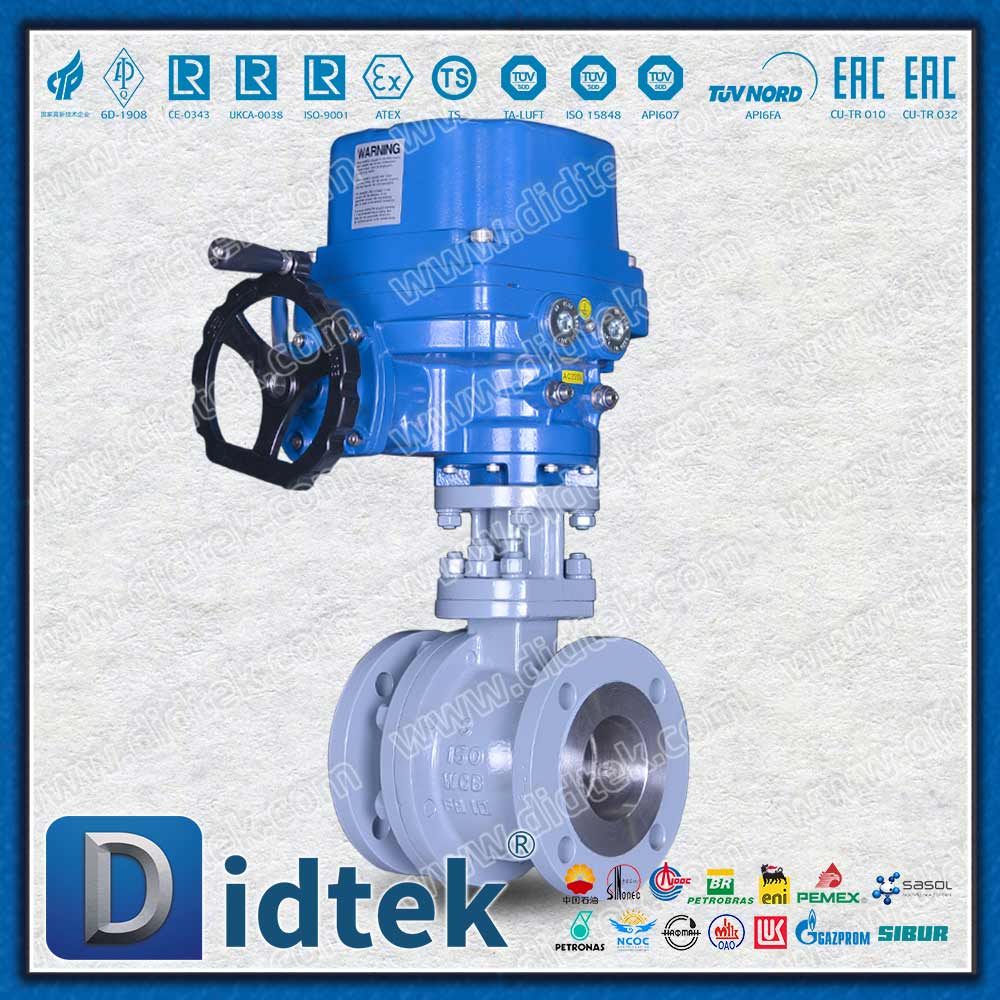

Electric Motor Explosion Proof ATEX 200℃ PEEK Seat Electric Ball Valve

Product Overview

The explosion-proof electric PEEK valve seat ball valve is a high-end automated valve that integrates explosion-proof safety, high-temperature performance and intelligent control. The product adopts ATEX-certified explosion-proof electric actuators and high-temperature resistant PEEK valve seats, achieving reliable shut-off and intelligent control in 200℃ high-temperature and explosive environments. It is an ideal solution for hazardous environments such as petroleum, chemical, and pharmaceutical industries.

Technical specifications

Product features

1. ATEX explosion-proof electric actuator

Intrinsic safety design

Complies with the ATEX 2014/34/EU directive

Explosion-proof mark: II 2G Ex d IIC T6 Gb

Applicable to Zone 1 and Zone 2 hazardous areas

High-performance motor

Fully enclosed explosion-proof structure with excellent heat dissipation performance

Overheat protection, automatic temperature monitoring

Torque range: 10 Nm - 3000 Nm

2. High-temperature PEEK valve seat system

Outstanding temperature resistance

Continuous operating temperature: +200℃

Short-term peak temperature: +240℃

Maintain stable mechanical properties at high temperatures

Outstanding mechanical properties

Compressive strength: ≥ 100 MPa

Low coefficient of friction and long service life

Excellent creep resistance

3. Intelligent control system

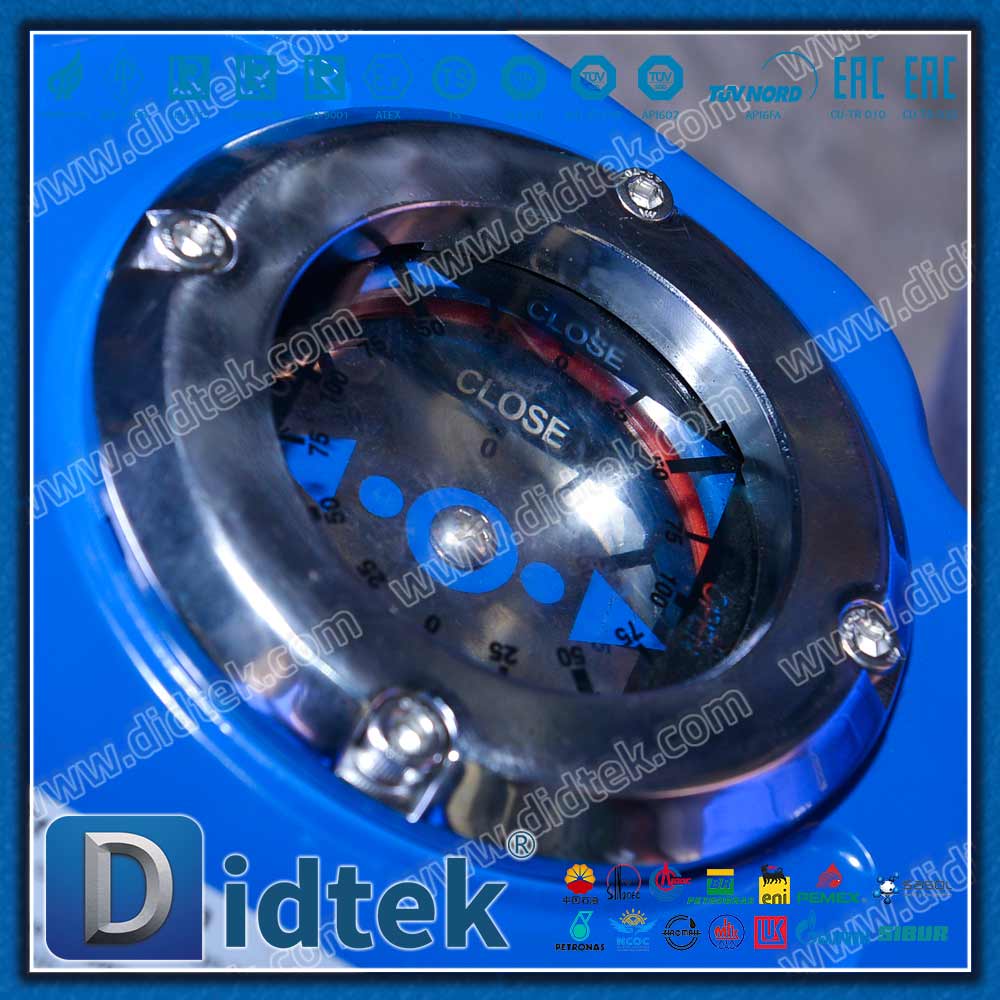

Precise position control

Switch type: Precise control by limit switches

Adjustable type: Precise regulation of 4-20mA signal

Positioning accuracy: ±1%

Intelligent diagnostic function

Overload protection

Overheat protection

Phase sequence protection

Instantaneous reverse protection

4. Safety protection design

Fire safety: Complies with API 607 standard

Anti-static design: The resistance between the ball, valve stem and valve body is less than 10 Ω

Emergency manual: In case of power failure, emergency operation can be carried out through the handwheel

Application field

1. Petrochemical industry

Explosion-proof area of the oil refining unit

Feed control for chemical reaction vessels

Solvent recovery system

2. Pharmaceutical food

Explosion-proof clean workshop

High-temperature sterilization system

Active pharmaceutical ingredient production line

3. Energy and electricity

Boiler fuel system

High-temperature steam control

Explosion-proof area of power station

4. Special applications

Storage and transportation of hazardous chemicals

Explosive gas environment

High-temperature explosion-proof working conditions

Summary

The explosion-proof electric PEEK valve seat ball valve has passed the top-level explosion-proof certification, and the high-temperature sealing technology and intelligent control system are perfectly combined to provide industrial users with

Absolute safety guarantee: ATEX explosion-proof certification ensures safety in hazardous environments

Outstanding high-temperature performance: PEEK valve seat, reliable sealing at 200℃

Intelligent control experience: Precise electric control, easy integration into automation systems

Long operating life: High-quality materials and precise manufacturing ensure long-term stable operation

This product is an ideal choice for high-temperature working conditions in explosive hazardous environments. With its outstanding safety performance and reliable quality, it provides a perfect solution for industrial automation control.
