2500LB forged ball valve for water injection: high pressure solution

Water injection and Enhanced Oil Recovery (EOR) systems operate under brutal conditions. They combine extreme pressure, continuous cycling, and highly corrosive media into one harsh environment. You need equipment engineered specifically to handle these compounding forces without compromise.

Standard or cast valves inevitably fail under the immense mechanical stress of Class 2500 applications. Operators frequently experience body porosity leaks, rapid seat deformation, and dangerous stem blowouts. These structural failures halt production immediately and create severe safety hazards on site.

A high pressure forged ball valve provides the baseline structural integrity required for these environments. We will explore why precision-engineered sealing mechanisms and forged bodies are mandatory. You will learn how to properly evaluate trunnion designs, advanced engineering polymers, and critical compliance standards.

Key Takeaways

• Material Integrity: Forged steel (A105 or F316) is non-negotiable for 2500LB applications to eliminate the micro-porosity risks inherent in cast bodies.

• Sealing Technology: At ASME Class 2500 pressures, standard PTFE seats fail; engineering plastics like PEEK or metal-to-metal seals are mandatory.

• Structural Design: Trunnion-mounted, 3-piece designs with RTJ (Ring Type Joint) flanges are critical for absorbing thrust loads and preventing fugitive emissions.

• Compliance: Verifiable API 6D and ASME B16.34 compliance, backed by rigorous hydrostatic and pneumatic testing, is the primary benchmark for vendor shortlisting.

The Engineering Realities of EOR and Water Injection Valve Selection

Success in EOR relies on highly specific system criteria. You must achieve zero-leakage isolation across all pipeline segments. The equipment must actively resist high-velocity particulates like sand and sediment found in produced water. The system must also remain immune to violent pressure surges during pump start-ups.

Why is forging mandatory? A 2500LB ball valve handles ambient working pressures hovering around 6000 PSI. Cast bodies contain inherent micro-porosities from the cooling process. These tiny internal voids become catastrophic failure points under extreme hydraulic load. Forged steel offers unmatched metallurgical density. The heavy forging process aligns the grain structure of the metal. It prevents housing ruptures during sudden hydraulic shocks and extreme cycling.

Valve failure carries severe operational penalties. A compromised valve halts injection rates immediately. It creates significant environmental hazards if toxic media escapes. Severe operational downtime follows every blowout incident. Operators face massive daily production losses while waiting for replacements. We must treat component selection as a strict safety mandate rather than a simple purchasing decision.

Critical Evaluation Dimensions: Structural and Sealing Components

We must evaluate the core structural components before installation. The choice between trunnion-mounted and floating designs is remarkably simple. Floating ball valves are universally disqualified at this extreme pressure rating. The hydraulic thrust load pushes the ball directly into the downstream seat. At 6000 PSI, this force is simply too massive. It crushes standard seats instantly and locks the valve.

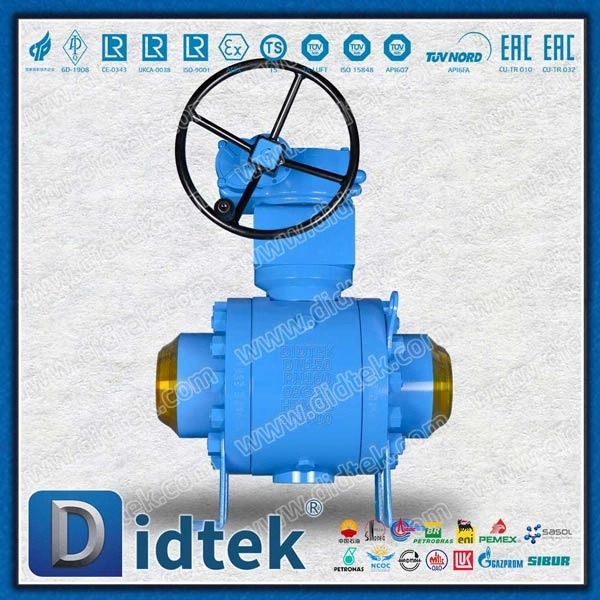

Trunnion mounting shifts this massive thrust load entirely. The upper and lower trunnion blocks transfer hydraulic force directly to the massive forged valve body. This mechanism protects the soft seats from mechanical crushing. It ensures smooth operation under maximum differential pressure. An ASME Class 2500 valve relies entirely on this specific load distribution to function safely.

Sealing materials dictate long-term reliability. Standard PTFE suffers from severe plastic deformation under extreme load. The immense hydraulic forces cause PTFE to extrude out of the seal pockets. PEEK provides significantly higher mechanical strength. It resists extrusion and maintains a reliable seal. PEEK also prevents explosive decompression when handling volatile media.

Sealing Material Comparison Chart

Connection types require equal scrutiny. You must specify Ring Type Joint (RTJ) flanges for high-vibration piping. Raised Face (RF) flanges rely on flat gaskets. These gaskets blow out easily under 6000 PSI of pressure. RTJ flanges utilize a solid metal ring. This ring compresses directly into a machined groove. It forms a secure, leak-proof metal-to-metal seal.

Material Selection for Corrosive High-Pressure Environments

Choosing between Carbon Steel (A105) and Stainless Steel (F316) dictates system longevity. You must base this decision entirely on the injection fluid's chemical makeup. Salinity levels and H2S content degrade basic metals rapidly. Carbon steel works exceptionally well for treated, non-corrosive water. Stainless steel becomes absolutely necessary when chlorides or harsh chemicals are present.

Highly corrosive EOR applications require additional structural defense. You often need cladding or weld overlays to protect vulnerable areas. Engineers specify Inconel 625 for seal pockets and ring grooves. It prevents localized pitting where the seals sit. This internal overlay extends the lifecycle of an EOR ball valve significantly. It offers premium corrosion resistance without the expense of a fully exotic solid body.

NACE MR0175 compliance is mandatory for sour service environments. This standard dictates strict hardness controls across the entire assembly. Hydrogen sulfide (H2S) attacks hard metals, causing rapid sulfide stress cracking (SSC). The ball, stem, and body materials must remain below specific Rockwell hardness levels. We must verify these exact hardness levels during the initial procurement phase.

Performance Verification: API 6D and ASME Class 2500 Standards

Regulatory baselines define safety in high-pressure pipeline systems. Every forged steel ball valve must pass specific, rigorous testing requirements. API 6D governs heavy-duty pipeline valve specifications. API 598 dictates daily valve inspection and testing routines. ASME B16.34 establishes strict pressure-temperature ratings based on wall thickness and material strength.

Buyers must heavily scrutinize Factory Acceptance Testing (FAT) reports. We strongly recommend demanding specific verifications before shipment:

1. High-pressure hydrostatic shell tests: Tests the forged body at 1.5 times the maximum rated working pressure to ensure zero housing leaks.

2. Low-pressure air seat tests: Verifies the integrity of the PEEK seals at low pressures, which is notoriously harder to seal than high pressure.

3. Torque testing under maximum differential pressure: Proves the actuator can actually turn the ball when full pipeline pressure pushes against one side.

Traceability proves material origin and quality. You must strictly require Material Test Reports (MTRs) for every pressure-containing part. EN 10204 3.1 or 3.2 certification is essential here. It verifies the exact chemical composition, yield strength, and heat treatment process of the raw forged steel. Without traceability, you risk installing substandard counterfeit metals.

Implementation Risks and Shortlisting Logic

Port sizing impacts fluid flow dynamics significantly. You must consciously decide between full bore and reduced bore configurations. Full port designs match the internal diameter of the pipeline perfectly. They minimize pressure drop across the system. They are absolutely necessary for pipeline pigging and cleaning operations. Reduced bore valves save considerable space and weight. They work well where slight flow restrictions are acceptable to the operator.

Port Sizing Comparison

Actuation readiness is a major implementation hurdle. A Class 2500 system requires massive operational breakaway torque. You must carefully evaluate heavy-duty pneumatic, hydraulic, or electric actuators. The actuator must handle maximum breakaway torque consistently. A dedicated water injection valve often requires specialized hydraulic power units to generate sufficient turning force.

Procurement teams need a structured vendor vetting matrix. Use these criteria to evaluate potential manufacturing partners:

• Do they manufacture the forged bodies in-house or merely assemble outsourced parts?

• Can they provide comprehensive non-destructive testing (NDT) records, including Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI)?

• What are their standard lead times for high-alloy, fully tested configurations?

• Do they have in-house high-pressure testing bunkers capable of reaching 10,000 PSI safely?

Conclusion

Sourcing a 2500LB component is fundamentally a strict risk-mitigation exercise. Operational success relies entirely on adherence to forged materials. You must specify robust trunnion designs and advanced engineering polymers. Standard commercial options will fail predictably under these extreme conditions. Your infrastructure demands precision engineering to prevent catastrophic downtime.

Engineers and procurement teams must align early in the project. Finalize your exact media specifications regarding temperature, particulate count, and corrosivity first. Request detailed General Arrangement (GA) drawings from potential suppliers. Always demand certified torque charts from prospective manufacturers before you issue any purchase orders. These steps guarantee proper actuator sizing and seamless field integration.

FAQ

Q: What is the maximum working pressure for an ASME Class 2500 valve?

A: The pressure-temperature rating curve determines this limit. For carbon steel materials, the maximum working pressure reaches approximately 6000 to 6170 PSI at ambient temperatures. This rating decreases as operational temperatures rise. Always consult the specific ASME B16.34 material charts for your chosen alloy.

Q: Why is PEEK preferred over PTFE in a high pressure forged ball valve?

A: Standard PTFE suffers from severe plastic deformation under extreme load. The immense hydraulic forces at Class 2500 pressures cause PTFE to extrude out of the seal pockets. PEEK provides significantly higher mechanical strength. It resists extrusion and maintains a reliable seal under immense differential pressure.

Q: Can a 2500LB valve be used for both water injection and gas lift?

A: Yes, they are structurally sound for both applications. However, gas lift environments require stricter fugitive emission testing. You must also specify explosive decompression-resistant (AED) O-rings. Gas permeates standard elastomers under high pressure, causing them to rupture when pipeline pressure rapidly drops.

Q: What is the standard lead time for customized forged steel EOR ball valves?

A: Industry benchmarks typically range from 8 to 16 weeks. This timeline depends heavily on raw material availability and specific testing requirements. Exotic alloys, strict NACE compliance checks, and intensive NDT procedures generally push deliveries toward the longer end of this spectrum.
