How To Install And Maintain Butt Weld Gate Valves

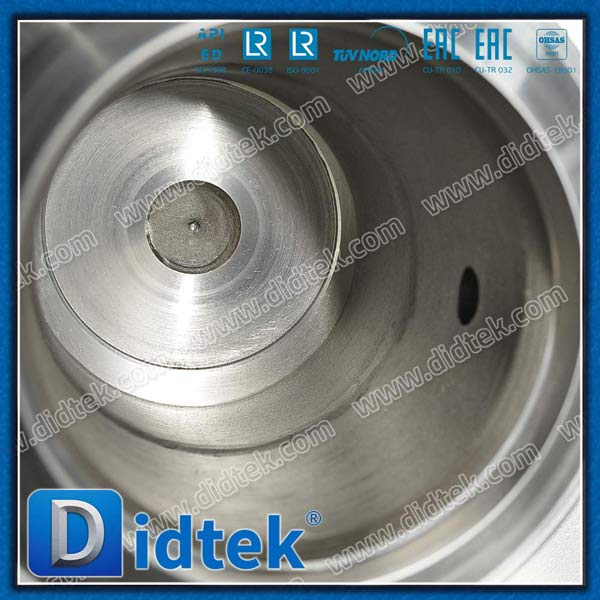

You need to install a butt weld gate valve with care to keep your system safe and working well. When you choose a high-quality valve like the Didtek F91 Forged Steel Butt Welded Gate Valve With Bypass, you get reliable operation at any pressure. Clean parts and proper alignment help you avoid leaks and damage. Regular maintenance keeps your valve strong and ready for tough jobs.

Tools and Preparation for Butt Weld Gate Valve Install

Required Tools and Materials

You need special tools and supplies to put in a butt weld gate valve. The right items help you make a tight, leak-free seal. This keeps your pipes safe. Here are the things you need for a valve like the Didtek F91:

• Gate valve that fits your pipe size

• Pipe wrenches or tools for flange bolts

• Gaskets or sealing tape if needed

• Torque wrench for flanged pipes

• Cloth to clean the surfaces

• Gloves and safety gear

• Pressure testing tools for checking leaks

Good tools and supplies matter a lot. The Didtek F91 valve is made from strong steel that does not rust. This steel can handle high pressure and heat. Using the right tools and supplies helps your valve last longer and work well.

Safety Equipment and Checks

Safety is very important when working with pipes. Always wear gloves, safety glasses, and tough clothes. Before you begin, make sure you have all your tools and supplies.

Do these checks before you start:

1. Find the flow arrow on the valve body.

2. Clean the pipe ends and remove dirt.

3. Make sure pipes are straight and lined up.

4. Leave 5 to 10 pipe widths of straight pipe before the valve.

5. Use hangers to hold the pipe so the valve does not hold weight.

6. Pick the right seal for your pipe type.

Check the pressure rating and material of the valve and pipes. This makes sure they match and work safely together. After you finish, use pressure testing tools to look for leaks and make sure the fit is tight.

Tip: Getting ready with the right tools helps you avoid trouble and keeps your system working well.

Step-by-Step Guide to Butt Weld Gate Valve Installation

Cleaning and Sizing

You start every installation by making sure your parts are clean. Dirt, oil, and grease can cause problems in your system. Wipe the pipe ends and the butt weld gate valve with a clean cloth. Store your valve in a safe place until you are ready to install it. Cleanliness helps your valve work well for a long time.

Next, check the size of your pipes and the valve. Use a tape measure to confirm the pipe diameter matches the correctly sized gate valve. Look at the pressure rating on both the valve and the pipe. This step keeps your system safe and prevents leaks. If you install a gate valve that does not fit, you risk damage and poor performance.

Tip: Always clean your parts and check sizing before you connect the valve. This step protects your system from early failures.

Alignment and Welding Gap

You need to align the pipes and valve before welding. Proper alignment stops side-load on the valve body and keeps your system strong. Place the valve between the pipes and make sure everything lines up straight.

Set a small gap between the pipe ends and the valve. This gap should be about 1/16 inch (1–2 mm). The gap allows for thermal expansion during welding. Mark the pipe at the correct depth so you can check the gap as you weld.

Here are best practices for alignment and welding gap:

• Align the piping to avoid side-load on the valve body.

• Maintain a gap of 1/16 inch for thermal expansion.

• Mark the pipe for correct insertion depth.

• Tack weld at several points to lock alignment.

• Blend tack welds into the final weld.

Note: Careful alignment and gap setting help you achieve a leak-free joint and keep your system safe.

Welding and Valve Positioning

You must use the right welding techniques to connect the valve. Butt welding follows ASME B16.25 standards. Prepare the pipe ends with proper beveling. Control the heat during welding to protect the valve parts. Skilled welders make strong seams, especially on large valves.

Valve preparation is important. Make sure the ends are smooth and ready for welding. Tack weld first, then finish with a continuous weld around the joint. This step ensures a tight seal.

Position the valve correctly for best performance. The stem should point up. This position keeps debris out and makes lubrication easy. If you cannot place the stem up, horizontal is acceptable, but you must support heavy valves.

Tip: Always position the valve correctly to avoid wear and make maintenance easier.

Post-Install Inspection

After you finish welding, you need to inspect your work. This step-by-step guide helps you check for leaks and make sure your valve is ready for use.

1. Open the valve halfway before you test the pressure. This lets the pressure reach all parts of the valve.

2. Vent all high points to remove trapped air. Air can cause dangerous failures during testing.

3. Increase the pressure slowly. Hold at each stage to let the system stabilize.

4. Hold the test pressure for the required time. Inspect all joints for leaks.

5. Check the valve seats for leaks. Watch for any pressure rise or visible leakage.

Final tightening and commissioning come last. Make sure all bolts and connections are tight. Start your system and watch for leaks or problems. If you follow this systematic installation process, your butt weld gate valve will work safely and efficiently.

Callout: Careful inspection and testing protect your system and ensure your valve performs well.

Butt Weld Gate Valve Maintenance

Inspection and Lubrication

You need to inspect the valve often to keep your butt weld gate valve working well. Regular checks help you spot problems early and avoid costly repairs. Use this table to guide your routine inspection steps:

You should lubricate the valve stem and moving parts often. For valves you use a lot, add grease every few months. For valves you use less, once or twice a year is enough. This keeps the valve easy to operate and helps prevent wear.

The Didtek F91 butt weld gate valve has renewable seat rings. You can replace these rings without changing the whole valve. This makes maintenance simple and saves time. The bypass feature helps balance pressure before you open the main valve. This reduces wear and makes it easier to operate.

Tip: Always inspect the pipeline and check for leaks during your routine checks. Clean parts and fresh grease help your valve last longer.

Troubleshooting and Longevity

Sometimes, you may find issues like leaks or trouble opening the valve. Here are common problems and how you can fix them:

• Debris can block the valve. Dirt or other materials may get stuck between the plug and seat. This can stop the valve from closing.

• If you see a leak around the stem, tighten the packing nut. If the leak does not stop, replace the packing material.

• If the valve will not close, try to flush out debris by cycling the valve open and closed. If this does not work, remove the valve, clean it, and reinstall it.

• If you find heavy corrosion or damage, replace the valve.

To keep your butt weld gate valve working for years, always pressure test the system after repairs. Test the valve and inspect the valve seats for leaks. The renewable seat rings and bypass on the Didtek F91 make these steps easier. When you follow these steps, you help your system run safely and smoothly.

Note: Good maintenance and regular checks help your valve last longer and keep your system safe.

If you install and take care of your butt weld gate valve, it will work safely. Clean parts and good alignment help stop leaks. Regular checks keep the environment safe from spills or other harm.

• When you follow rules like API and ASME, your work is safer.

• Picking a strong gate valve like the Didtek F91 gives you good results for a long time.

If the job is hard, ask an expert for help. This keeps your system working well.

FAQ

How often should you inspect a butt weld gate valve?

You should check your valve at least once a month. Regular inspection helps you find leaks or damage early. This keeps your piping system safe and working well.

Can you install a butt weld gate valve without special tools?

You need some special tools for a strong, leak-free joint. These tools help you align and weld the valve correctly. Using the right tools protects your piping system.

What does the bypass feature do on the Didtek F91 valve?

The bypass feature lets you balance pressure before you open the main valve. This makes it easier to operate and reduces wear on the valve parts.

How do you know if the valve is installed correctly?

Check for leaks after installation. Make sure the valve stem points up or is well supported. The valve should open and close smoothly in your piping system.

What should you do if the valve leaks after installation?

Tighten the packing gland bolts. If the leak continues, replace the packing material. Always test the valve again to make sure your system is safe.
