Ball Valve vs Gate Valve: Which One is Right for Your Application?

Ball Valve vs Gate Valve: Which One is Right for Your Application?

There are a variety of valves on the market, and choosing the right valve to meet your needs and apply it to actual working conditions is not a simple matter. Here, Didtek will explore the main differences between ball valve and gate valve to help you make a more correct choice.

Selecting the appropriate valve plays a crucial role in protecting your pipeline system and ensuring optimal performance. Both ball and gate valves are designed to control and restrict flow, but which offers better durability and leak resistance? Let's take a closer look.

What Is the Main Difference Between a Ball Valve and a Gate Valve?

Although ball valves and gate valves perform similar functions—controlling fluids—their internal structures are very different.

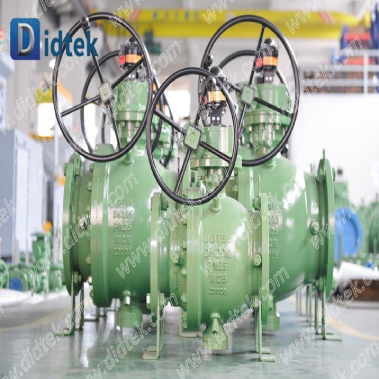

Ball valve operate with a rotatable hollow ball. The ball rotates horizontally within the valve body and is connected to the valve stem, hence the name "rotary valve." These valves are ideal for applications that require reliable on-off control and minimal pressure drop.

Gate valve control flow with a gate that moves vertically up and down to open or close the fluid path. Because of the flat sealing surface between the gate and the valve seat, gate valves are better suited for applications that require straight-through, unrestricted flow.

How Does a Ball Valve Work?

Ball valve uses a spherical structure as a valve disc. There is a circular through hole on the ball. The ball rotates to connect the two ends of the pipeline or cut off the pipeline fluid. When the circular hole on the ball is consistent with the flow direction at both ends of the valve, the valve opens to connect the two ends of the pipeline valve; when the ball channel hole is perpendicular to the flow channel at both ends of the valve, the fluid is cut off.

The ball valve is famous for its simple operation, quick closing and strong sealing performance.

How Does a Gate Valve Work?

Gate valve uses a gate-like disc that slides vertically between two seats to start or stop fluid flow. Due to their construction, gate valves are more susceptible to corrosion and internal wear, which can lead to leakage, blockage, or long-term operational failure. Compared to ball valves, gate valves generally require a larger operating space and take longer to open or close. This type of valve is not suitable for throttling and is best used in the fully open or fully closed position.

Ball Valve vs Gate Valve: Which Is Better?

Ball valves generally offer better performance, especially in terms of:

• Durability: They can withstand frequent use without degrading.

• Leak resistance: They provide a tight seal and 100% shutoff.

• Ease of use: Quick quarter-turn operation makes them simple and efficient.

While ball valves may have a slightly higher upfront cost than gate valves, the long-term benefits—such as lower failure rates, reduced maintenance, and better sealing—far outweigh the price difference.

That said, if precise flow control is required (throttling), neither ball nor gate valves are ideal; globe valves would be a better fit.

Conclusion

When choosing between ball valves and gate valves, consider your application's specific requirements. For reliable shutoff, long service life, and minimal leakage, ball valves are often the superior choice. Gate valves still have their place in certain scenarios but may demand more maintenance and come with increased risk of performance issues over time.

Let Didtek help you select the best valve solution for your system. Reach out to our team for expert advice and high-quality products tailored to your needs.
