High-Performance Electric Control Valve | Precision Flow Control

Didtek High-Performance Electric Control Valve represents the pinnacle of precision fluid regulation for modern industry.

Model:
J942-16R
Brand:
DIDTEK
Code:
COV-SPRCV-010

Availability:

Quantity:



Inquire

Electric Modulating Control Valve Precision Flow Control Valve with Actuator Smart Electric Linear Control Valve 4-20mA Electric Actuated Valve Industrial Automatic Regulation Valve Manufacturer

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

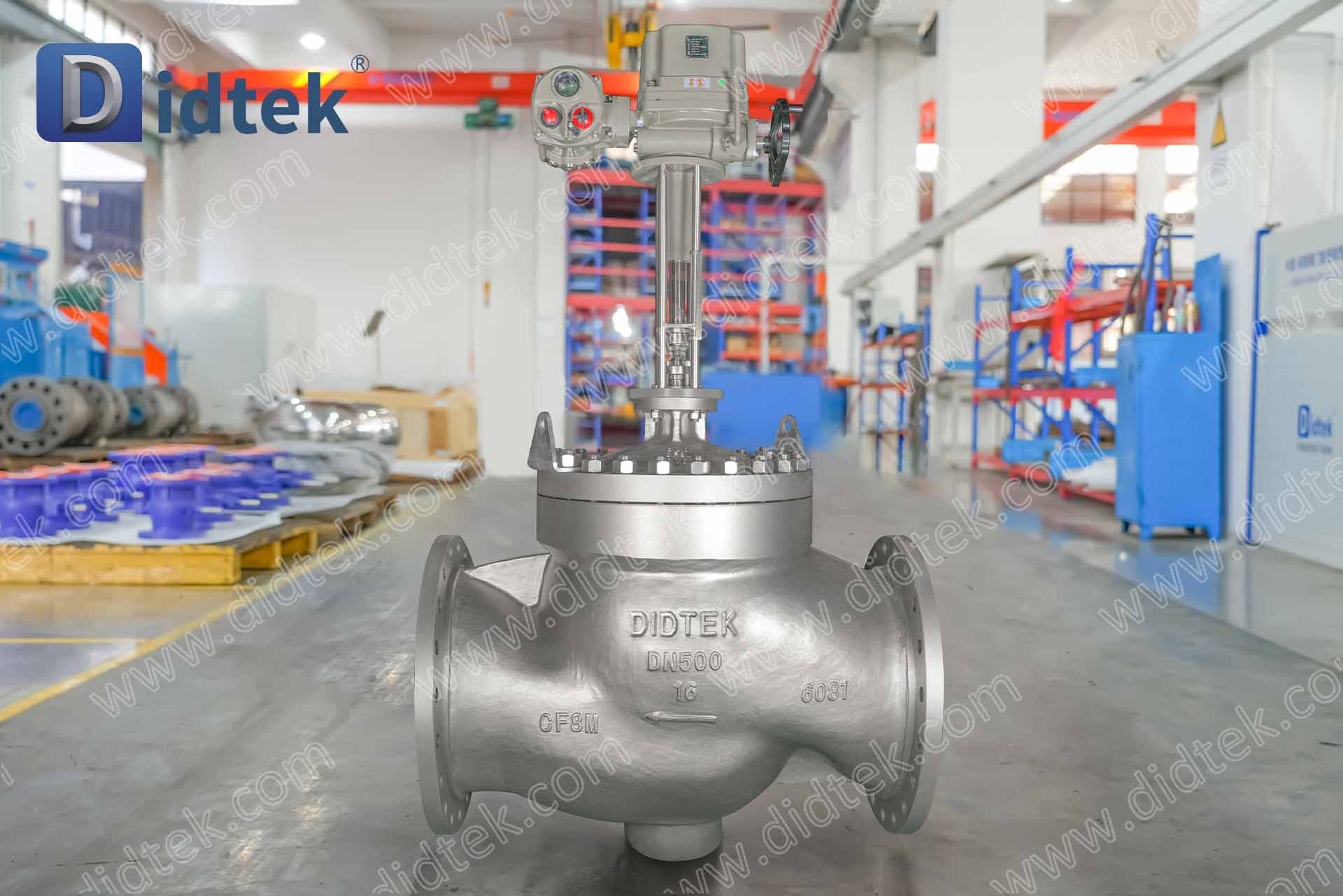

The Didtek High-Performance Electric Control Valve represents the pinnacle of precision fluid regulation for modern industry. Integrating a highly responsive smart electric actuator with a fluid-dynamically optimized valve body, it is designed to provide millisecond-accurate adjustment of flow, pressure, and temperature for complex processes. Its core strengths lie in high modulating accuracy and long-term stability, receiving 4-20mA or digital bus signals for seamless integration with PLC/DCS automation systems. Whether in fine chemicals, power plant desuperheating, or biopharmaceuticals, it is the ideal choice for process optimization and energy efficiency. B-10-DIDTEK-High-Performance-Electric-Control-Valve--Precision-Flow-Control

Product Parameters

Parameter Name	Parameter
Size Range	DN500
Pressure Range	PN16
Material	CF8M
Seal	SS316+GRAPHITE
Temperature Range	-17°C~150°C
Design According	ASME B16.34
End to End Dimension	ASME B16.5
End Flanges	EN 1092-1
End Connection Type	Flanged
Fire Safety	API607
Inspection and Test	ANSI B16.104
Operate	Electric
Body Type	Globe
Type of Valve	Control Valve
Suitable Medium	Water, oil, acid, alkali, solvent, various chemicals, air, nitrogen, natural gas etc.

Design Description

High-Precision Smart Positioning: Built-in digital positioner with high resolution and minimal dead-band ensures perfect alignment between control signal and valve travel, achieving accuracy up to ±1%.
Optimized Flow Characteristics: Available in Equal Percentage, Linear, and Quick-Opening profiles. Trims feature anti-cavitation and noise-reduction designs for stable and quiet operation.
Heavy-Duty Electric Actuator: Features brushless motor technology with overload protection, manual override, and electronic limit switches. Supports Modbus, Hart, and Profibus protocols.
Superior Sealing Integrity: Leakage classes available in Class IV, V, or VI per FCI 70-2, paired with multi-layer pressure-compensated packing for minimal fugitive emissions.
Wide Material Compatibility: Available in WCB, CF8, CF8M, and specialty alloys like Duplex Steel and Titanium for applications ranging from water treatment to highly corrosive media.

Parameters

Brand	DIDTEK
Structure	Control Valve
Material	CF8M
Type	Control Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

High-Performance Electric Control Valve | Precision Flow Control are widely utilized in demanding environments due to their superior material properties:

Oil & Fine Chemicals: High-precision batching control and reactor pressure regulation.
Power & Energy: Boiler feedwater regulation, steam desuperheating systems, and condensate control.
Food & Biopharma: Precision temperature and flow ratio control under strict sanitary requirements.
Metallurgy & Environment: Automatic pH adjustment in exhaust gas treatment and water purification systems.
