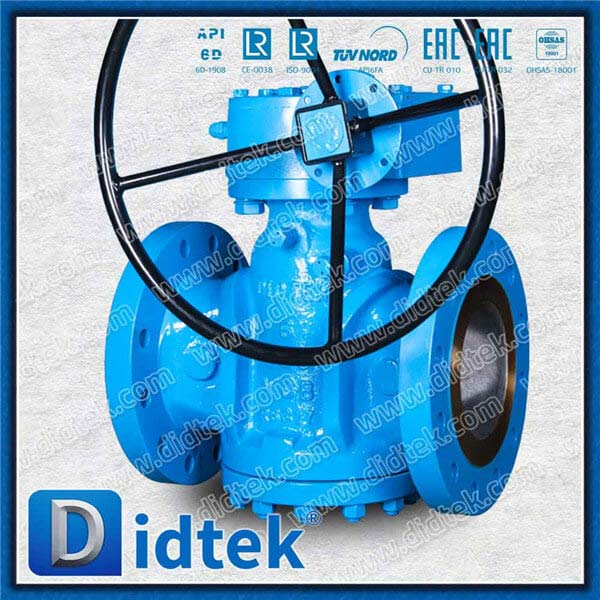

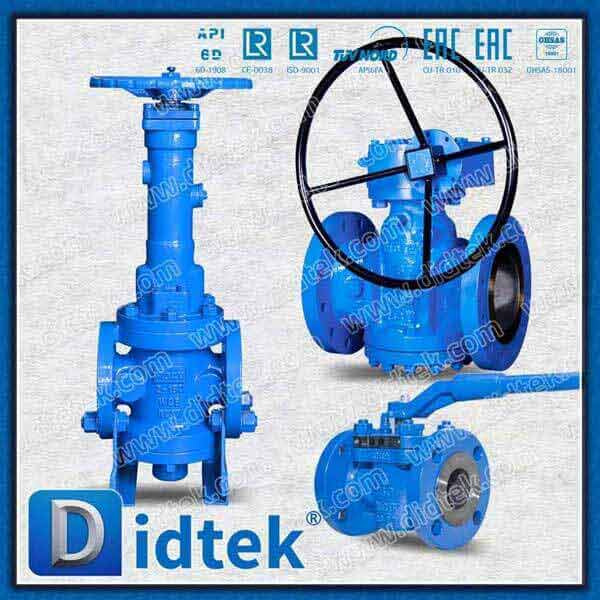

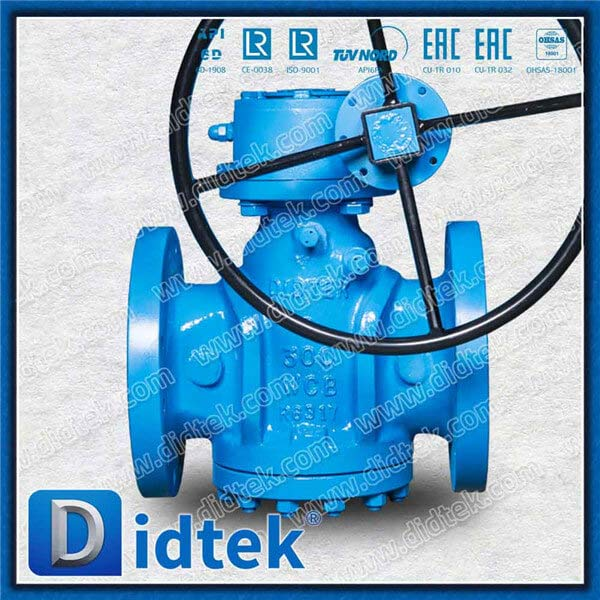

Balance Lubricates Plug Valve
Design according to API599/API6D
Face to face ASME B16.10
End Flanges ASME B16.5/ASME B16.47-AB
Butt welded ends ASME B16.25
Inspection and test API 598
Size Range: 1/2"~14"
Pressure Rating: 150LB~600LB
- With one machined seat & blow-off,cover & gasket design
|Valve Material||Didtek provide cast steel, stainless steel, special alloy, CI, DI etc|
|Valve Type||Didtek Produce Plug Valve|
|Valve Test||100% quantity tested before delivery|
|Valve Guarantee||18 months after shipments and 12 months after installed|
|Valve Structure||Plug Valve|
|Valve Delivery||15 - 30 days|
|Valve Sample||Sample Available by Didtek Valve|
|Valve Color||Customer request|
|Valve Packing||Plywood Case for Plug Valve|
|Place of Origin||Zhejiang, China (Mainland)|
|Delivery Detail:||Shipped in 15-30 days after payment|
|Port||Shanghai Or Ningbo|
|Payment Terms||L/C,D/A,D/P,T/T, Western Union|
Application & Function:
Didtek Plug Valve is a kind of valve which is drove by stem , and disc will be turned around the shaft.
Plug Valve is the earliest valve type for human to use to stop the medium. Through 90° turning, the port of the plug and the port of the body can connect and break, then valves can open and close.
Plug valves is the best chose for stopping and shunting. But according to medium, and sealing face, through special design and change the channel shape of plug valves, it becomes suitable for shunting situation. Because of the friction between two sealing faces, so plug valves are also suitable for medium with suspended particles..
