D643H-C
DIDTEK
TBV-DTOFBV-016
| Availability: | |
|---|---|
| Quantity: | |
Product Detail |

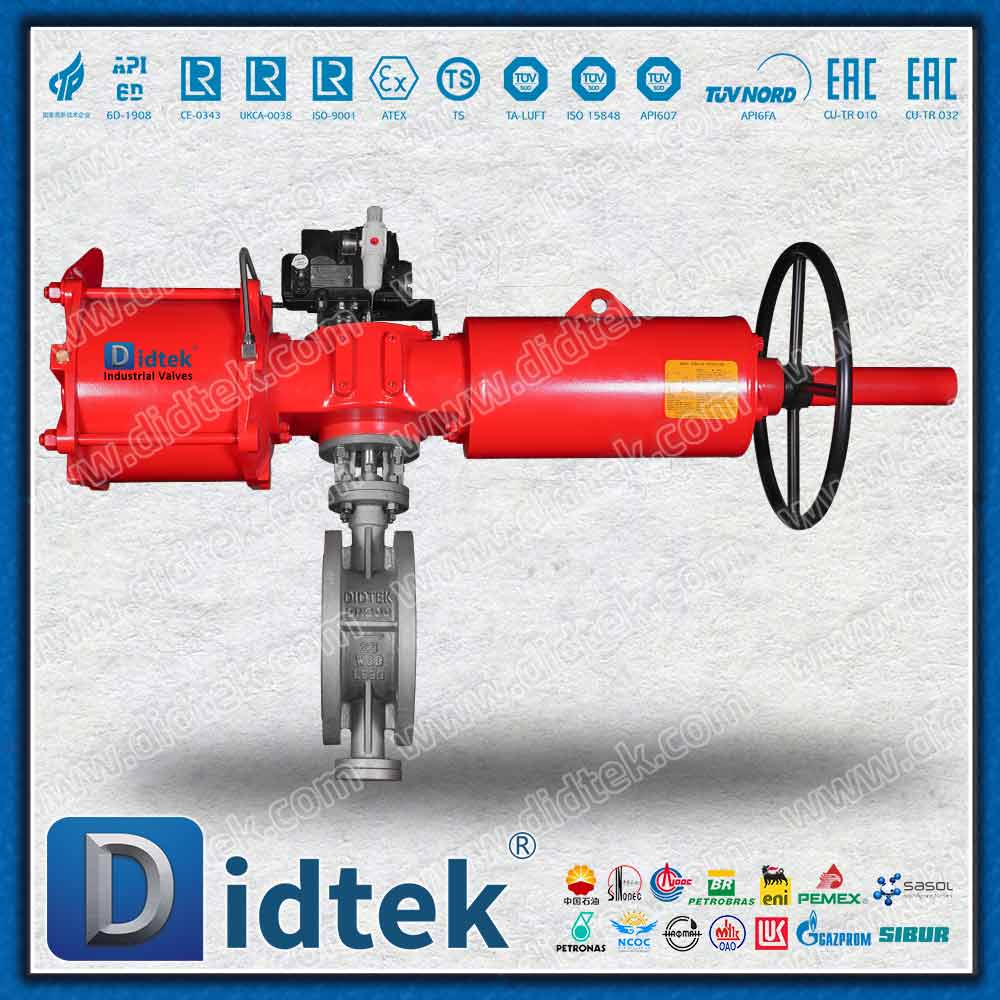

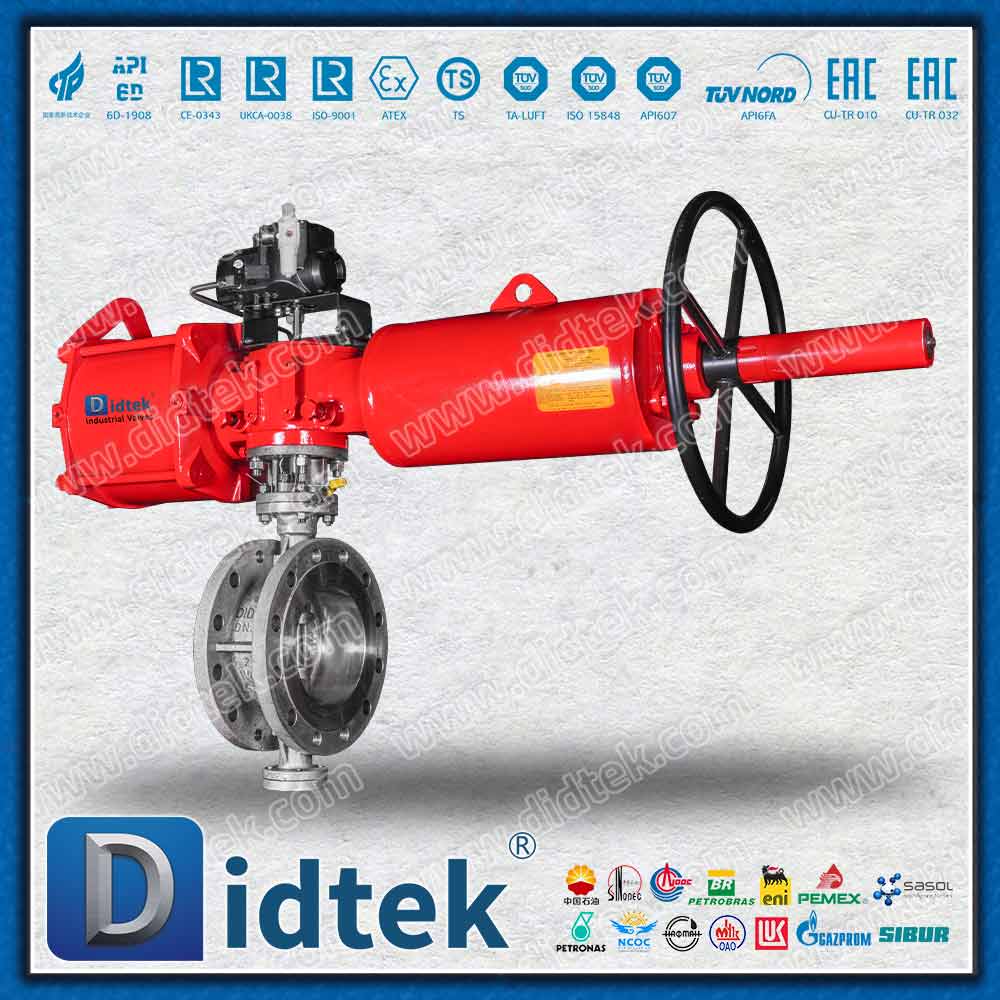

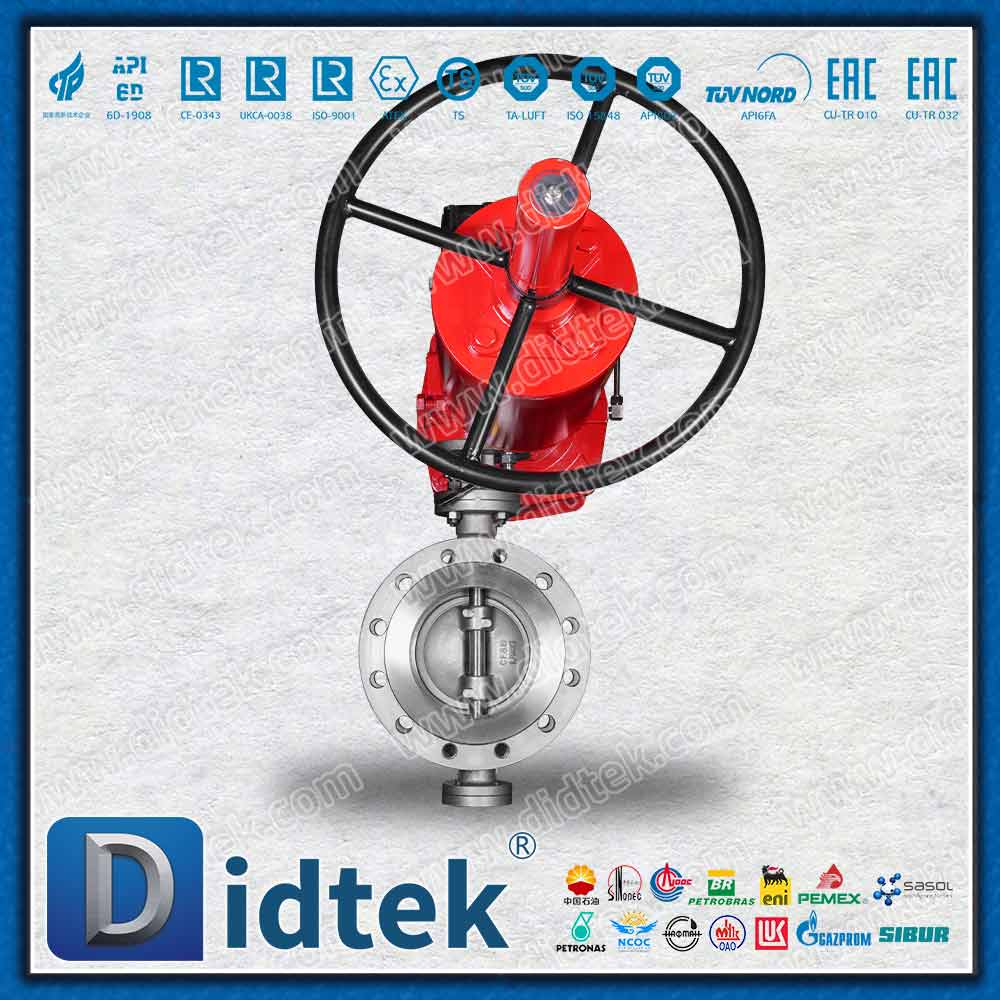

The Single Acting Pneumatic Triple Offset Butterfly Valve with TISSIN Positioner is an elite, high-performance automated control and isolation assembly engineered for severe-service industrial processes.
Product Parameters |
| Parameter Name | Parameter |
| Size Range | 8'' |

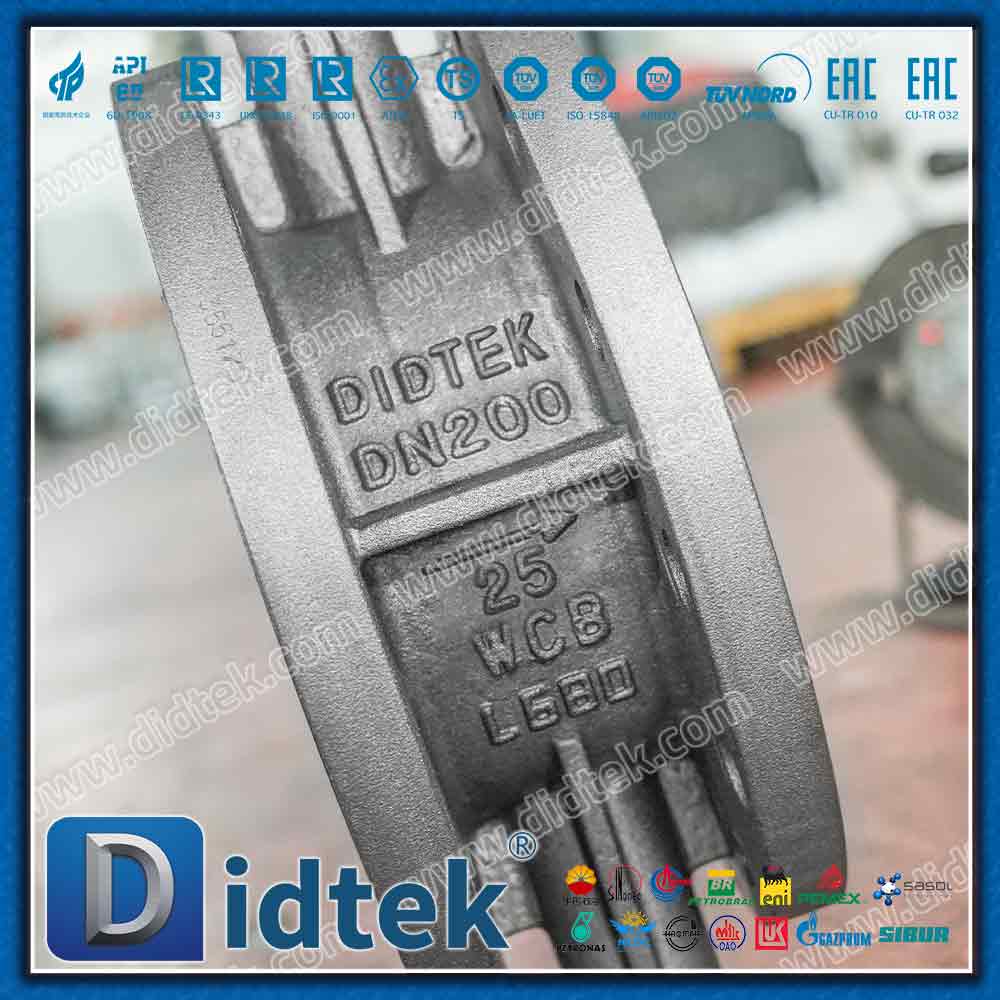

| Pressure Range | DN200 |
| Material | WCB |
| Disc | A351 CF8M |
| Temperature Range | -29°C~425°C |
| Design According | API 609 |
| Face to Face | EN 558-1 |
| End Flanges | EN 1092-1 |
| End Connection Type | RF |
| Fire Safety | / |
| Inspection and Test | API 598 |
| Operate | N/A |
| Body Type | Split Body |
| Type of Valve | Triple Offset Butterfly Valve |
| Suitable Medium | Water |
Design Description
Zero-Friction Triple Offset Design: The eccentric geometry ensures the disc lifts off the seat immediately upon opening, eliminating seating friction, reducing operating torque, and extending seal life.
Fail-Safe Single Acting Actuation: Built-in spring return mechanism automatically drives the valve to a pre-defined safe position (fail-open or fail-closed) upon loss of pneumatic supply.

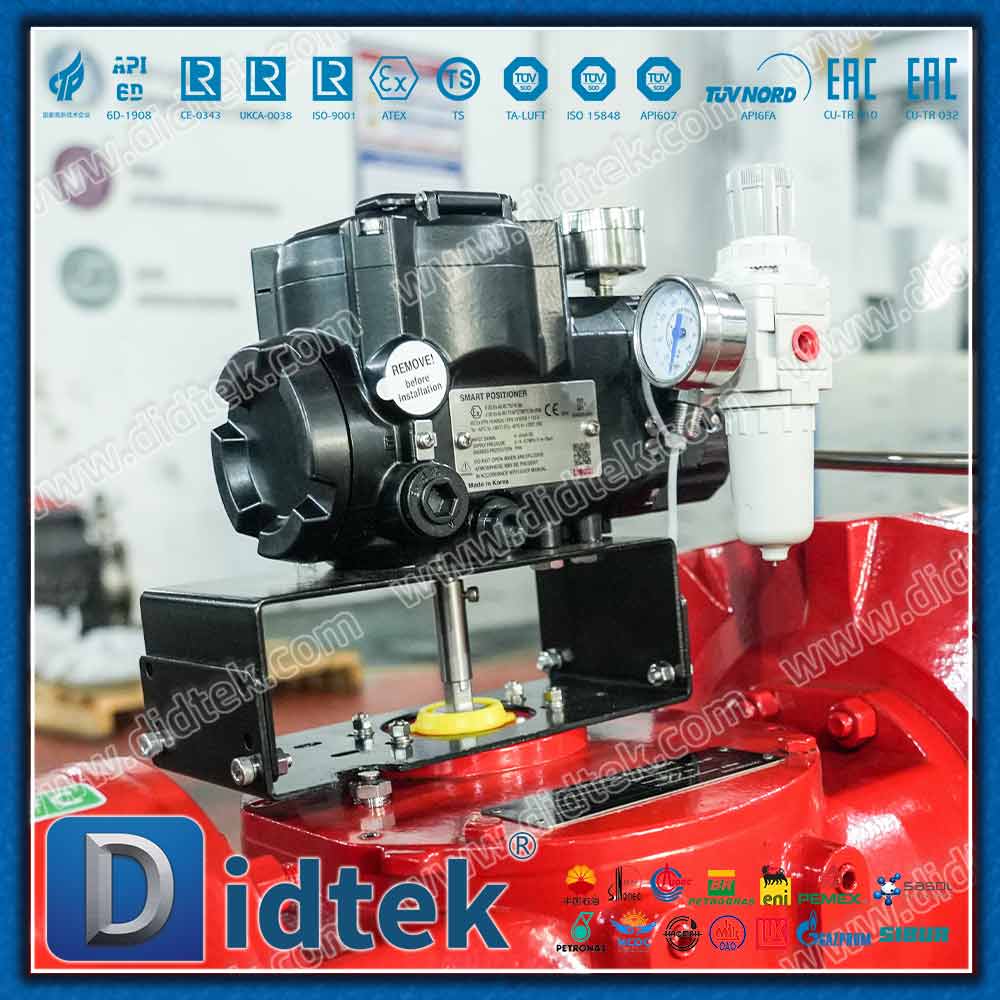

TISSIN Smart Positioner Precision: Advanced TISSIN digital positioner offers high-resolution position control, low air consumption, easy auto-calibration, and robust HART communication.
Bubble-Tight Metal Seating: Laminated stainless steel/graphite seal ring provides bidirectional bi-directional zero-leakage shut-off, complying with API 598 and ISO 5208 strict standards.
Parameters |
| Brand | DIDTEK |
| Structure | Butterfly |
| Material | WCB |
| Type | Triple Offset Butterfly Valve |
| Test | 100% quantity tested before delivery |
| Guarantee | 18 months after shipments and 12 months after installed |
| Delivery | 15 - 60 days |
| Sample | Sample Available by Didtek Valve |
| Color | Customer request |
| Packing | Plywood Case |
| MOQ | 1 Set |
| Certificate | API609, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc. |
| Place of Origin | Zhejiang, China (Mainland) |
| Delivery Detail | Shipped in 15-30 days after payment |
| Port | Shanghai Or Ningbo |
| Payment Terms | L/C,D/A,D/P,T/T, Western Union |
Application & Function |
Single Acting Pneumatic Triple Offset Butterfly Valve with TISSIN Positioner :
Refining & Petrochemical Processing: High-temperature hydrocarbon isolation, catalytic cracking gas control, and severe throttling loops.
Power Generation & Steam Networks: Main steam lines, turbine bypass systems, and cooling water flow regulation.
LNG & Cryogenic / Chemical Plants: Process fluid modulation requiring rapid fail-safe action and precise flow characteristics.
