Product Description

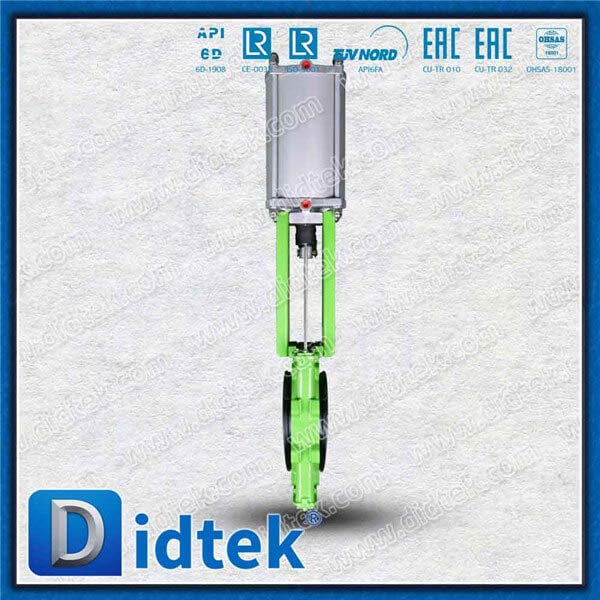

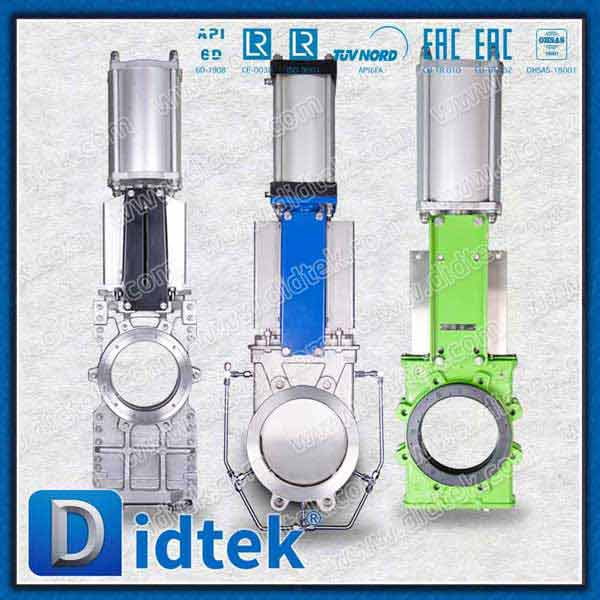

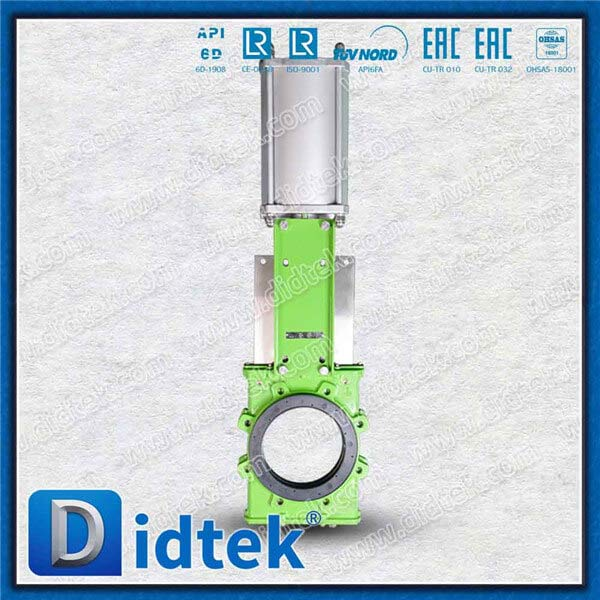

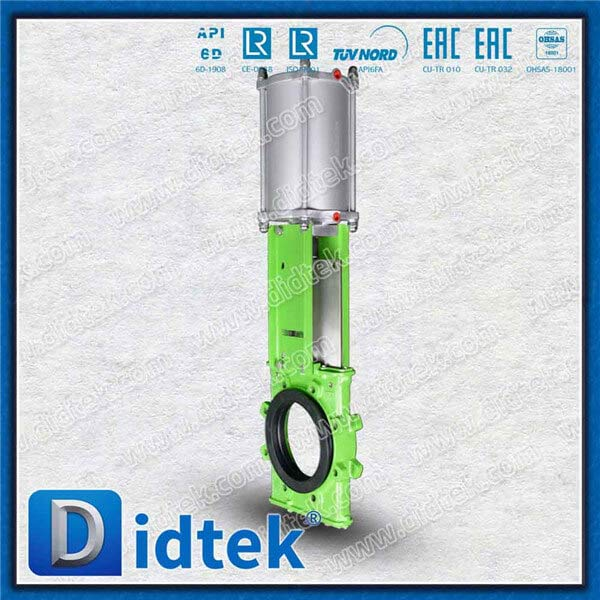

Slurry Knife Gate Valve

Applicable Standards:
Knife Gate Valve, MSS SP-81
Steel Valves, ASME B16.34
Face to face MSS SP-81
End Flanges EN 1092-1/ASME B16.5/ASMEB16.47
Inspection and test MSS SP-81

Material: CF8M
Size Range: DN50~DN1000
Pressure Rating: ASME CL, 150, PN10,PN16
Temperature Range: 0℃~120℃

Design Description:
- Outside Screw and Yoke
- Bolted Bonnet and Pressure Seal
- Flexible and solid wedge, fully guided
- Welding seat rings or Renewable seat rings
- Rising stem and non-rising stem
- Available with gear operator
- Flange Ends & Buttwelding Ends
- Low torque design, smooth surface stem.

Structure Gate
Valve Material Didtek provide cast steel, stainless steel, special alloy, CI, DI etc
Valve Type Didtek Produce Gate Valve
Valve Test 100% quantity tested before delivery
Valve Guarantee 18 months after shipments and 12 months after installed
Valve Structure Knife Gate Valve
Valve Delivery 15 - 30 days
Valve Sample Sample Available by Didtek Valve
Valve Color Customer request
Valve Packing Plywood Case for Gate Valve
MOQ 1 Set
Valve Certificate API6D/CE/ISO9001/ISO14001
Place of Origin Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port Shanghai Or Ningbo
Payment Terms L/C,D/A,D/P,T/T, Western Union

Accessories such as gear operators, actuators, bypasses, locking devices, chain wheels, extended stems and bonnets for cryogenic service and many others are available to meet the customers’ requirements.
