Product Overview

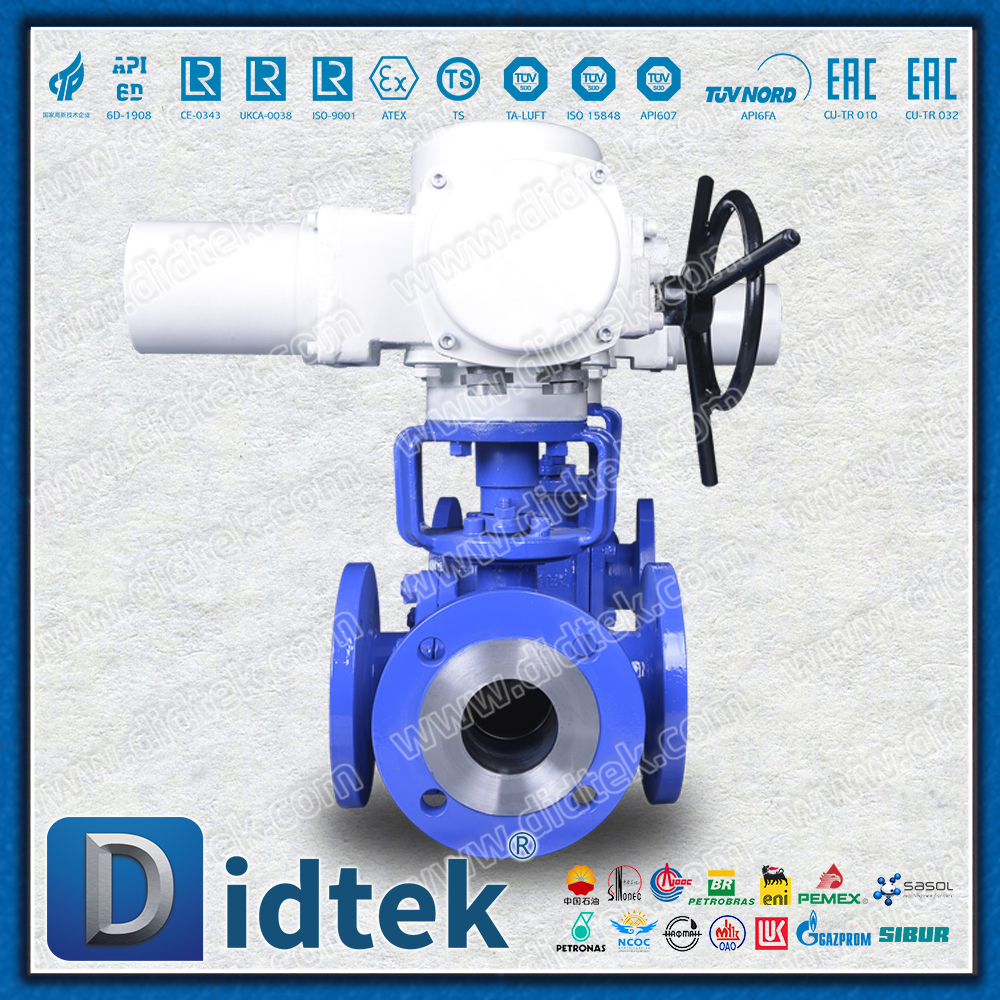

The electric three-way ball valve is an advanced fluid control device controlled by an electric actuator. It adopts a unique L-shaped or T-shaped flow channel design to precisely switch, distribute or mix the medium flow direction in multiple pipelines. This product integrates intelligent control, compact structure and multi-functional flow direction management, making it an ideal solution for achieving automated fluid control in modern industrial processes.
Technical specifications
| Parameter category | technical specification |
| Valve body material | stainless steel 304/316, carbon steel WCB, brass, etc |
| Spherical material | Stainless steel 304/316, surface chrome-plated or electroless nickel-plated |
| Sealing materials | PTFE, PPL, PCTFE, metal seals |
| Connection methods | flange type, threaded type, butt welding type |
| Pressure rating | PN10-PN100 (Class 150-600) |
| Temperature range | -40℃ to +230℃ (depending on the sealing material) |
| Power supply voltage | AC 24V/110V/220V/380V, DC 12V/24V |
| Protection grade | IP67 (standard), IP68 is optional |
| Control signal, switch type | passive contact regulating type: 4-20mA, 0-10V |
| Position feedback | potentiometer signal, passive switch signal |
| Flow channel forms | L-type (two-position three-way), T-type (three-position three-way) |
Product features
1. Outstanding structural design

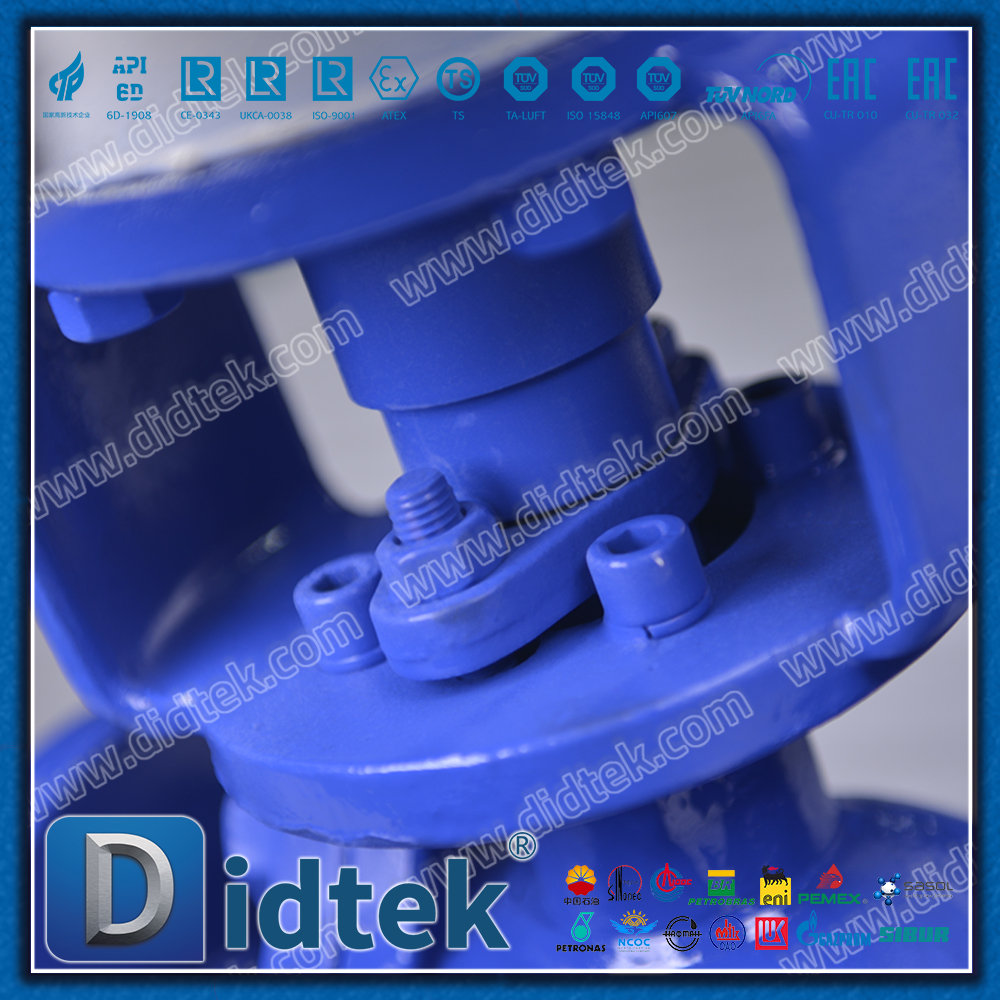

Compact integrated design: The actuator and the valve body are precisely matched, featuring a compact structure and saving installation space
Multi-channel configuration
L-shaped channel: Enables the switching of medium between two outlets (two inlets and one outlet or one inlets and two outlets)
T-channel: It enables the diversion, convergence or complete cut-off of the medium
Low-torque optimization: The flow channel has been optimized through computational fluid dynamics, significantly reducing the operating torque
2. High-performance electric actuator
Intelligent control system: It adopts microprocessor control and is equipped with overload protection, overheat protection and phase protection
Precise position control: The positioning accuracy of the adjustable product reaches ±0.5%, and it supports adjustment at any intermediate position
Multiple control modes: Supports on-site control, remote automatic control and central distributed system control

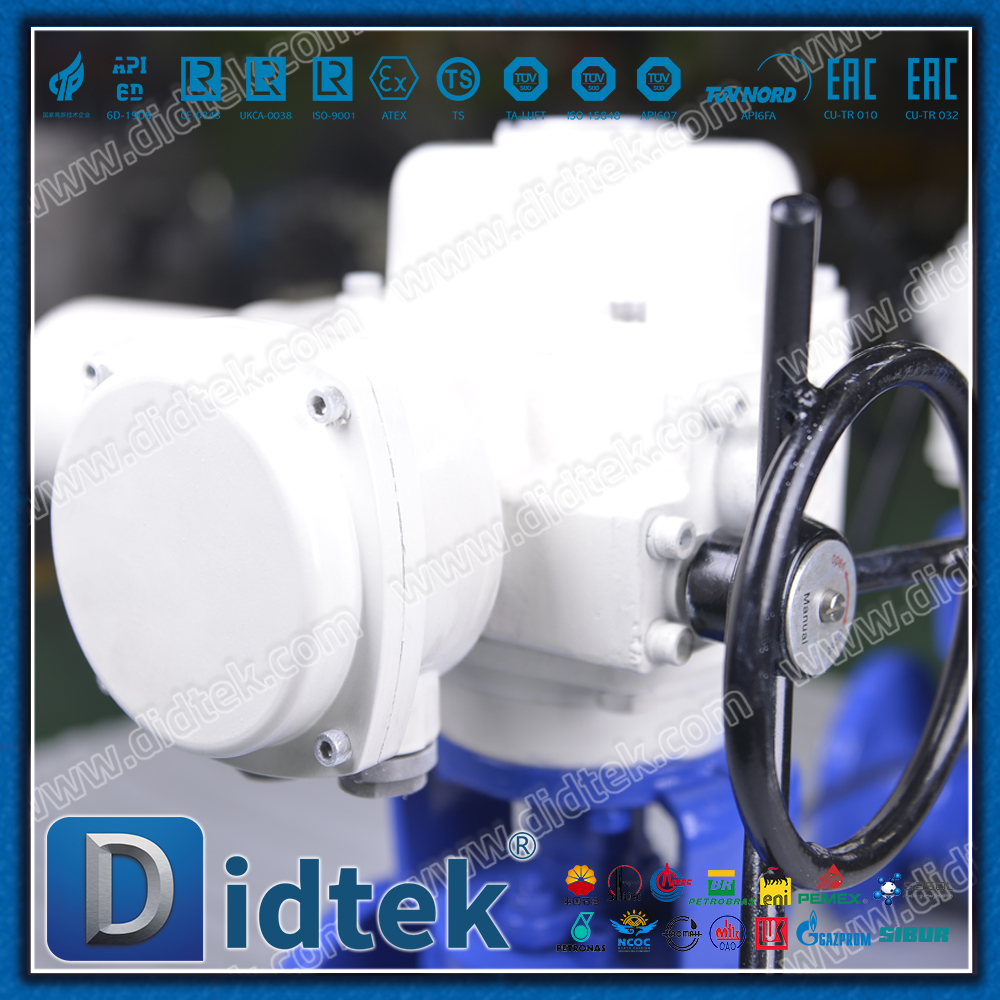

Manual operation function: Standard manual operation mechanism is provided, allowing for emergency manual operation in case of power failure
3. Reliable sealing performance

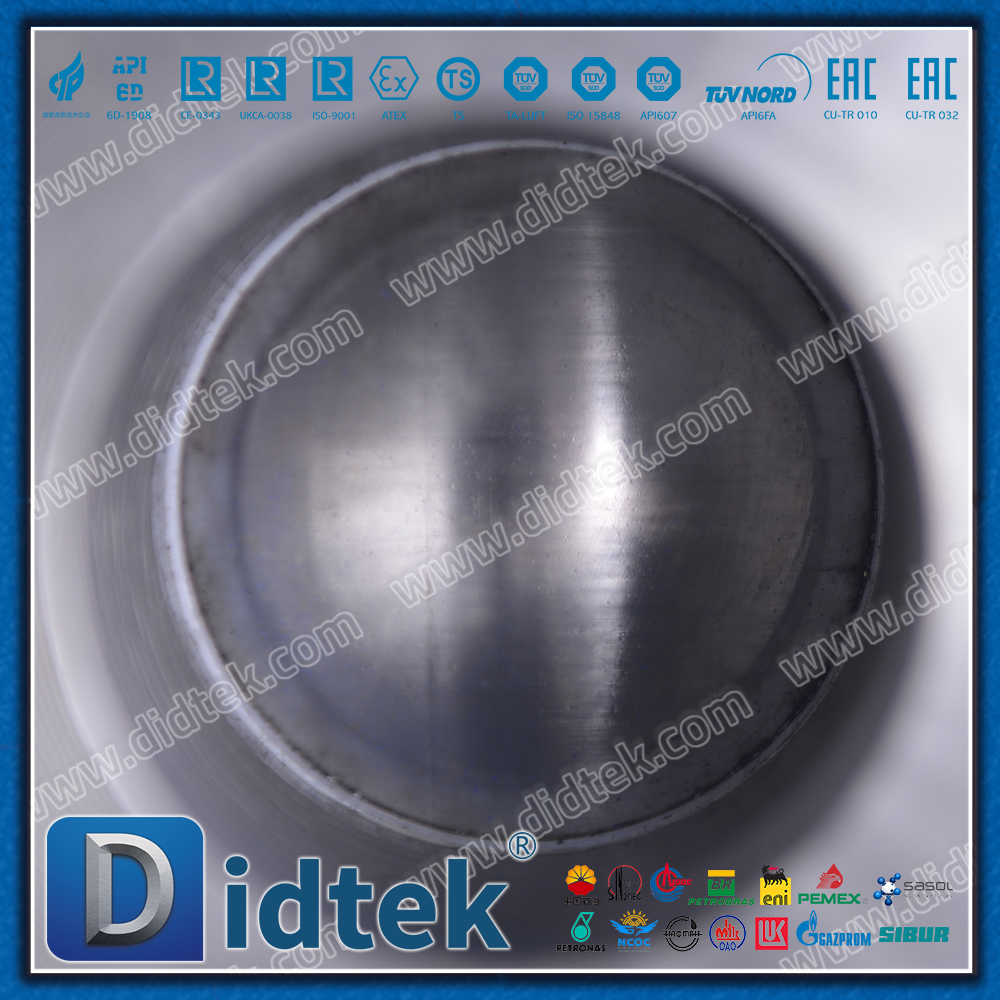

Zero leakage design: Utilizing precisely ground spheres and elastically loaded valve seats to ensure bubble-level sealing
Long-life design: Self-lubricating bearings and low friction coefficient sealing materials extend service life
Fire safety: Optional fireproof design. After the soft seal fails, a metal-to-metal secondary seal is formed
4. Intelligent functions
Self-diagnostic function: Real-time monitoring of motor load, temperature and operating time
Digital display: An optional LCD screen is available to show the valve opening degree and status in real time
Communication interface: Supports fieldbus communication such as Profibus-DP and Modbus RTU (optional)
Typical application fields
Hvac system: District heating/cooling control, solar system medium switching
Chemical process industry: Feed control for reaction vessels, multi-raw material proportioning and mixing
Water treatment environmental protection project: filtration and backwashing, chemical dosing, and multi-source switching
Food and pharmaceutical industry: CIP/SIP systems, clean pipeline medium distribution
General industrial equipment: Control of compressed air systems, oil supply management of lubrication systems
Core parameters
Pressure rating: PN10-PN100 (Class 150-600)
Temperature range: -40℃ to +230℃ (depending on the sealing material)
Power supply voltage: AC 24V/110V/220V/380V, DC 12V/24V
Control signals: Switch signal, 4-20mA, 0-10V
Connection methods: Flange, thread, butt welding
Value summary
The electric three-way ball valve, through the perfect combination of intelligent electric control and innovative three-way structure, provides users with
Process optimization: Simplify pipeline design and reduce the number of valves used
Precise control: Achieve precise management of the medium's flow direction and volume
Automation integration: Easily connect to control systems such as PLC and DCS
Reliable operation: Long-term stable performance under harsh working conditions
This product is an ideal choice for enhancing the level of process automation and achieving precise fluid control, and is widely used in industrial automation scenarios that require complex flow direction management.
| Brand | DIDTEK |
| Structure | Ball |
| Valve Material | Didtek provide cast steel, stainless steel, special alloy, CI, DI etc |
| Valve Type | Didtek Produce Ball Valve |
| Valve Test | 100% quantity tested before delivery |
| Valve Guarantee | 18 months after shipments and 12 months after installed |
| Valve Structure | Ball Valve |
| Valve Delivery | 15 - 30 days |
| Valve Sample | Sample Available by Didtek Valve |
| Valve Color | Customer request |
| Valve Packing | Plywood Case for Ball Valve |
| MOQ | 1 Set |
| Valve Certificate | API6D/CE/ISO9001/ISO14001 |
| Place of Origin | Zhejiang, China (Mainland) |
| Delivery Detail: | Shipped in 15-30 days after payment |
| Port | Shanghai Or Ningbo |
| Payment Terms | L/C,D/A,D/P,T/T, Western Union |
