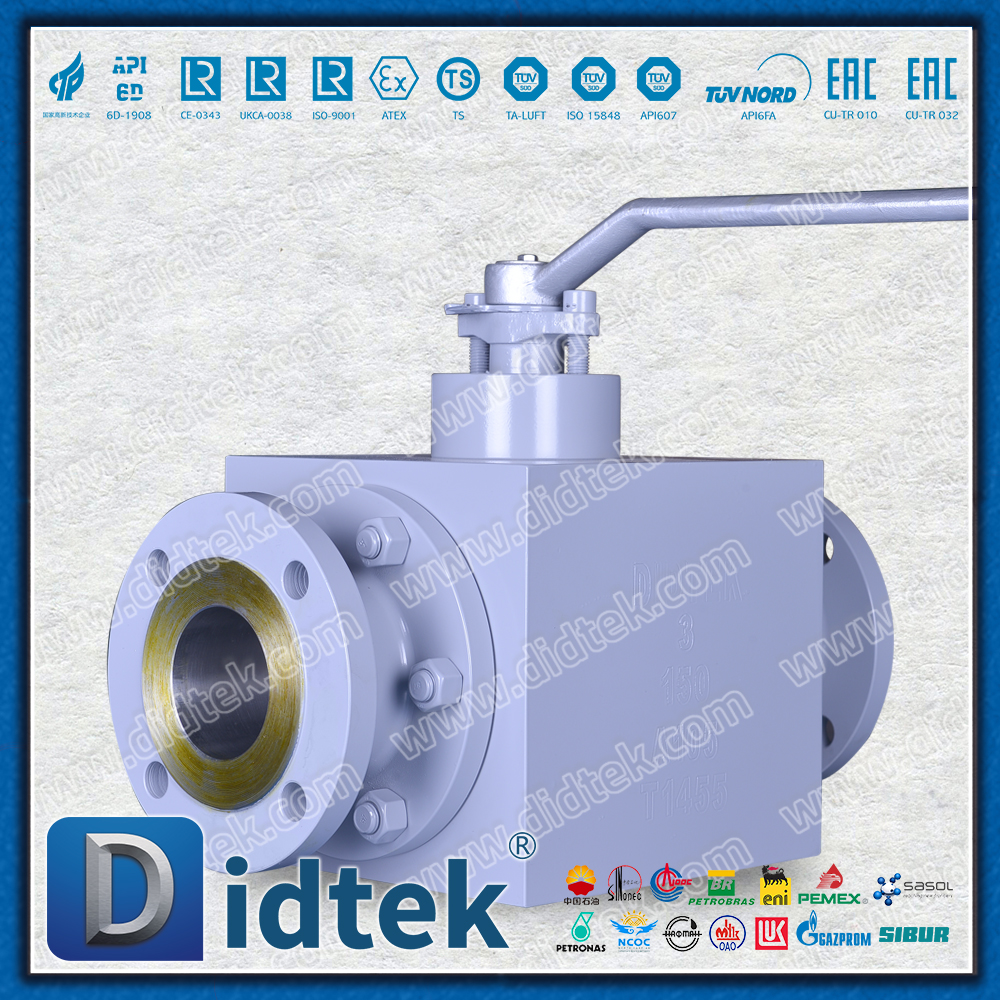

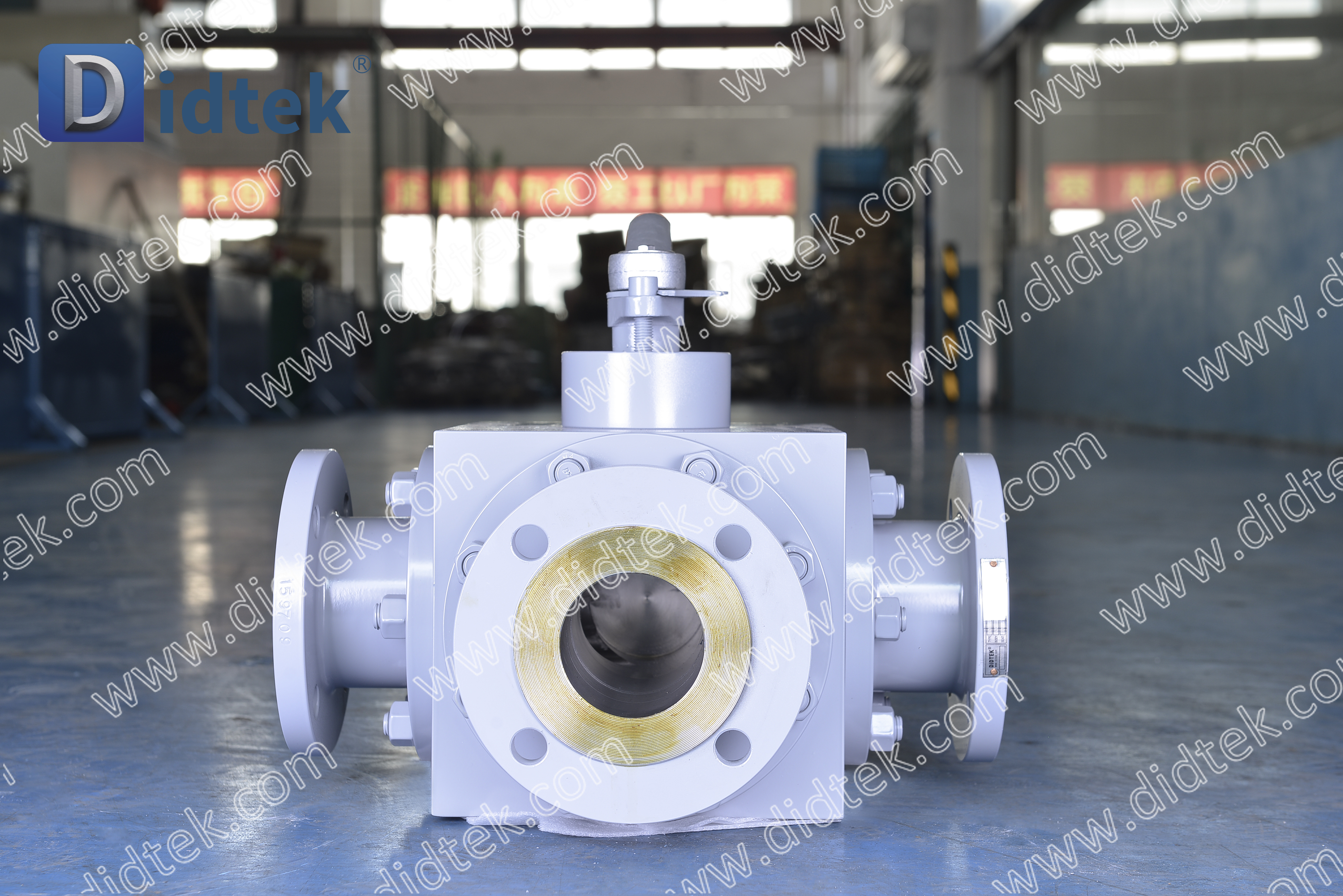

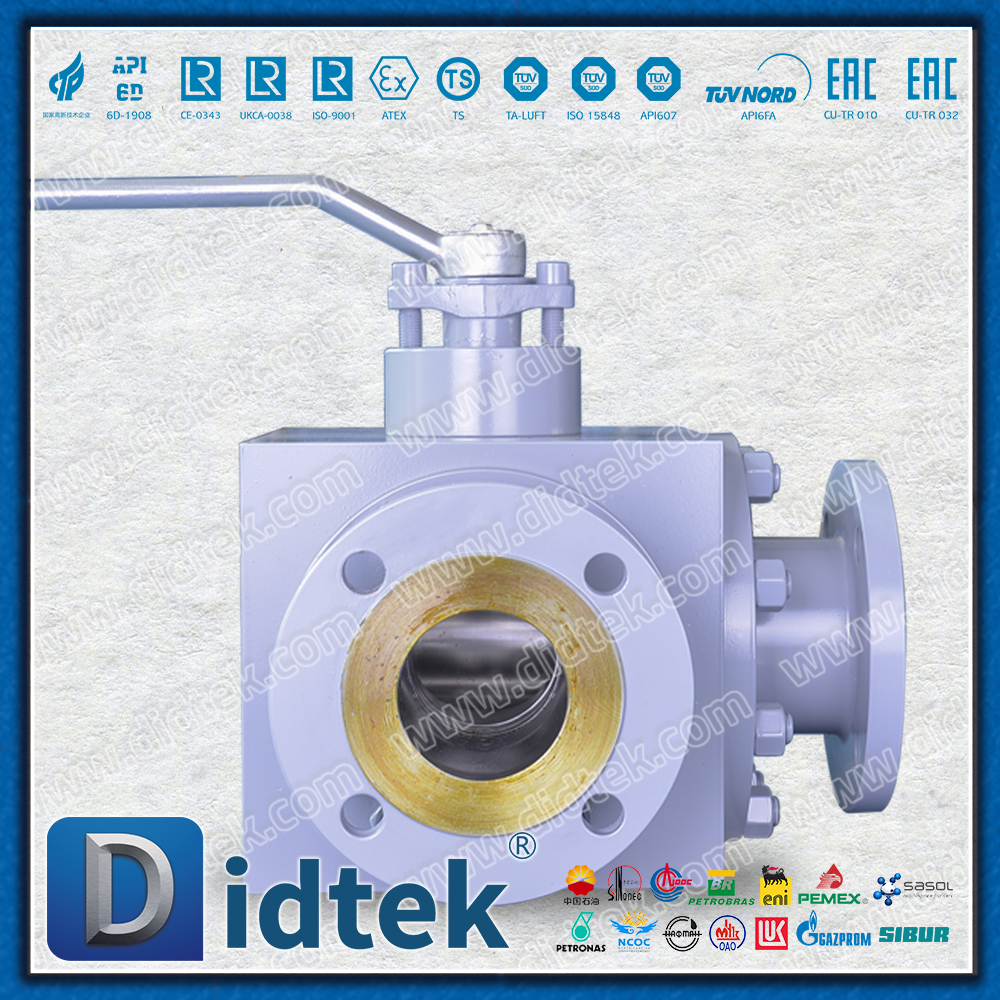

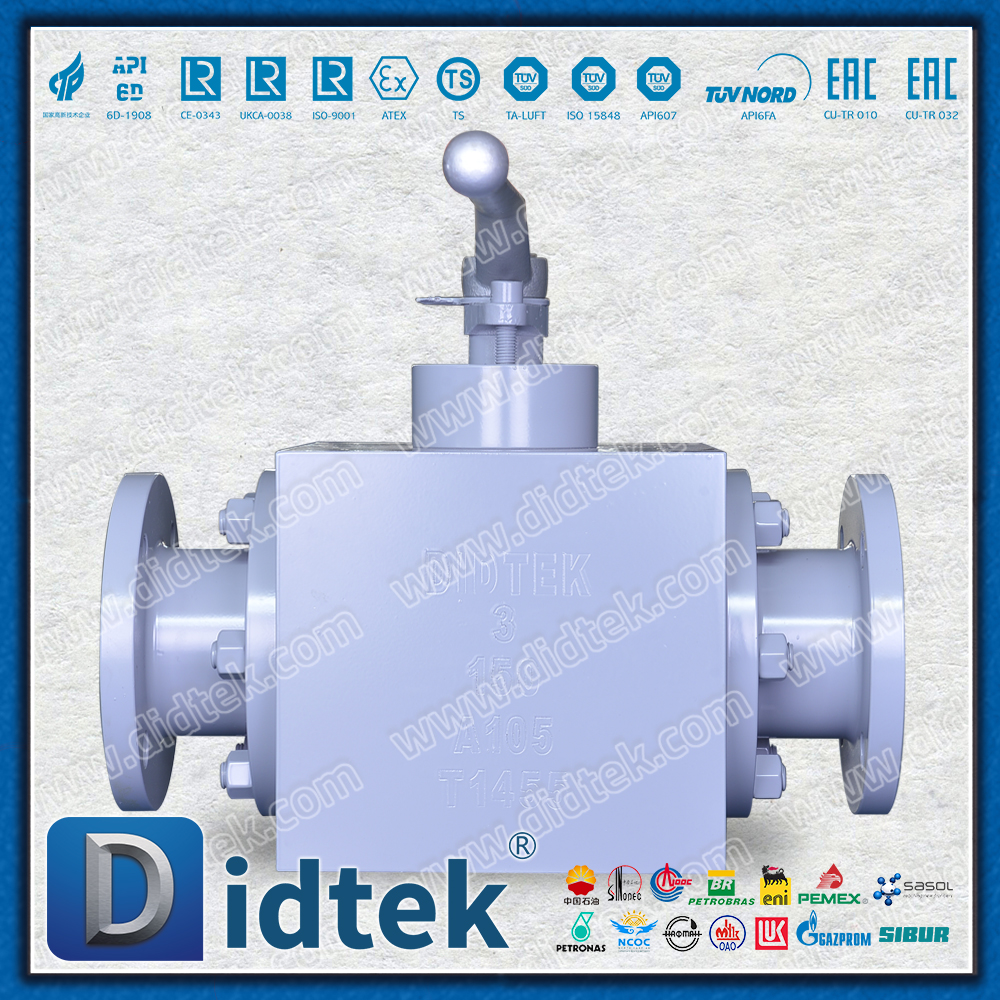

Product Overview
The metal-sealed carbon dioxide medium forged steel three-way ball valve is a special valve specially designed for carbon dioxide (CO₂) medium. It adopts a forged steel valve body, metal hard seal and three-way flow channel structure, which can reliably cope with the harsh working conditions of liquid, gaseous and supercritical CO₂, and achieve precise medium switching, distribution and isolation control.
Technical specifications
| Parameter category | technical specification |
| Valve body material | ASTM A105 / A182 F316 / F304 forged steel |
| Pressure rating | Class 150-600 (PN16 - PN100) |
| Temperature range | -196℃ to +425℃ (metal seal) |
| Connection methods | flange/butt weld/thread |
| Sealing type | metal hard seal (tungsten carbide/Stellite alloy) |
| Flow channel form | L-type (two-position three-way)/T-type (three-position three-way) |
| Applicable media | liquid CO₂, gaseous CO₂, supercritical CO₂ |
| Fire protection standards | API 607 / API 6FA |
| Leakage grade | ANSI B16.104 Class V |
Product features
1. Specialized metal sealing system
Super-hard sealing surface: The sealing surface of the ball and the valve seat is made of supersonic sprayed tungsten carbide or Stellite alloy, with a hardness of HRC≥58
Low-temperature adaptability: Special heat treatment process ensures that the sealing components do not become cold brittle at -196℃
Zero leakage design: Precisely ground metal sealing pairs achieve bubble-level sealing
2. Forged steel valve body structure
High strength characteristics: Forged into shape, optimized grain flow direction, tensile strength ≥485 MPa
Excellent compactness: No casting defects, and the pressure-bearing capacity is increased by 30%
Material traceability: Provide complete 3.1 material certification certificates
3. Special design for CO₂ medium
Preventing dry ice formation: The special valve cavity pressure relief design prevents the formation of dryness when liquid CO₂ vaporizes
Low-temperature treatment: All pressure-bearing components undergo deep cryogenic treatment to eliminate manufacturing stress
Sealing material optimization: Special composite materials are adopted in response to the permeability characteristics of CO₂
4. Three-way function configuration
L-shaped flow channel: It realizes the switching control of the medium between two outlets
T-channel: Completes the diversion, convergence or complete cut-off of the medium
Flexible switching: A single valve replaces multiple two-way valve combinations, simplifying pipeline design
Core parameters
Pressure rating: Class 150-600 (PN16-100)
Temperature range: -196℃ to +425℃
Connection methods: Flange/butt welding/thread
Applicable medium: Liquid/gaseous/supercritical CO₂

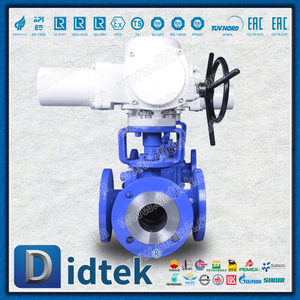

Operation mode: Manual/Pneumatic/electric
Application field
Carbon capture and storage: Supercritical CO₂ transportation in CCUS systems
Industrial gas: Liquid CO₂ storage, transportation and recovery equipment
Food and beverage: Carbonated beverage production line, beer brewing
Petrochemical industry: Enhanced oil recovery injection system
Summary
Metal-sealed forged steel three-way ball valves for carbon dioxide medium, through the perfect combination of dedicated material selection, innovative sealing technology and precise manufacturing processes, provide:
Outstanding sealing performance: Metal hard seal ensures zero leakage
Wide adaptability to working conditions: covering liquid, gaseous and supercritical states
Long service life: The designed service life exceeds 100,000 cycles
Intelligent control: Supports integration of automated systems
This product is an ideal solution for CO₂ medium control in industries such as carbon capture, industrial gases, and food and beverage, providing reliable and safe fluid control guarantees for modern process flows.
| Brand | DIDTEK |
| Structure | Ball |
| Valve Material | Didtek provide cast steel, stainless steel, special alloy, CI, DI etc |
| Valve Type | Didtek Produce Ball Valve |
| Valve Test | 100% quantity tested before delivery |
| Valve Guarantee | 18 months after shipments and 12 months after installed |
| Valve Structure | Ball Valve |
| Valve Delivery | 15 - 30 days |
| Valve Sample | Sample Available by Didtek Valve |
| Valve Color | Customer request |
| Valve Packing | Plywood Case for Ball Valve |
| MOQ | 1 Set |
| Valve Certificate | API6D/CE/ISO9001/ISO14001 |
| Place of Origin | Zhejiang, China (Mainland) |
| Delivery Detail: | Shipped in 15-30 days after payment |
| Port | Shanghai Or Ningbo |
| Payment Terms | L/C,D/A,D/P,T/T, Western Union |
