600LB forged vs cast ball valve: benefits for high pressure pipeline

High-pressure pipelines demand absolute reliability at every connection point. Operating at Class 600, these systems often handle pressures up to 1,480 PSI at ambient temperatures. At these extreme levels, you need zero-tolerance fluid control. Catastrophic failures risk massive environmental disasters and threaten human safety. Engineers and procurement teams face a constant dilemma during project planning. They must balance the lower initial procurement cost of cast products against long-term structural integrity. Making the wrong choice easily compromises the entire pipeline network. We will establish an evidence-based framework for choosing between cast and forged manufacturing methods. You will learn how to evaluate critical infrastructure needs effectively. We will focus strictly on risk mitigation, industry compliance, and operational safety. This guide helps you navigate complex metallurgical decisions for your next project.

Key Takeaways

• Porosity is the dividing line: Cast valves carry inherent risks of micro-porosity and shrinkage cavities; forged valves eliminate these through thermal-mechanical compression.

• Predictable yield strength: A 600LB forged ball valve offers a highly aligned grain structure, delivering superior fatigue resistance against high-pressure pipeline pulsation and water hammer.

• Standardization: For high-pressure, large-bore applications, specifying a Class 600 trunnion valve in a forged body ensures stricter adherence to API 6D criteria.

The Engineering Reality of Class 600 Pipeline Conditions

ASME Class 600 ratings push mechanical systems to their absolute limits. Valves experience immense hoop stress constantly under these conditions. Micro-defects might stay dormant in lower-rated Class 150 or 300 systems. However, they become active failure points when subjected to 1,480 PSI. You cannot afford structural anomalies when managing volatile high-pressure media. The risk of sudden pressure boundary rupture is simply too high.

Pipeline pulsation introduces another massive engineering challenge for operators. A high pressure ball valve endures cyclical loading from upstream equipment daily. Reciprocating pumps and heavy-duty compressors generate intense mechanical vibrations continuously. This dynamic environment demands exceptional fatigue strength from your body material. Without it, the casing will eventually develop dangerous micro-cracks. Over time, these cracks propagate outward and cause sudden failures.

We must also look closely at internal seating mechanics. Floating ball designs fail rapidly under these intense pressure ratings. They become inefficient and suffer irreversible seat wear. The line pressure forces the floating ball aggressively into the downstream seat. Instead, a Class 600 trunnion valve absorbs this line pressure directly. It transfers the mechanical load through its bottom trunnion shaft and upper stem. This precise mechanism protects the soft seats from crushing forces. It makes external shell integrity your ultimate barrier against blowout scenarios.

Metallurgical Deep Dive: Casting vs. Forging

We must understand fundamental manufacturing processes to make informed choices. The manufacturing methods dictate the internal molecular structure of your equipment. This structure ultimately determines how the metal responds to stress.

Let us examine cast steel characteristics first. Foundries pour molten liquid steel directly into shaped sand molds. This process is inherently unpredictable at a microscopic level. It remains susceptible to gas voids, sand inclusions, and shrinkage porosity. As the molten metal cools, it contracts unevenly across varying thicknesses. To verify internal soundness, manufacturers must perform extensive Radiographic Testing (RT). This testing burden slows down production schedules significantly. It also leads to frequent and costly part rejections.

Forging takes a radically different and more controlled approach. Facilities shape solid steel blocks using extreme thermal and mechanical pressure. They use massive hydraulic presses to force heated metal into dies. This thermal-mechanical compression provides distinct structural advantages.

1. It compresses the raw material thoroughly, closing any existing micro-pores.

2. It aligns the metallurgical grain flow to match the exact component contour.

3. It entirely eliminates internal voids commonly found in castings.

A forged steel ball valve requires different inspection criteria entirely. It relies on Ultrasonic Testing (UT) instead of costly X-rays. This UT method is highly predictable and faster to execute. It rarely reveals hidden internal defects because the process itself prevents them.

Material Processing Comparison

Tangible Benefits of a 600LB Forged Ball Valve

Grain flow alignment serves as a major structural game changer. It provides up to 20% higher impact and tensile strength. This holds true even against castings of the exact same chemical composition. A 600LB forged ball valve handles sudden stress spikes safely. It absorbs water hammer impacts without initiating brittle fractures. It stretches rather than shatters under extreme overload conditions.

Wall thickness uniformity represents another massive operational advantage for engineers. Forging machines deliver precise, highly repeatable physical dimensions every time. They ensure consistent manufacturing outputs across large project orders. This eliminates localized thin spots that plague traditional foundries. Cast body core shifts often cause these dangerous weak points during cooling.

We must also consider strict industry compliance and material traceability. An API 6D forged valve simplifies your project documentation significantly. It provides clear, reliable material test reports (MTRs). It ensures uninterrupted compliance for harsh sour service applications. Standards like NACE MR0175 and ISO 15156 require pristine internal structures. Hydrogen-induced cracking (HIC) targets structural anomalies aggressively. Forged integrity prevents hydrogen atoms from finding microscopic cavities to accumulate inside.

Finally, we look at zero-defect machining capabilities. Forged steel yields a vastly superior surface finish naturally. It performs better during the final automated machining phases. This pristine finish ensures tighter tolerances for dynamic internal seals. It dramatically reduces fugitive emission risks over the operational lifespan. You maintain a tighter, safer environmental seal for decades.

Decision Framework: Risk vs. Cost Tipping Points

You do not always need forging for every single pipeline connection. Engineers must apply a logical decision framework to optimize budgets. We recommend specifying cast options for standard utility lines. They work perfectly for low-risk cooling water circuits. Secondary bypass lines also operate safely using cast materials. Castings accommodate massive, custom geometries exceptionally well. When you specify extremely large bore projects, forging costs become geometrically prohibitive. You must accept casting for 36-inch and larger systems.

However, you face situations where forging becomes absolutely mandatory. You must eliminate structural variables in critical infrastructure entirely. We strongly advise forged materials for the following applications:

• Mainline block valves, compressor station isolations, and pig trap systems.

• Toxic, lethal, or highly flammable media environments. This includes high-pressure natural gas and sour crude lines.

• Applications demanding rapid, predictable project execution.

Forged block availability often bypasses long lead times of custom molds. It helps engineering firms avoid unexpected NDE rejection rates. A single failed X-ray on a cast body can delay projects by weeks. Forging guarantees your production schedule remains intact.

Specification and Implementation Considerations

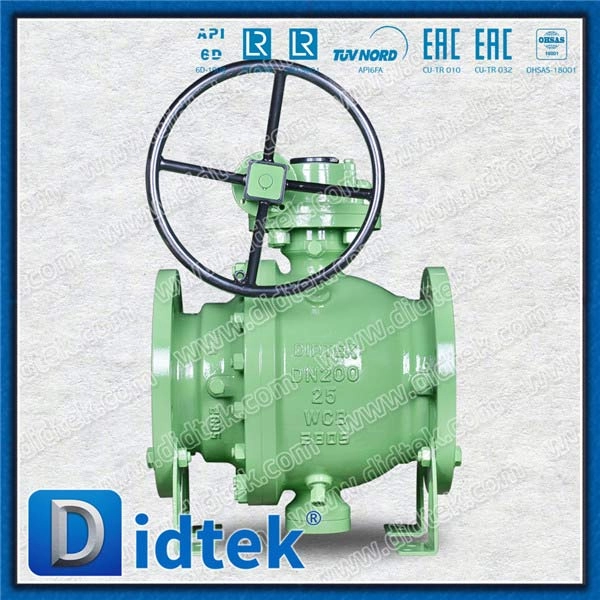

High-pressure operation generates massive internal torque values inevitably. The differential pressure pushes the ball hard against downstream seating surfaces. Specifying a precision worm gear ball valve is strictly necessary here. It prevents severe operator injury during manual operation in Class 600 settings. Bare stem levers become physically impossible to turn safely at these pressures. The gear unit ensures smooth, highly controlled stem rotation. It prevents rapid opening actions that cause destructive fluid hammering.

Body construction requires careful review during the specification phase. You must choose between two-piece and three-piece design architectures. Three-piece forged bodies allow much easier inline maintenance procedures. They support more complex internal machining tasks during manufacturing. You must also evaluate welded versus bolted body configurations. Fully welded forged bodies eliminate atmospheric flange leak paths completely. This remains essential in buried pipeline scenarios where maintenance access is zero.

End connections demand rigorous metallurgical oversight from your team. Transitioning forged valve ends to pipeline metallurgy requires strict review. You need careful evaluation of all weld end preparations. Your pipe beveling angles must match the valve ends perfectly. Carbon equivalent (CE) matching ensures strong, reliable field welds. It dictates your pre-heating and post-weld heat treatment requirements. Overlooking this step causes brittle welds and catastrophic line failures.

Conclusion

• The initial procurement savings of a cast body disappear quickly. Testing failures, high rejection rates, and operational hazards erase those margins in high-pressure environments.

• For Class 600 mainline infrastructure, standardized forged steel solutions deliver unmatched security. They provide verifiable structural integrity and full compliance readiness.

• They guarantee the long-term reliability required by modern pipeline safety standards.

• Always mandate comprehensive UT inspections before pipeline installation begins.

• Align your material selection precisely with NACE sour service requirements if applicable.

FAQ

Q: Why are forged valves generally limited to specific size ranges?

A: Forging requires massive hydraulic presses. Above certain diameters, usually 24 inches or more, physical limitations become extreme. The tooling expenses for giant forging presses reach prohibitive levels. Therefore, casting or plate-welded bodies remain the only economically viable options for massive pipeline networks.

Q: Does a forged steel ball valve require different NDT than a cast valve?

A: Yes, it does. Castings rely heavily on Radiography (X-ray) testing to find volumetric defects like internal voids. Forgings primarily use Ultrasonic Testing (UT). UT detects linear flaws or internal delamination. The forging process naturally eliminates volumetric voids, making expensive X-rays largely unnecessary.

Q: Can a cast valve meet API 6D standards for high-pressure pipelines?

A: Yes, cast valves can achieve API 6D certification. However, they face strict Non-Destructive Examination (NDE) requirements. Passing these rigorous tests often leads to high rejection and rework rates at the foundry. This introduces significant schedule delays and unmanageable risks for EPC contractors.

Q: How does pressure class impact the choice of a worm gear operator?

A: Seat friction increases exponentially with internal pressure. A Class 600 valve requires significantly higher operational torque than a Class 150 valve of the exact same size. Therefore, a worm gear operator becomes strictly mandatory. It guarantees safe, controlled opening and closing, which prevents dangerous water hammer effects.
