Views: 0 Author: Site Editor Publish Time: 2025-11-19 Origin: Site
Imagine controlling a high-pressure gas flow with precision and safety. That's the role of LNG ball valves. These specialized valves ensure the secure management of liquefied natural gas (LNG) in various systems. In this post, you'll learn how these valves maintain safety, their critical features, and their importance in LNG operations.
LNG ball valves are specialized valves designed to control the flow of liquefied natural gas (LNG) through pipelines and systems. They operate by rotating a spherical ball with a hole through its center, which aligns with the pipeline to allow flow or turns perpendicular to block it. This simple yet effective mechanism provides quick operation, making it ideal for applications requiring rapid shut-off or precise flow control.
The core function of LNG ball valves is to serve as a reliable gatekeeper in high-pressure, low-temperature environments. They enable operators to start, stop, or regulate LNG flow efficiently, ensuring safety and system integrity during various operational phases, including liquefaction, storage, transportation, and regasification.
In LNG applications, several types of ball valves are employed, each suited for specific operational needs:
Floating Ball Valves: These are the most common in LNG systems. They feature a floating ball that moves slightly under pressure, ensuring a tight seal against the seats. They are suitable for low to moderate pressure applications and are easy to operate.
Trunnion-Mounted Ball Valves: Designed for high-pressure environments, these valves have a supported ball that remains stationary under pressure. They provide enhanced stability and are ideal for large-diameter pipelines or high-pressure systems.
Cryogenic Ball Valves: Built specifically for extremely low temperatures, these valves use materials like stainless steel or special alloys to prevent brittleness. They often feature extended bonnets and specialized seats to handle cryogenic conditions safely.
| Type of Valve | Description | Best For |
|---|---|---|
| Floating Ball Valves | Common in LNG systems, featuring a floating ball that moves slightly under pressure for tight sealing. | Low to moderate pressure applications |
| Trunnion-Mounted Ball Valves | Features a supported ball that remains stationary under pressure, providing enhanced stability. | High-pressure environments, large-diameter pipelines |
| Cryogenic Ball Valves | Designed for extremely low temperatures with special alloys and extended bonnets to prevent brittleness. | Handling LNG at cryogenic temperatures |
Understanding the main parts of LNG ball valves helps grasp how they ensure safety and performance:
Ball: The spherical component with a central hole, responsible for opening or closing the flow.
Seats: Sealing surfaces made of soft or metal materials, ensuring bubble-tight shutoff and preventing leaks.
Stem: Connects the ball to the actuator or handle, transmitting torque to rotate the ball.
Body: The main structure housing the internal components, typically made from stainless steel or forged steel for strength and corrosion resistance.
Actuator: Mechanical or automated device that controls the valve's operation, enabling quick and precise movements.
Sealing Elements: Additional seals, such as packing or gaskets, prevent leaks along the stem and at connection points.
Each component plays a vital role in maintaining safety standards:
The ball's design ensures a tight seal, reducing the risk of LNG leaks.
Seats made from durable materials withstand cryogenic temperatures and high pressure, preventing failures.
The stem and sealing elements are engineered to resist thermal contraction, avoiding leaks during temperature fluctuations.
Actuators can be integrated with safety systems for rapid shutdowns in emergencies.
The body’s robust construction withstands extreme pressures and corrosive environments, prolonging service life.
Together, these components form a resilient system that prevents leaks, withstands harsh conditions, and allows for rapid response during emergencies. Proper design, material selection, and maintenance of each part are crucial for the overall safety and reliability of LNG operations.
One of the most vital safety features of LNG ball valves is their quick shut-off ability. In emergency situations—like a sudden pressure surge or leak—these valves can close rapidly, often within a quarter turn. This swift response minimizes the risk of LNG leaks, which could lead to fires or explosions. Because of their simple design, operators can manually or automatically close the valve almost instantly, providing an essential line of defense against hazardous events.
This rapid shut-off is especially crucial in high-pressure environments where even a small delay can escalate into major safety issues. For example, during a pipeline rupture or equipment failure, the ability to quickly isolate the flow prevents the spread of LNG and reduces potential damage. Many modern LNG systems incorporate automated controls that trigger the valve to close immediately upon detecting abnormal conditions, enhancing safety further.
The sealing mechanism of LNG ball valves is fundamental to ensuring safety. When the valve is closed, the spherical ball presses tightly against seats made of soft or metal materials, creating a bubble-tight seal. This prevents any LNG from escaping, even under extreme pressure or low temperatures. The design of these seals accommodates thermal contraction and expansion, maintaining integrity over time.
High-quality sealing is essential because leaks of LNG are dangerous. Liquefied natural gas is highly flammable, and even minor leaks can pose serious safety hazards. Advanced sealing technologies, such as metal-to-metal or hybrid seats, are used to withstand the cryogenic environment and high-pressure conditions typical in LNG operations. Regular maintenance and testing help ensure these seals remain effective, further safeguarding the system.
Fire safety is a top priority in LNG systems. Valves are equipped with fire-safe features that enable them to maintain their sealing capabilities even if exposed to intense heat or flames. Many LNG ball valves are designed with fire-safe standards like API 607 and ISO 10497, which test their ability to withstand fire without leaking.
These features include fire-resistant seat materials, fireproof coatings, and specialized stem designs. Some valves incorporate double-body seals or fire-safe packing to prevent leaks during a fire. In addition, the use of blowout-proof stems helps prevent accidental stem ejection under extreme conditions, maintaining the valve’s integrity.
Fire safety features are often complemented by emergency shutdown systems that automatically close valves if a fire or other critical event is detected. This combination of rapid response and fire-resistant design significantly enhances overall safety in LNG facilities.
To ensure safety and performance under extreme conditions, the choice of materials in high-pressure LNG ball valves is critical. Forged steel, especially grades like 316L stainless steel (CF3M) and 316 stainless steel (CF8M), are among the most common options. These materials offer excellent strength, toughness, and corrosion resistance, making them suitable for handling both high pressure and cryogenic temperatures.
In some cases, special alloys like Monel 400 or Inconel are used for even more demanding environments, such as offshore or chemical processing. These materials resist corrosion from saltwater, chemicals, and other harsh substances, maintaining integrity over long periods.
| Material | Properties | Use in LNG Ball Valves |
|---|---|---|
| 316L Stainless Steel | Excellent corrosion resistance, strength, and toughness. | Used in high-pressure LNG systems for its durability in extreme conditions. |
| Monel 400 | Superior corrosion resistance, especially in seawater. | Used for environments exposed to saltwater and harsh chemicals. |
| Inconel | High-temperature resistance and mechanical strength. | Ideal for offshore or chemical processing applications. |
Designing valves for high-pressure and low-temperature environments involves several key factors:
Wall Thickness and Reinforcement: Components are built thicker to withstand pressure and prevent deformation.
Sealing Technology: Seats made from metal, composite, or hybrid materials maintain tight seals despite thermal contraction.
Body Construction: Robust, forged bodies eliminate weak points and reduce failure risk.

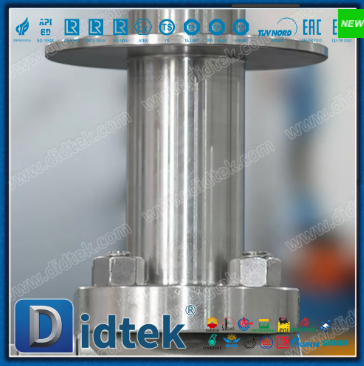

Extended Bonnet: This design keeps stem seals at ambient temperature, preventing freezing or brittleness.
Relief Holes: Small cavities or relief holes in the ball cavity release trapped gases, avoiding pressure buildup from thermal contraction.
These considerations help maintain operational safety and reliability, even during sudden pressure surges or temperature fluctuations.
In LNG systems, corrosion can cause serious safety risks and costly downtime. LNG ball valves face harsh environments—extreme cold, moisture, and sometimes salty air, especially offshore. Corrosion weakens valve bodies and internal parts, leading to leaks or failures. That’s why anti-corrosion properties are crucial. They help valves maintain strength and sealing integrity over time, preventing hazardous leaks and ensuring safe operation.
Corrosion can occur on valve surfaces exposed to LNG, ambient air, or contaminants. Even small pits or cracks caused by corrosion can grow under pressure, causing leaks. Valves with poor corrosion resistance often require more frequent maintenance or replacement, increasing operational costs. High-quality LNG ball valves use materials and coatings designed to resist corrosion, extending service life and enhancing safety.

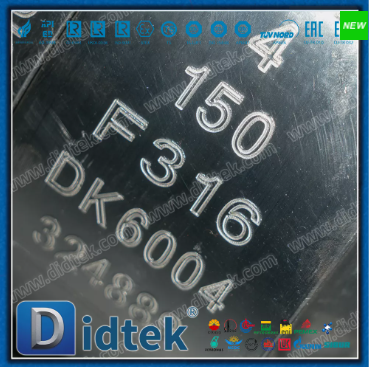

To fight corrosion, LNG ball valves are made from specially selected materials. Stainless steels like 316L (CF3M) and 316 (CF8M) are common due to their excellent resistance to rust and pitting. In more aggressive environments, alloys such as Monel 400 or Inconel offer superior corrosion protection against saltwater and chemicals.
Besides base materials, protective coatings play a key role. These coatings form a barrier against moisture and corrosive agents. Typical coatings include:
Epoxy coatings: Provide strong chemical resistance and protect against abrasion.
Nickel plating: Enhances surface hardness and corrosion resistance.
Passivation treatments: Improve stainless steel’s natural oxide layer, preventing rust.
Valve manufacturers also use advanced surface treatments like electropolishing to smooth metal surfaces, reducing corrosion sites and improving cleanliness.
Even the best materials and coatings need proper care to last. Regular maintenance is essential to detect and address early signs of corrosion or wear. Typical maintenance practices include:
Visual inspections: Check for rust, discoloration, or surface damage.
Cleaning: Remove deposits or contaminants that can accelerate corrosion.
Lubrication: Apply recommended lubricants to moving parts to reduce friction and wear.
Seal replacement: Change valve seats and packing materials before they degrade.
Pressure and leak testing: Ensure valve integrity remains intact over time.
Scheduled maintenance helps identify corrosion before it causes leaks or failures. It also extends valve life, reducing replacement frequency and costs. In harsh environments, maintenance intervals may be shorter to ensure safety.
LNG ball valves play a crucial role in liquefaction plants and storage facilities. During liquefaction, natural gas is cooled to around -162°C, turning it into a liquid. Valves must operate reliably at these cryogenic temperatures, ensuring safe and precise flow control. Cryogenic ball valves isolate sections for maintenance or emergencies, preventing leaks that could cause safety hazards.
In storage tanks, these valves maintain tight shutoff to keep LNG contained safely. Their design handles thermal contraction and expansion without losing seal integrity. Extended bonnets keep seals away from extreme cold, reducing wear and preventing leaks. Reliable isolation at storage points helps control pressure and prevents accidental LNG release.
Ball valves are essential for natural gas pipelines, especially those carrying LNG or regasified gas. They enable operators to quickly shut off flow during maintenance, emergencies, or system adjustments. High-pressure trunnion-mounted valves provide stability and tight sealing in large-diameter pipelines.
These valves withstand high pressures and temperature swings common in pipelines. Their quick quarter-turn operation allows fast response to prevent leaks or ruptures. Fire-safe and blowout-proof designs ensure valves maintain integrity under extreme conditions, such as fires or pressure surges. This reliability helps keep pipelines safe and operational.
In exploration facilities, ball valves control flow of LNG and other gases under harsh conditions. Offshore platforms face challenges like saltwater corrosion, extreme weather, and high pressures. Ball valves made from corrosion-resistant alloys and coated with protective layers offer durability in these environments.
Onshore exploration sites also demand valves that resist dirt, moisture, and temperature changes. Reliable sealing prevents leaks of flammable gases, protecting workers and equipment. Automated actuators integrated with ball valves enable remote operation and quick shutoff during emergencies, enhancing safety.
These valves are critical in managing high-pressure gas flows during drilling, processing, and transport phases. Their robust construction and safety features make them indispensable in both offshore and onshore LNG projects.
LNG ball valve technology has seen significant progress in recent years. Manufacturers now develop valves with enhanced safety, reliability, and automation features. One major advancement is the creation of bidirectional floating ball valves. These valves provide a bubble-tight seal in both flow directions, reducing the risk of leaks during operation. This innovation improves safety, especially in critical LNG applications where preventing gas escape is paramount.
Another breakthrough involves hybrid seat technologies. Combining metal and soft seal materials, these seats offer superior sealing performance under extreme cryogenic temperatures and high pressures. They also extend service life by resisting wear and thermal contraction. Additionally, the integration of sensors and smart actuators has revolutionized how LNG valves operate. These smart systems monitor valve conditions in real-time, enabling predictive maintenance and quick response to potential issues.
Smart actuators are now commonly integrated into LNG ball valves. These devices allow remote operation, precise control, and automatic shutoff during emergencies. They connect with plant control systems, providing real-time data on valve status, temperature, pressure, and potential faults. This integration enhances safety by enabling rapid responses to abnormal conditions, such as leaks or system failures.
Moreover, smart actuators facilitate automation in LNG facilities. Automated valves can open or close based on system demands, reducing human error and increasing operational efficiency. For example, in LNG shipping, automated valves manage loading and unloading processes safely and efficiently, minimizing the risk of accidents.
These technological advancements significantly boost safety and operational efficiency. Bidirectional sealing reduces leak potential, protecting personnel and environment. Hybrid seats maintain integrity over longer periods, decreasing maintenance needs. Smart sensors and actuators enable continuous monitoring, early fault detection, and timely interventions, preventing costly failures and downtime.
Automation speeds up response times during emergencies. Instead of manual intervention, valves can close instantly upon receiving signals from safety systems. This rapid shutoff capability is crucial for high-pressure, cryogenic environments where even seconds matter. Overall, innovations in LNG ball valve technology help facilities operate more safely, reliably, and cost-effectively.
LNG ball valves ensure maximum safety through rapid shut-off, reliable seals, and fire-resistant designs. They play a crucial role in preventing leaks and ensuring operational integrity in high-pressure environments. Future trends include smart actuators and hybrid seats, enhancing safety and efficiency. Didtek offers innovative LNG ball valves that provide exceptional safety features and durability, meeting industry standards and customer needs. Their advanced technology ensures reliable performance in demanding LNG applications, delivering significant value to operators and facilities.
A: An LNG Ball Valve is a specialized valve used to control the flow of liquefied natural gas through pipelines, ensuring safety and efficient operation.
A: LNG Ball Valves ensure safety with quick shut-off capabilities, reliable sealing mechanisms, and fire-safe features, preventing leaks and maintaining integrity under high pressure.
A: Cryogenic ball valves are crucial for handling extremely low temperatures, using materials like stainless steel to prevent brittleness and ensure safe LNG flow control.
