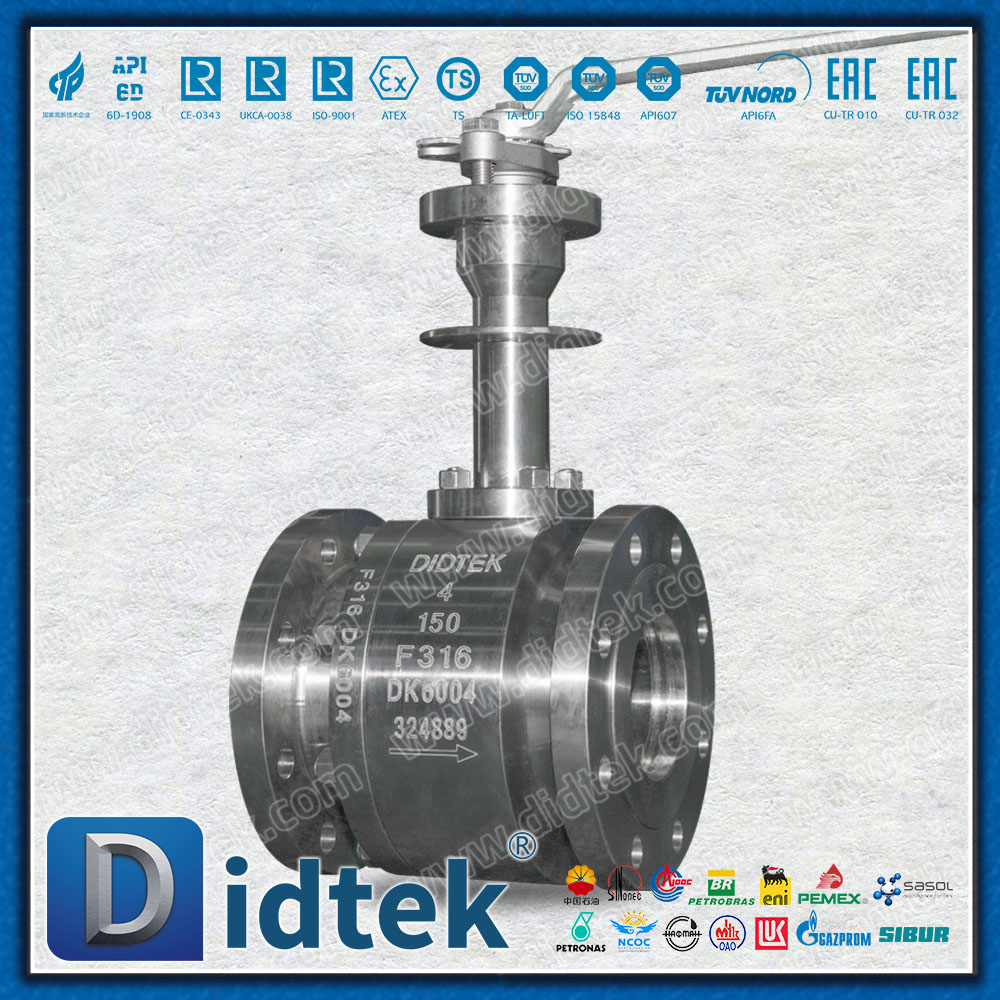

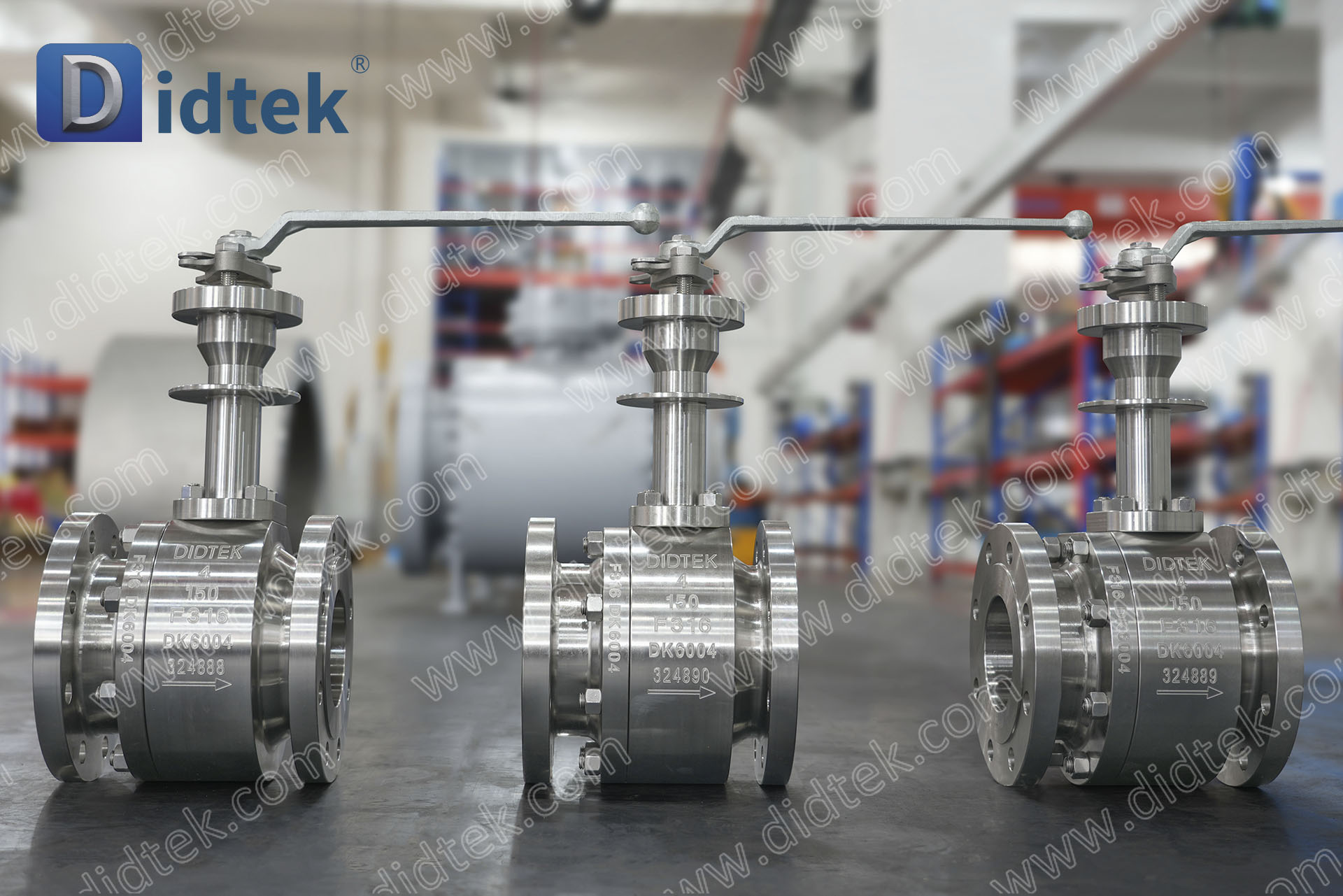

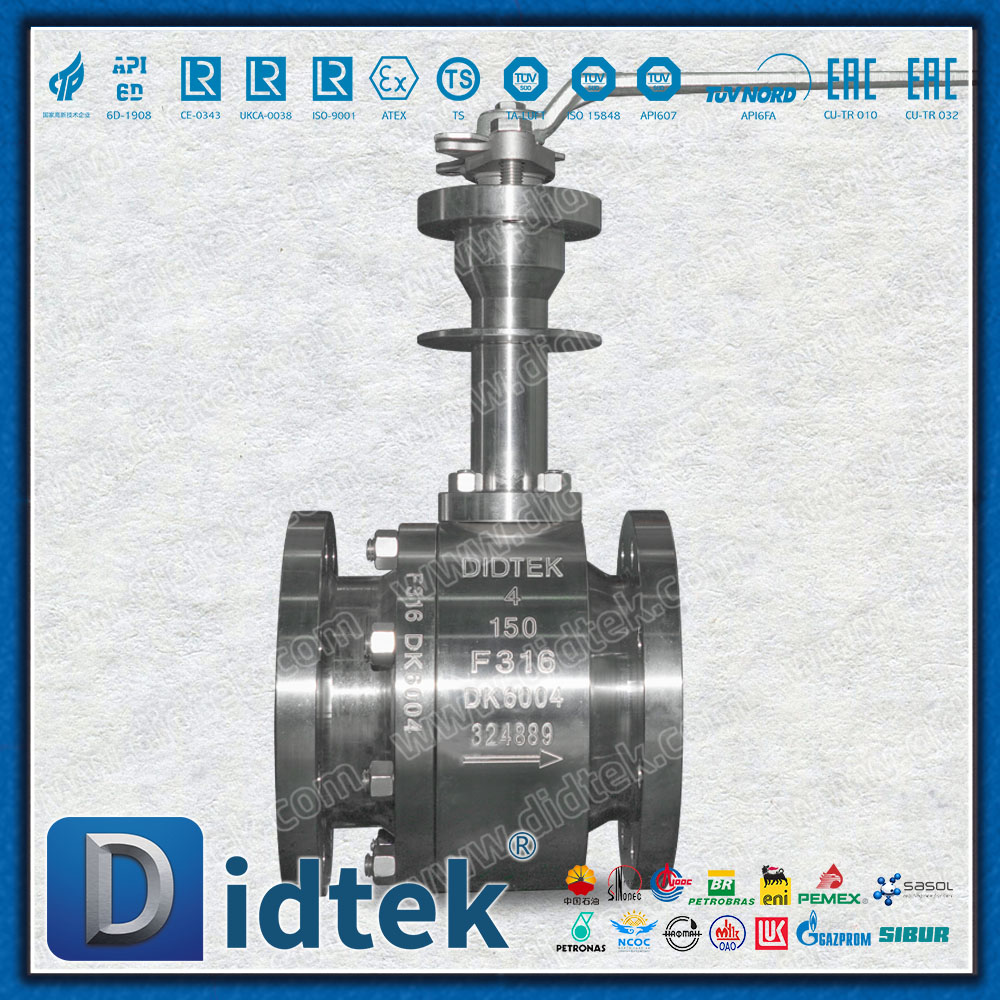

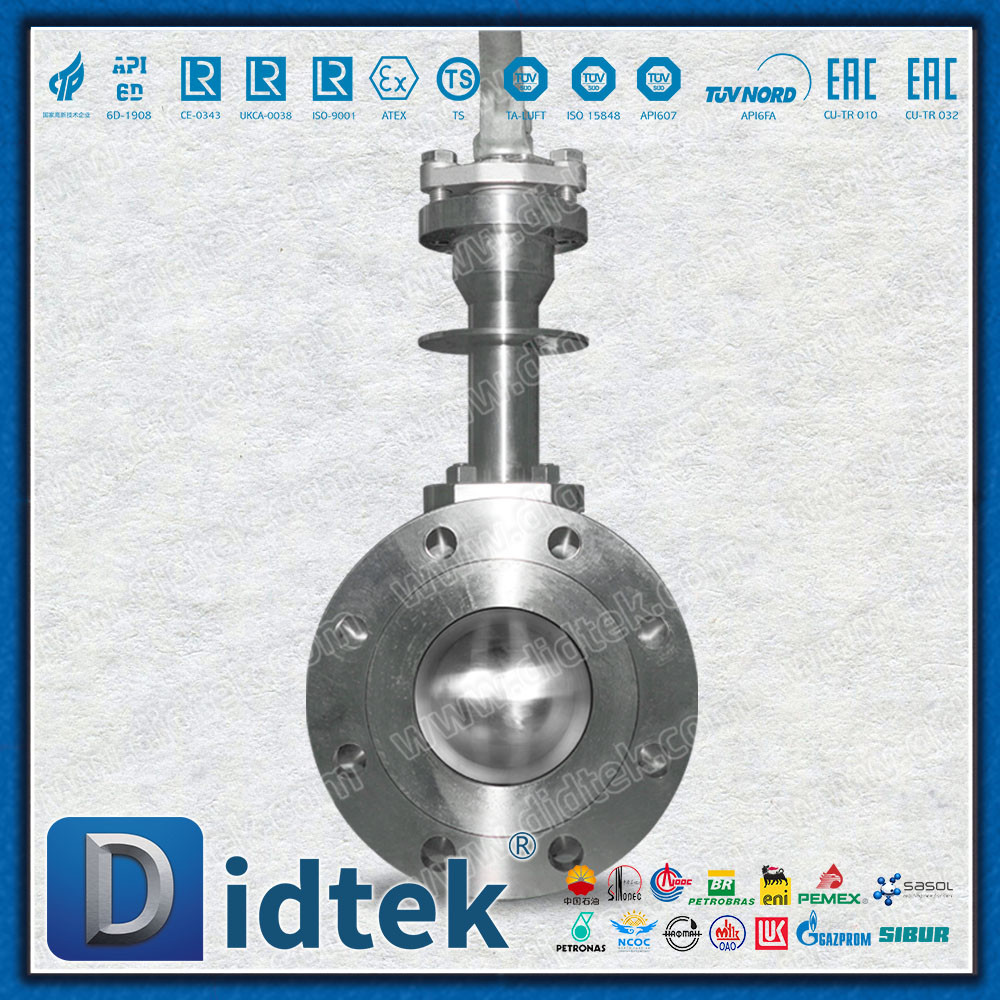

Didtek F316 Flanged Cryogenic Ball Valve

F316 Stainless Steel Manual Lever Operated Flanged Cryogenic Ball Valve

The F316 Stainless Steel Manual Lever Operated Flanged Cryogenic Ball Valve is engineered specifically for extreme low-temperature services, such as Liquefied Natural Gas (LNG), liquid nitrogen, liquid oxygen, and liquid argon down to -196℃.

Model:
Q41H-150R
Brand:
DIDTEK
Code:
FLBV-FFMSBV-12

Availability:

Quantity:



Inquire

Cryogenic Ball Valve F316 Manual Lever Cryogenic Valve Stainless Steel LNG Ball Valve Extended bonnet ball valve BS 6364 Cryogenic Valve Manufacturer

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

The F316 Stainless Steel Manual Lever Operated Flanged Cryogenic Ball Valve is engineered specifically for extreme low-temperature services, such as Liquefied Natural Gas (LNG), liquid nitrogen, liquid oxygen, and liquid argon down to $-196℃$ . Fabricated from premium forged ASTM A182 F316 (CF8M) austenitic stainless steel, the valve maintains exceptional impact toughness and corrosion resistance in sub-zero environments. Featuring an integrated extended bonnet (cryogenic stem extension), it elevates the stem packing away from the cryogenic zone, preventing icing and ensuring reliable stem sealing. Controlled via an ergonomic manual locking lever, this valve provides quick, precise, and safe on/off isolation for cryogenic piping networks.

Product Parameters

Parameter Name	Parameter
Size Range	4''
Pressure Range	150LB
Material	F316
Seal	Metal Seat: F316+Ni55
Temperature Range	-29°C~550°C
Design According	API 6D
Face to Face	ASME B16.10

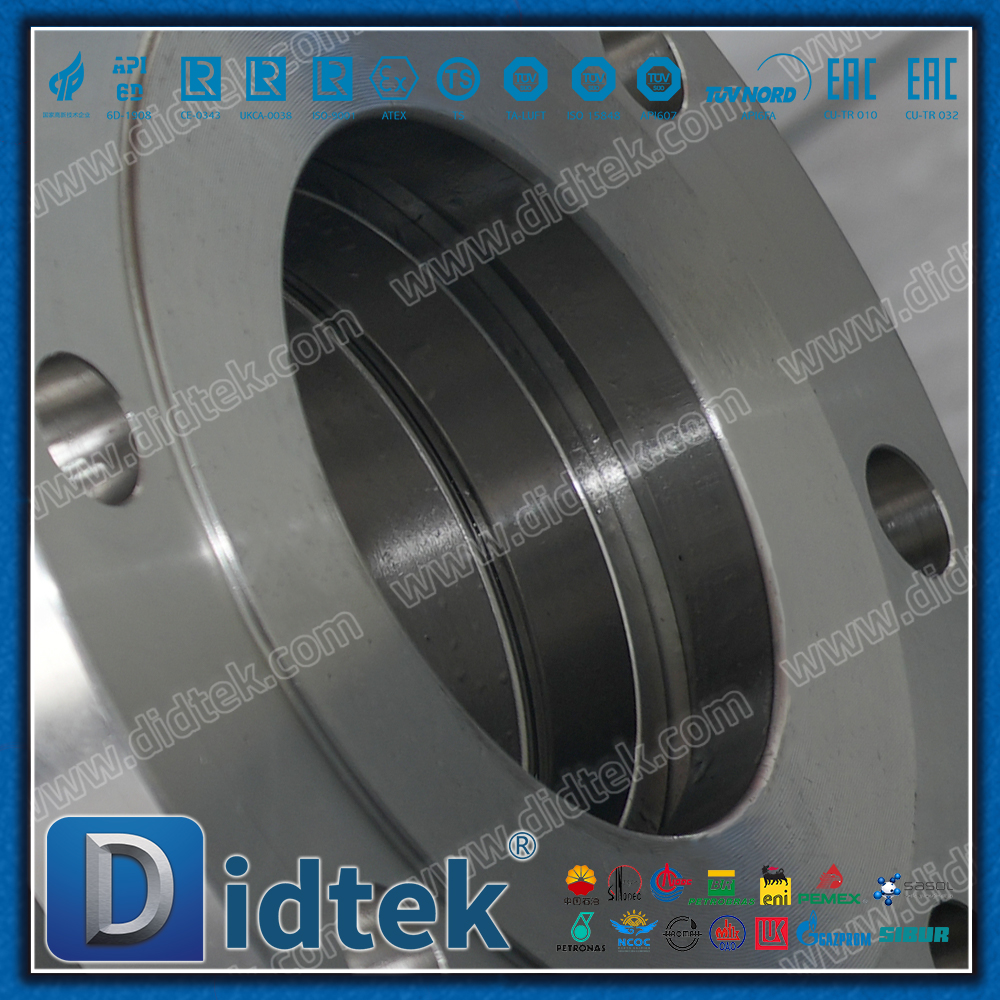

End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Lever
Body Type	Split Body
Type of Valve	Floating Ball Valve
Suitable Medium	Water, Oil, Steam etc

Design Description

Cryogenic-Grade F316 Construction: Austenitic F316 material prevents low-temperature brittle fracture, guaranteeing structural safety and high impact resistance at cryogenic temperatures.

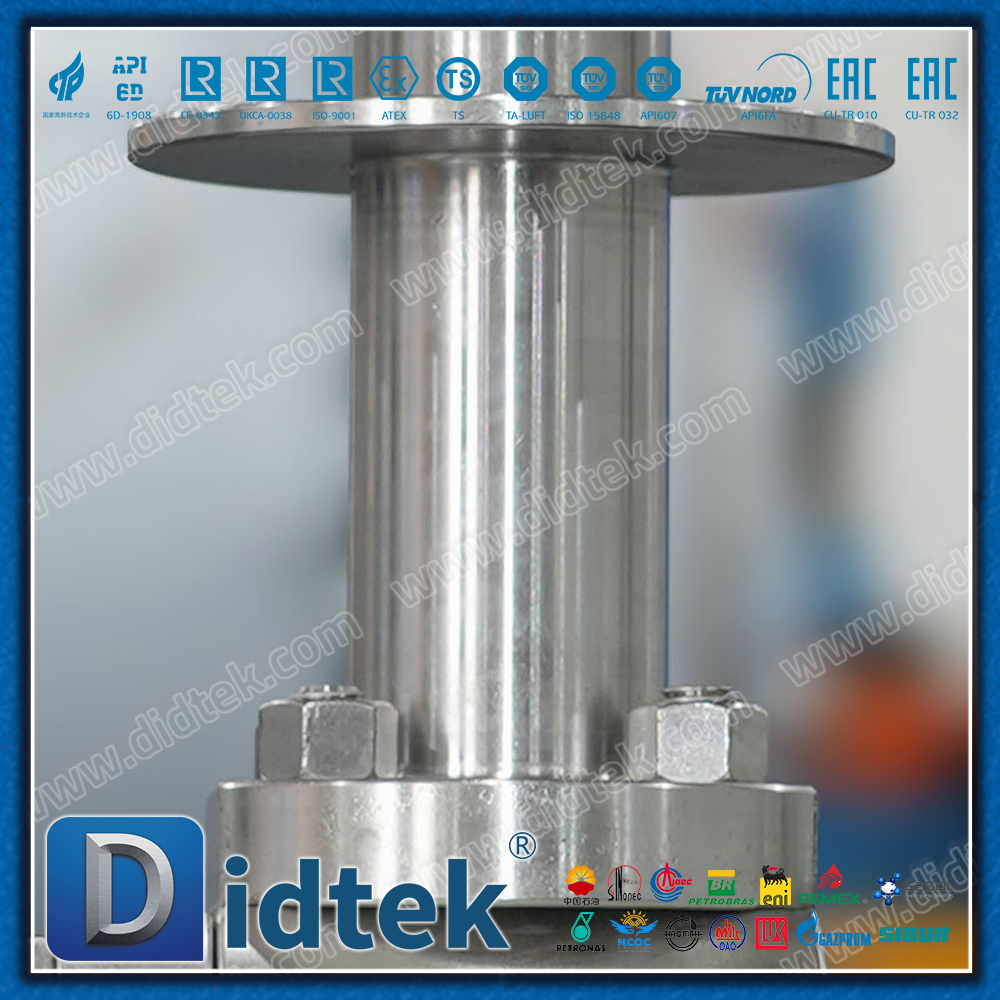

Thermal-Isolated Extended Bonnet: The elevated stem design prevents the formation of ice and frost around the stem packing, protecting seal integrity during frequent manual actuations.
Cavity Pressure Relief (Self-Relieving): The ball features a pressure-relief hole to prevent dangerous overpressure caused by trapped liquefied gas vaporization inside the body cavity.
Locking Manual Lever: Equipped with a rugged locking device to prevent accidental operation, ensuring process safety in industrial and energy applications.

Parameters

Brand	DIDTEK
Structure	Floating Ball
Material	F316
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

F316 Stainless Steel Manual Lever Operated Flanged Cryogenic Ball Valve are widely utilized in demanding environments due to their superior material properties:

LNG Liquefaction & Regasification Plants: Small-scale LNG storage, transfer, and vaporization skid lines.
Industrial Gas Separation: Air separation units (ASU) handling liquid nitrogen ( $LN 2$ ), liquid oxygen ( $LOX$ ), and argon.
Cryogenic Transport & Marine: Bunkering systems and shipboard liquid cargo piping.
