Top entry ball valve: in-line maintenance benefits for chemical plant

Chemical processing lines operate on exceptionally tight margins. Unforgiving production schedules drive these highly complex facilities daily. When routine maintenance forces an entire system offline, financial impacts escalate instantly. Pipeline shutdowns create a severe operational bottleneck for plant managers everywhere. Traditional valve replacements waste countless hours of potential processing time. You lose massive amounts of revenue during every minute of halted production.

Removing standard piping components requires extensive labor and rigorous preparation. Maintenance teams must purge hazardous materials completely. They break pipe connections and navigate extensive safety protocol delays. This exponential cost of maintenance demands a smarter structural solution immediately. We must protect long-term plant profitability through better engineering choices.

We explore the structural advantages of specialized designs engineered for continuous operation. They drastically reduce your Mean Time To Repair (MTTR). You achieve this efficiency by allowing direct vertical access to internal components. We balance the higher upfront capital against profound long-term maintenance savings. Understanding in-line accessibility transforms your facility operations. Our guide helps you make highly evidence-based procurement decisions today.

Key Takeaways

• Top entry designs eliminate the need to sever pipeline connections, reducing maintenance-related downtime by up to 70% in hazardous environments.

• The one-piece body construction inherently reduces potential leak paths, a critical factor for fugitive emission compliance in chemical plants.

• Initial procurement costs are higher than side-entry alternatives, requiring a clear ROI calculation based on downtime costs and severe service frequency.

• Proper specification requires evaluating vertical clearance, lifting equipment accessibility, and specific compliance standards like API 6D.

The Downtime Dilemma: Evaluating Maintenance Costs in Chemical Processing

Defining the Business Problem

Plant managers constantly fight costly operational bottlenecks. Removing standard side-entry valves triggers a cascading sequence of unavoidable expenses. Maintenance teams cannot simply pull these units offline effortlessly. They must isolate the specific line entirely first. Welders often cut the existing pipelines carefully to free the unit. Construction crews then erect extensive scaffolding to reach the damaged section safely. Technicians endure prolonged physical exposure in hazardous, highly toxic areas. Safety officers mandate rigorous atmosphere monitoring during these extended working shifts. These overlapping labor requirements multiply standard repair costs exponentially. Production revenue drops to zero while the processing line sits completely idle. Every additional hour amplifies your financial losses significantly.

Risk & Compliance Factors

Replacing a standard chemical plant valve demands extremely strict protocol adherence. Facilities handle aggressive, toxic, or highly flammable media constantly. You must execute complete depressurization sequences flawlessly to protect personnel. Technicians flush and purge hazardous lines before ever unbolting flanges. Leaving residual chemicals trapped inside pipes risks catastrophic workplace accidents. Standard unit replacements force workers to break the primary pressure vessel integrity. This structural breach requires highly complex isolation procedures. Safety teams scrutinize every single step of the extraction process continuously. Regulatory bodies heavily penalize accidental chemical releases during these maintenance windows.

Success Criteria

You need mechanical equipment designed specifically for rapid intervention. A viable in-line maintenance valve offers immediate operational relief. It must grant technicians direct access to internal sealing components. They can then repair the ball, seat, and stem safely in place. It accomplishes this vital task without disturbing the surrounding pipeline stress. Engineers rely heavily on these intelligent designs. They maintain pressure vessel integrity continuously throughout the repair cycle. Proper structural design guarantees you can rebuild internals seamlessly. Your success relies on minimizing pipeline disruption entirely.

How the Top Entry Architecture Facilitates In-Line Maintenance

Structural Breakdown

Engineering superiority begins at the core body casting level. These units feature a highly robust one-piece body construction. They incorporate a securely bolted bonnet covering the upper access port. This specific configuration defines their operational advantage completely. Technicians can extract the entire internal trim via this top cavity. They never need to unbolt the main pipeline flanges. The solid body casing resists external piping loads efficiently. It prevents body distortion during intense thermal cycling events. You gain unmatched structural rigidity while preserving internal accessibility.

Tooling and Time Metrics

Executing an in-line repair follows a highly streamlined operational sequence. We can compare this directly against full pipeline component extraction. Standard removal often takes several days to complete safely. In-line repairs usually finish within a single shift. Teams follow specific procedural steps to guarantee safety.

1. Depressurize the local piping segment completely before starting work.

2. Drain all residual hazardous media from the body cavity safely.

3. Unbolt the heavy top bonnet cover using specialized mechanical tools.

4. Extract internal components vertically using designated overhead lifting apparatus.

5. Inspect and replace worn seats or damaged seals immediately.

6. Reinsert the new internal trim and secure the top cover tightly.

System Integrity

Maintaining primary system integrity ranks as the highest priority. The primary top entry ball valve body stays securely welded to the pipeline. Piping alignment never shifts during the internal component replacement process. You eliminate post-repair hydro-testing requirements entirely in most jurisdictions. Traditional removals often introduce severe flange misalignment issues upon reinstallation. Forcing misaligned pipes together creates dangerous internal stress concentrations. These stresses frequently cause premature failure of adjacent pipeline components. In-line service completely bypasses this critical mechanical risk.

Top Entry vs. Side Entry: A Procurement Decision Framework

Upfront Cost vs. Lifecycle Savings

Procurement teams must acknowledge higher initial manufacturing costs immediately. Producing these units involves highly complex casting and forging processes. The heavier solid body weight inherently drives material prices higher. Standard side-entry units cost significantly less to purchase outright. However, smart buyers evaluate ROI using a broader financial lens. You must calculate lost production revenue per hour of standard downtime. Compare this staggering loss against the specific valve's price premium. You will find the higher capital investment pays off quickly. A single prevented shutdown often recoups the entire price difference instantly. Severe service applications justify this higher expenditure easily.

Leak Path Vulnerability

Environmental compliance dictates strict control over industrial fugitive emissions. We compare the single-joint bonnet of our preferred design directly. Standard side-entry units rely heavily on multi-piece bolted body joints. Every additional joint creates another potential leak path for gases. Chemical plants process highly volatile organic compounds daily. Reducing atmospheric leak points ensures you meet stringent environmental compliance standards. The single-piece body design inherently eliminates transverse body leakage risks completely. You protect the environment while avoiding costly regulatory fines.

Spatial and Structural Constraints

Engineers must thoroughly evaluate physical installation realities before purchasing. In-line accessible designs require substantial vertical overhead clearance above the pipe. Technicians need ample room to hoist the heavy bonnet upwards. They require a reliable lifting apparatus to remove the internal trim vertically. Conversely, standard side-entry options require extensive horizontal extraction space. Maintenance crews need room to pull the entire unit sideways. You cannot install vertically accessed units in tightly stacked horizontal pipe racks. You must plan your physical facility layout accordingly.

Best Practices for Spatial Planning

• Review 3D piping isometric models before finalizing your procurement list.

• Verify sufficient headroom exists for crane hoists above severe service lines.

• Install permanent overhead anchor points during initial plant construction phases.

• Ensure maintenance platforms can physically support the extracted bonnet weight.

Configuring for Severe Service and Operational Compliance

Material Selection for Aggressive Media

Aggressive processing environments destroy standard materials rapidly. You must meticulously match valve materials to specific chemical compatibility profiles. Temperature extremes demand highly specialized metallurgical choices. Many facilities process cryogenic fluids or highly volatile chilled liquids. Engineers routinely specify an LF2 top entry valve for low-temperature carbon steel applications. LF2 steel maintains excellent impact toughness in sub-zero working conditions. Standard carbon steel becomes dangerously brittle under these exact same conditions. Choosing improper materials leads to catastrophic pressure boundary failures. You must consult detailed chemical resistance charts during the specification phase.

Safety and Isolation Standards

Protecting maintenance personnel requires absolute isolation from pressurized systems. You must implement robust safety mechanisms prior to beginning in-line procedures. We emphasize the critical role of specific industry isolation standards here. Specifying an API 6D DBB valve configuration is absolutely essential. Double Block and Bleed functionality ensures absolute isolation from hazardous media. It guarantees zero leakage reaches technicians during complex in-line maintenance procedures. You block pressure from both upstream and downstream directions simultaneously. Technicians bleed the central cavity to verify isolation success visually. This verification step prevents deadly exposure to toxic chemical blasts.

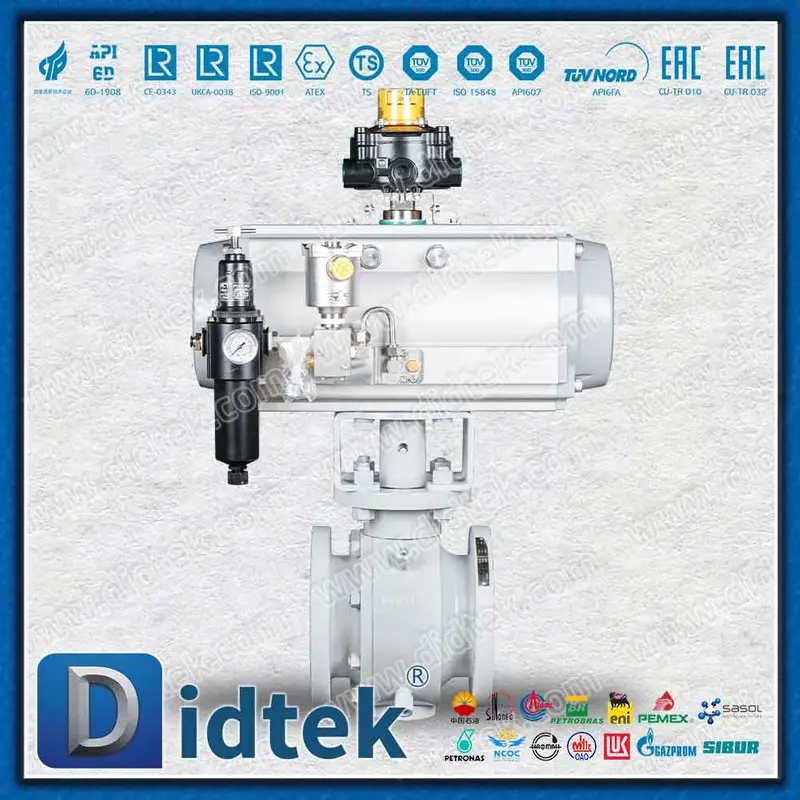

Actuation and Control

Modern chemical plants rely heavily on sophisticated automation systems. You must integrate these critical isolation points with central plant automation seamlessly. Most standard units utilize automated pneumatic or intelligent electric actuators. However, severe service lines often generate massive internal operational friction. They transport thick, highly viscous polymers or abrasive abrasive slurries. These conditions demand extremely high torque to initiate movement. You should specify a robust gear operated ball valve for these large-diameter pipelines. Manual gear operators provide essential mechanical advantage during emergency override scenarios. They allow operators to isolate lines safely when automated power fails completely.

Implementation Risks and Rollout Considerations

Engineering Assumptions

Many plant managers harbor dangerous misconceptions about advanced hardware. They wrongly assume "in-line maintenance" automatically equals "easy maintenance." We must actively challenge this overly optimistic engineering assumption immediately. Executing these repairs demands highly specialized extraction tools always. Your maintenance technicians require specific, rigorous training programs before attempting procedures. Extracting tightly wedged internal components requires precision and considerable physical effort. Mishandling the delicate sealing surfaces ruins the replacement trim instantly. You must invest heavily in workforce education to realize actual downtime savings.

Overhead Lifting Requirements

Physical weight presents a massive logistical hurdle during maintenance events. Large-bore covers and internal balls are extremely heavy components. A twenty-inch solid steel ball weighs thousands of pounds easily. Technicians cannot possibly lift these massive parts manually. You must factor permanent or temporary lifting structures into initial plant designs. We highly recommend installing dedicated lifting davits directly above critical units. Mobile cranes provide another viable option for easily accessible outdoor locations. Ignoring these overhead lifting requirements completely neutralizes the in-line accessibility advantage.

Common Mistakes to Avoid

• Failing to provide specialized extraction tools to the maintenance team.

• Attempting in-line repairs without verifying complete Double Block and Bleed isolation.

• Neglecting to measure available vertical clearance before finalizing pipe rack designs.

• Substituting uncertified aftermarket seals during the critical reassembly process.

Shortlisting Logic

Procurement teams need a strict evaluation framework when selecting vendor partners. Do not accept vague performance promises from unverified manufacturing representatives. You must demand rigorously documented maintenance times for specific product lines. Require certified environmental emission testing results before issuing purchase orders. Reputable vendors easily provide official ISO 15848 compliance certificates upon request. Ensure they deliver exceptionally clear, well-illustrated maintenance manuals. Ask to review their specific in-line extraction procedural documents beforehand. Your final vendor selection determines your long-term operational success heavily. Protect your facility by prioritizing extreme technical transparency.

Conclusion

We summarize the profound strategic value of these advanced structural designs here. They remain perfectly optimal for highly critical, extreme-downtime-cost chemical processing applications. You should not install them indiscriminately on standard utility water lines. Their true value shines when processing aggressive media where isolation proves difficult. They drastically reduce repair timelines while minimizing dangerous fugitive environmental emissions simultaneously. Upfront capital investments yield massive long-term operational savings.

We recommend specific, action-oriented next steps for plant managers immediately. Conduct a comprehensive 3D piping isometric review to verify vertical overhead clearance. Audit your current historical downtime losses on heavily welded severe service lines. Calculate the exact revenue lost during your last major hazardous pipeline shutdown. Use these concrete financial metrics to build a bulletproof business case today.

FAQ

Q: What defines a top entry ball valve?

A: It features a single-piece solid body and a removable top-access bonnet. Technicians unbolt this top cover to extract internal components directly. This unique mechanical design allows complete internal maintenance without removing the main body from the pipeline. It prioritizes rapid in-line structural accessibility.

Q: Is an in-line maintenance valve suitable for all chemical pipelines?

A: No. You should reserve them specifically for severe service applications. They fit best on heavily welded lines where full removal is cost-prohibitive. Using them on basic utility lines unnecessarily inflates your initial capital budget. Match the hardware complexity to the operational risk.

Q: How does a top entry design reduce fugitive emissions?

A: It fundamentally reduces the total number of body-joint leak paths. Side-entry units rely on two or three bolted body pieces. The one-piece casting eliminates these transverse joints completely. Fewer structural joints mean significantly fewer opportunities for hazardous gases to escape.

Q: Can top entry valves be automated?

A: Yes. They are fully compatible with standard pneumatic, electric, and hydraulic actuation systems. For large-diameter lines requiring high torque, operators frequently install manual gear operators. These manual overrides ensure you can always actuate the system during electrical power failures.
