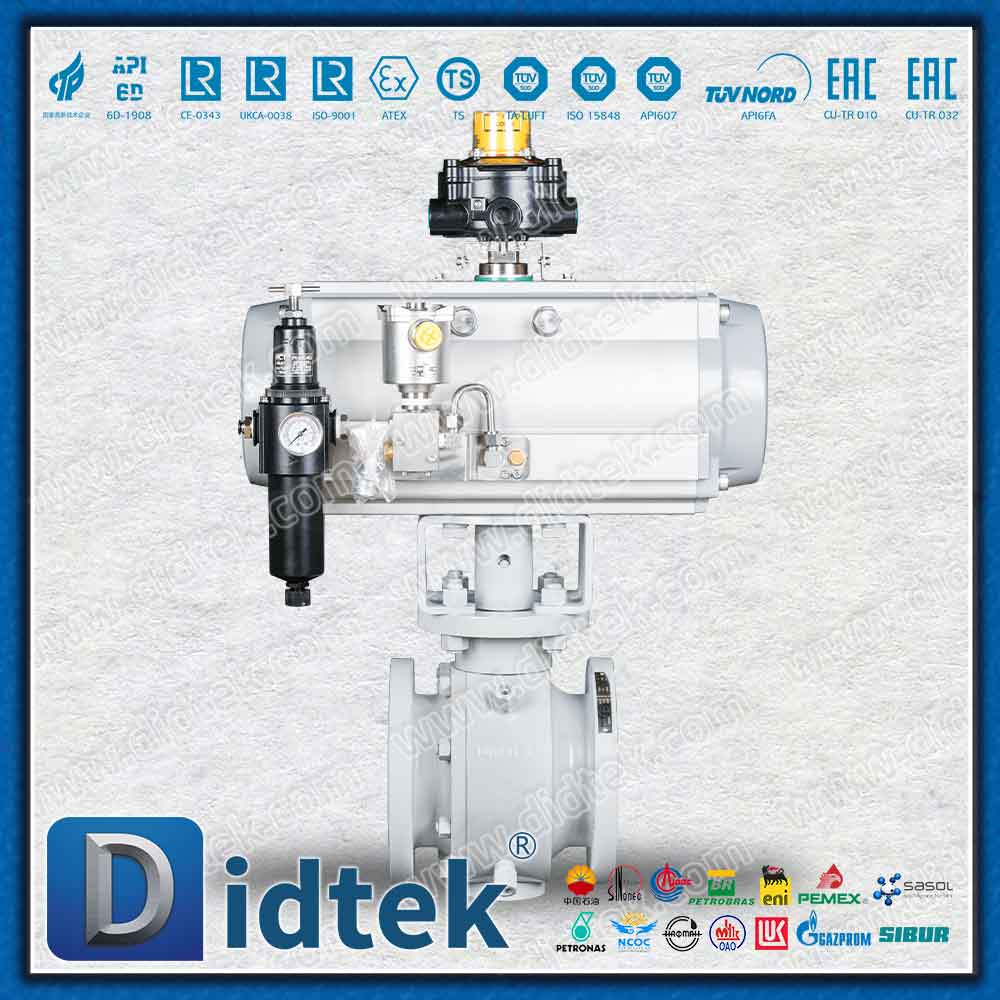

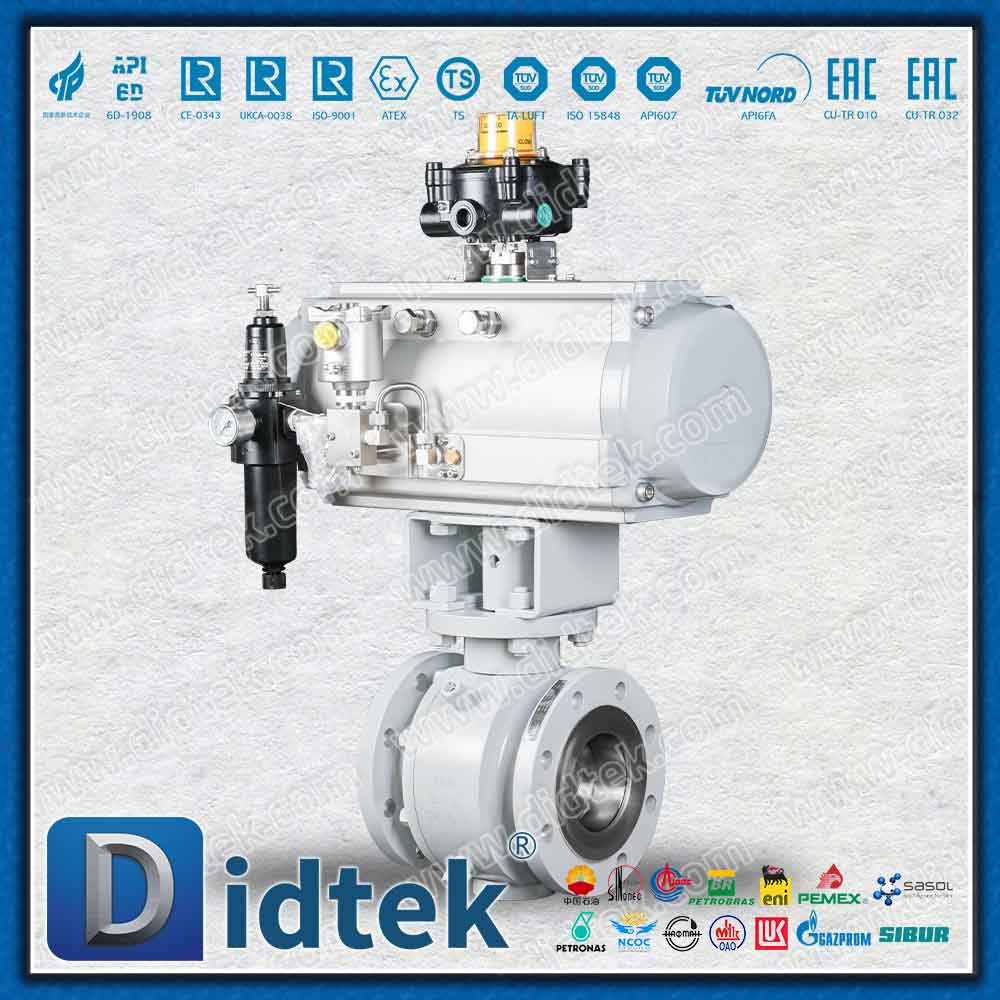

LF2 Low Temperature Carbon Steel Pneumatic Full Port Trunnion Ball Valve

The LF2 Low Temperature Carbon Steel Pneumatic Trunnion Ball Valve is a high-performance automated solution engineered specifically for extreme cold environments and cryogenic auxiliary services.

Model:
Q647H-150LBL
Brand:
DIDTEK
Code:
TRBV-FTMSBV 011

Availability:

Quantity:



Inquire

LF2 Low Temp Ball Valve Pneumatic Trunnion Ball Valve A350 LF2 Actuated Valve Full Port Low Temperature Valve API 6D LF2 Valve Manufacturer

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

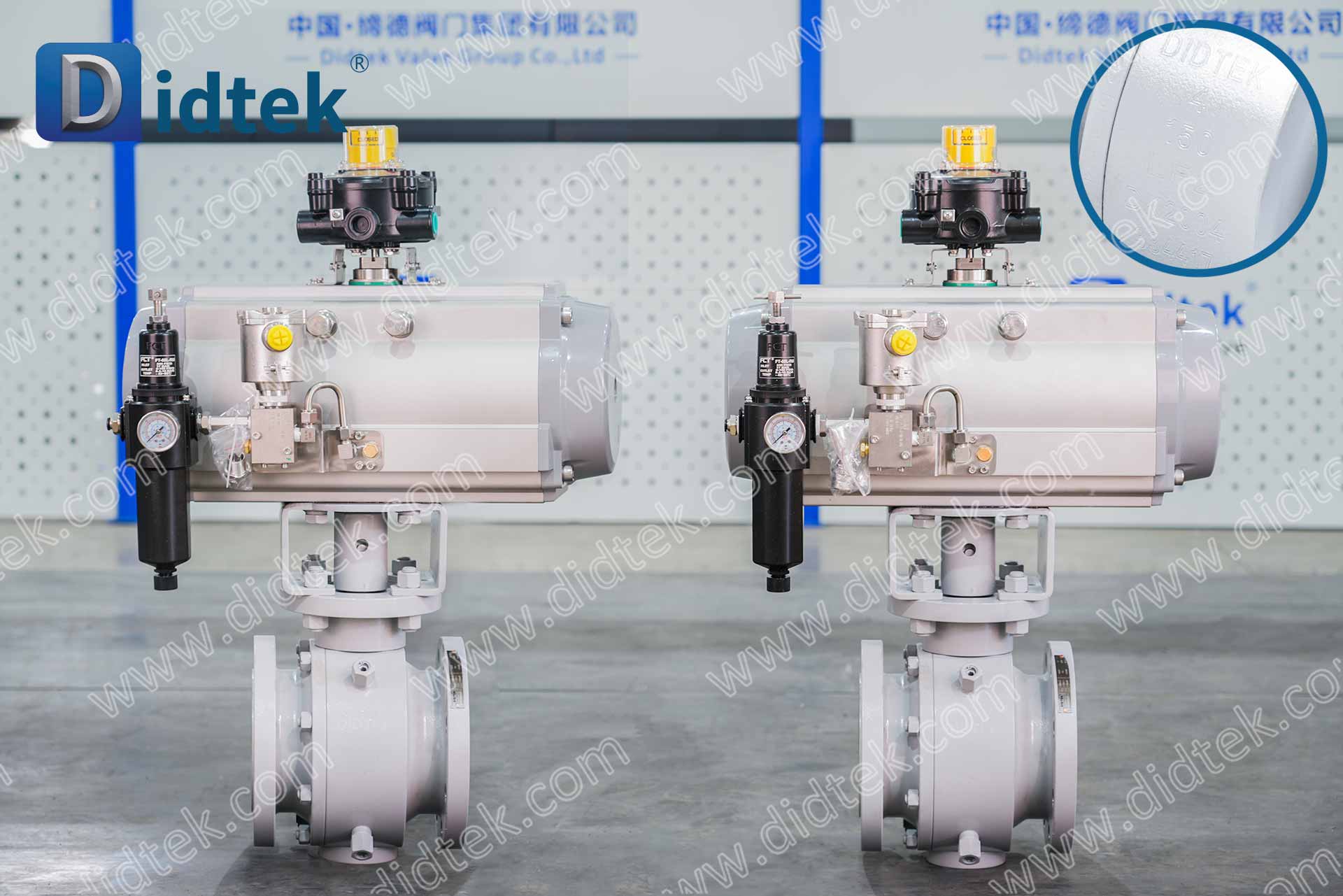

The LF2 Low Temperature Carbon Steel Pneumatic Trunnion Ball Valve is a high-performance automated solution engineered specifically for extreme cold environments and cryogenic auxiliary services. Built with ASTM A350 LF2 forged steel, this valve maintains superior impact toughness at temperatures as low as -46℃. The full-port design ensures zero flow resistance, while the trunnion-mounted structure, combined with a powerful pneumatic actuator, provides reliable, low-torque operation for rapid emergency shut-off or precise process control in arctic pipelines and gas processing plants. D-11 DIDTEKFTMSBV - LF2 Low Temperature Carbon Steel Pneumatic Full Port Trun

Product Parameters

Parameter Name	Parameter
Size Range	4''
Pressure Range	150LB
Material	LF2
Seal	Metal Seat
Temperature Range	-46°C~100°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Pneumatic
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil and some corrosive liquid

Design Description

Exceptional Low-Temp Resilience: The A350 LF2 forged body is impact-tested to ensure maximum safety against brittle fracture in sub-zero climates.

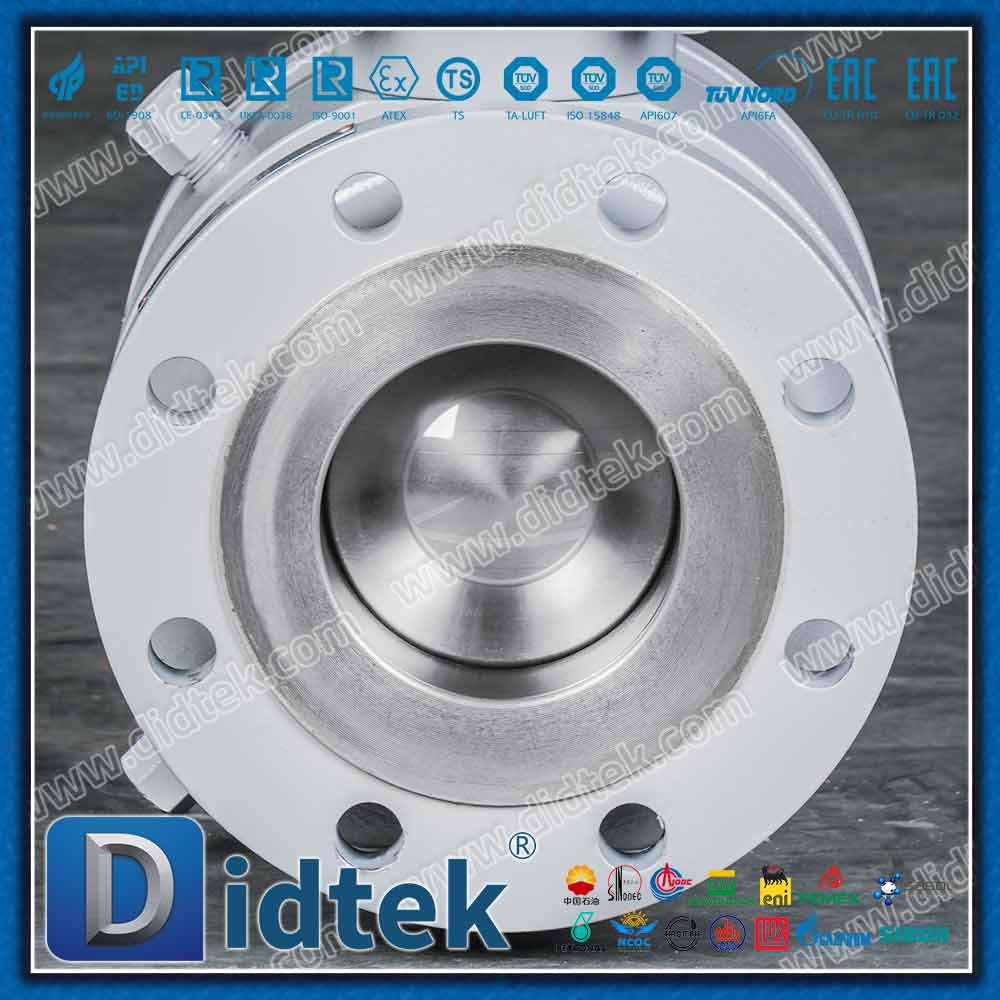

High-Efficiency Full Port: The internal bore matches the pipe ID exactly, minimizing pressure drop and allowing for seamless pigging operations.
Pneumatic Automation & Safety: Equipped with high-torque pneumatic actuators (Rack & Pinion or Scotch Yoke) for fast response times and fail-safe (Spring Return) options.
Trunnion-Mounted Stability: The fixed-ball design transfers fluid pressure loads to the bearings, preventing seat deformation and ensuring smooth operation even at high pressure differentials.
API 6D & Fire-Safe Compliance: Features a blow-out proof stem, anti-static design, and is certified to API 607 for reliable sealing during fire emergencies.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Low Temperature Carbon Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

LF2 Low Temperature Carbon Steel Pneumatic Full Port Trunnion Ball Valve are widely utilized in demanding environments due to their superior material properties:

Arctic Oil & Gas Transmission: Mainline isolation in cold regions like Alaska, Siberia, or Northern China.
LPG & Condensate Handling: Reliable control for low-temperature hydrocarbon liquids.
Gas Processing Plants: Automated ESD (Emergency Shut Down) systems in dehydration and sweetening units.
