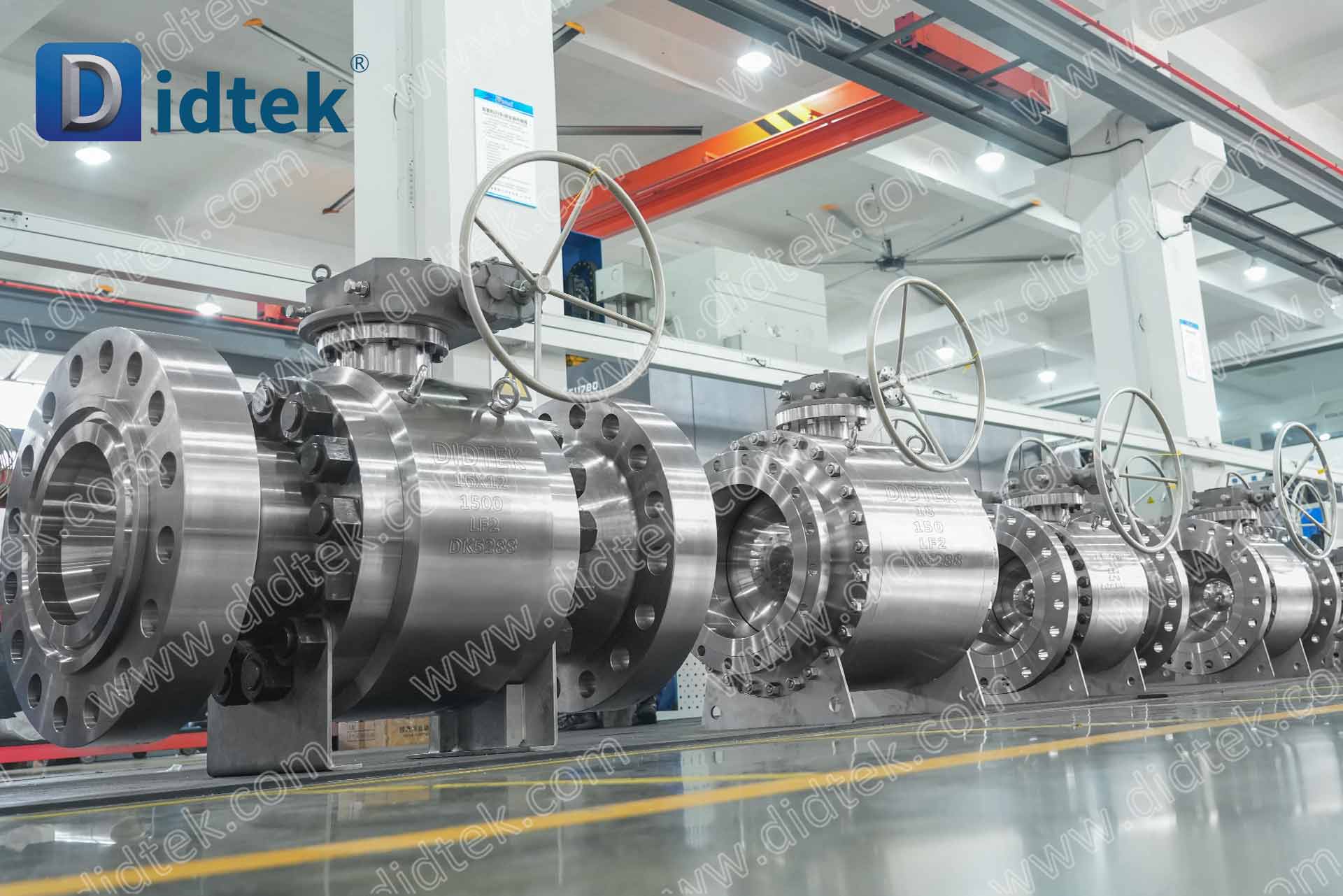

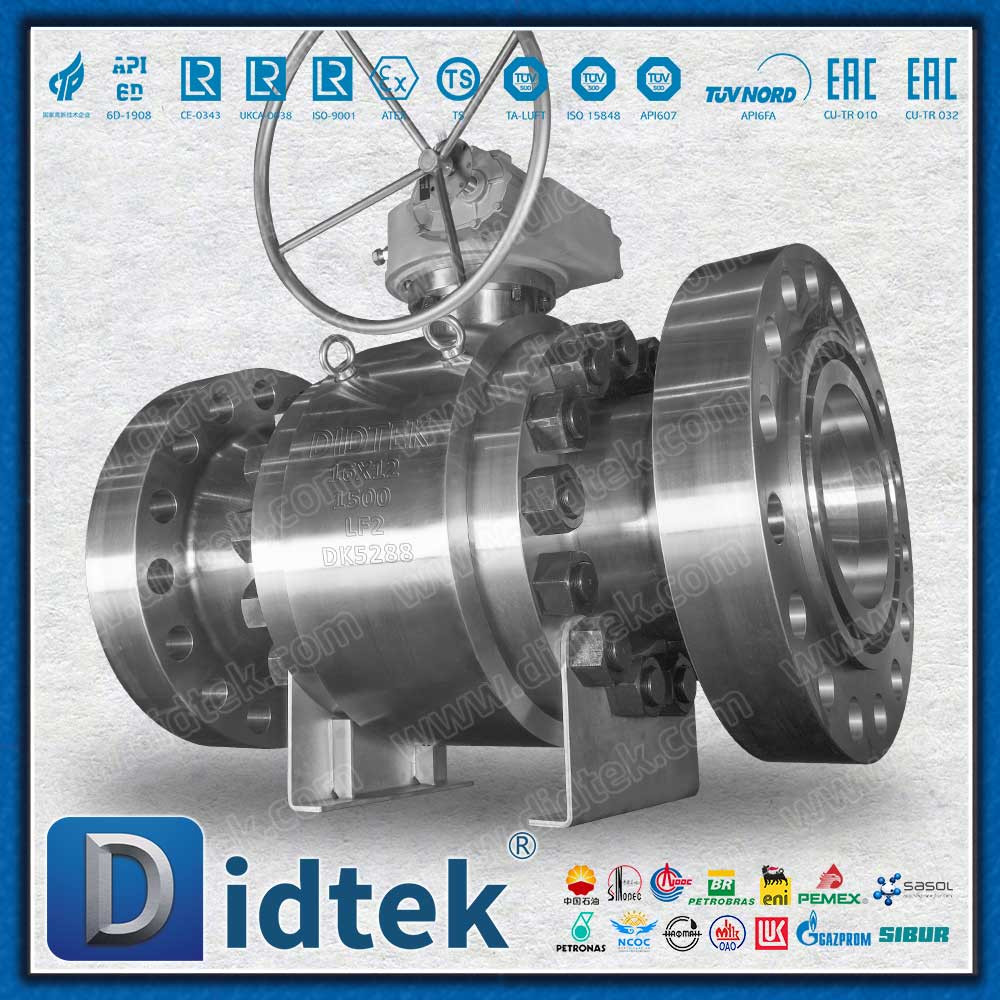

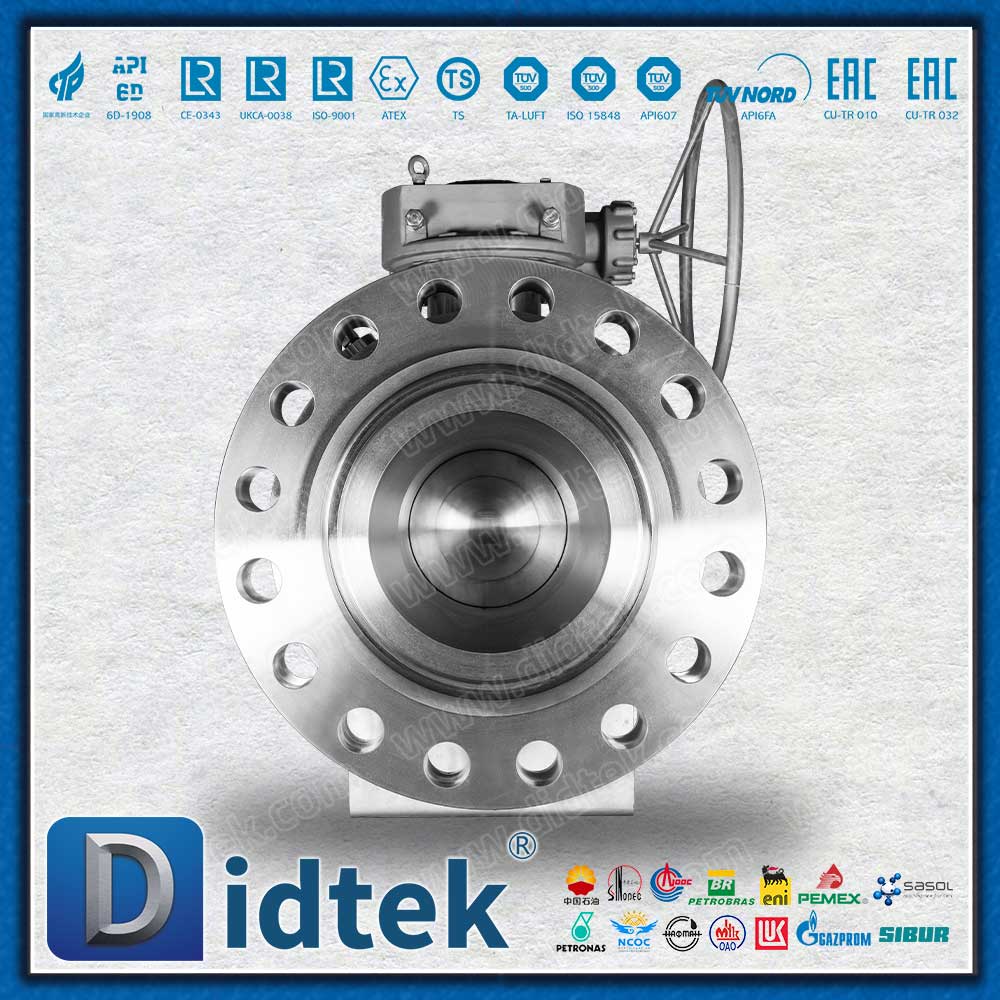

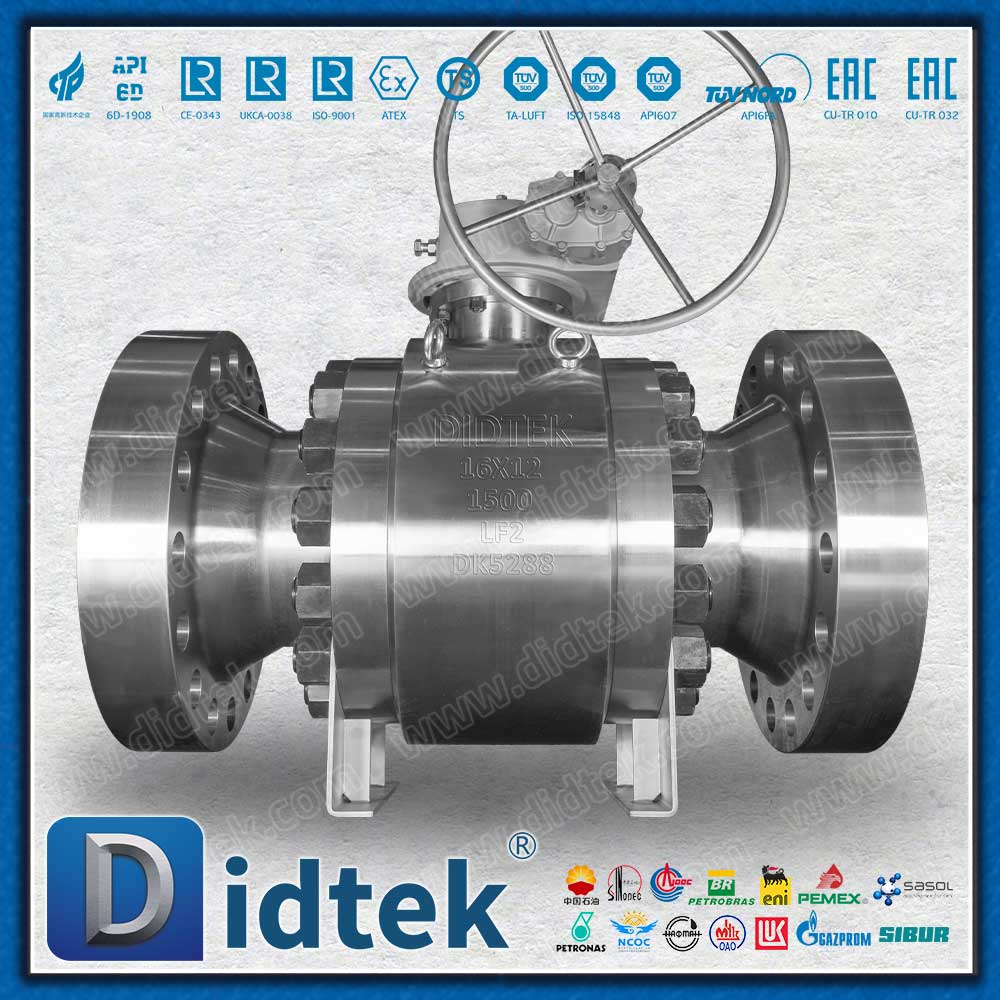

Inconel 625 Overlay Lip Seal High Pressure Ball Valve For Marine Engineering

The Inconel 625 Overlay Lip Seal High Pressure Ball Valve is a top-tier engineered flow control solution tailored specifically for severe marine engineering, subsea, and offshore high-pressure production platforms.

Model:
Q347F-1500LBL
Brand:
DIDTEK
Code:
TRBV-FTBV-059

Availability:

Quantity:



Inquire

Inconel 625 Overlay Ball Valve Lip Seal High Pressure Ball Valve Subsea Trunnion Ball Valve Manufacturer Clad Ball Valve for Marine Engineering API 6A High Pressure Valve

Product Description

Product Parameters

Parameters

Application

Product Detail

The Inconel 625 Overlay Lip Seal High Pressure Ball Valve is a top-tier engineered flow control solution tailored specifically for severe marine engineering, subsea, and offshore high-pressure production platforms. To combat aggressive seawater corrosion and sour gas (H2/CO2) environments, the critical internal wetted areas of the valve body and closure components are armored with high-integrity Inconel 625 weld overlay. Combined with an advanced Lip Seal design, which utilizes fluid pressure to energize and enhance contact tightness against the ball, this valve delivers exceptional bubble-tight shut-off under extreme pressures (up to Class 2500 or 15000 PSI). Built in accordance with API 6D and API 6A specifications, it guarantees uncompromised safety and longevity in the world's most hostile marine environments.

Product Parameters

Parameter Name	Parameter
Size Range	16''X12''
Pressure Range	300LB
Material	LF2
Seal	Soft Seat: RPTFE
Temperature Range	-46°C~150°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 607 / ISO 10497
Inspection and Test	API 598
Operate	Worm Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil and some corrosive liquid

Design Description

Inconel 625 Weld Overlay: Critical sealing surfaces and cavity areas are cladded with Alloy 625 (UNS N06625), offering world-class resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking.
Self-Energized Lip Seal Design: The spring-loaded or pressure-assisted lip seal mechanism flexes under line pressure, ensuring continuous, dynamic contact with the ball even during pressure surges or thermal cycles.
Heavy-Duty Trunnion Construction: Fixed-ball design handles massive high-pressure thrusts, minimizing operational torque and preventing seat deformation.
Deep-Sea & Offshore Reliability: Designed to withstand high external hydrostatic pressures and internal high-pressure containment, meeting NACE MR0175 / ISO 15156 sour service requirements.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Low Temperature Carbon Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Inconel 625 Overlay Lip Seal High Pressure Ball Valve For Marine Engineering are widely utilized in demanding environments due to their superior material properties:

Subsea Production Systems: High-pressure subsea tree manifolds and pipeline isolation.
Offshore High-Pressure Risers: Platform top-side high-pressure production and export lines.
Sour Gas Marine Fields: Offshore oil and gas fields with high concentrations of H2 and CO2
