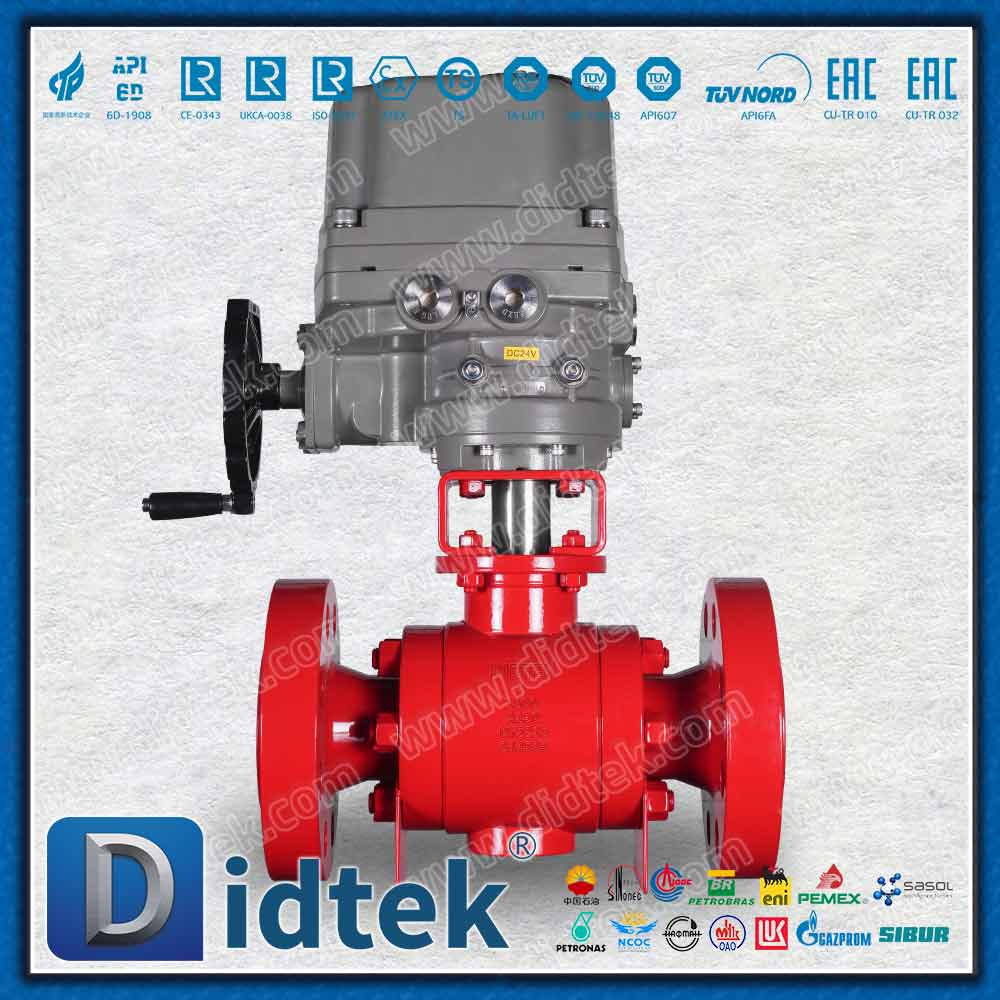

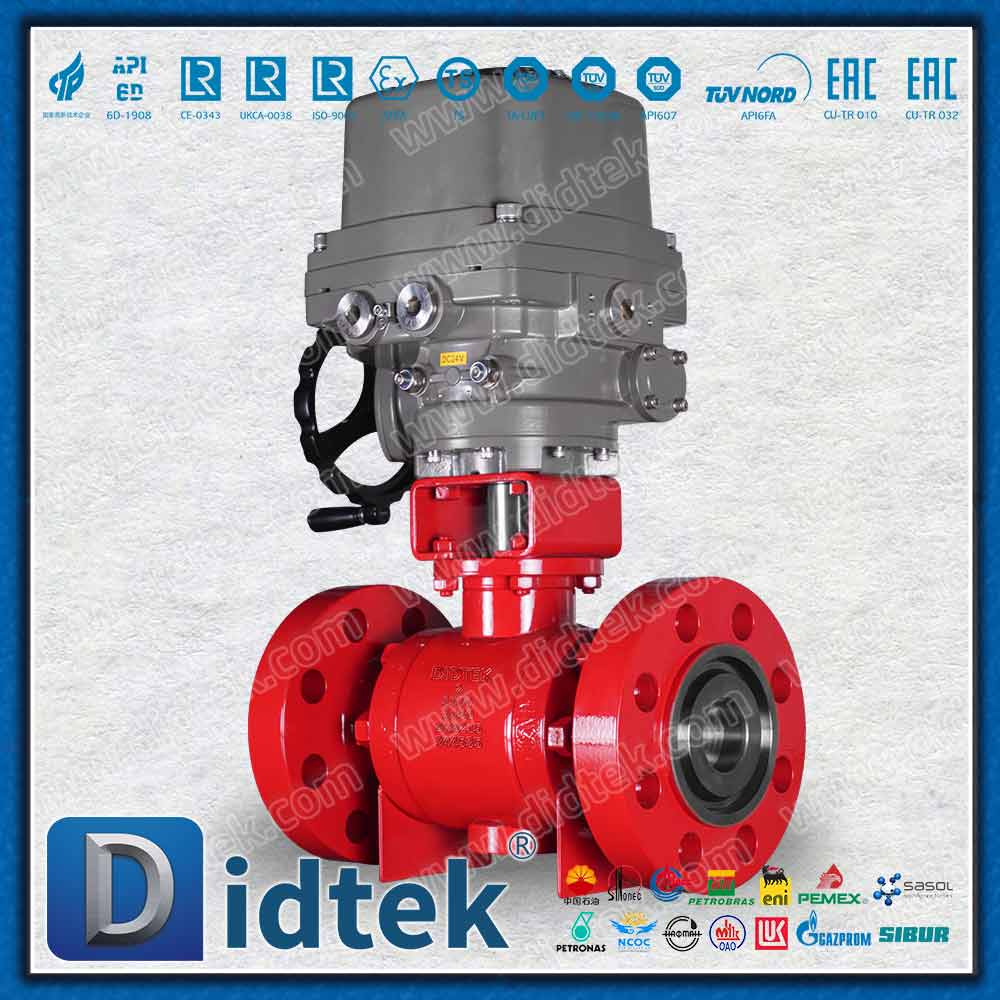

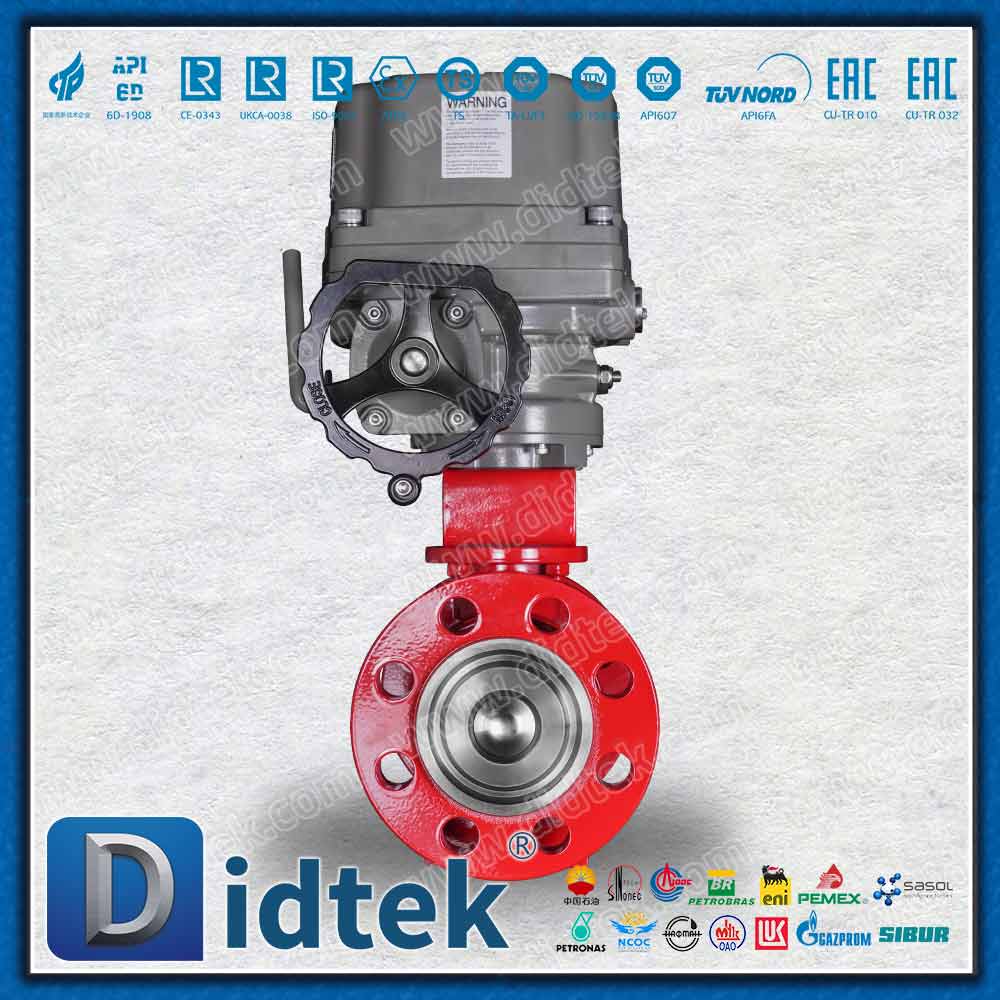

Electric Forged F316 Trunnion Ball Valve with Polyurethane Coating

The Electric Forged F316 Trunnion Ball Valve with Polyurethane Coating is a heavy-duty, high-performance automated solution engineered for aggressive chemical and corrosive environments.

Model:
Q947H-1500LB
Brand:
DIDTEK
Code:
TRBV-FTMSBV-015

Availability:

Quantity:



Inquire

Electric F316 Trunnion Ball Valve Forged Stainless Steel Ball Valve Polyurethane Coated Ball Valve Electric Actuated F316 Ball Valve API 6D Trunnion Ball Valve Manufacturer

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

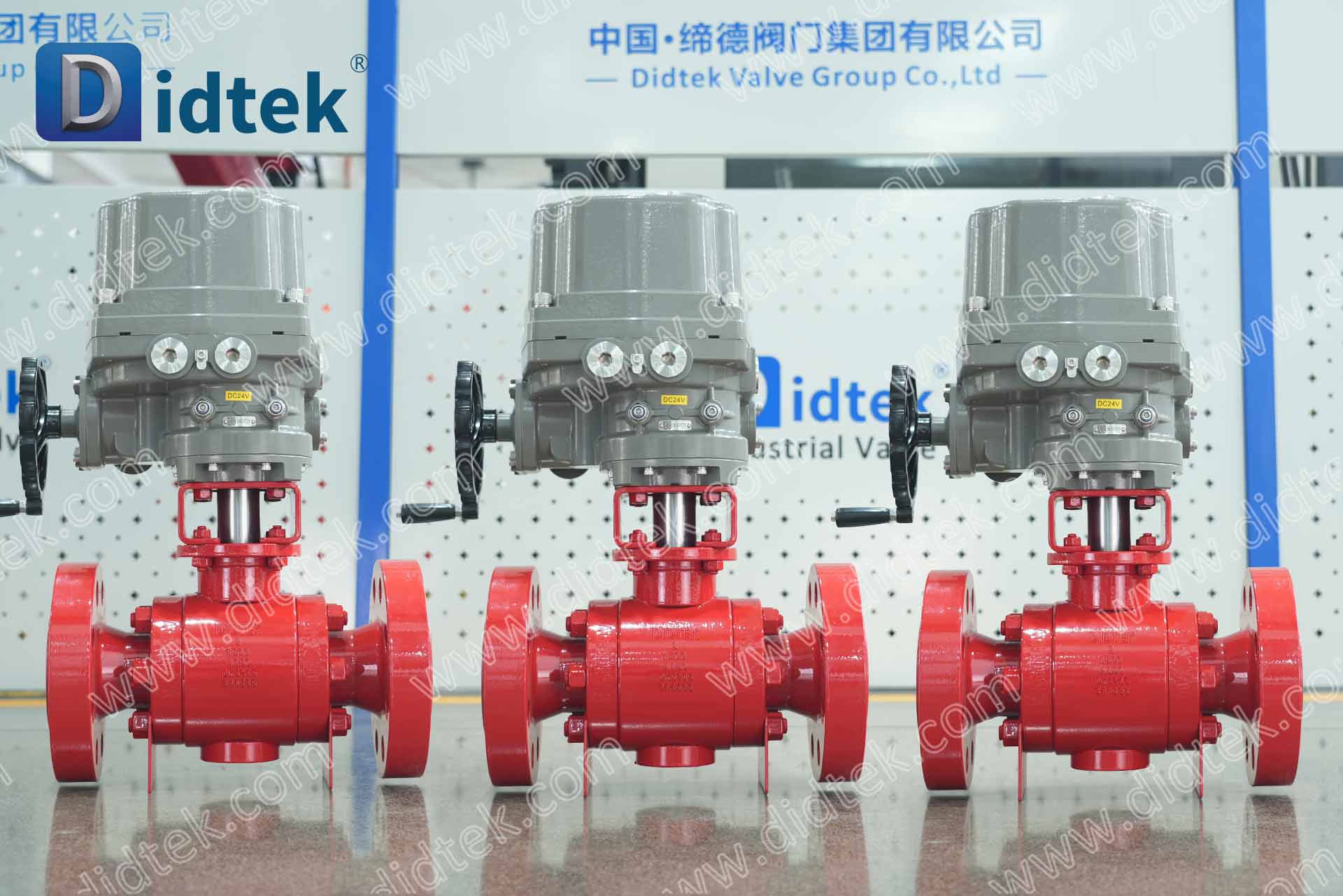

The Electric Forged F316 Trunnion Ball Valve with Polyurethane Coating is a heavy-duty, high-performance automated solution engineered for aggressive chemical and corrosive environments. Constructed from forged ASTM A182 F316 stainless steel, the valve body offers superior internal resistance to aggressive media and chloride-induced corrosion. The Trunnion-mounted design fixes the ball in place, significantly reducing operating torque and allowing seamless integration with an Electric Actuator. Furthermore, the exterior is finished with a robust Polyurethane Coating, providing an extra layer of defense against UV radiation, salt spray, and harsh atmospheric conditions. D-15 DIDTEKFTMSBV -Electric Forged F316 Trunnion Ball Valve with Polyurethane Coatin

Product Parameters

Parameter Name	Parameter
Size Range	2''
Pressure Range	1500LB
Material	A105
Seal	Hard Seat: F316
Temperature Range	-29°C~100°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5

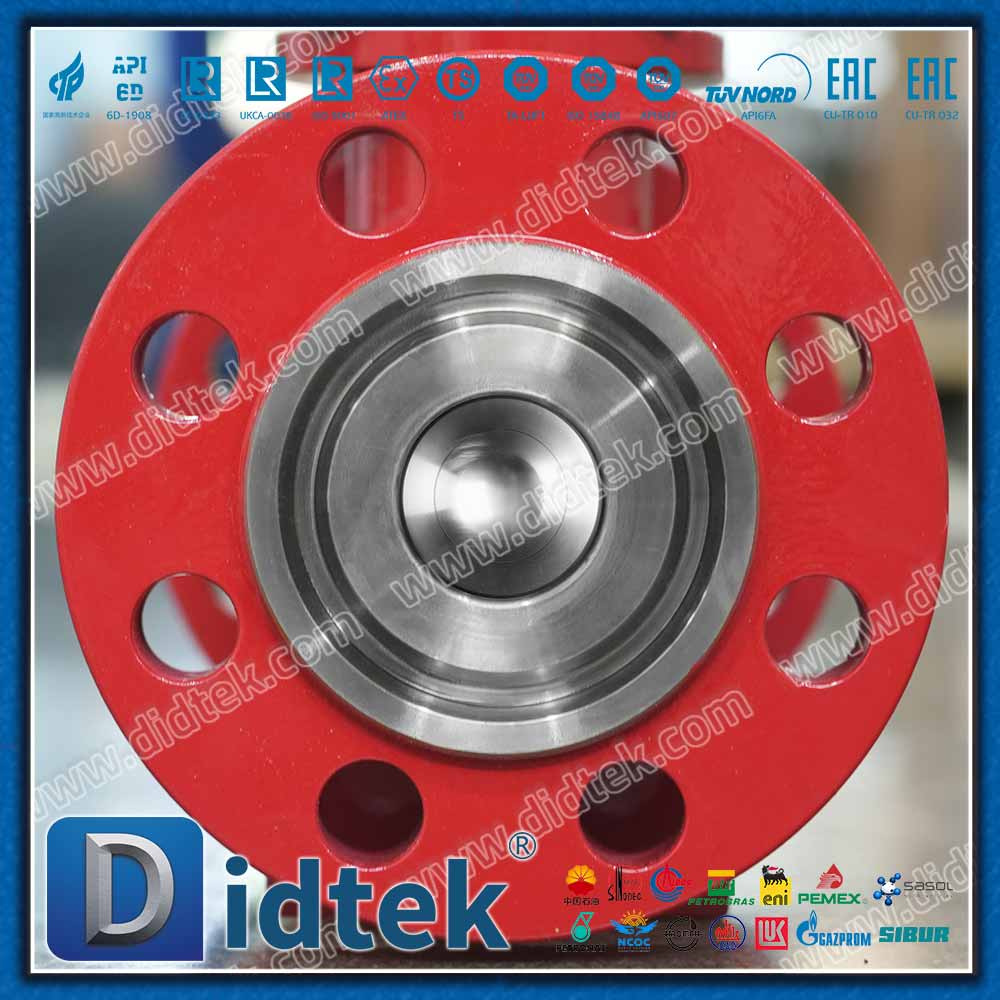

End Connection Type	RTJ
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Electric
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil and some corrosive liquid

Design Description

Forged F316 Body Integrity: Superior to cast alternatives, the forged F316 stainless steel structure provides high density, excellent mechanical strength, and exceptional resistance to pitting and chemical attack.
Trunnion-Mounted Low-Torque Design: The ball is anchored by upper and lower trunnions, minimizing friction against the seats and allowing the electric actuator to cycle smoothly under high-pressure conditions.
Polyurethane Exterior Protection: The high-grade polyurethane coating shields the external body from severe weather, moisture, chemical splashes, and marine salt environments, extending the service life of the valve.

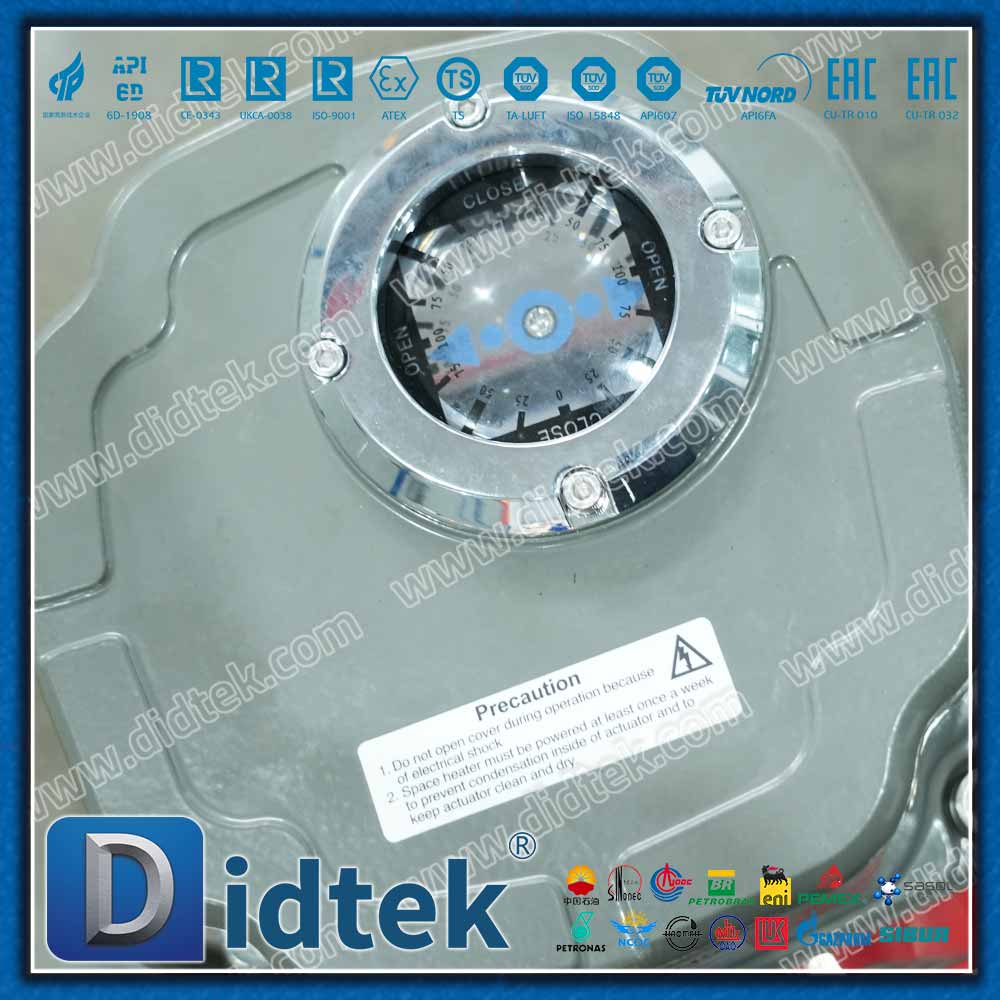

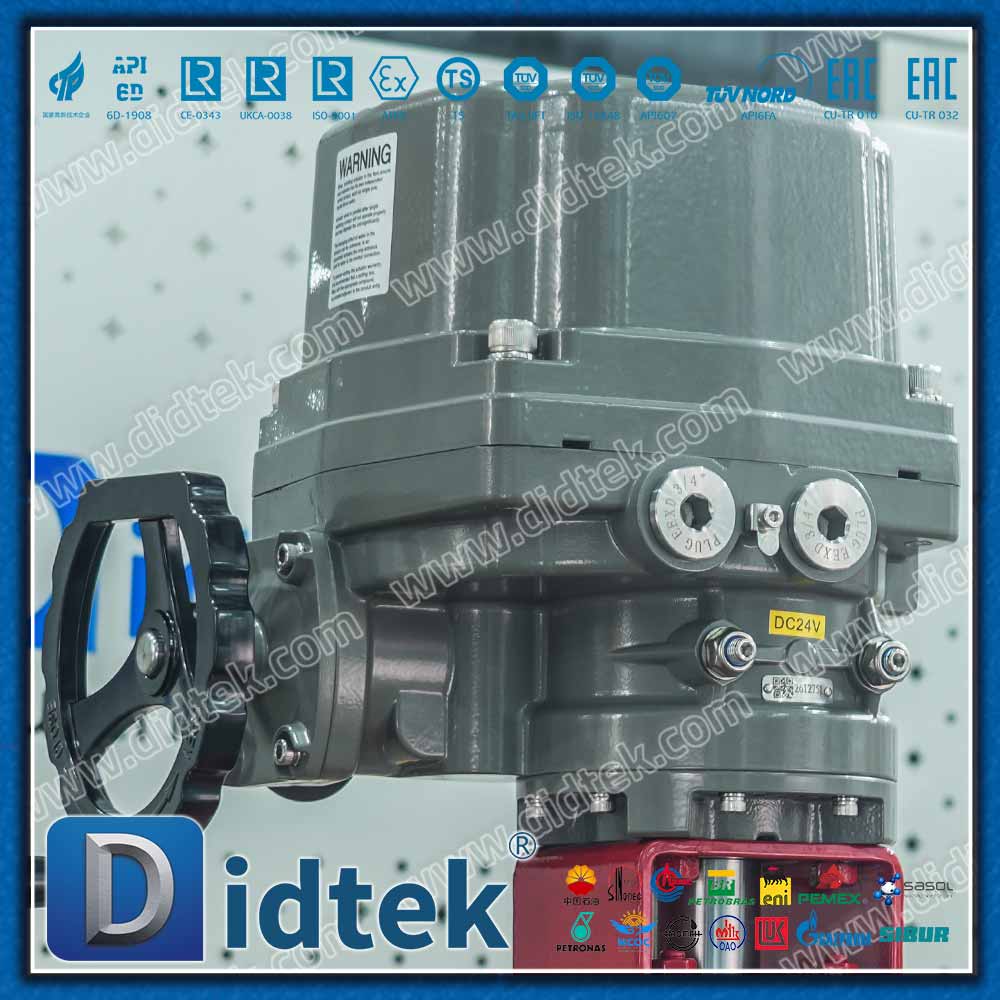

Intelligent Automation Ready: Equipped with an ISO 5211 direct-mounting pad, the valve easily pairs with quarter-turn electric actuators supporting on-off or modulating control.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	A105
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Electric Forged F316 Trunnion Ball Valve with Polyurethane Coating are widely utilized in demanding environments due to their superior material properties:

Offshore & Marine Environments: Ideal for platforms and coastal facilities where both internal fluid corrosiveness and external salt-spray attack are present.
Chemical Processing Plants: Handling corrosive acids, solvents, and volatile liquids with reliable automated control.
Water Treatment & Desalination: High-salinity water transmission lines requiring robust external and internal protection.
