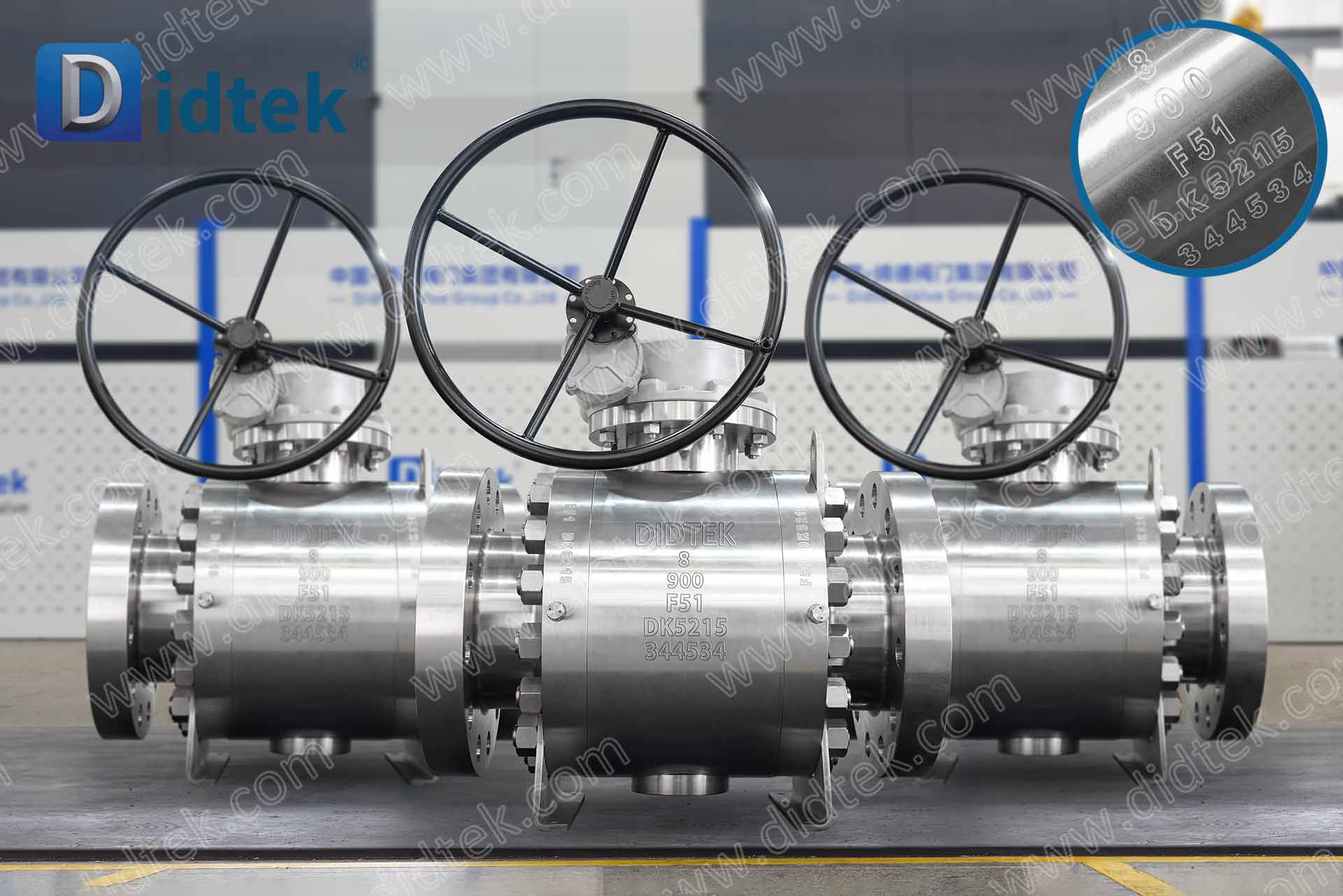

Duplex Alloy F51 Trunnion Ball Valve For Sour Natural Gas, Crude Oil with H₂S and CO₂

The Duplex Alloy F51 Trunnion Ball Valve is a heavy-duty, high-performance flow control solution engineered specifically for aggressive upstream oil and gas environments containing hydrogen sulfide H2S, carbon dioxide CO2, and high chloride concentrations.

Model:
Q347F-900LBF51
Brand:
DIDTEK
Code:
TRBV-FTBV-055

Availability:

Quantity:



Inquire

F51 Duplex Trunnion Ball Valve sour service ball valve NACE MR0175 Ball Valve H2S CO2 Resistant Ball Valve UNS S31803 Ball Valve Manufacturer

Product Description

Product Parameters

Parameters

Application

Product Detail

The Duplex Alloy F51 Trunnion Ball Valve is a heavy-duty, high-performance flow control solution engineered specifically for aggressive upstream oil and gas environments containing hydrogen sulfide H2S, carbon dioxide CO2, and high chloride concentrations. Fabricated from forged ASTM A182 F51 (UNS S31803 / EN 1.4462) duplex stainless steel, the valve body and internal trim provide an exceptional combination of high mechanical strength and superior resistance to chloride stress corrosion cracking (SCC) and localized pitting. Built with a robust trunnion-mounted design and fully compliant with NACE MR0175 / ISO 15156 standards, this valve guarantees reliable, bubble-tight isolation under severe sour service and high-pressure operating conditions.

Product Parameters

Parameter Name	Parameter
Size Range	8''
Pressure Range	900LB
Material	F51
Seal	Soft Seat: PEEK
Temperature Range	-29°C~150°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 607
Inspection and Test	API 598
Operate	Worm Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil etc

Design Description

F51 Super-Strength Duplex Body: Offers roughly twice the yield strength of standard austenitic stainless steels, allowing for thinner wall sections under high pressure while providing outstanding PREN.
NACE MR0175 / ISO 15156 Compliance: Material selection, heat treatment, and hardness limits are strictly controlled to prevent sulfide stress cracking (SSC) in sour gas and crude oil applications.
Trunnion-Mounted Stability: Fixed-ball design absorbs high pipeline thrusts, ensuring smooth actuation, low operational torque, and reliable bi-directional sealing.
Advanced Seat Options: Available with reinforced soft seats (PEEK/PTFE) for absolute bubble-tight shut-off or high-integrity metal-to-metal seats for abrasive or high-temperature sour media.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Duplex Stainless Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Duplex Alloy F51 Trunnion Ball Valve For Sour Natural Gas, Crude Oil with H₂S and CO₂ are widely utilized in demanding environments due to their superior material properties:

Sour Gas Gathering & Transmission: High-pressure pipelines and manifold systems carrying H2S-laden natural gas.
Offshore & Onshore Crude Oil Production: Wellhead and production separation units handling corrosive sour crude.
Refinery Amine & Sweetening Units: Sweetening plants and acid gas removal processing lines.
