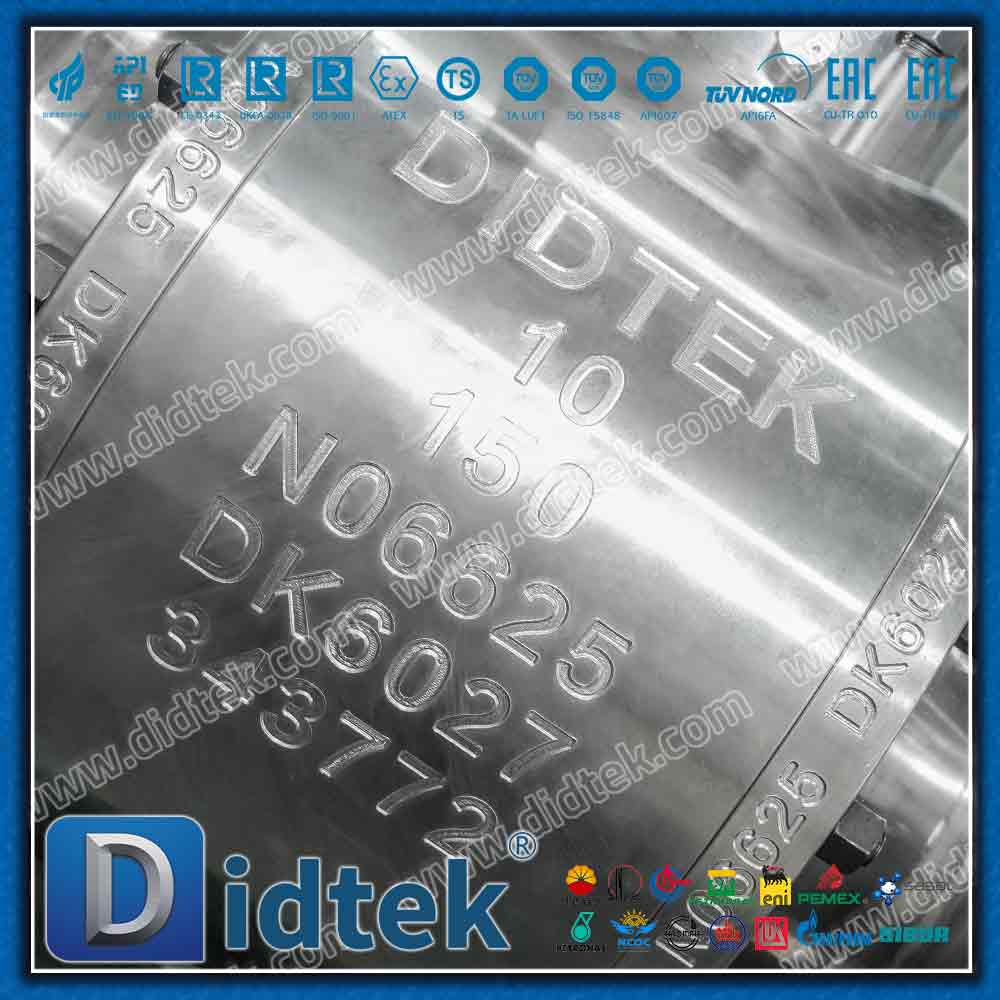

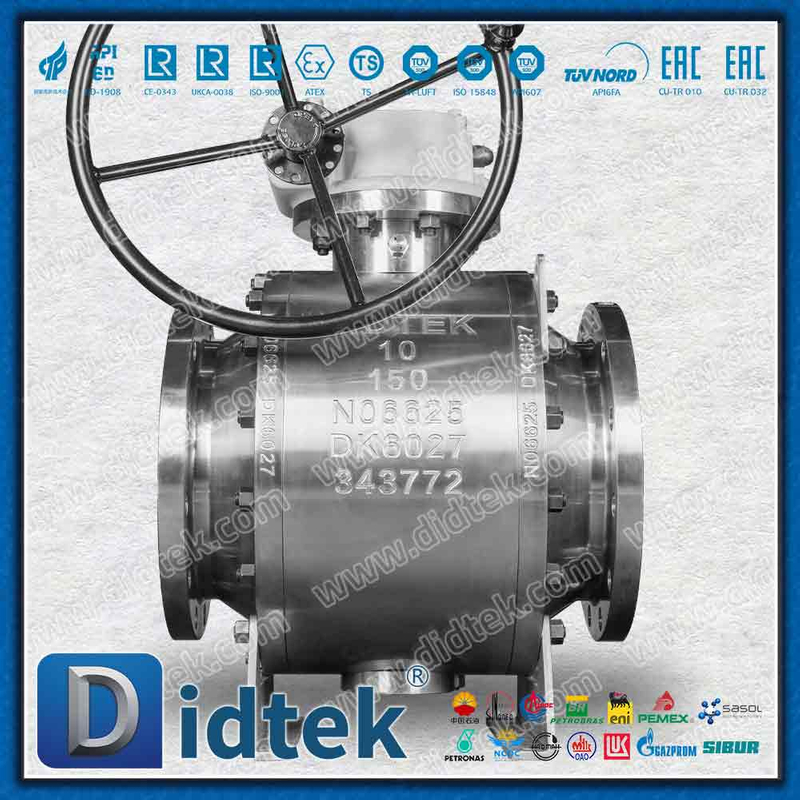

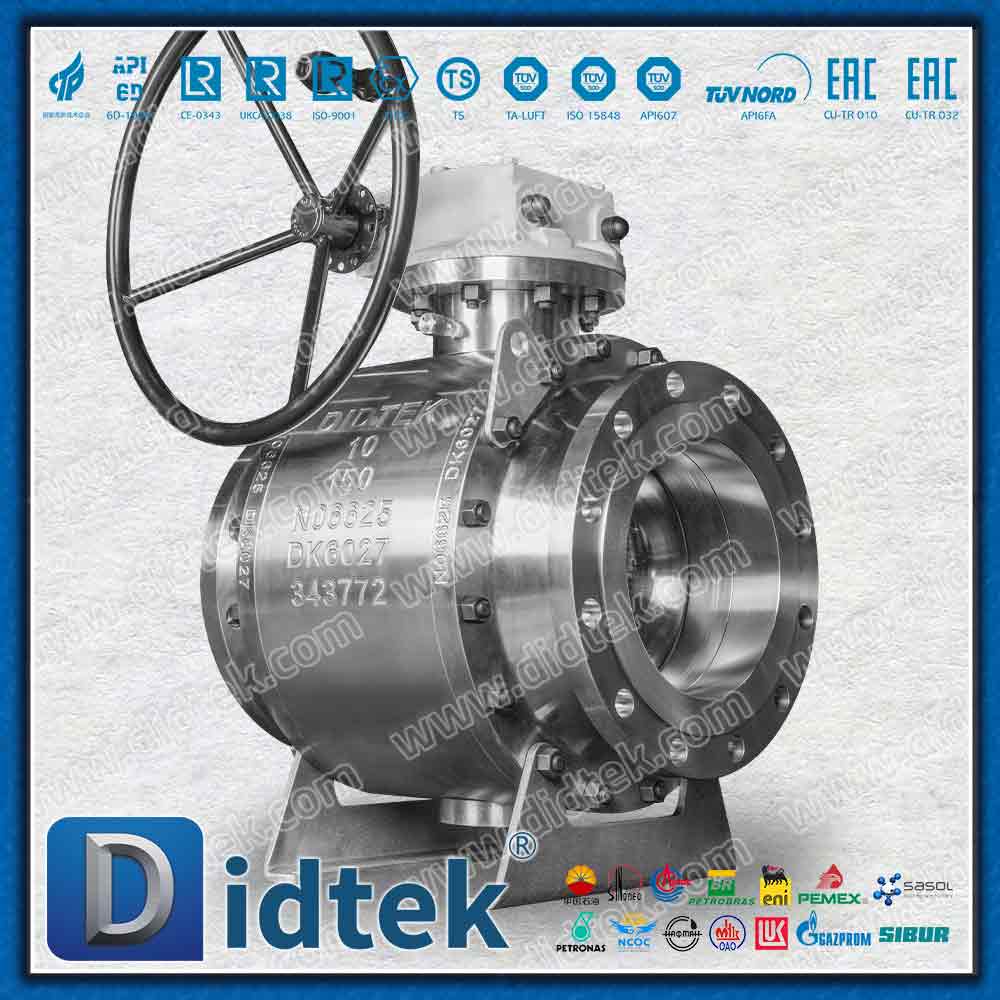

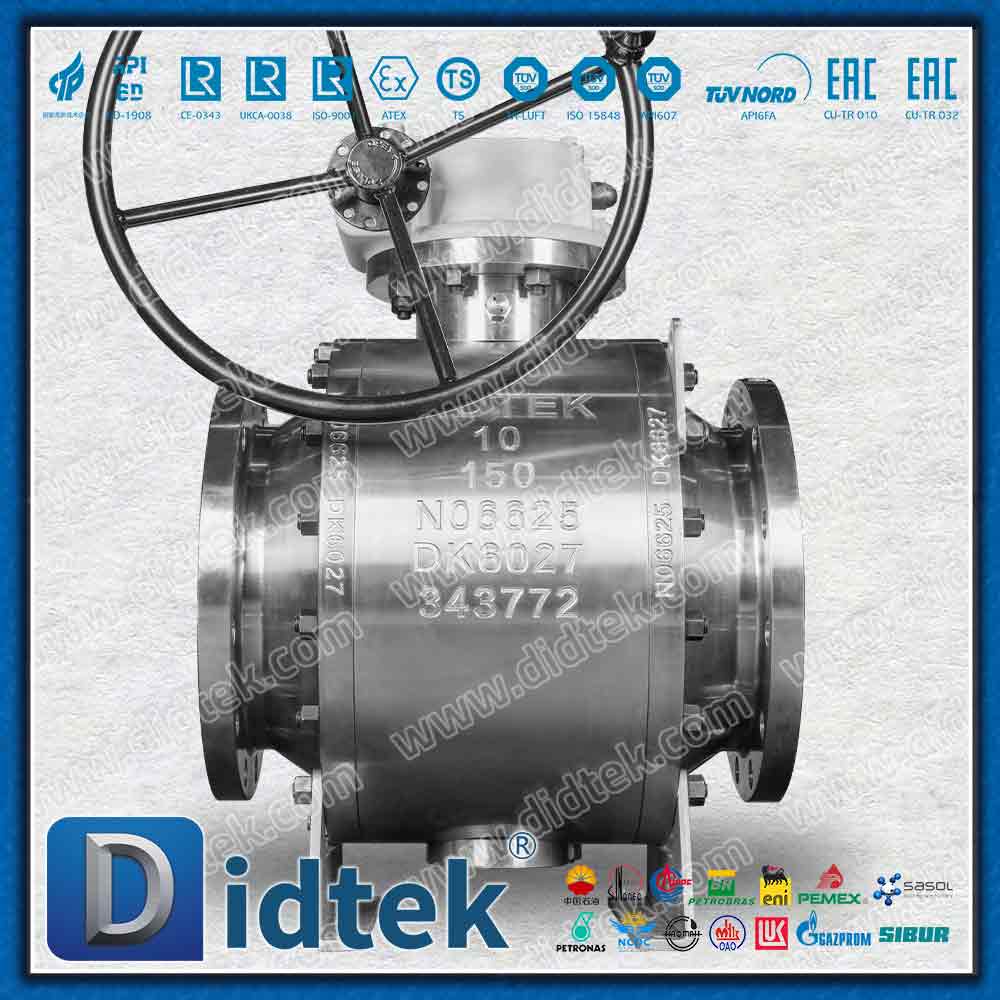

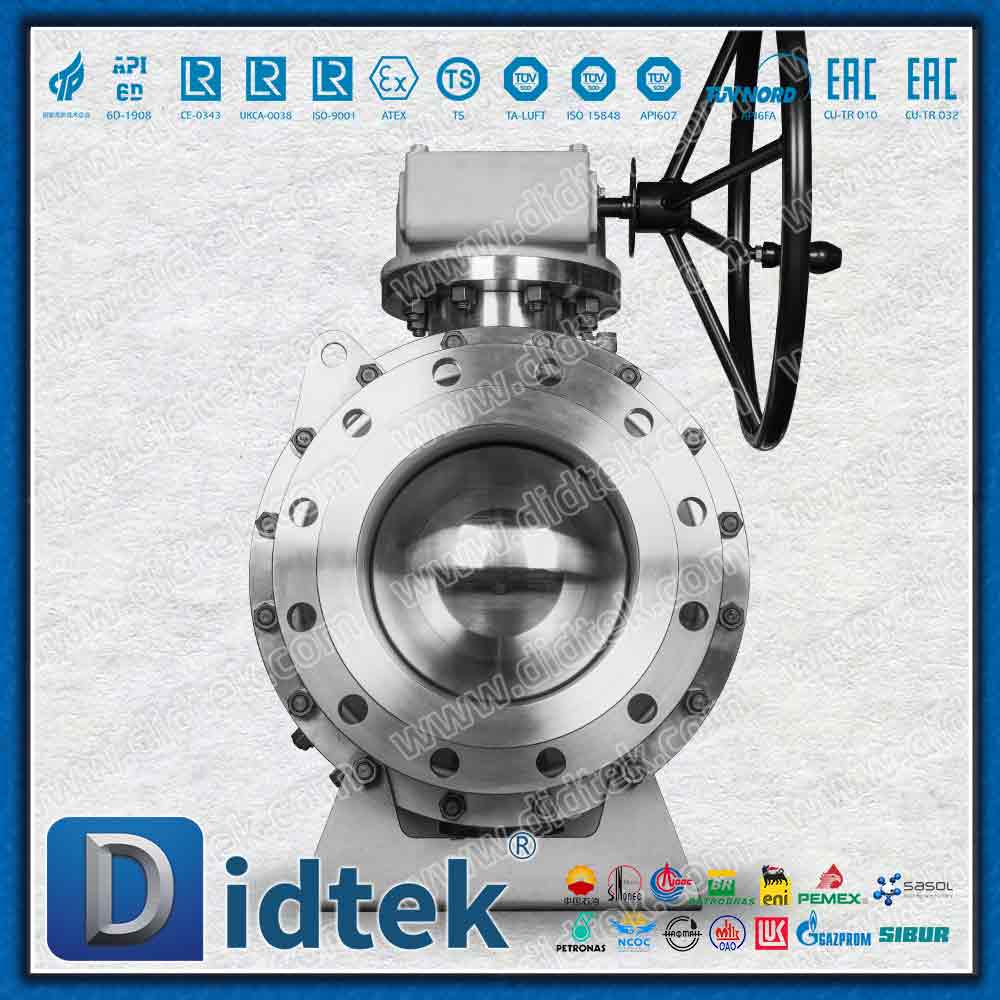

Inconel Alloy625 Lip Seal Elgiloy Trunnion Ball Valve

The Inconel Alloy 625 Lip Seal Elgiloy Trunnion Ball Valve is a high-end engineering masterpiece designed for environments where standard stainless steels fail.

Model:
Q447F-150LBN0625
Brand:
DIDTEK
Code:
TRBV-FTBV-049

Availability:

Quantity:



Inquire

Inconel 625 Ball Valve Elgiloy Spring Energized Seal Alloy 625 Trunnion Valve Lip Seal Ball Valve Manufacturer API 6D Inconel Valve

Product Detail

Product Parameters

Parameters

Application & Function

The Inconel Alloy 625 Lip Seal Elgiloy Trunnion Ball Valve is designed for demanding pipeline applications where corrosion resistance, reliable isolation and stable sealing performance are important. The valve uses Inconel Alloy 625 (UNS N06625), a nickel-chromium-molybdenum alloy selected for service involving aggressive and corrosive media.

A key feature of this valve is its spring-energized lip seal with an Elgiloy spring. The spring continuously applies sealing force to the lip seal, helping the sealing system accommodate pressure and temperature changes while maintaining stable contact during operation. Elgiloy is selected for its corrosion resistance, mechanical strength and ability to retain spring force in demanding service conditions.

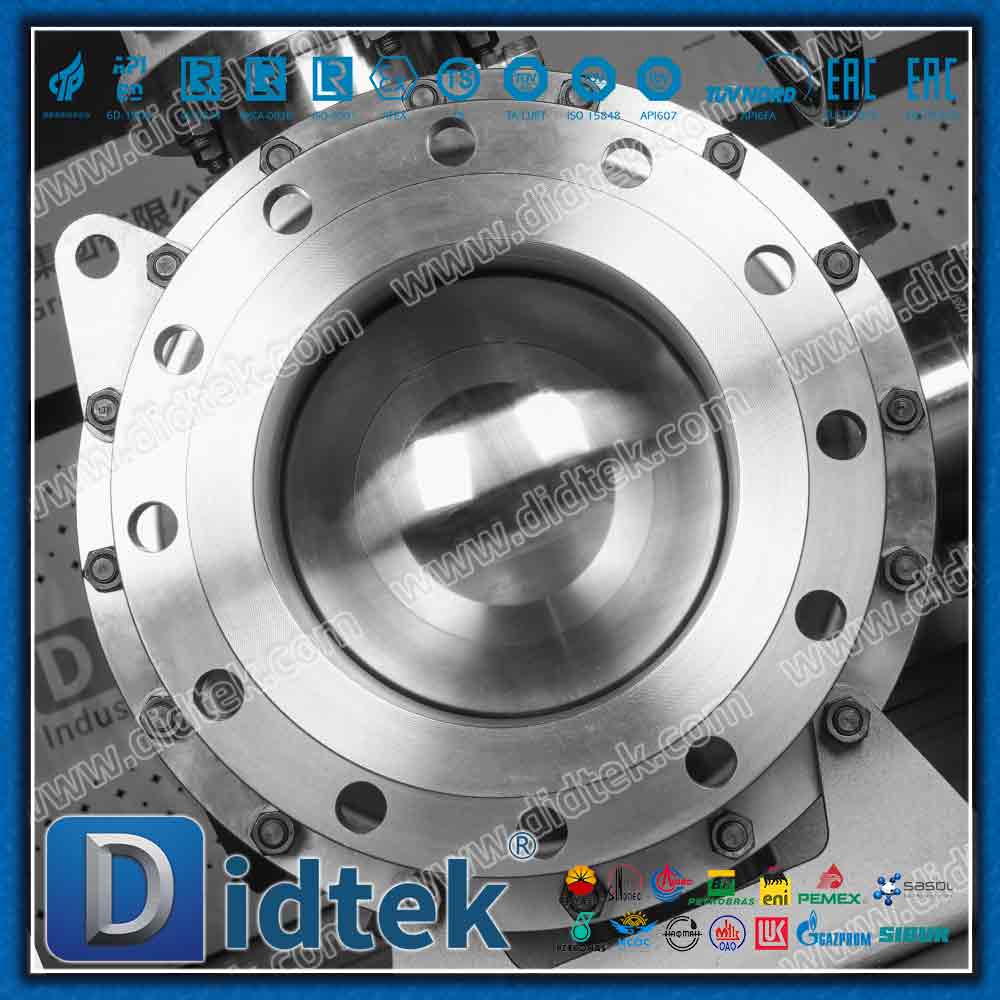

The trunnion-mounted ball structure mechanically supports the ball and reduces the load transferred directly to the valve seats. This design helps control operating torque and improves stability in large-size or higher-pressure pipeline isolation applications. The split-body construction also provides convenient access for inspection and maintenance.

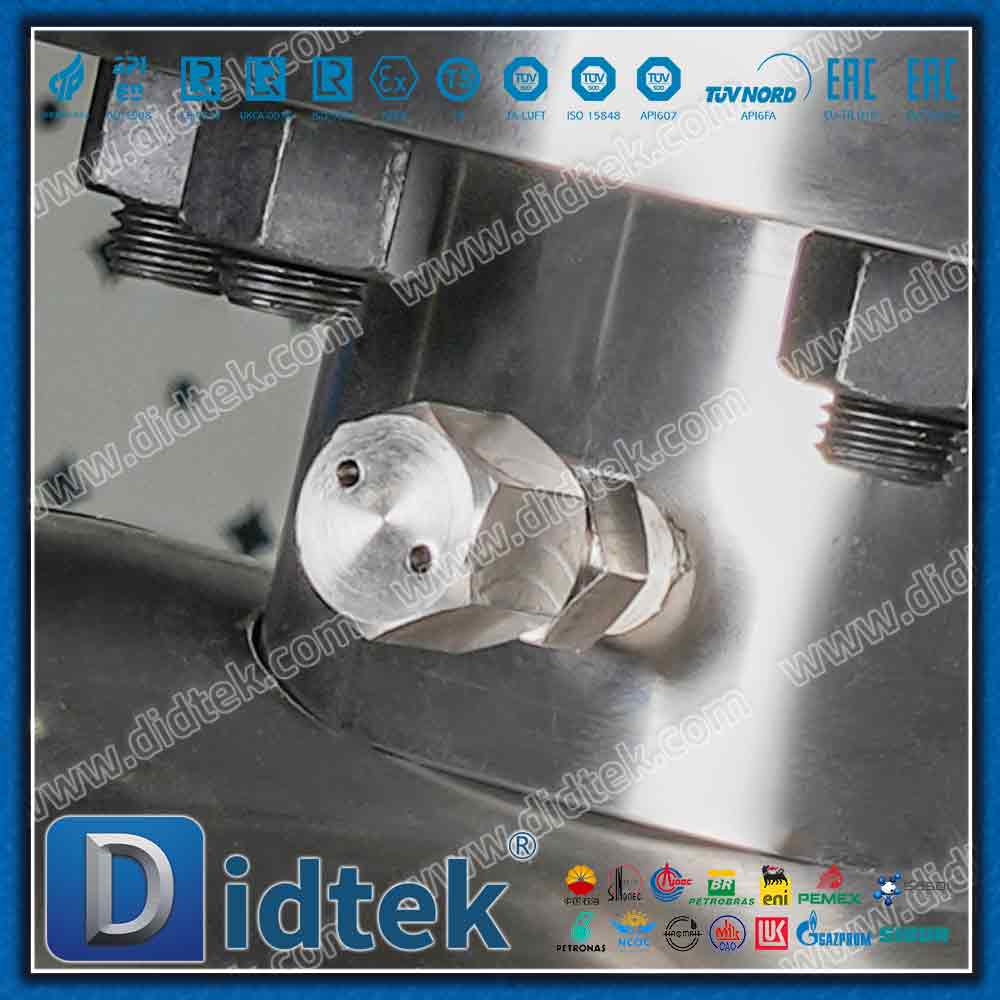

The valve is equipped with an anti-blowout stem, anti-static devices and Double Block and Bleed capability. Full bore or reduced bore configurations can be selected according to project requirements, while vent and drain arrangements can be incorporated for pressure release, drainage and maintenance procedures.

Designed according to API 6D, this 10-inch Class 150 trunnion ball valve features RF flanged connections, a PEEK soft seat and worm gear operation. It is suitable for water, steam, oil and compatible corrosive media within the specified material, pressure and temperature limits.

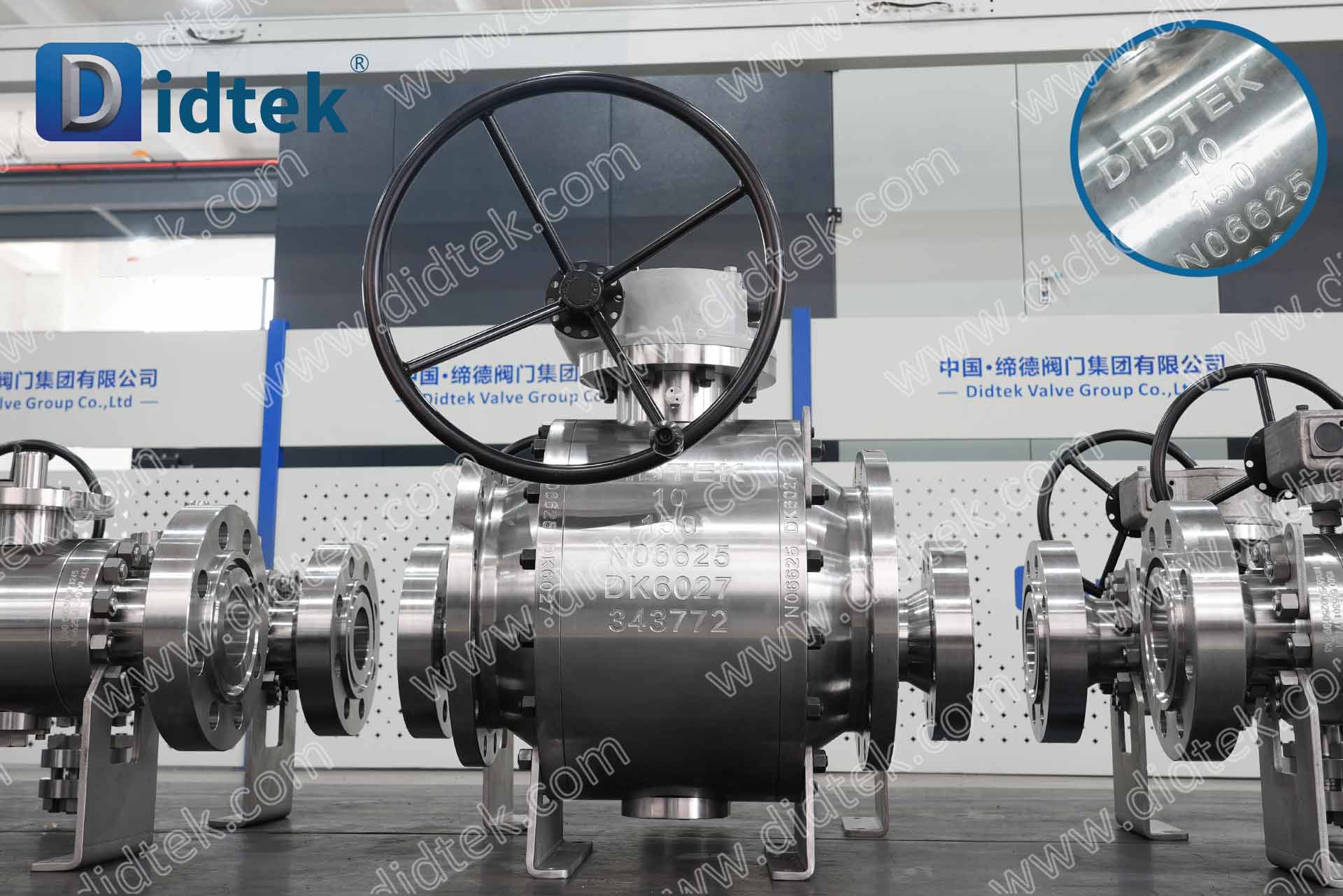

DIDTEK Inconel Alloy 625 Lip Seal Elgiloy Trunnion Ball Valve

Product Parameters

Parameter Name	Parameter
Size Range	10"
Pressure Range	150LB
Material	N06625 / Inconel Alloy 625
Seal	Soft Seat: PEEK
Temperature Range	-40°C ~ 200°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Worm Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil and Compatible Corrosive Liquids

Design Description

Inconel Alloy 625 Construction: The N06625 nickel-based alloy provides strong resistance to corrosion in demanding chemical, marine and process environments.

Elgiloy Spring-Energized Lip Seal: The Elgiloy spring continuously energizes the lip seal, helping maintain sealing contact during changes in system pressure and operating temperature.

Trunnion-Mounted Structure: The fixed ball is mechanically supported to reduce seat loading and help maintain stable operation and controlled torque.

Double Block and Bleed Design: The valve can provide pipeline isolation together with cavity venting or draining for inspection and maintenance procedures.

Flexible Operation: The valve is supplied with worm gear operation and can be configured for different operating arrangements according to project requirements.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Alloy 625
Type	Forged Ball Valve
Test	100% Quantity Tested Before Delivery
Guarantee	18 Months After Shipment and 12 Months After Installation
Delivery	15 - 60 Days
Sample	Sample Available by Didtek Valve
Color	Customer Request
Packing	Plywood Case
MOQ	1 Set
Certificate	API 6D, CE, UKCA, ISO 9001, TS, EAC, ISO 15848, TA-LUFT, API 607, API 6FA, etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 Days After Payment
Port	Shanghai or Ningbo
Payment Terms	L/C, D/A, D/P, T/T, Western Union

Application & Function

The Inconel Alloy 625 Lip Seal Elgiloy Trunnion Ball Valve is intended for demanding industrial pipeline systems where conventional valve materials may provide insufficient corrosion resistance. Its Alloy 625 construction, spring-energized sealing system and trunnion-mounted design make it suitable for isolation service involving corrosive or challenging process media.

Offshore & Marine Systems: Alloy 625 provides strong resistance to chloride-containing environments, making the valve suitable for selected seawater, offshore processing and marine pipeline applications.

Sour Gas Processing: The corrosion-resistant nickel alloy construction can be specified for gas processing systems involving H₂S and CO₂, subject to the material and service requirements of the specific project.

Chemical Processing: Suitable for isolation in chemical and petrochemical pipelines handling compatible aggressive liquids, process fluids and specialty chemicals where enhanced corrosion resistance is required.

Oil & Gas Pipelines: The trunnion-mounted structure provides stable shut-off performance for oil and gas transmission, processing and terminal piping systems.

Critical Isolation Service: The combination of the Elgiloy spring-energized lip seal, PEEK seat, DBB function and corrosion-resistant Alloy 625 construction supports reliable isolation and controlled cavity pressure management in demanding process systems.
