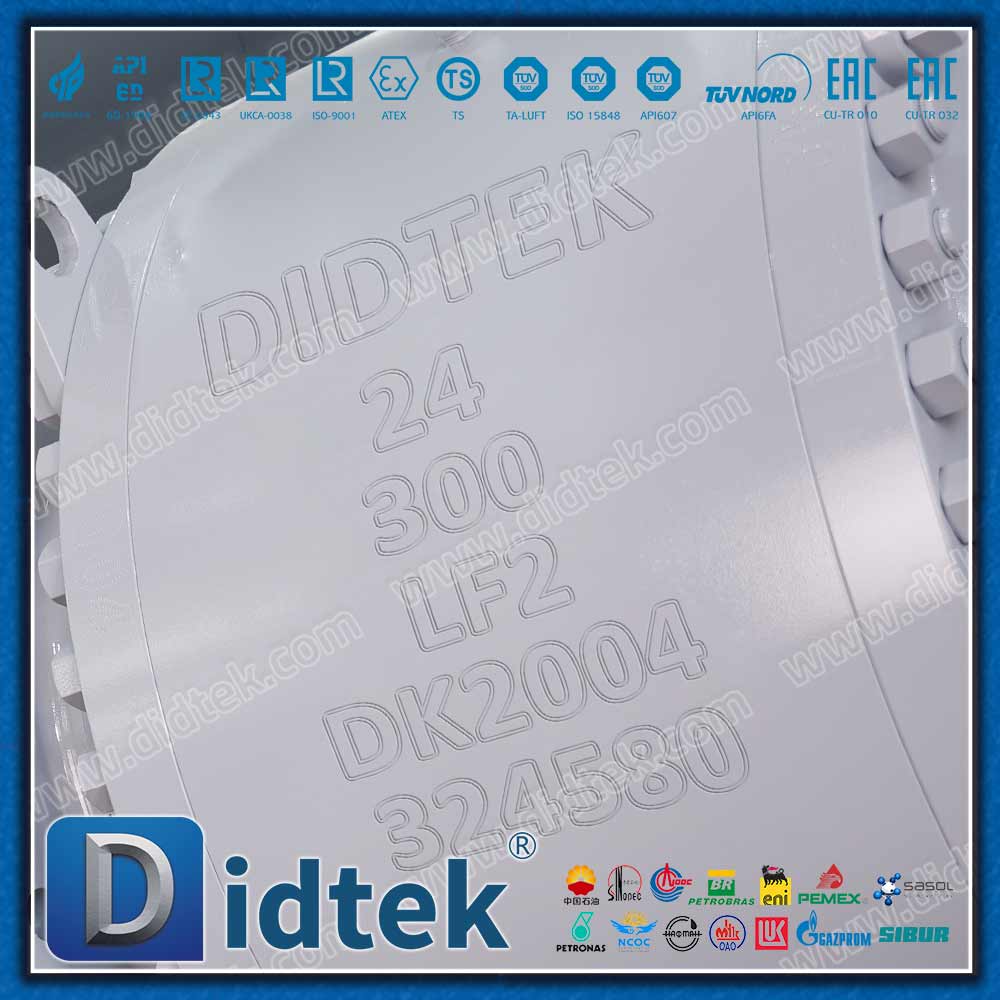

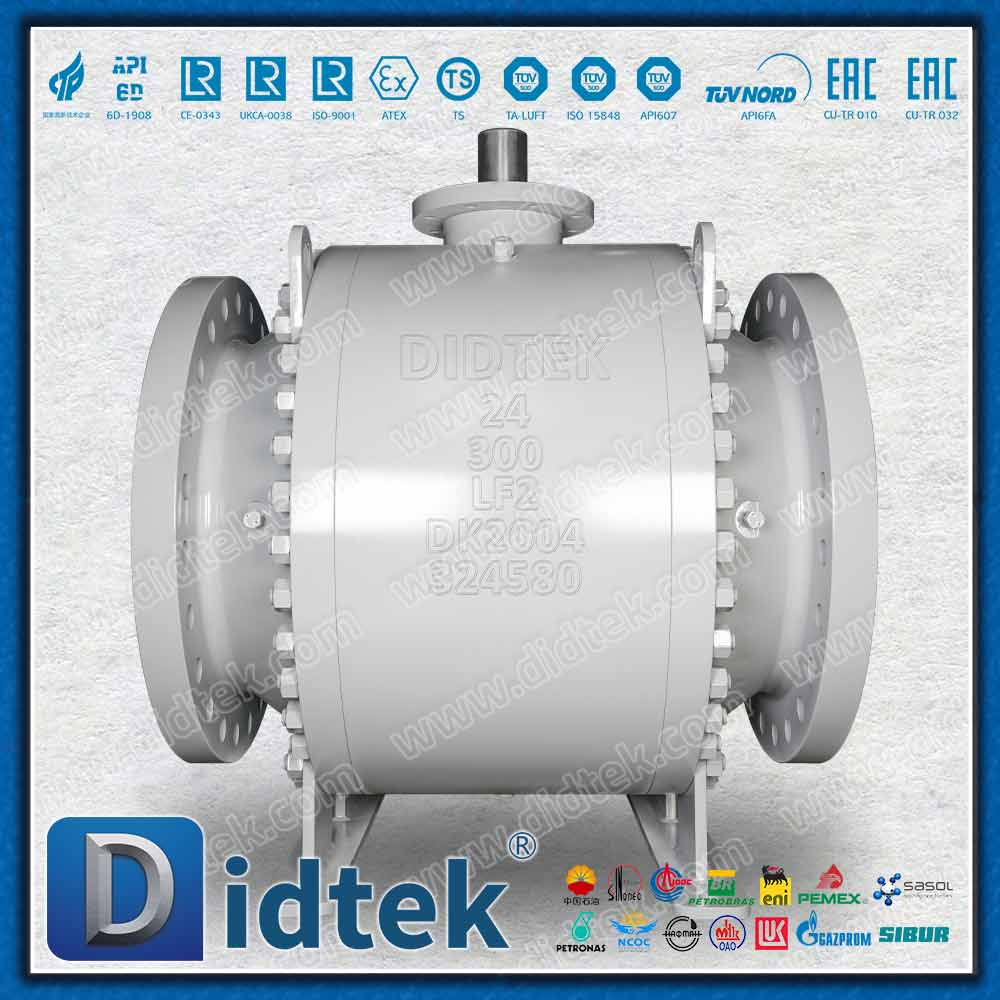

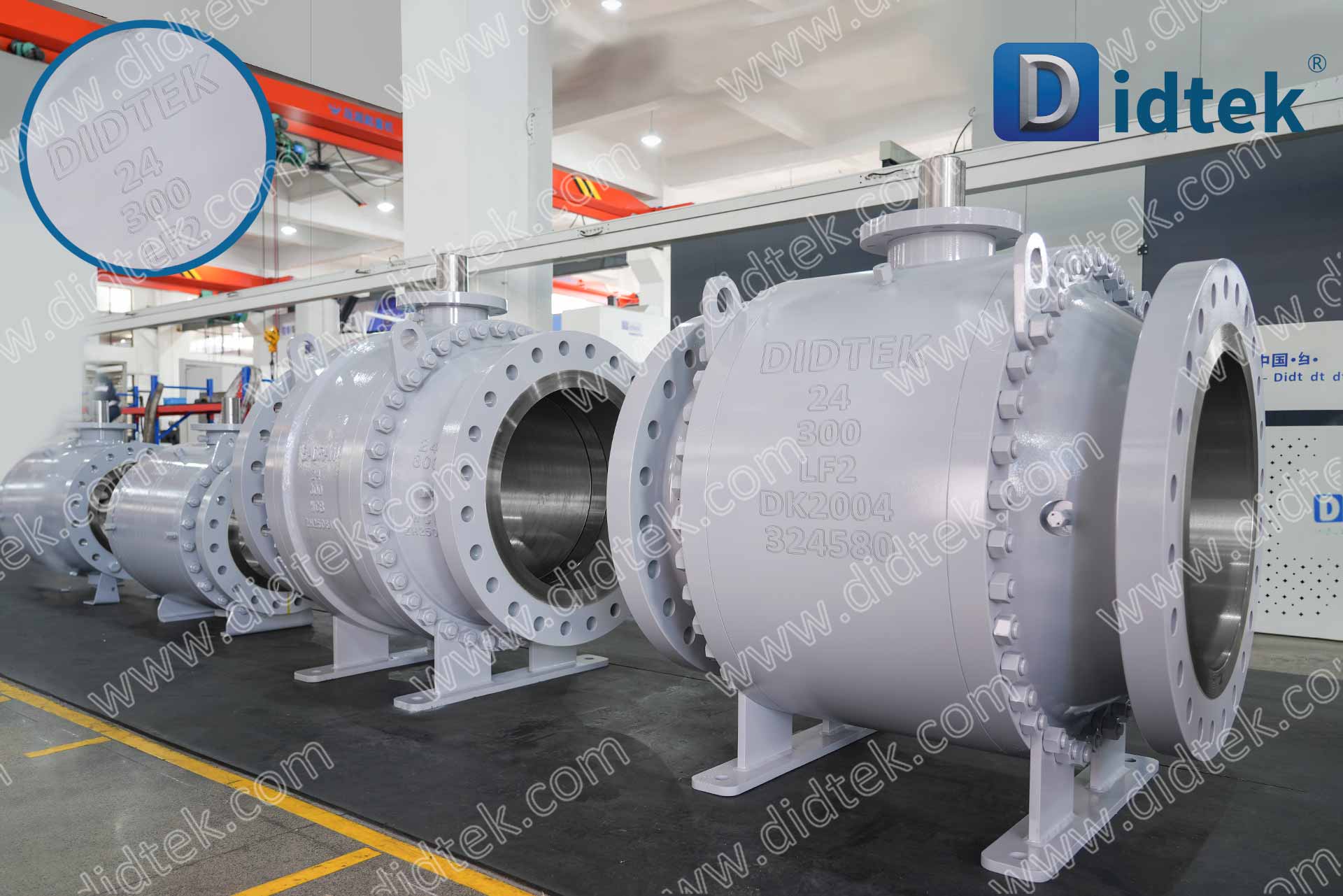

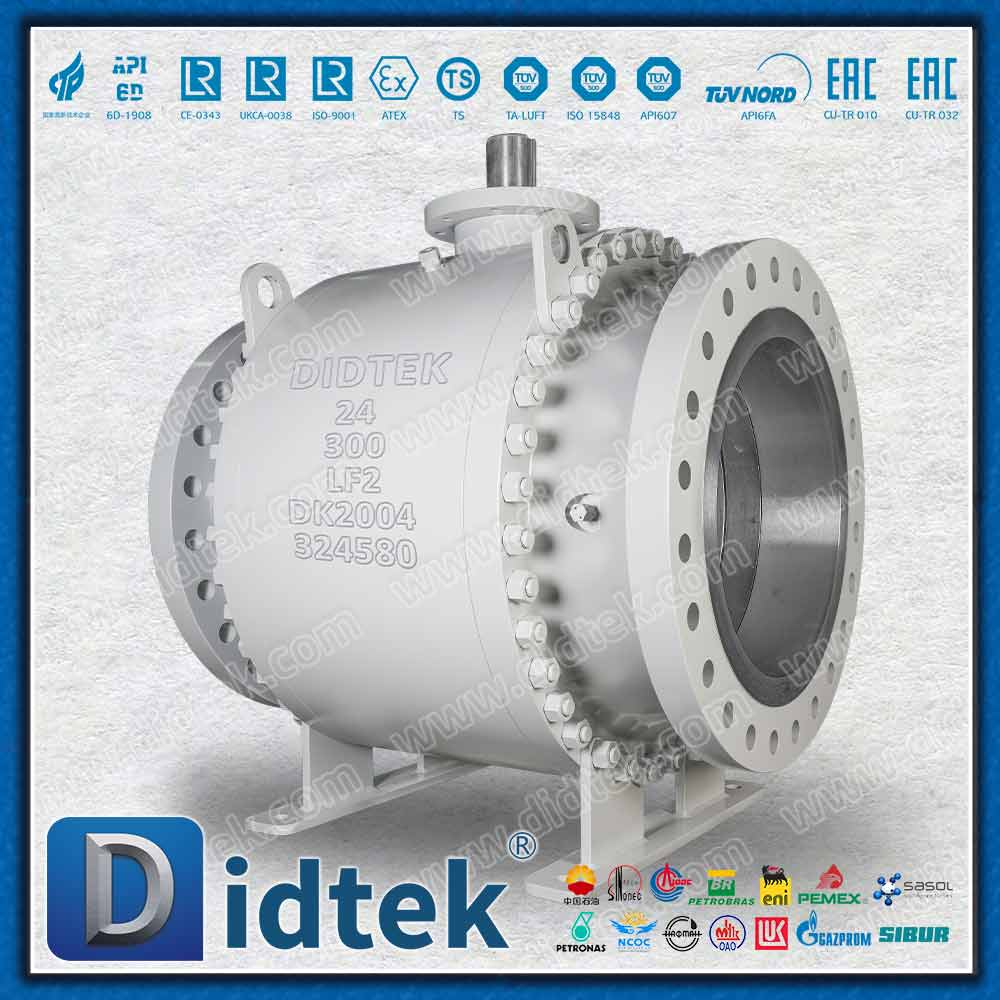

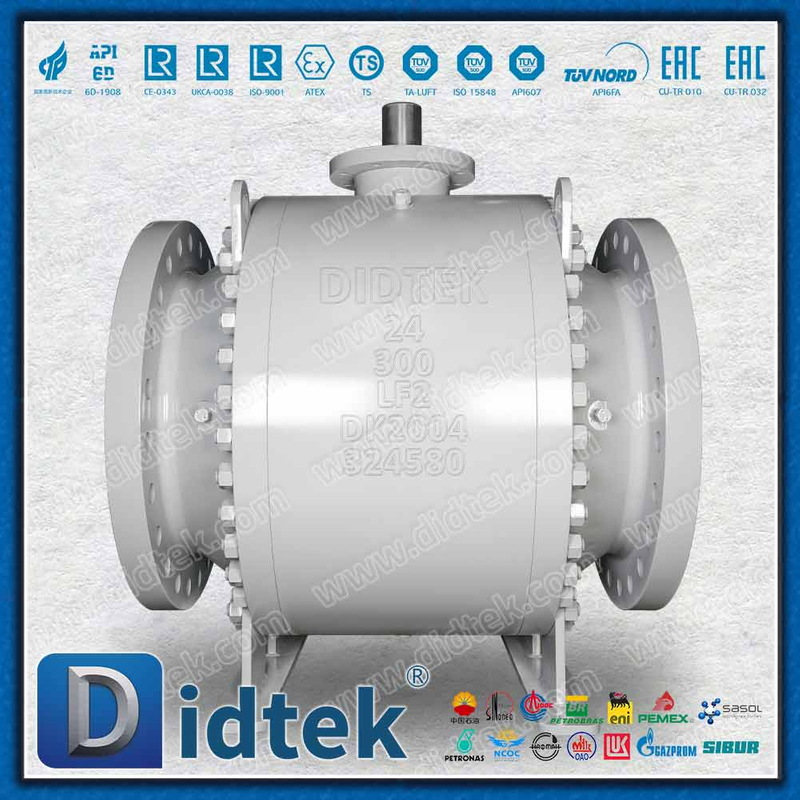

DPE * SPE DIB-1 DIB-2 Ball valve With Support Plate Structure

Product Description

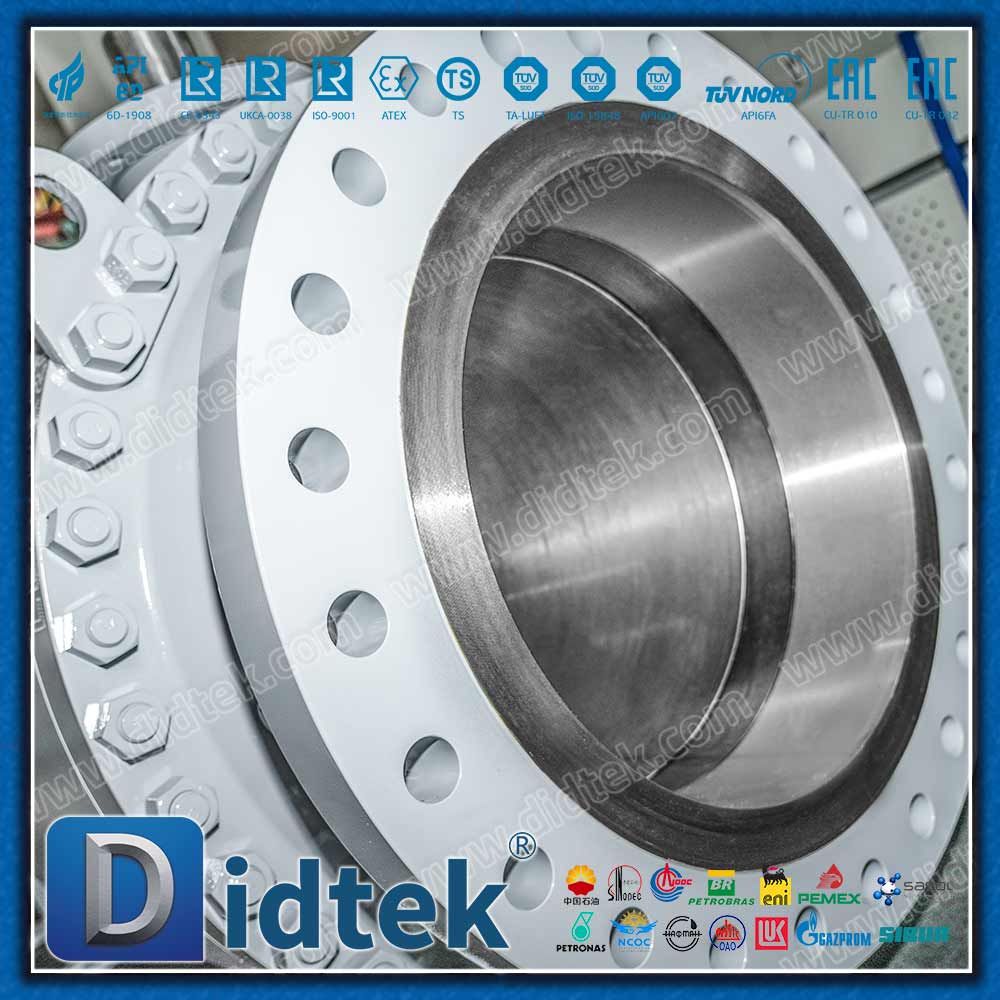

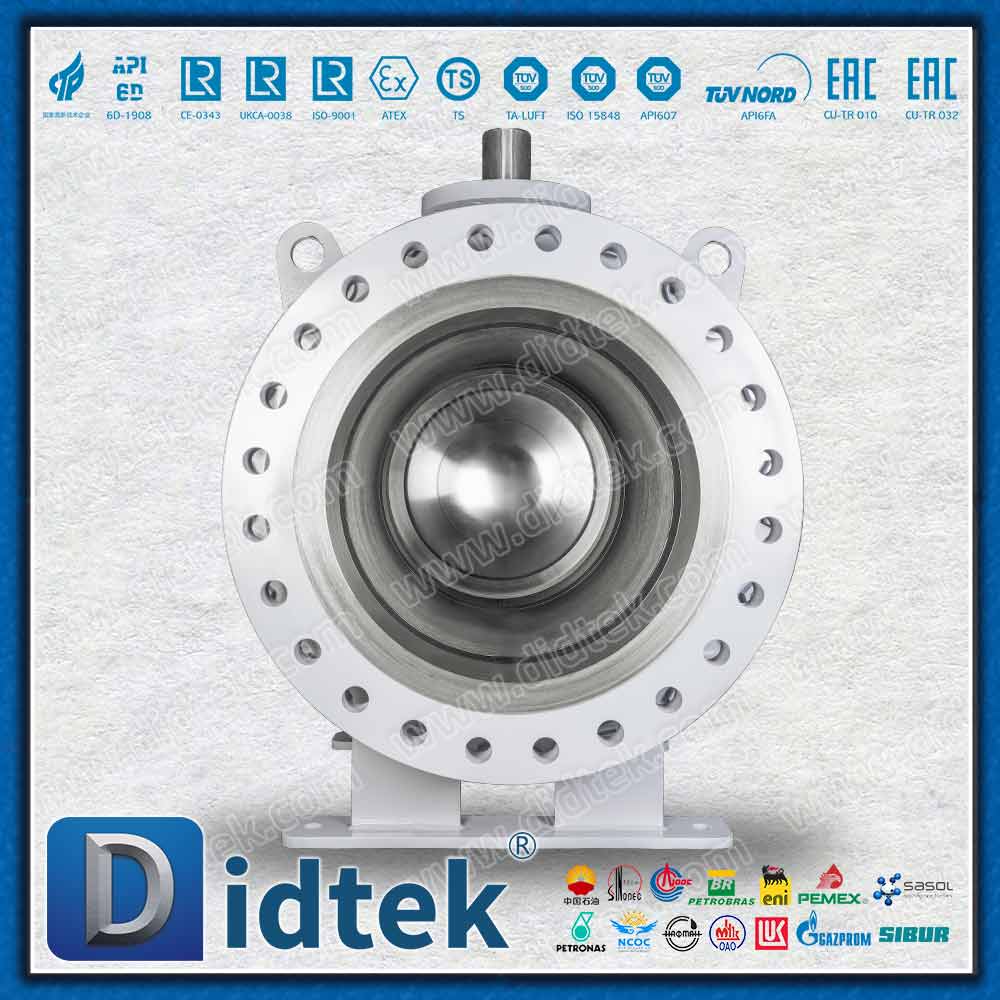

The DIB-1 and DIB-2 Trunnion Mounted Ball Valve with Support Plate Structure represents a critical advancement in high-integrity isolation technology, strictly compliant with API 6D specifications. Engineered for demanding environments requiring absolute, verifiable shut-off, this heavy-duty valve provides unparalleled operational confidence. By integrating a rigid support plate structure (often referred to as a trunnion plate), the internal mechanism securely anchors the solid machined ball. This specialized architecture absorbs intense pipeline stress and prevents ball deflection under immense thrust, ensuring smooth, low-friction actuation while significantly extending the lifespan of the seating materials.

Advanced Sealing Mechanisms: SPE & DPE Configurations

At the core of this valve's reliability is its customizable seat configuration, utilizing Single Piston Effect (SPE) and Double Piston Effect (DPE) technologies. This allows procurement and engineering teams to precisely match the valve to specific pipeline isolation philosophies. In a DIB-1 configuration, both seats are bidirectional (DPE), providing an ultimate double barrier against fluid flow from either direction. Alternatively, the DIB-2 configuration utilizes one unidirectional (SPE) seat and one bidirectional (DPE) seat. This specific arrangement facilitates automatic cavity pressure relief into the pipeline while maintaining a secure double isolation barrier, essential for protecting downstream maintenance personnel during active operations.

Space Optimization and Cost Efficiency

Traditionally, achieving double isolation and bleed capabilities required the installation of multiple valves in a bulky, series arrangement. This integrated DIB trunnion ball valve replaces those complex setups with a single, streamlined unit. This unified approach drastically reduces the required installation footprint and overall system weight. Furthermore, by minimizing the number of flanged connections, it inherently reduces potential leak paths, lowering long-term maintenance expenditures and simplifying the surrounding piping infrastructure.

Pressure Relief and Safety Discharge Protocols

Managing internal cavity pressure is paramount in volatile fluid handling. The distinct mechanisms between the configurations offer tailored safety solutions. The DIB-2 setup inherently manages thermal expansion by automatically venting excess cavity pressure past the SPE seat. Conversely, the DIB-1 configuration, with its dual DPE seats, requires an external safety relief valve to manage cavity pressure build-up. This clear distinction allows engineers to design precise safety barriers, particularly crucial around sensitive nodes like pig launcher and receiver stations where sudden pressure differentials occur.

Product Parameters

Core Design and Engineering Features

• Rigid Support Plate Design: Instead of the trunnion being supported solely by the body, heavy-duty plates hold the ball and bearings firmly in place. This prevents ball deflection and uneven seat wear in large-bore (24''), high-pressure (300LB) operations.

• Flexible DIB Configurations: Easily adaptable to DIB-1 or DIB-2 processing requirements based on specific pipeline safety philosophies, ensuring precise fluid control.

• Double Isolation and Bleed (DIB): Provides the ultimate safety barrier for maintenance personnel, allowing positive isolation of high-pressure lines without interrupting adjacent processes.

• Structural Safety & Protection: Standardized with an anti-static device to prevent spark generation, a blowout-proof stem for pressurized safety, and a locking handle mechanism to secure the valve against unauthorized or accidental actuation in explosive environments.

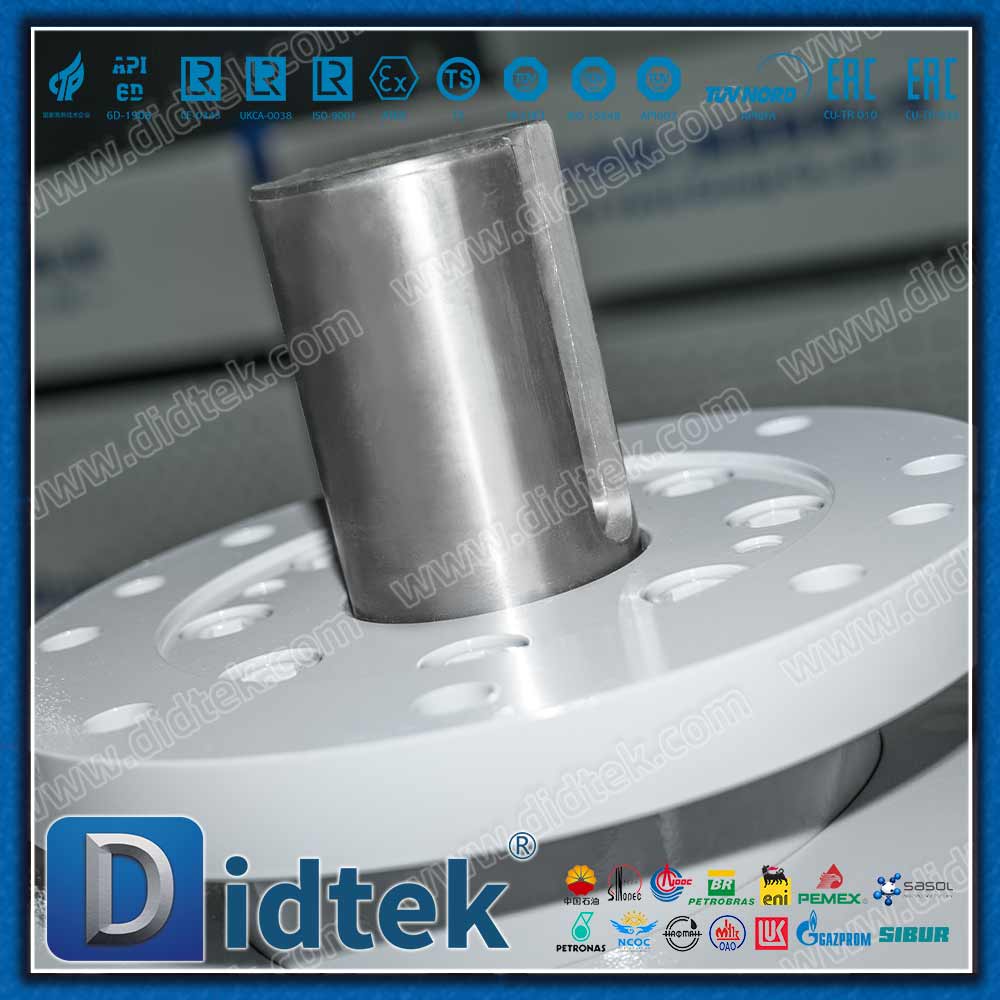

• Operation & Maintenance Efficiency: The combination of a low-torque design, highly polished stem finish, and an ISO 5211 standard mounting flange allows for effortless integration with automated actuators, significantly reducing long-term operational friction and maintenance overhead.

• Extreme Condition Reliability: Engineered with a solid forged ball and a dual body gasket system (combining soft DEVLON sealing with graphite), guaranteeing zero leakage even under severe corrosive attacks.

• Emergency Sealant Injection & Fire-Safe: Features secondary sealant backup and passes stringent API 607 and API 6FA fire tests to ensure survival and containment during catastrophic thermal events.

Parameters

Procurement and Logistics Assurance

Securing critical infrastructure components requires a reliable and transparent supply chain. The DIDTEK forged trunnion ball valves are manufactured from premium Low Temp Carbon Steel, ensuring structural integrity in demanding climatic environments. Every single unit undergoes a rigorous 100% quantity test prior to dispatch, guaranteeing out-of-the-box performance. To further protect your investment, these valves are backed by a comprehensive guarantee spanning 18 months after shipment or 12 months post-installation. Packaged securely in reinforced plywood cases, the heavy-duty assemblies are shielded from transit damage, arriving at your facility in pristine condition. With flexible delivery windows of 15 to 60 days and multiple payment options, the procurement process is streamlined for global project schedules.

Application

The DPE and SPE DIB-1 / DIB-2 Ball Valves with Support Plate Structure are widely utilized in demanding industrial environments due to their superior material properties, exact machining, and fail-safe isolation capabilities. Their robust construction makes them the preferred choice for critical infrastructure projects where continuous operation is mandatory.

Custody Transfer Metering Skids

In financial fluid transactions, absolute accuracy is non-negotiable. These valves provide the zero-leakage isolation required to ensure precise oil and gas measurement. By eliminating fluid bypass, they protect the integrity of the metering process, ensuring that every drop is accurately accounted for during custody transfer operations.

Product Manifolds and Pigging Stations

Complex pipeline networks carrying multiple media require reliable routing and maintenance access. These trunnion valves provide positive isolation for manifolds, preventing cross-contamination between different product streams. In pigging stations, the customized pressure relief mechanisms (DIB-1 external or DIB-2 internal) offer a secure barrier when launching or receiving cleaning pigs, protecting operators from sudden pressure surges and ensuring frequent maintenance can be conducted safely.

Critical Process Isolation

Refining and chemical processing units frequently handle toxic, volatile, or highly pressurized fluids. The double isolation and bleed capability of these valves ensures that hazardous media is safely contained. Maintenance teams can confidently isolate specific sections of the plant for repair or inspection, knowing the dual-seat configuration and robust support plate structure will maintain a secure seal against extreme pipeline forces and corrosive liquids.
