Pneumatic Leakage Class V Ball Valve For Hydrogen

Product Detail

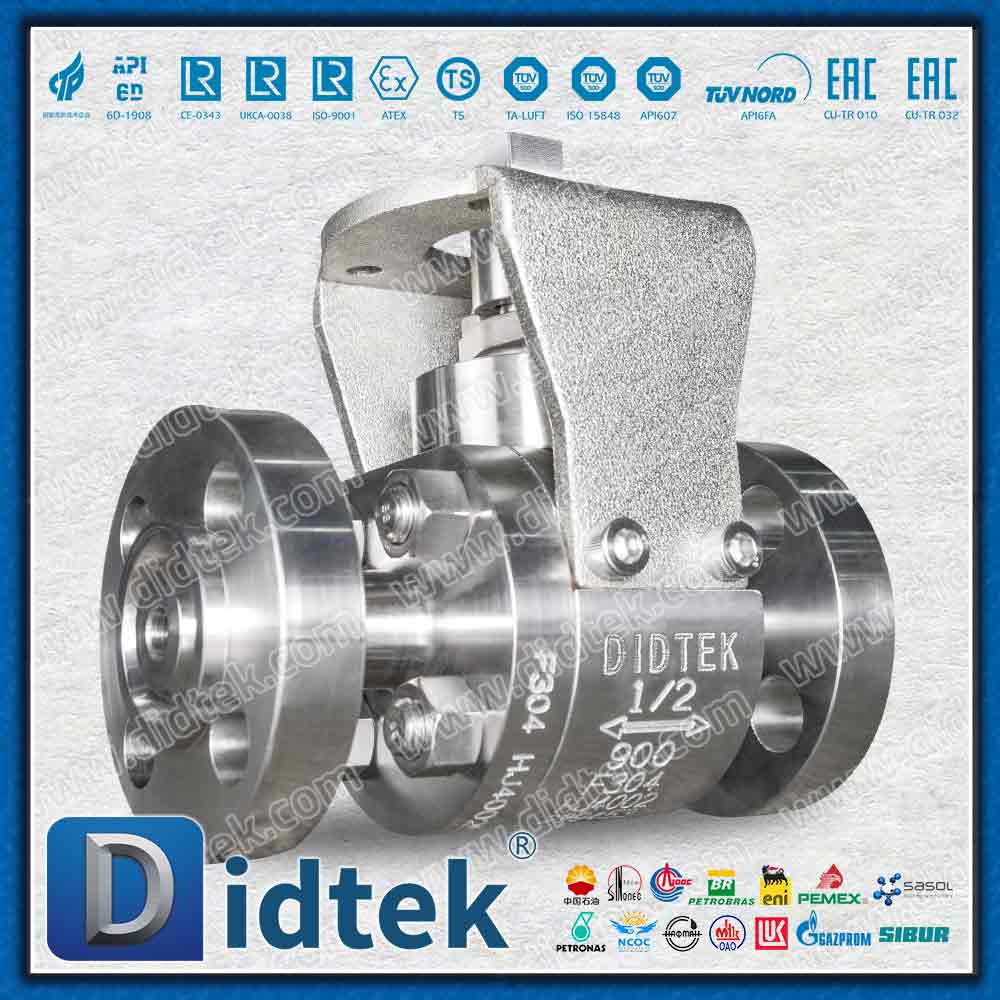

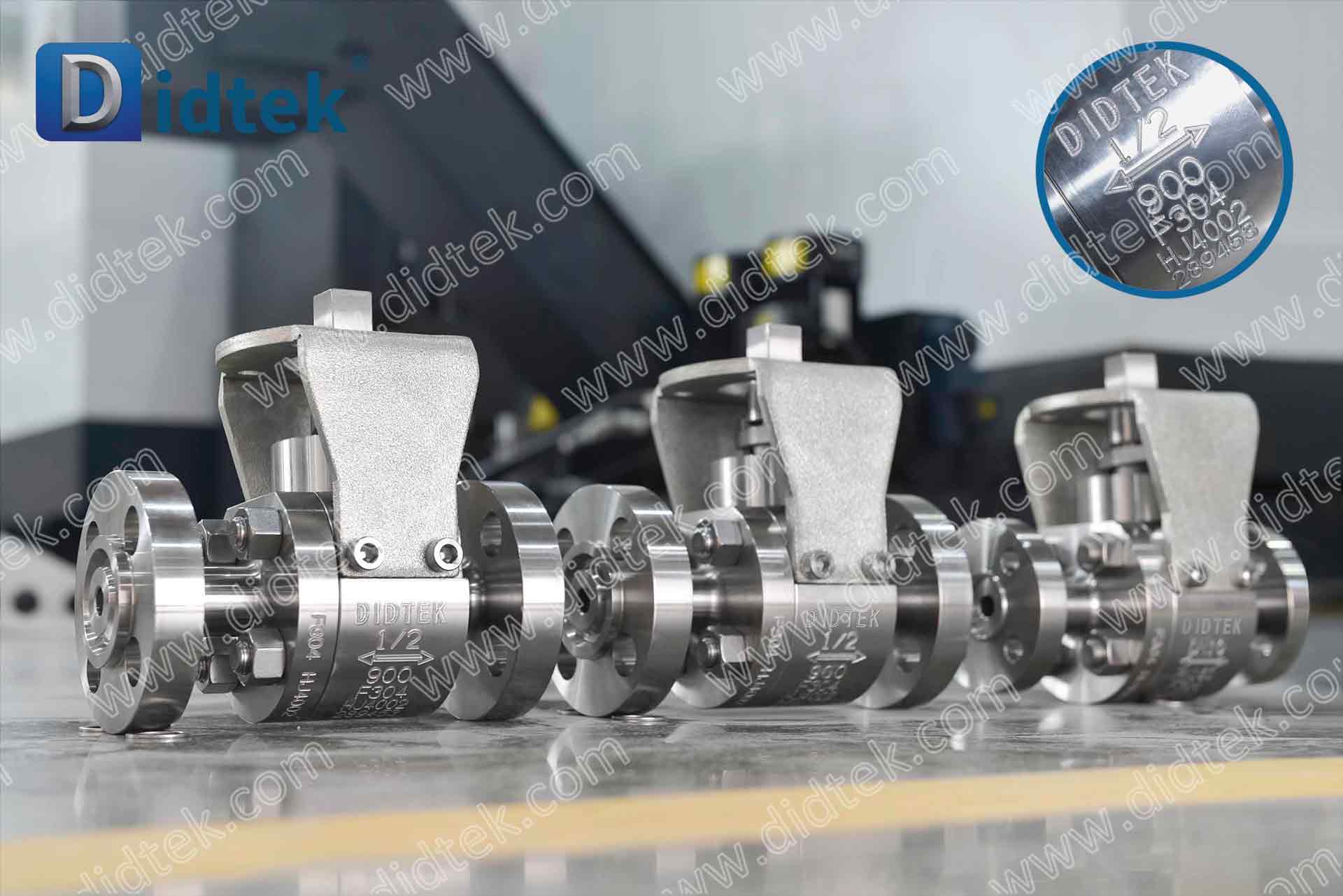

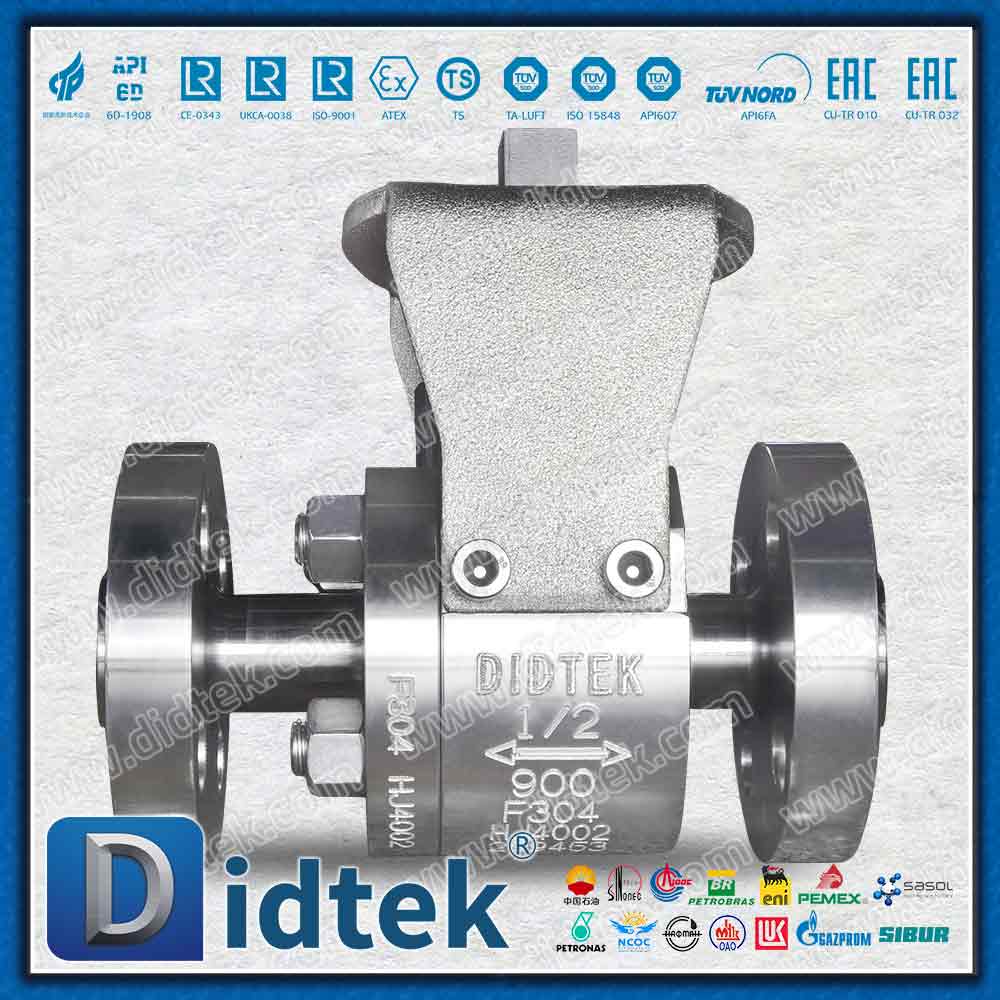

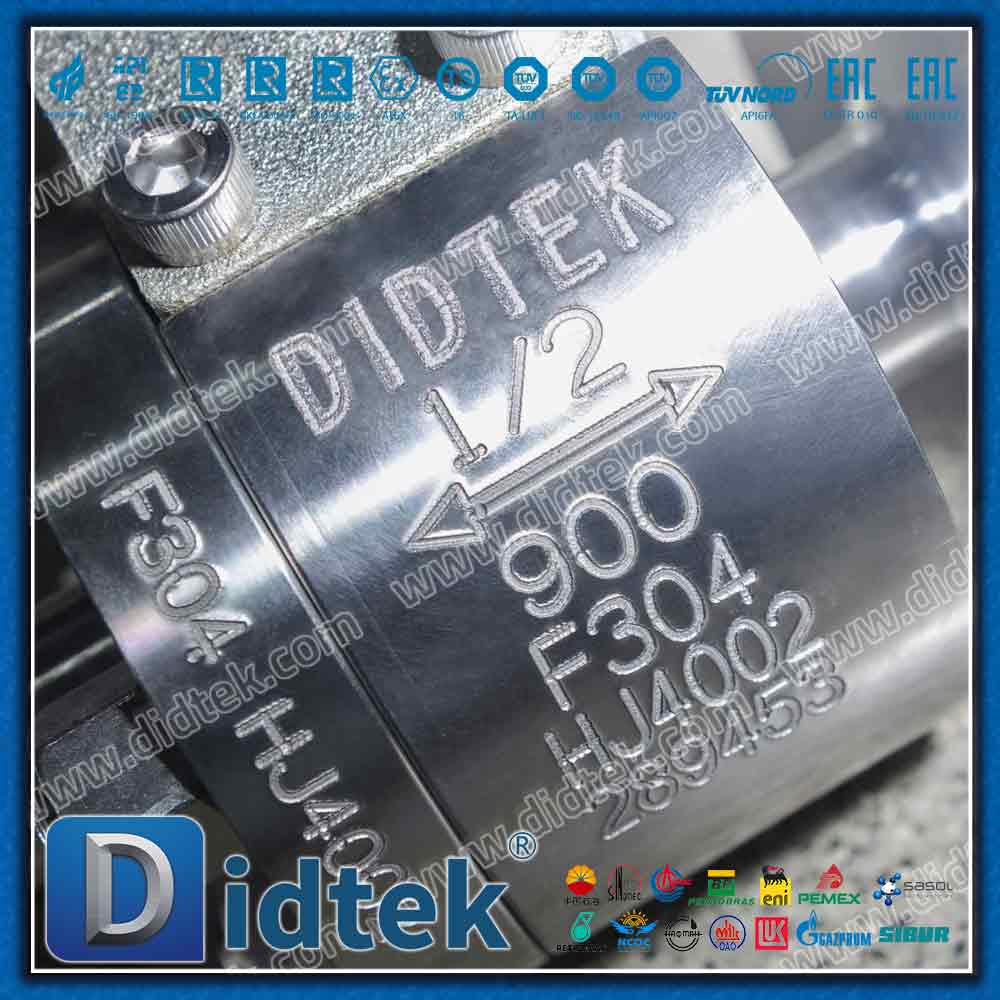

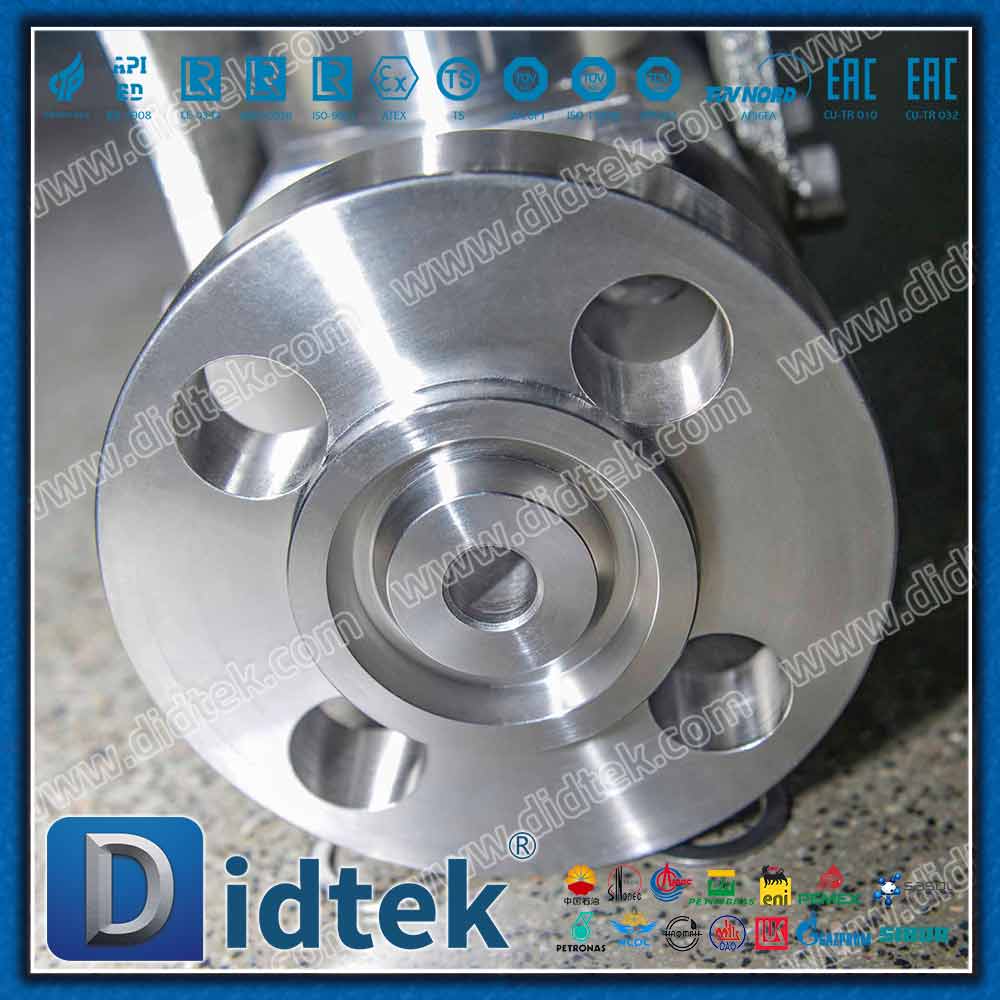

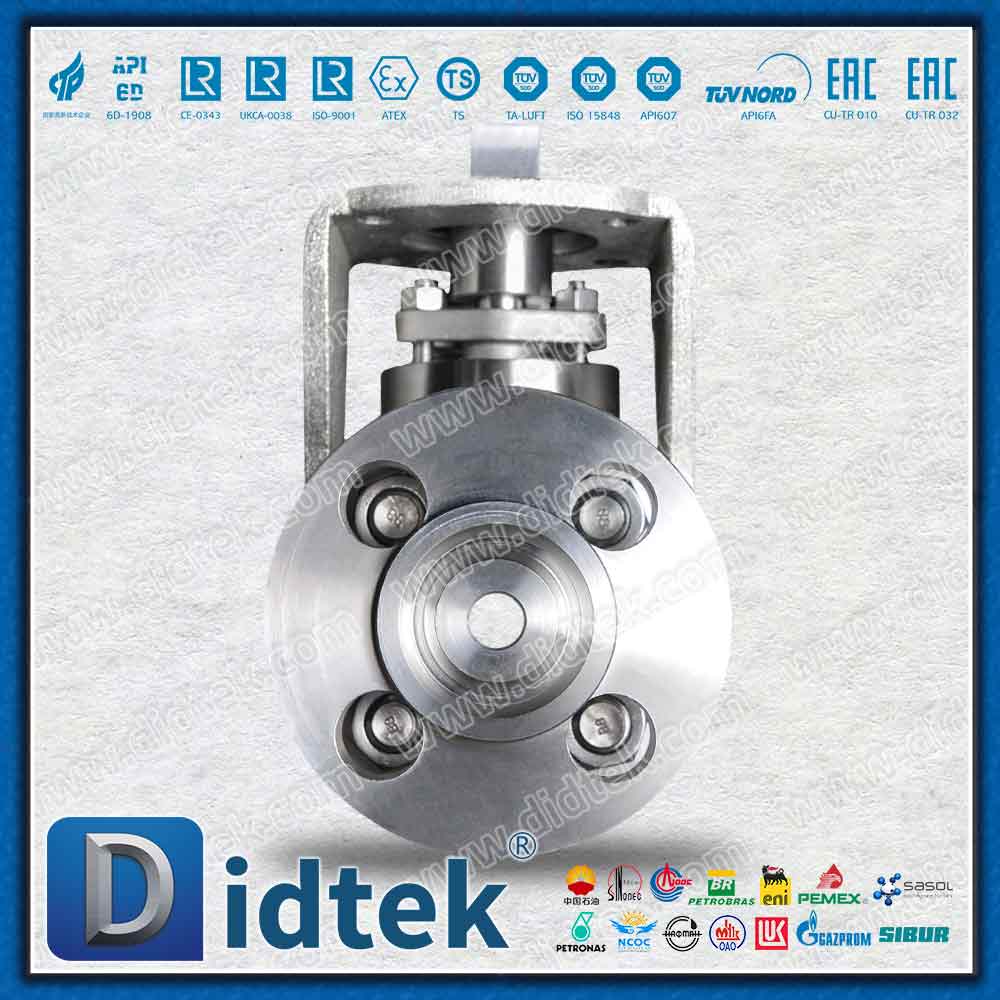

The Pneumatic Leakage Class V Ball Valve for Hydrogen represents a critical isolation solution engineered specifically for the rigorous demands of hydrogen production, storage, and transport facilities. Handling hydrogen requires exceptional precision due to the molecule's incredibly small size and high diffusivity. When inspecting this valve, engineers will immediately notice the impeccably smooth, precision-ground surface of the metal-to-metal or reinforced soft seat. This meticulous lapping process ensures an impenetrable barrier, achieving FCI 70-2 Class V integrity—meaning virtually zero leakage even under severe pressure differentials.

Operating hydrogen systems often involves drastic temperature fluctuations due to the Joule-Thomson effect during rapid pressure reduction. This valve is structurally optimized to combat external icing and internal thermal shock, ensuring seamless, jam-free actuation across a broad temperature spectrum from -26°C up to 300°C. The heavy, solid feel of the forged F304 stainless steel body provides immediate tactile assurance of its pressure-retaining capabilities.

Furthermore, hydrogen pipelines frequently carry microscopic particulates that can score standard valve seats over time. By utilizing high-hardness metallic alloys or specially reinforced soft materials, the internal sealing mechanism actively resists particle abrasion. This translates to prolonged operational life, maintaining impeccable system cleanliness and safeguarding downstream sensitive equipment like electrolyzers and fuel cell compressors without requiring constant maintenance interventions.

Product Parameters

Design Description & Engineering Excellence

• Class V Tight Shut-off & Seal Life: The precision-lapped ball and seat interface ensures a superior seal that meets or exceeds FCI 70-2 Class V standards, critical for preventing hazardous hydrogen build-up. By utilizing advanced polymers like PEEK and Devlon, the valve effectively resists Anti-Explosive Decompression (AED) during instant pressure drops, guaranteeing long-lasting seal integrity over tens of thousands of high-frequency cycles.

• Structural Integrity & Anti-Hydrogen Embrittlement Materials: Constructed from specialized stainless steels (e.g., F304 or S31603 with strictly controlled nickel content), the split-body forged design avoids the stress concentrations typical of welded joints. This fundamentally eliminates the risk of Hydrogen-Induced Cracking (HIC) in demanding, high-pressure environments.

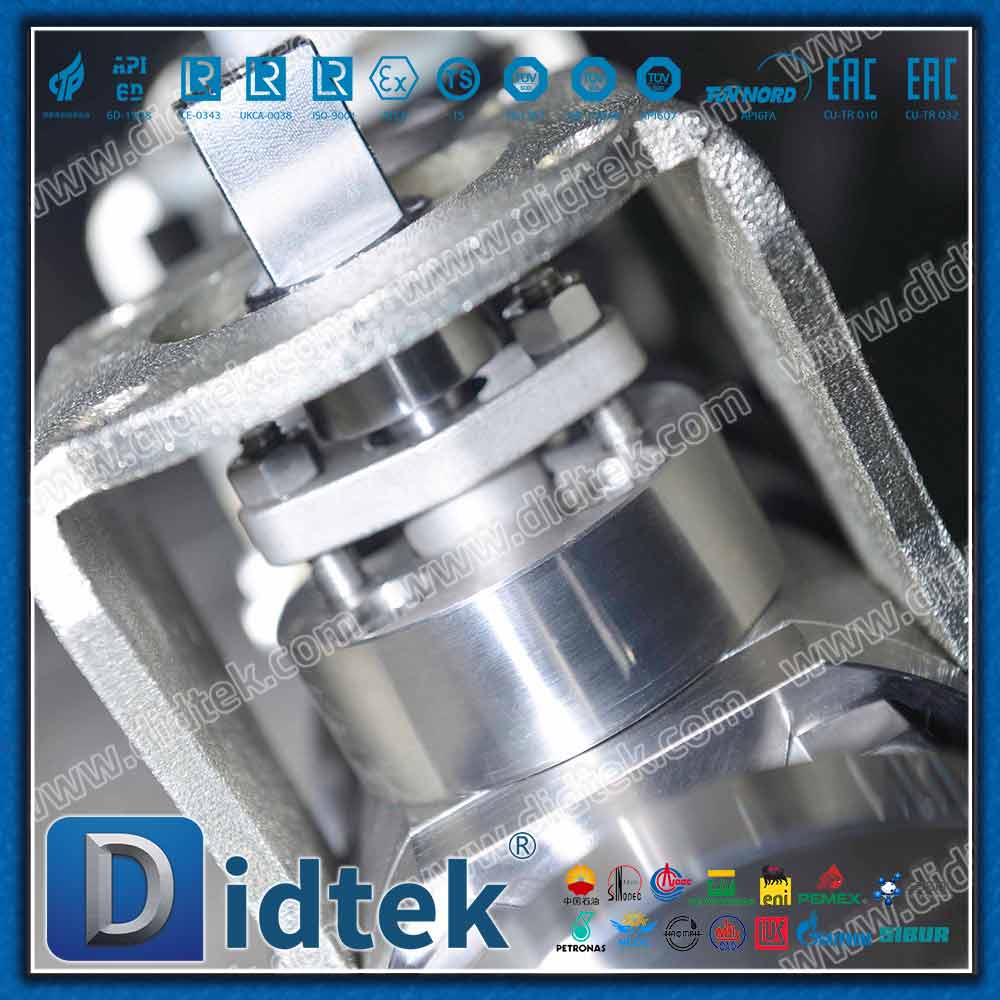

• Fugitive Emission Control & System Safety: Stem seals are meticulously designed to meet ISO 15848-1 Class AH or API 641 standards. The live-loaded packing system dynamically adjusts to prevent any micro-leakage of hydrogen into the atmosphere, ensuring a secure perimeter around your facility.

• High-Speed Pneumatic Actuation: Equipped with a highly responsive rack-and-pinion or scotch-yoke actuator, the valve delivers reliable, millisecond-range response times. The crisp, mechanical actuation provides immediate emergency shut-down (ESD) capabilities when process anomalies are detected.

• Static Discharge & Explosion Protection: Built-in anti-static devices ensure continuous electrical conductivity between the ball, stem, and body. Combined with a blowout-proof stem design, this entirely neutralizes the threat of internal sparks and gas accumulation in highly flammable hydrogen zones.

Parameters

Global Compliance & Commercial Assurance

Procurement teams require absolute certainty when sourcing components for volatile gas networks. Every single unit undergoes a 100% rigorous quantity testing protocol prior to delivery, aligning strictly with API 598 inspection standards. This commitment is backed by a comprehensive guarantee spanning 18 months after shipment and 12 months post-installation, providing significant financial and operational peace of mind.

To ensure the heavy forged steel body arrives in pristine condition, each valve is securely packed in a reinforced plywood case, protecting the precision-machined surfaces from moisture and transit impacts. Furthermore, the comprehensive portfolio of certifications—including API 6D, CE/PED, ISO 15848 for fugitive emissions, and API 607 for fire safety—ensures these valves meet the stringent entry thresholds and safety mandates of global green hydrogen and petrochemical projects.

Application & Function

The Pneumatic Leakage Class V Ball Valve for Hydrogen is widely utilized in demanding environments due to its superior material properties and rapid-response capabilities. Its integration solves critical flow control challenges across various highly specialized sectors:

• Hydrogen Refueling Stations (HRS): The rapid dispensing of hydrogen into vehicles requires valves capable of handling sudden pressure spikes and rapid thermal drops. This valve provides immediate, high-pressure isolation for dispensers and storage cascade tanks, ensuring user safety and preventing costly gas loss during daily operations.

• Green Hydrogen Electrolyzers: During water electrolysis, maintaining exact process control is paramount. The pneumatic actuator responds in milliseconds, regulating flow precisely to optimize hydrogen yield while isolating the system instantly during emergency shutdowns to protect delicate membranes.

• Hydrogen Pipelines: For mainline isolation, the rugged split-body forged construction withstands the immense mechanical stress of long-distance transport. The zero-leakage performance guarantees that communities and environments surrounding the pipeline remain entirely secure from flammable gas accumulation.

• Chemical Refineries: In extreme environments like hydrocracking and ammonia synthesis units, the valve's resistance to corrosive liquids, combined with its profound anti-hydrogen embrittlement properties, ensures uninterrupted, safe operation even under continuous heavy-duty cycling.
