Q61-800LBC
DIDTEK
FSV-FTHBV-006
| Availability: | |
|---|---|
| Quantity: | |
Product Detail |

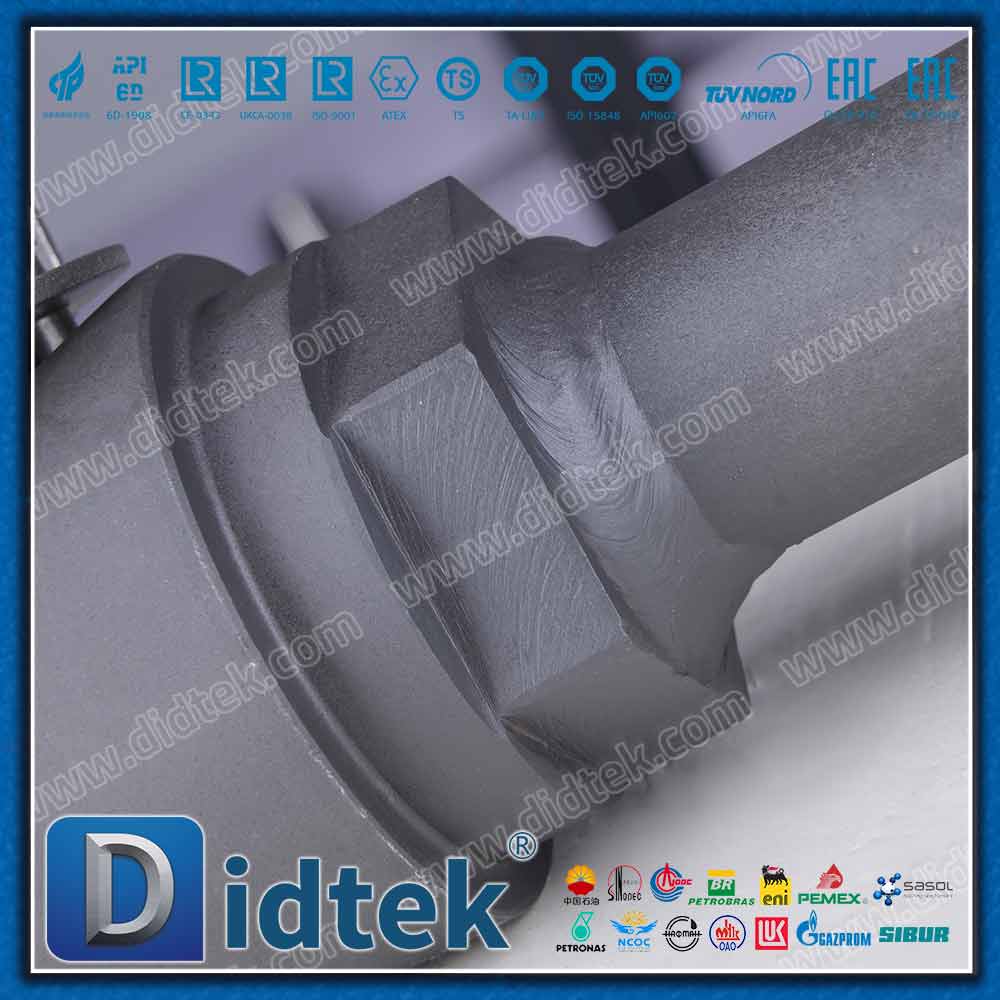

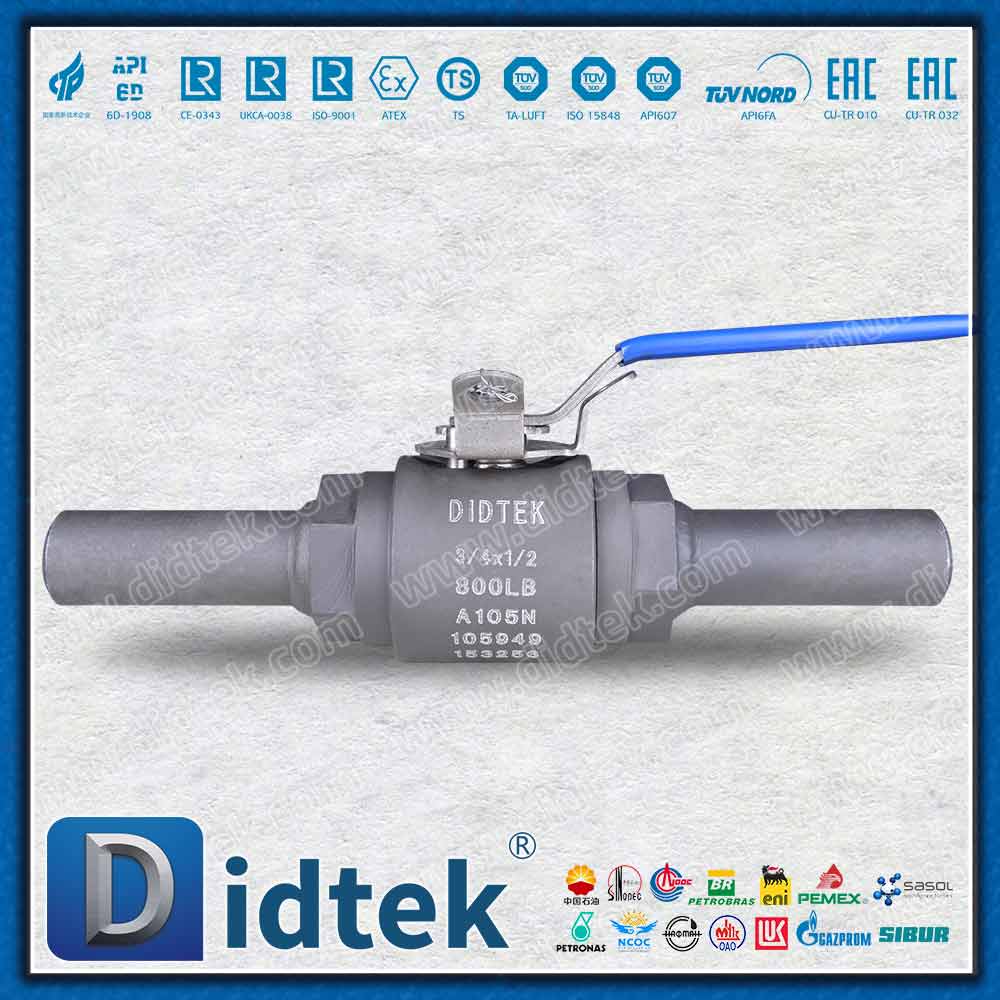

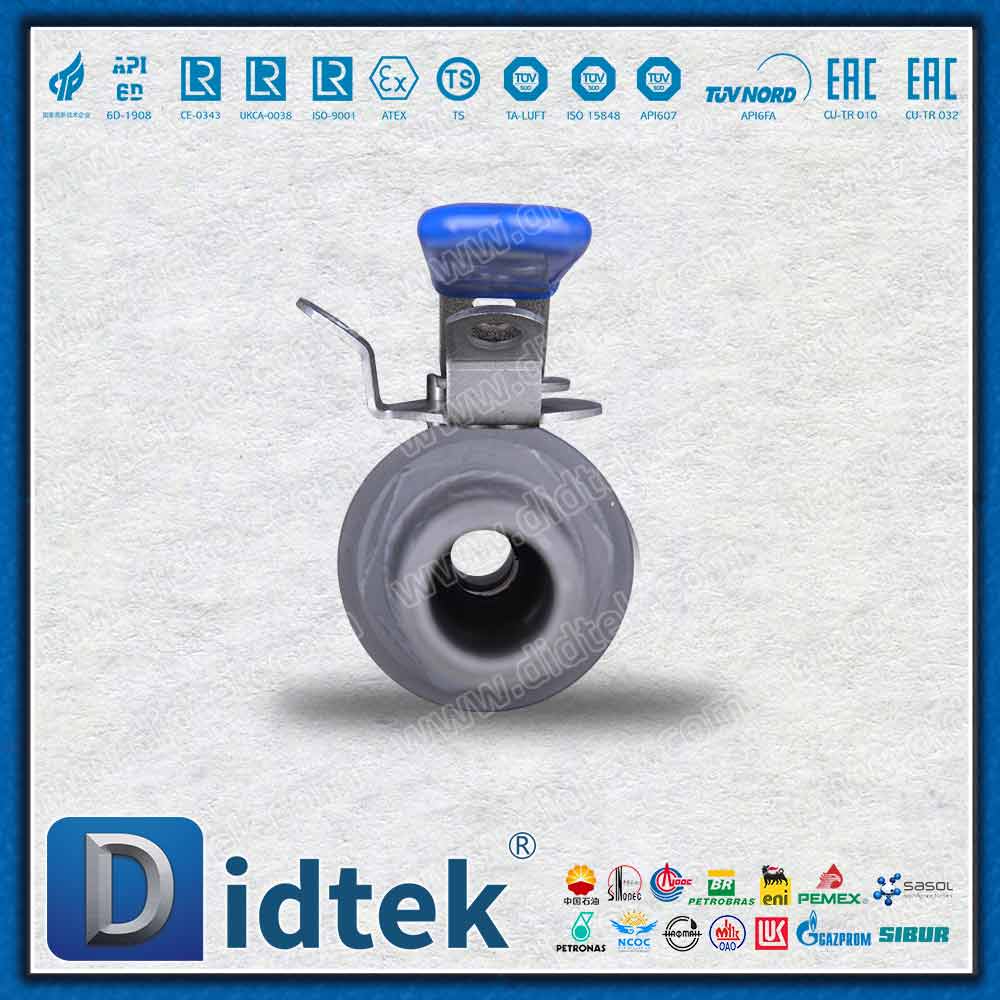

The Didtek A105N 800LB Forged Floating Ball Valve is a precision-engineered valve designed for high-pressure instrument lines and demanding industrial services. Utilizing Normalized A105N forged carbon steel, it ensures superior material density and exceptional mechanical properties. A key feature is the Extension Connection, which facilitates on-site welding while protecting internal seals from heat damage. The Floating Ball design, combined with an 800LB pressure rating, guarantees reliable, bubble-tight shut-off even under fluctuating pressure conditions.
Product Parameters |
| Parameter Name | Parameter |
| Size Range | 3/4"*1/2'' |
| Pressure Range | 800LB |
| Material | A105N |
| Trim | Soft Seat: PTFE, RPTFE, NYLON, PPL, PEEK, etc. |
| Temperature Range | -196°C~600°C |
| Design According | API6D, BS5351, ASME B16.34 |
| Face to Face | ASME B16.10, API6D |
| End Flanges | ASME B16.5, ASME B16.47 |
| Butt Welded Ends | ASME B16.25 |
| Fire Safety | AP1607,API6A |
| Inspection and Test | API 598,API6D |
| Operate | Handl |
| Body Type | Split Body |
| Seal | PTFE, Rptfe, Devlon, Peek, Stellite,Metal |
| Suitable Medium | Water, Natual Gas, Oil and some corrosive liquid |
Design Description
✔️ Structure : 2 pieces or 3 pieces body
✔️ High shut-off sealing mechanism and low torque operation
✔️ Block and bleed function
✔️ Self-cavity pressure relief
✔️ Fire safe design
✔️ Blow out proof stem construction
✔️ Anti-static design
✔️ Locking device (for lever handle operation)
✔️ ISO 5211 actuator mounting
✔️ Emergency grease injection (option)
✔️ PN design can be available
Parameters |
| Brand | DIDTEK |
| Structure | Floating Ball |
| Material | Carbon Steel, Stainless Steel, Alloy Steel, CI, DI etc. |
| Type | Forged Ball Valve |
| Test | 100% quantity tested before delivery |
| Guarantee | 18 months after shipments and 12 months after installed |
| Delivery | 15 - 60 days |
| Sample | Sample Available by Didtek Valve |
| Color | Customer request |
| Packing | Plywood Case |
| MOQ | 1 Set |
| Certificate | API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc. |
| Place of Origin | Zhejiang, China (Mainland) |
| Delivery Detail | Shipped in 15-30 days after payment |
| Port | Shanghai Or Ningbo |
| Payment Terms | L/C,D/A,D/P,T/T, Western Union |
Application & Function |
A105N 800LB Extention Connection Forged Floating Ball Valve are widely utilized in demanding environments due to their superior material properties:
Strict Hardness Control: Advanced normalization ensures material hardness remains at or below 22 HRC, neutralizing the risk of hydrogen embrittlement.
Corrosion-Resistant Trim: Compliant with NACE standards, trims are available in 316 SS or Nickel-alloy hardfacing for enhanced durability in sour media.
Double Block & Bleed (DBB): Available in Trunnion or Floating designs per API 6D, supporting dual-directional shut-off and cavity venting.
Full Traceability: Supplied with EN 10204 3.1 material certificates, including chemical analysis, mechanical testing, and hardness reports.
