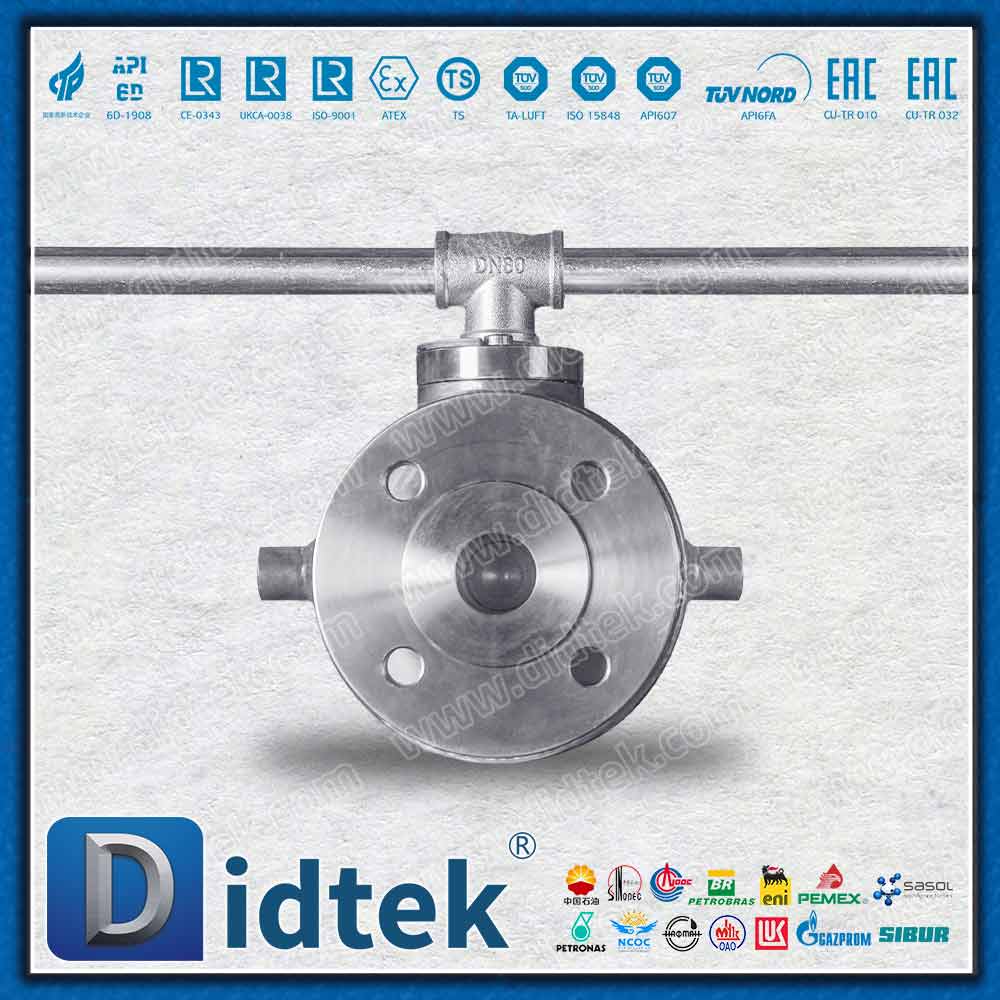

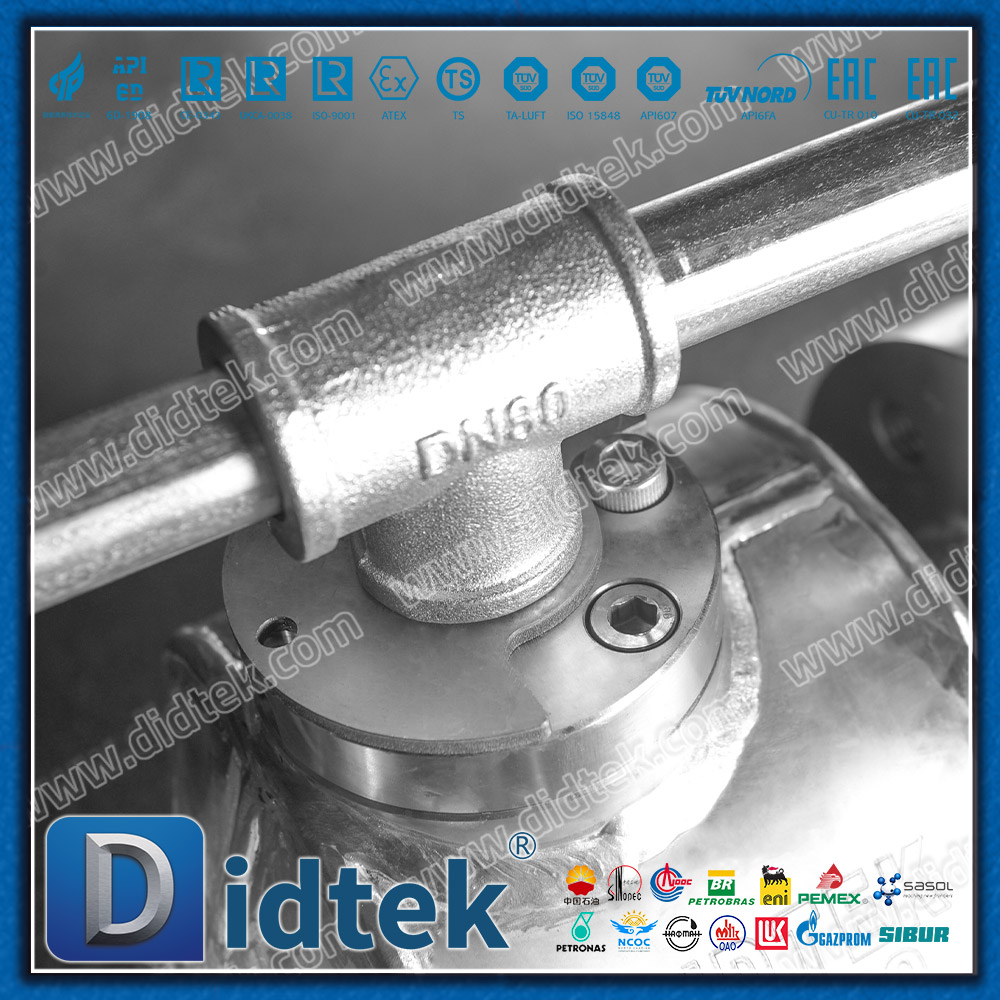

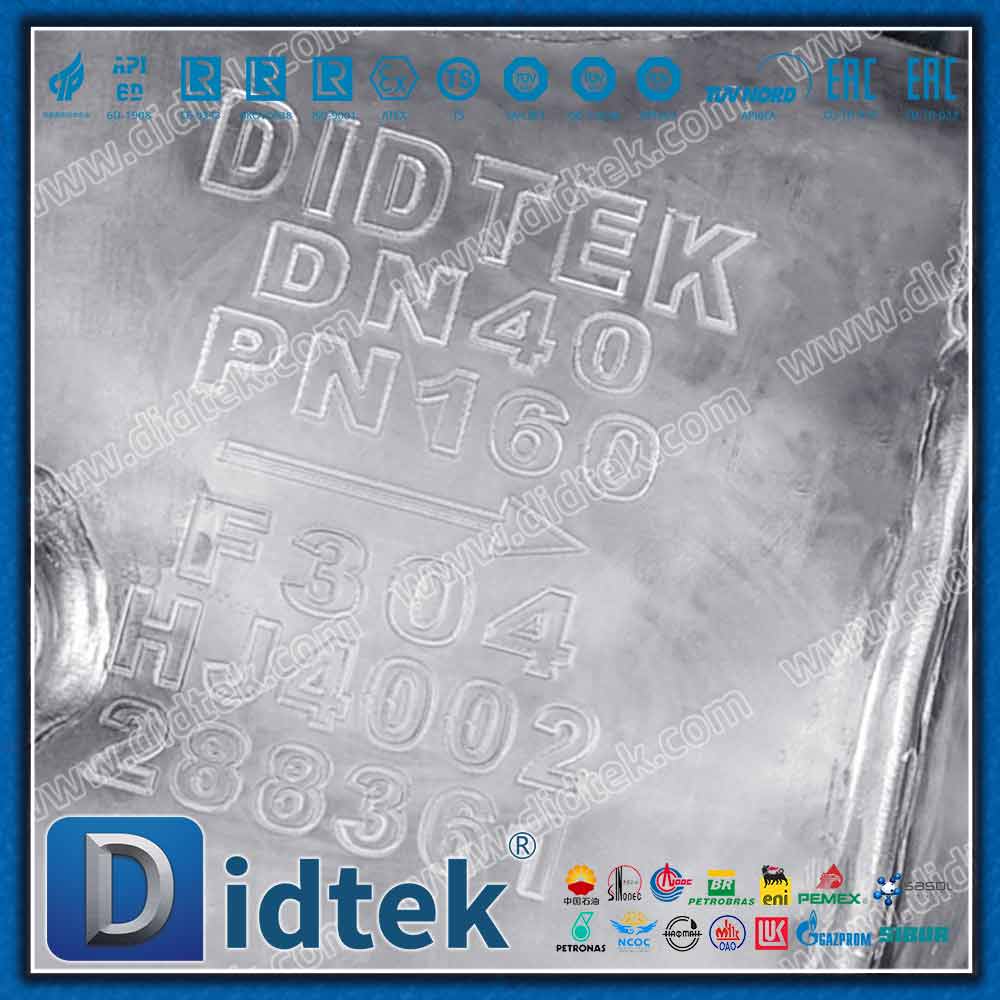

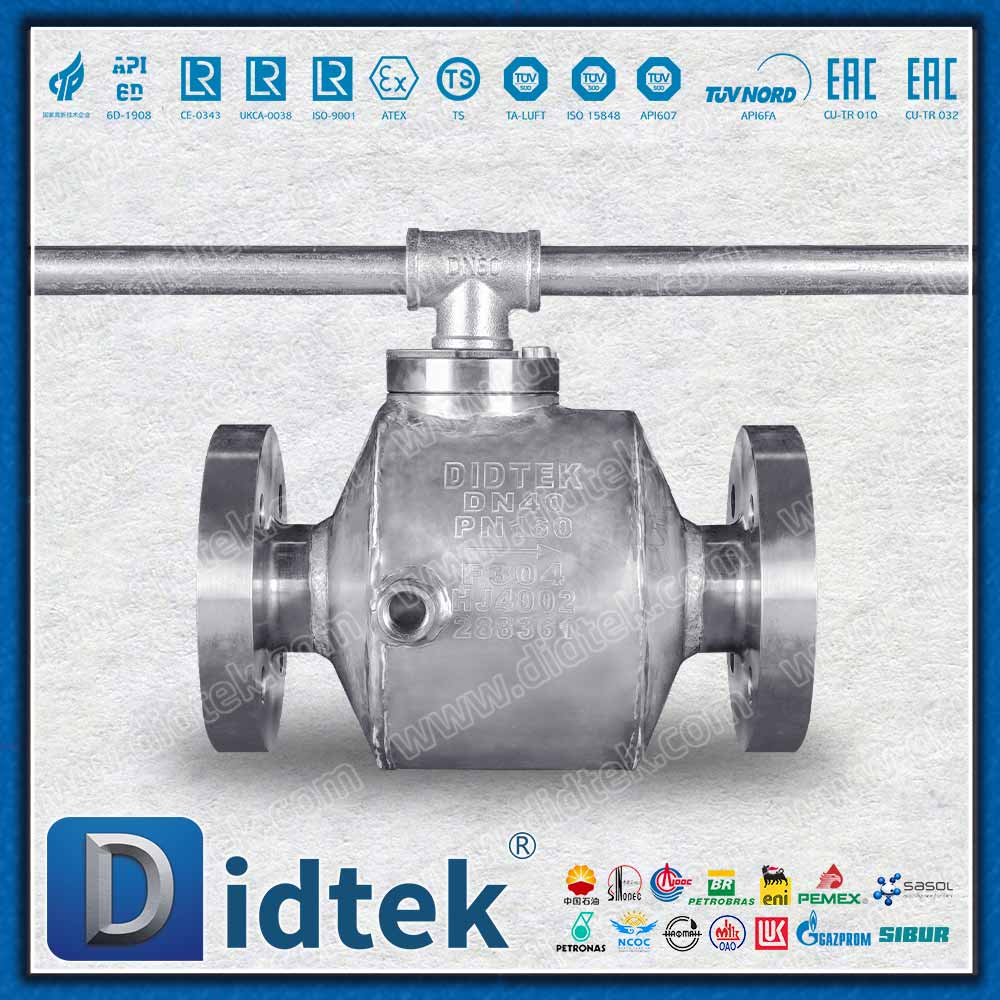

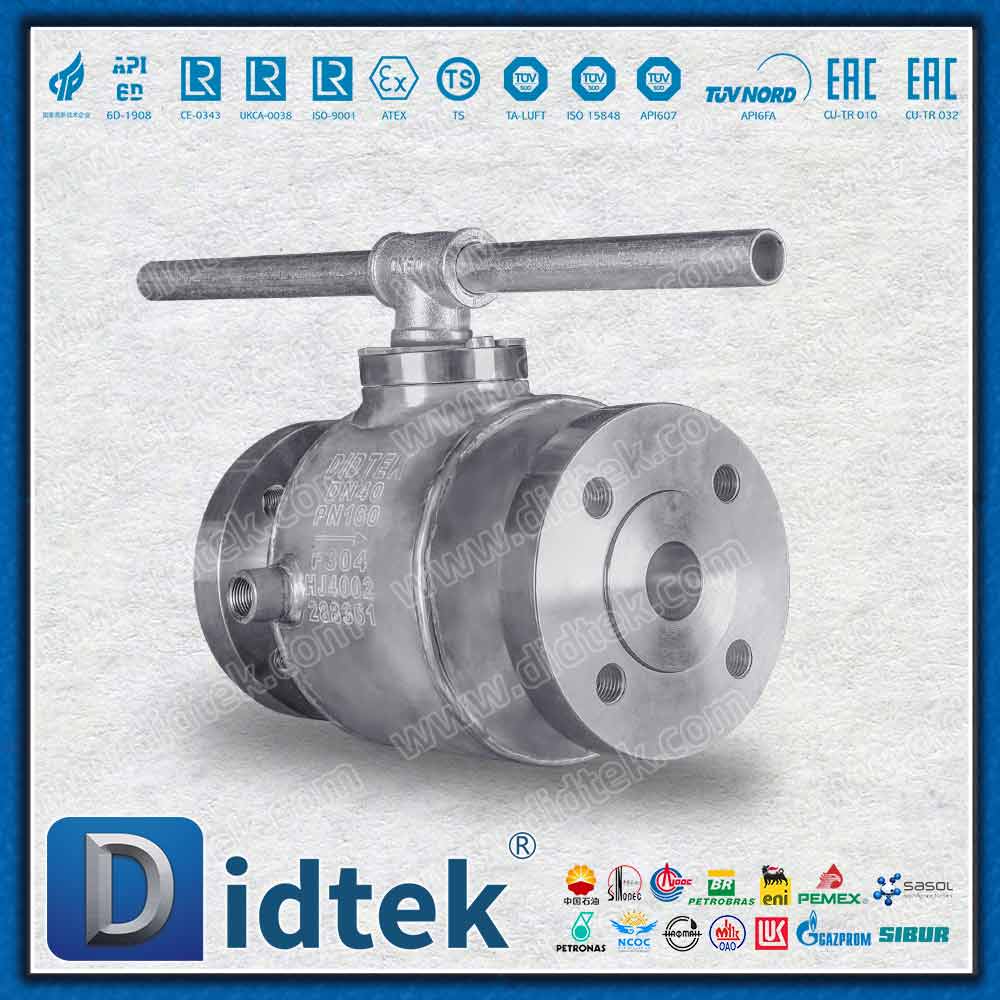

Insulation Jacket Fully Welded Ball Valve

The Insulation Jacket Fully Welded Ball Valve is a high-performance flow control solution designed specifically for media that require precise temperature maintenance.

Model:
QW41H-160P
Brand:
DIDTEK
Code:
FWBV-FWBV-012

Availability:

Quantity:



Inquire

Insulation Jacket Ball Valve Fully Welded Jacket Valve Steam Jacketed Ball Valve Bitumen Service Valve District Heating Ball Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

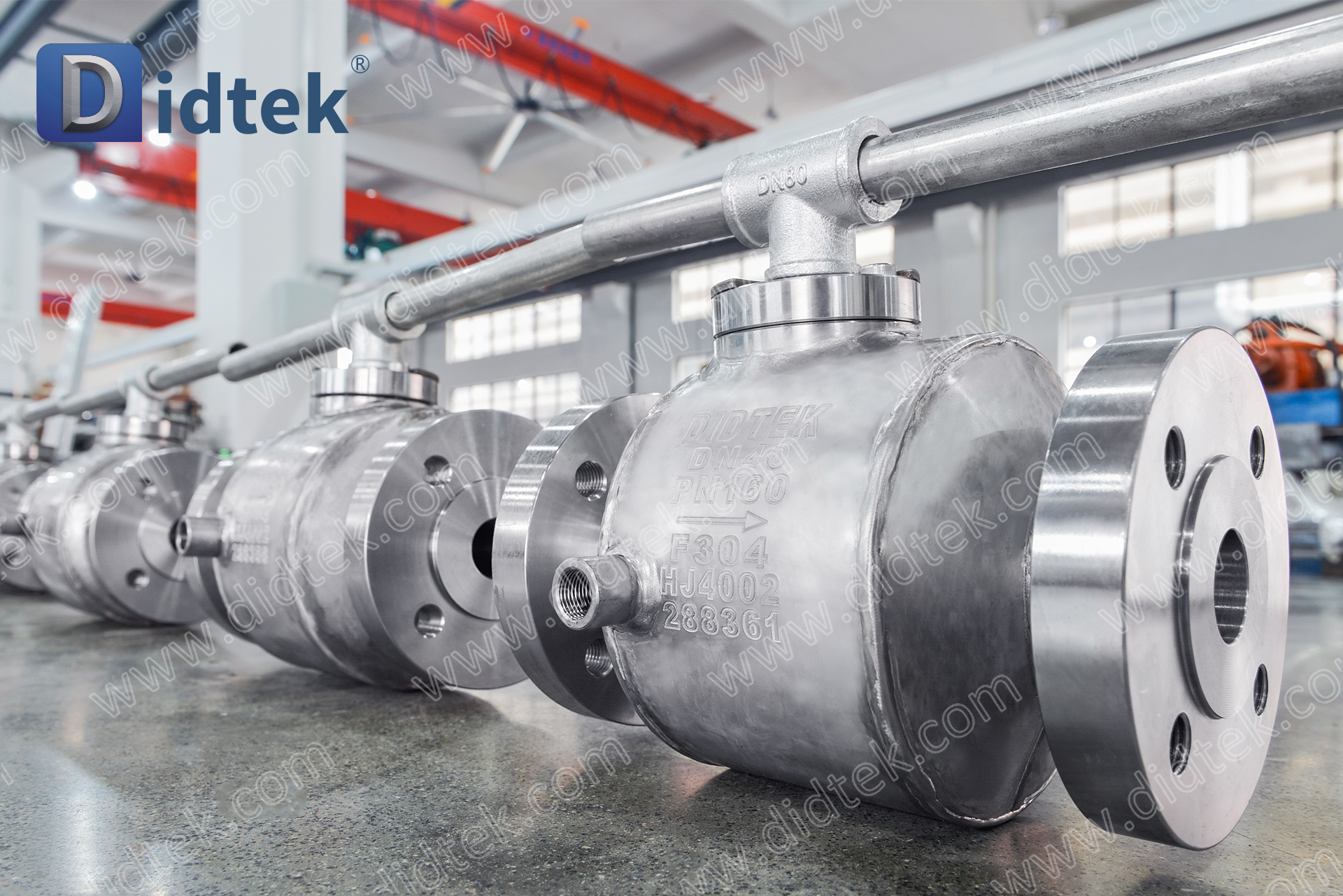

The Insulation Jacket Fully Welded Ball Valve is a high-performance flow control solution designed specifically for media that require precise temperature maintenance. By combining a monolithic fully welded body with a high-efficiency heating jacket, this valve eliminates the risk of external leakage while preventing fluids (such as liquid sulfur, bitumen, or heavy oil) from solidifying or crystallizing. It is the gold standard for district heating, molten media transport, and urban gas networks where thermal integrity and safety are paramount. A-12 DIDTEKFWBV Insulation jacket fully welded ball valve

Product Parameters

Parameter Name	Parameter
Size Range	DN40
Pressure Range	PN160
Material	F304
Seal	Hard Seat: F304+Ni55
Temperature Range	-29°C~300°C
Design According	ASME B16.34
End to End Dimension	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API607
Inspection and Test	API 598
Operate	Lever
Body Type	Full Welded Ball Valve
Type of Valve	Floating Ball Valve
Suitable Medium	Thermal oil, Water, Steam, Oil

Design Description

Integrated Insulation Jacket: The outer jacket allows for the circulation of steam, thermal oil, or hot water, ensuring the process media remains at a stable, flowable temperature.
Zero-Leakage Welded Body: The fully welded construction replaces traditional bolted flanges, eliminating potential leak paths and making the valve ideal for buried or hazardous services.
Maintenance-Free Design: High-strength forged steel and self-lubricating PTFE/PEEK seats ensure a long service life without the need for regular tightening or adjustment.
High Thermal Efficiency: The jacket covers the valve body from flange to flange (or end to end), minimizing "cold spots" where media could potentially harden and jam the ball.
Buried Service Capability: Often supplied with an extended stem to allow for below-ground installation in district heating networks while keeping operators safe at the surface.

Parameters

Brand	DIDTEK
Structure	Full Welded Ball Valve
Material	Austenitic Stainless Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Insulation Jacket Fully Welded Ball Valve are widely utilized in demanding environments due to their superior material properties:

Viscous Media Transport: Liquid sulfur, bitumen, asphalt, and heavy crude oil pipelines.
District Heating Networks: Underground hot water and steam distribution systems.
RChemical Processing: Resins, polymers, and other temperature-sensitive chemical products.
Molten Salt Systems: Specialized applications in solar thermal power plants.
