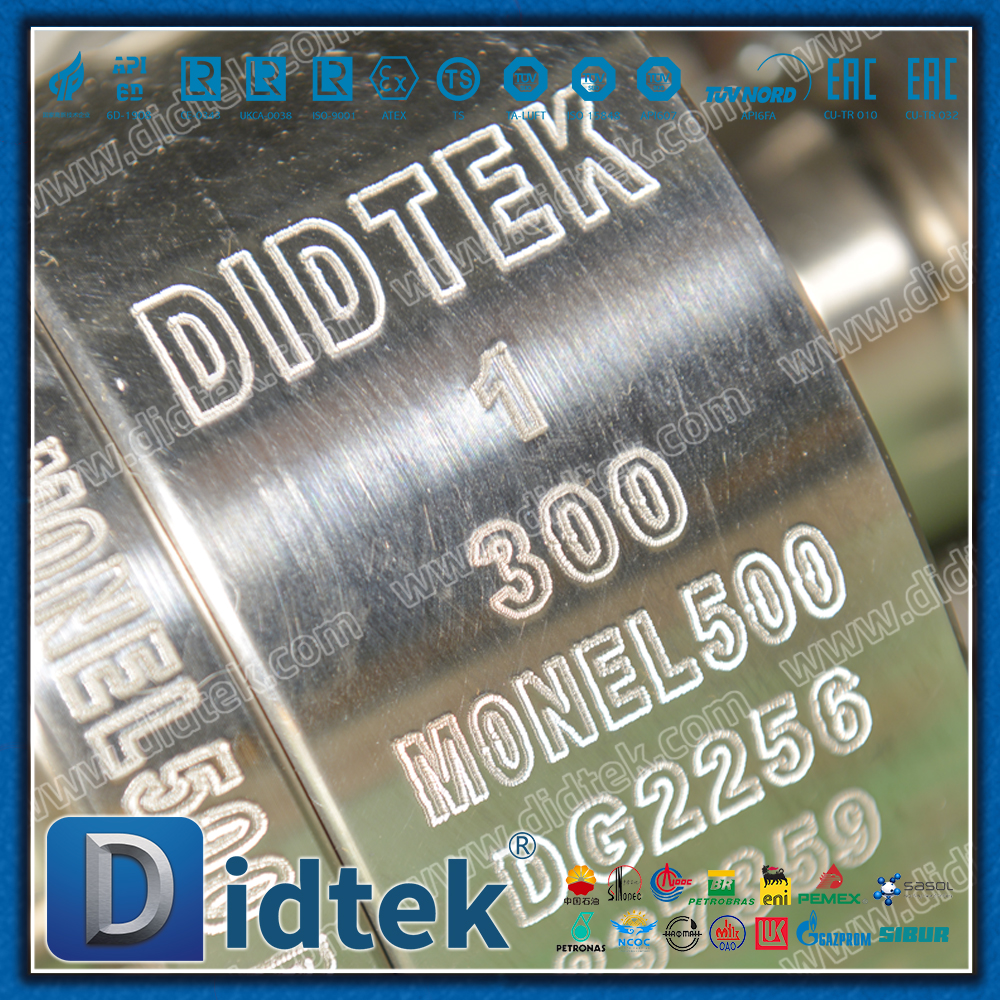

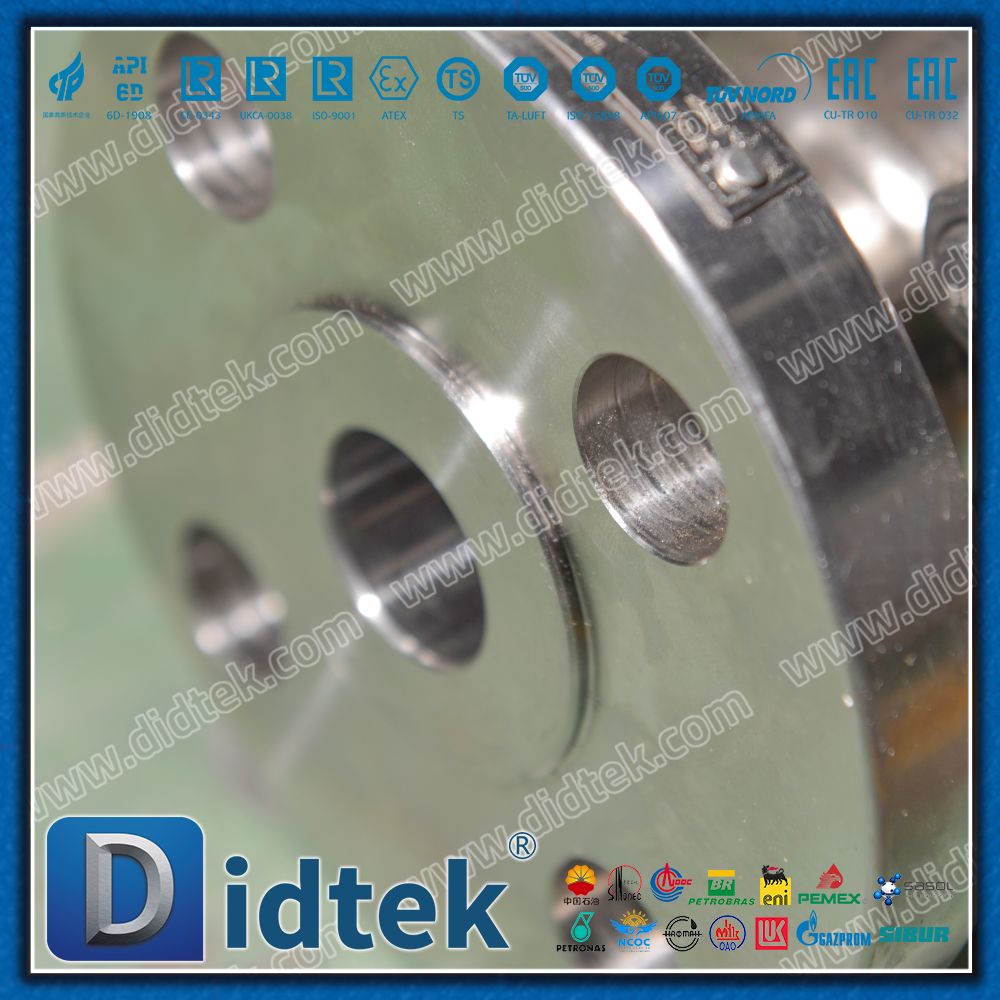

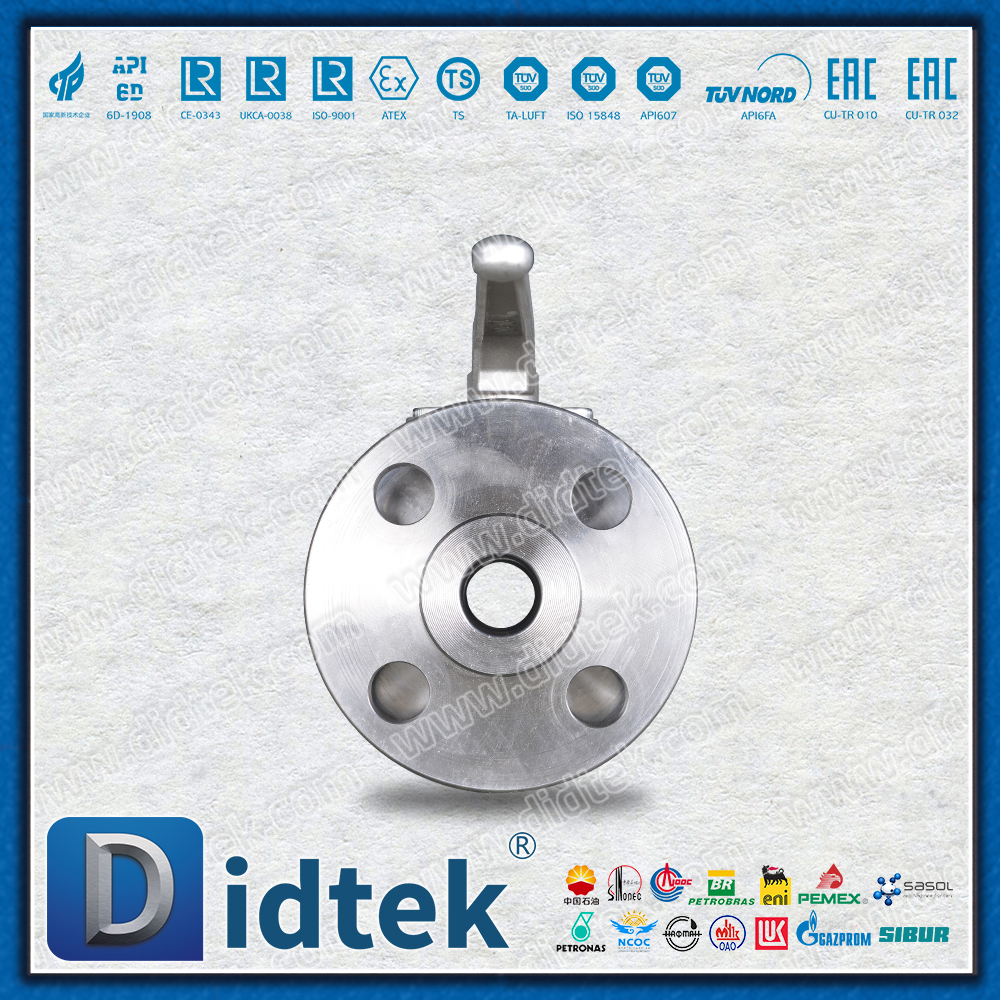

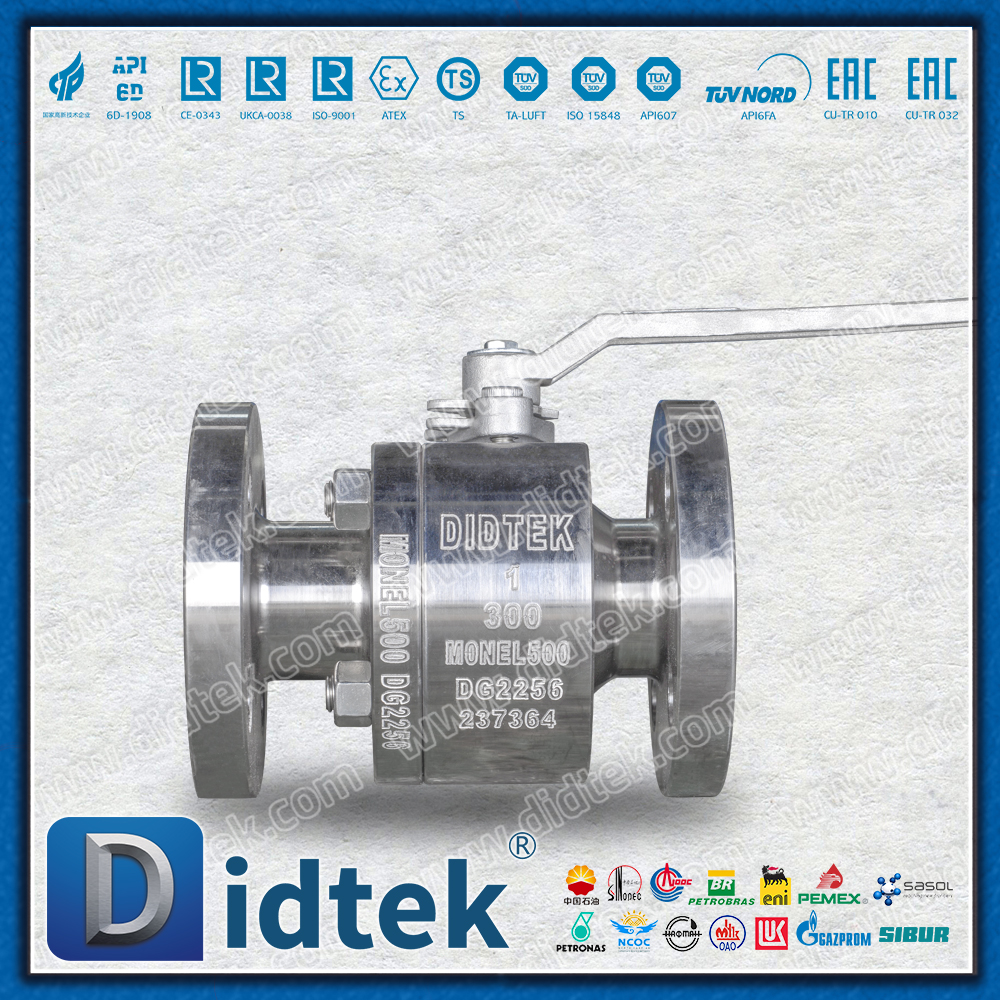

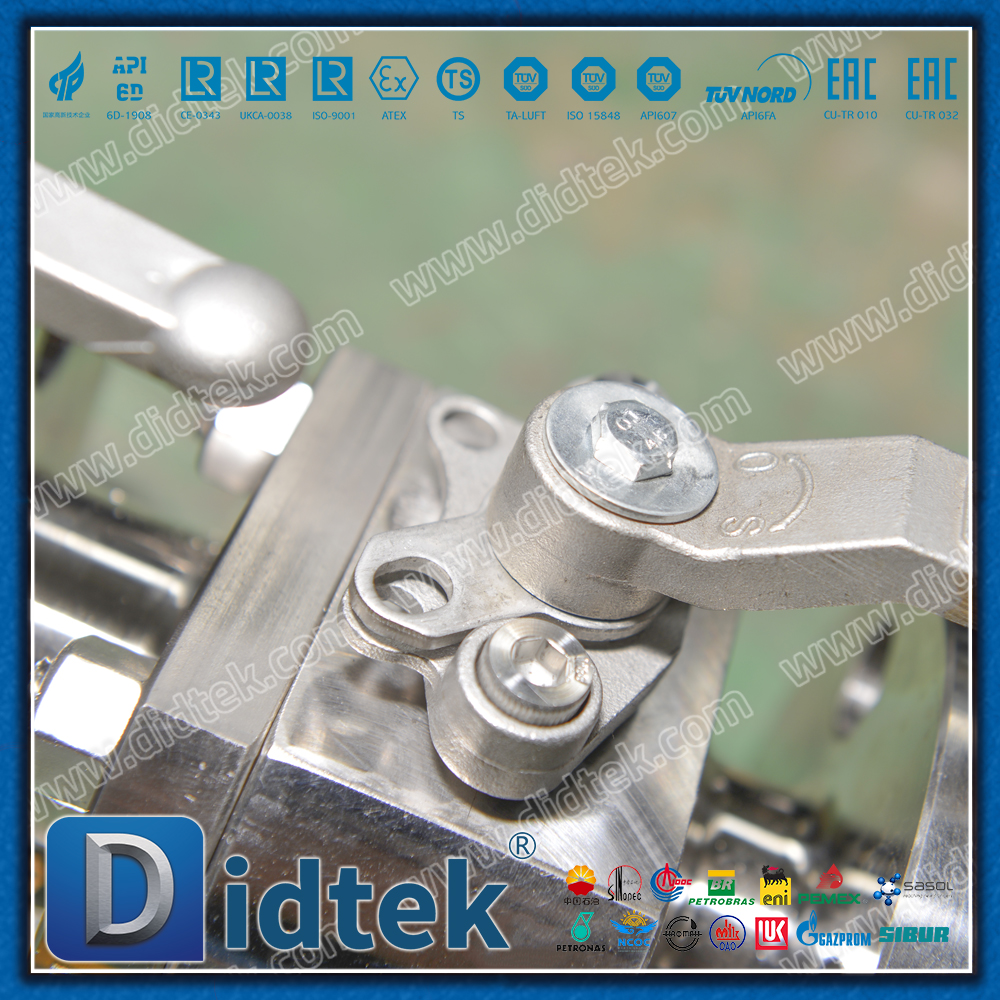

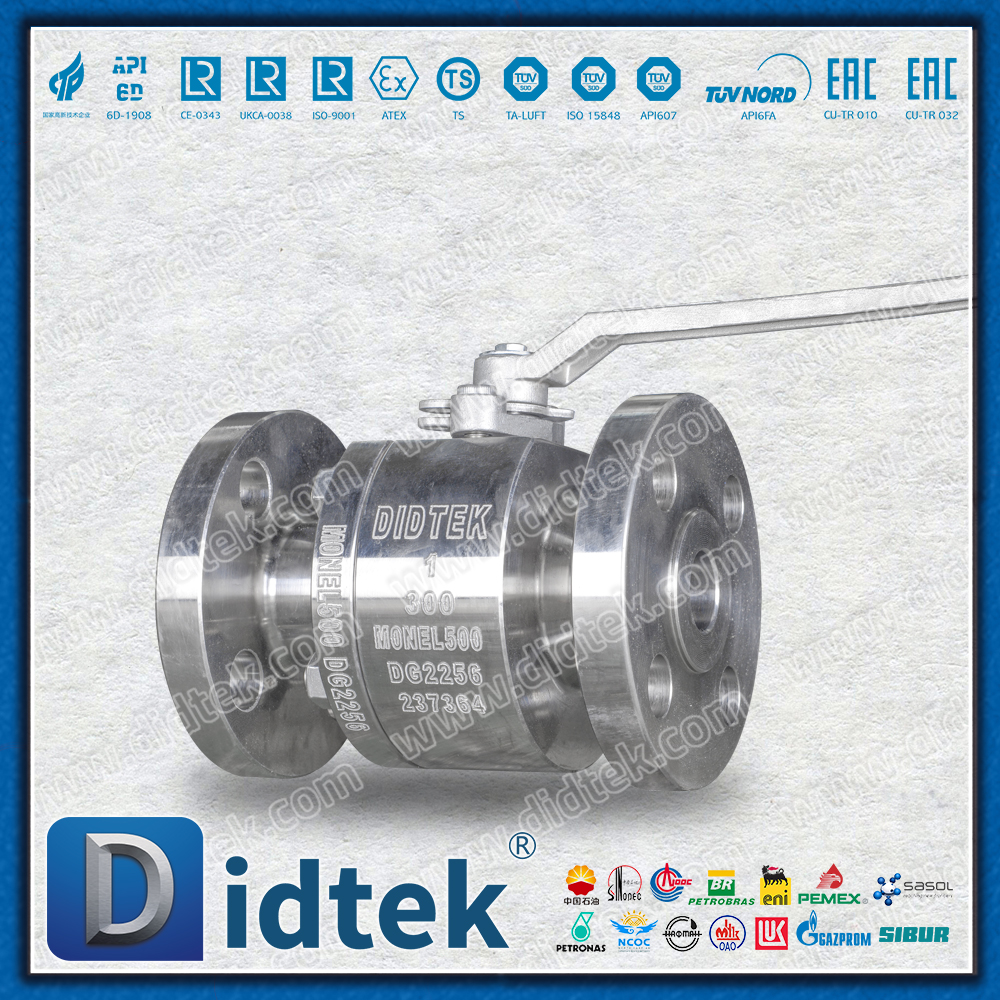

Monel Subsea Marine Forged Corrosion Resistant Floating Ball Valve

Product Overview

The Monel Marine engineering forged steel corrosion-resistant floating ball valve is a high-end special valve specially designed for harsh Marine environments. Adopting Monel nickel-copper alloy (UNS N04400) as the core material, combined with forging forming technology and floating ball structure, it provides outstanding corrosion resistance and reliable operational performance in high-pressure and highly corrosive submarine environments, making it the ultimate solution for submarine pipeline systems, offshore platforms and Marine engineering.

Technical specifications

Product features

1. Outstanding performance of Monel nickel-copper alloy

Ultimate resistance to seawater corrosion

High nickel (≥63%) and copper (28-34%) content

The rate of resistance to seawater corrosion is less than 0.025mm per year

Outstanding resistance to chloride ion stress corrosion cracking

Outstanding mechanical properties

Tensile strength ≥ 480 MPa

Yield strength ≥ 240 MPa

Elongation ≥ 35%

2. Specialized design for underwater environments

High-pressure adaptability

Maximum working water depth: 3,000 meters

Design resistant to external pressure to prevent deformation under deep-sea pressure

Special pressure balancing structure

Anti-corrosion enhancement

Cathodic protection compatible design

Anti-attachment treatment for Marine organisms

Designed to resist corrosion by seawater flow rate

3. Forging forming process

Dense material

The grain size of the forging is ≥ grade 6

No casting defects, and the service life is increased by 50%

It has excellent isotropy and uniform performance

Stable quality

The fluctuation range of material properties is less than 5%

Excellent batch consistency

4. Floating ball high-pressure seal

Self-reinforcing seal

The medium pressure pushes the ball to press against the valve seat. The higher the pressure, the more reliable the seal

Maintain ANSI B16.104 Class VI seals at a pressure rating of 1500LB

Bidirectional sealing capacity

The carefully designed preload ensures reliable bidirectional sealing

Test through API 6A PR2

5. Special characteristics for the seabed

Long-lasting lubrication

Deep-sea special lubricating grease, resistant to water erosion

The lubrication cycle is ≥5 years

Hydrogen embrittlement prevention design

Hydrogen embrittlement resistance under cathodic protection conditions

Hydrogen-induced cracking test passed NACE TM0284

Application field

1. Subsea oil and gas fields

Subsea oil production tree system

Subsea manifold device

Underwater production system

2. Marine engineering

Seawater lifting system

Subsea water injection device

Offshore platform process system

3. Shipbuilding

Warship seawater system

Merchant ship ballast system

Special ship pipeline

4. Special applications

Deep-sea exploration equipment

Marine scientific research facilities

Seabed mining system

Summary

Monel Marine engineering forged steel corrosion-resistant floating ball valve, through the perfect combination of top-grade corrosion-resistant materials, professional Marine design and strict manufacturing standards, provides Marine engineering users with:

Ultimate corrosion resistance: Service life is increased by 5 times in harsh seawater environments

Reliable deep-sea performance: Optimized for the seabed environment

Long service life: Designed for 30 years, with the lowest maintenance cost

Comprehensive standard certifications: Complete API, DNVGL, NORSOK certifications

This product is an ideal choice for subsea oil and gas fields, Marine engineering and ship systems. With its outstanding corrosion resistance and reliable quality, it provides a safe and reliable guarantee for the development of Marine resources.
