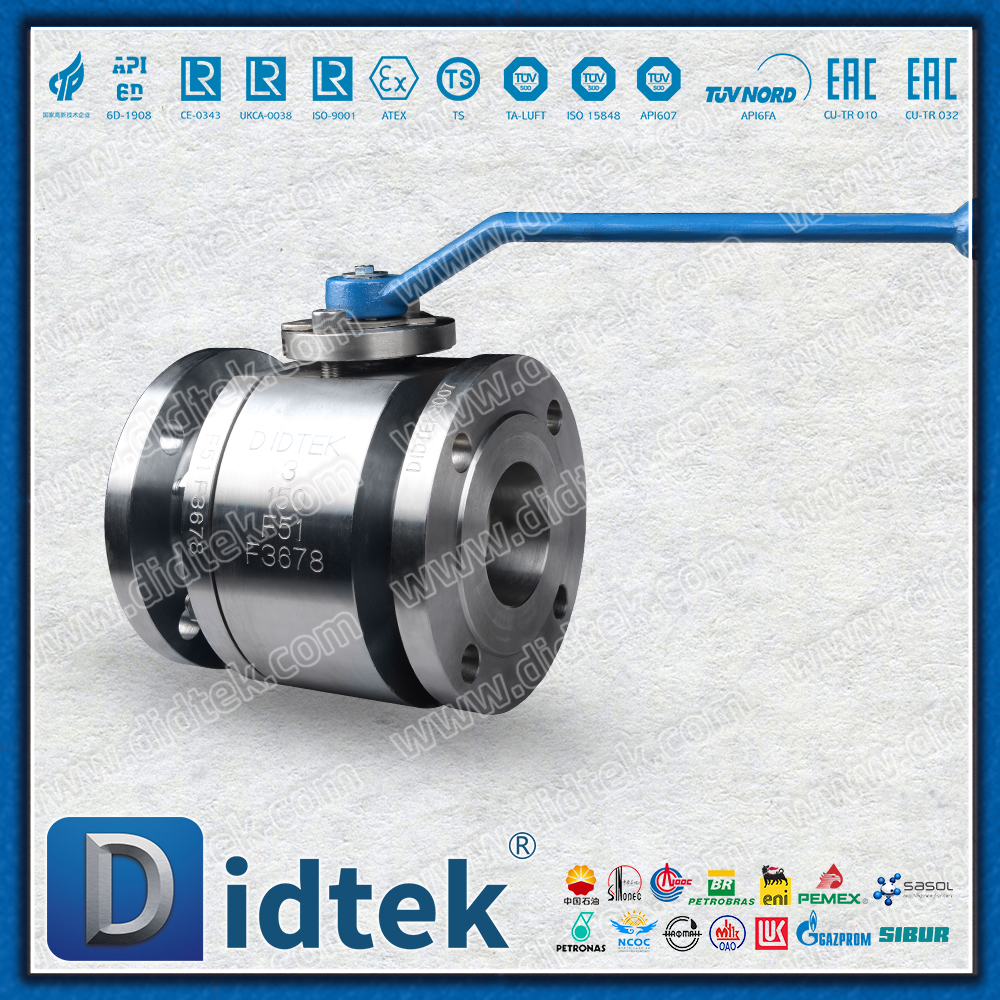

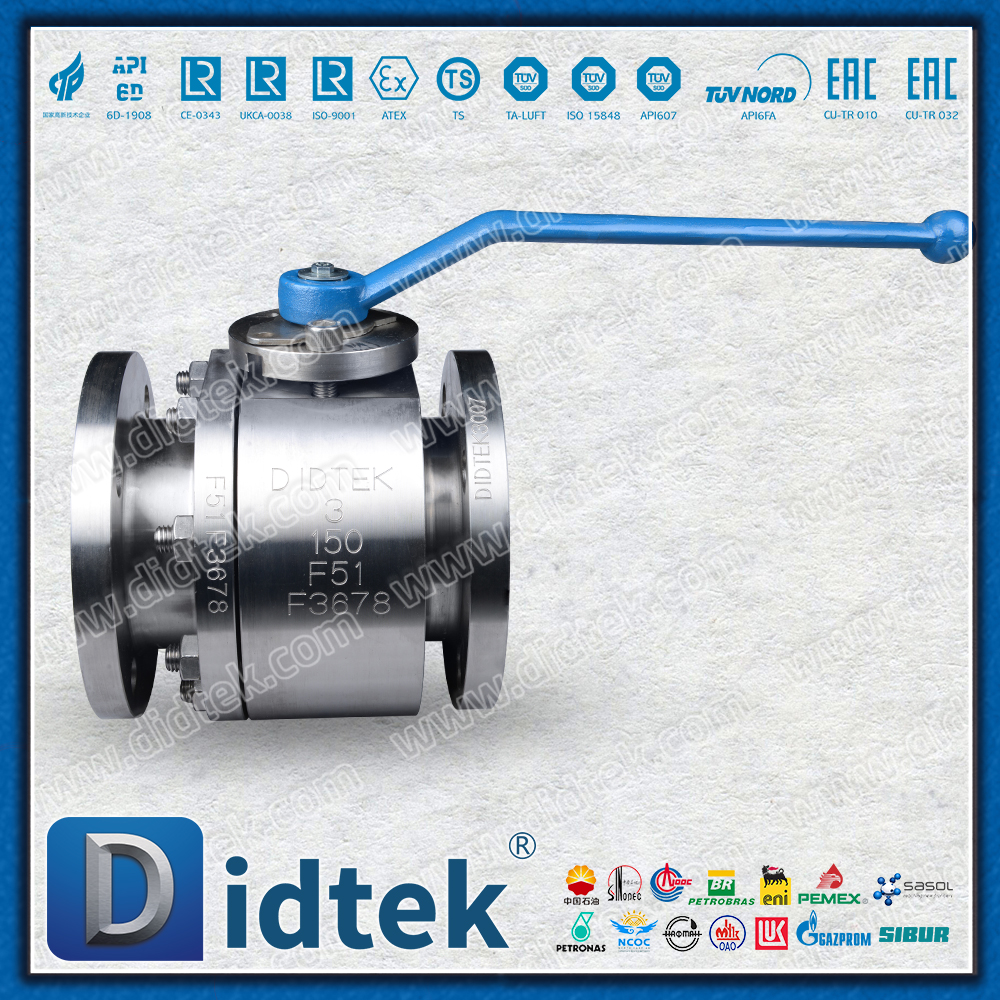

F51 Duplex Stainless Steel Double Acting Pneumatic Actuator Metal Seated Forged Floating Ball Valve

Core Product Positioning

This product is a high-end industrial valve solution that integrates outstanding corrosion resistance, super structural strength and intelligent automatic control. Designed specifically for extremely harsh working conditions, it perfectly integrates F51 duplex stainless steel material, metal hard sealing technology, forged steel forging process and double-acting pneumatic actuator, making it the ultimate choice for fields such as chemical engineering, oil and gas, and Marine engineering.

Detailed technical specifications

Main features and advantages

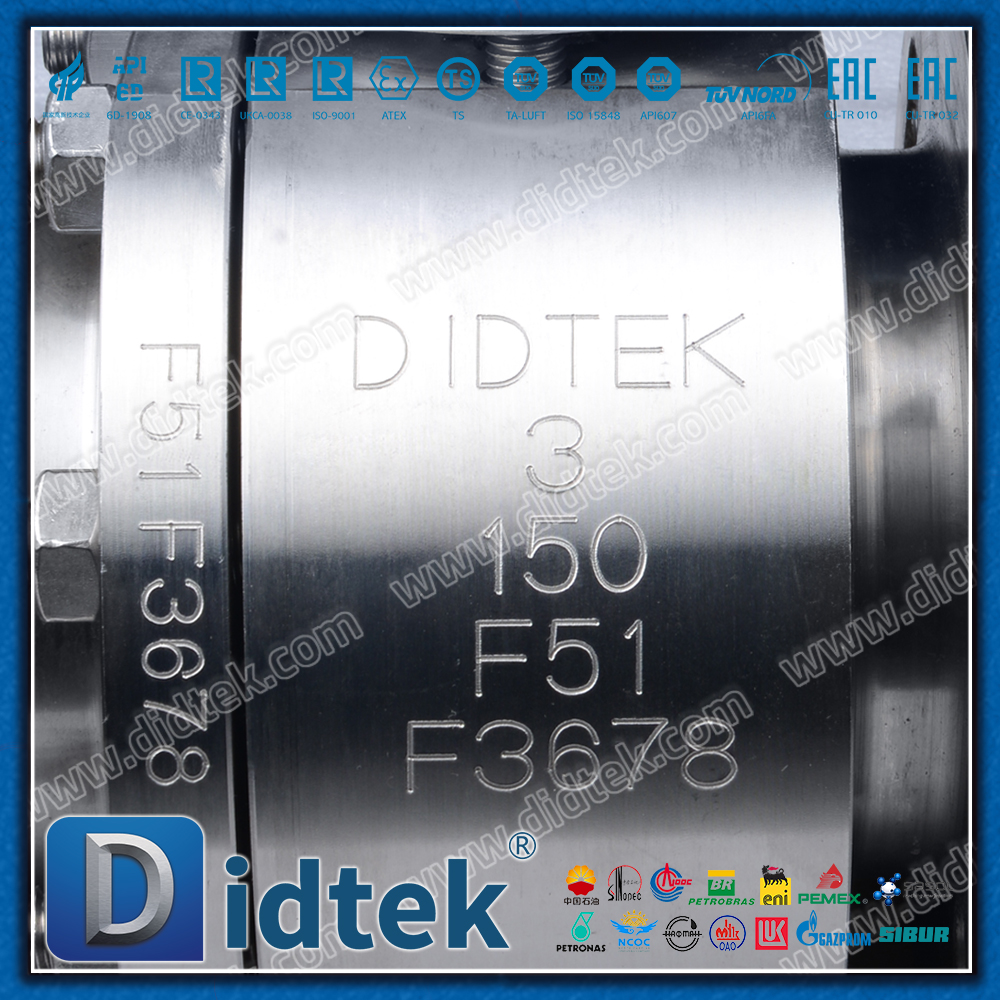

1. F51 duplex stainless steel valve body

Outstanding corrosion resistance: Rich in chromium (22%), molybdenum (3%), and nickel (5.5%), it has excellent resistance to chloride stress corrosion cracking, pitting, and crevice corrosion, and its corrosion resistance is significantly better than that of 316L stainless steel.

High strength and toughness: The tensile strength reaches 620-795 MPa, which is twice that of standard austenitic stainless steel, providing higher structural integrity and compressive resistance.

Economic practicality: In most corrosive environments, its life cycle cost is lower than that of high-grade austenitic stainless steel, with outstanding cost performance.

2. Metal hard seal system

High temperature resistance and wear resistance: The sealing surface is made of special alloys (such as Stellite), which can withstand a continuous working temperature of up to 425℃ and effectively resist the erosion and wear of solid particles in the medium.

Fire safety design: Complies with API 607 standard. In the extreme case of a fire, after the soft auxiliary seal fails, the metal sealing pair can still form an effective seal to prevent the disaster from expanding.

Long service life: Under harsh working conditions such as high temperature and wear, its service life far exceeds that of traditional soft-sealed valves.

3. Forging steel manufacturing process

Dense and reliable structure: Forging forming eliminates common defects such as pores and sand holes in castings, and the grain flow direction is more reasonable, resulting in higher mechanical strength and impact toughness.

Excellent pressure-bearing capacity: Suitable for pipeline systems with higher pressure ratings, offering higher safety.

Quality consistency: The forging material is uniform, the performance is stable, and it is suitable for critical working conditions.

4. Double-acting pneumatic actuator

Rapid opening and closing with high frequency: By using compressed air to drive the piston to reciprocate, the valve can be opened and closed quickly (usually completed within a few seconds), making it suitable for applications that require frequent actions or rapid shut-off.

High reliability: Simple and sturdy structure, convenient maintenance, and reliable performance in harsh industrial environments.

Bidirectional control: By configuring a two-position five-way solenoid valve, it is easy to achieve precise bidirectional control of the valve's "open" and "close", and it is easy to integrate into an automation system.

Flexible configuration: It can be optionally equipped with a single-acting spring return module to upgrade to a "fail-safe" actuator, which automatically returns to the preset safe state when gas is lost.

5. Floating ball structure and double sealing

Automatic pressure-assisted sealing: Under the action of medium pressure, the ball undergoes a slight displacement towards the valve seat at the outlet end and is compressed, forming a self-tightening seal. The higher the pressure, the more reliable the seal.

Bidirectional blocking and discharge: The design can achieve bidirectional sealing and has the function of safe pressure relief in the valve body cavity.

Typical application fields

Oil and gas: Offshore platforms, oil and gas pipelines, acidic environments containing hydrogen sulfide.

Chemical Engineering and petrochemicals: Transportation and handling of various highly corrosive chemicals (such as chlorides, acids, and alkalis).

Ocean and Ships: Seawater cooling systems, ballast water systems, seawater desalination devices.

Energy and Environmental Protection: Flue Gas desulfurization (FGD) systems, sewage treatment, control of high-pressure and highly corrosive media.

Summary

The F51 duplex stainless steel double-acting pneumatic metal-sealed forged steel floating ball valve is a high-performance comprehensive solution integrating corrosion resistance, high temperature resistance, wear resistance, high pressure resistance and automatic control. It is particularly suitable for environments with high corrosion, high pressure and high danger that traditional stainless steel cannot handle. It provides customers with the ultimate valve choice that combines an extremely long service life, extremely low maintenance costs and high operational reliability. It is an indispensable key equipment in modern chemical processes and demanding industrial applications.
