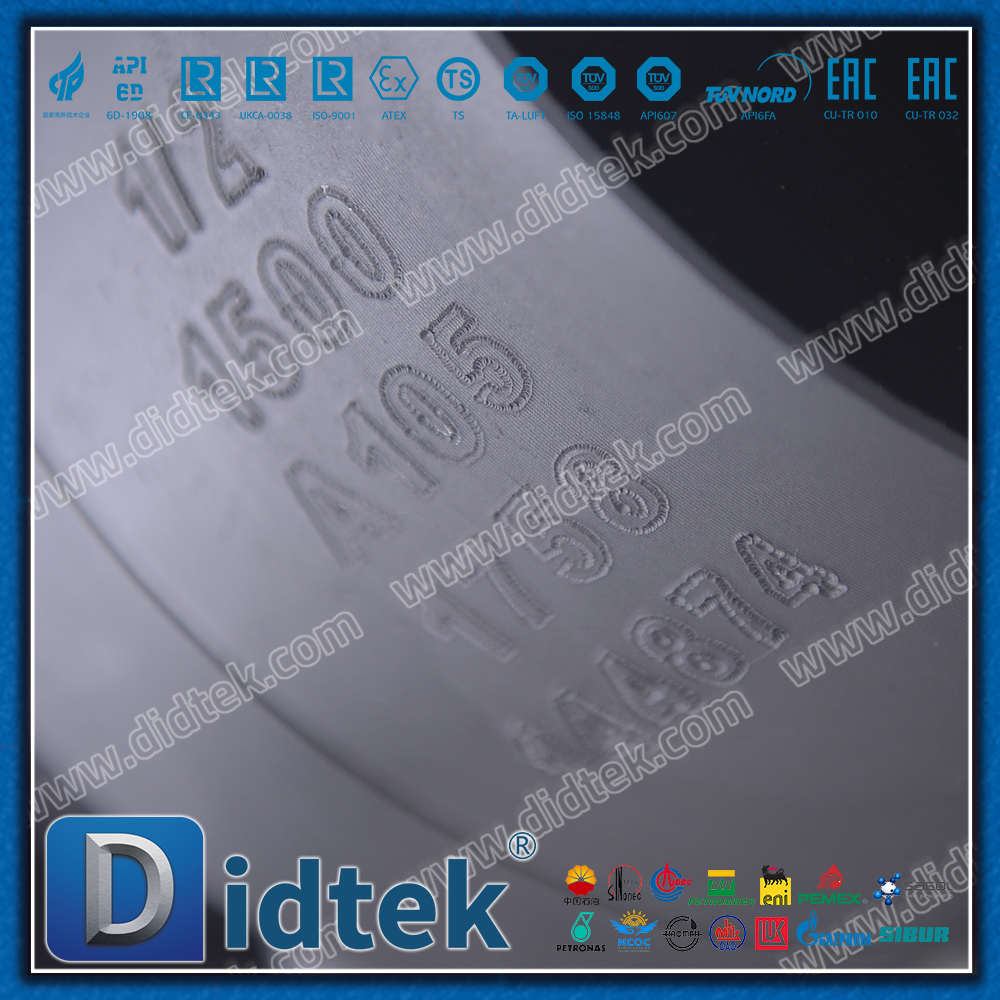

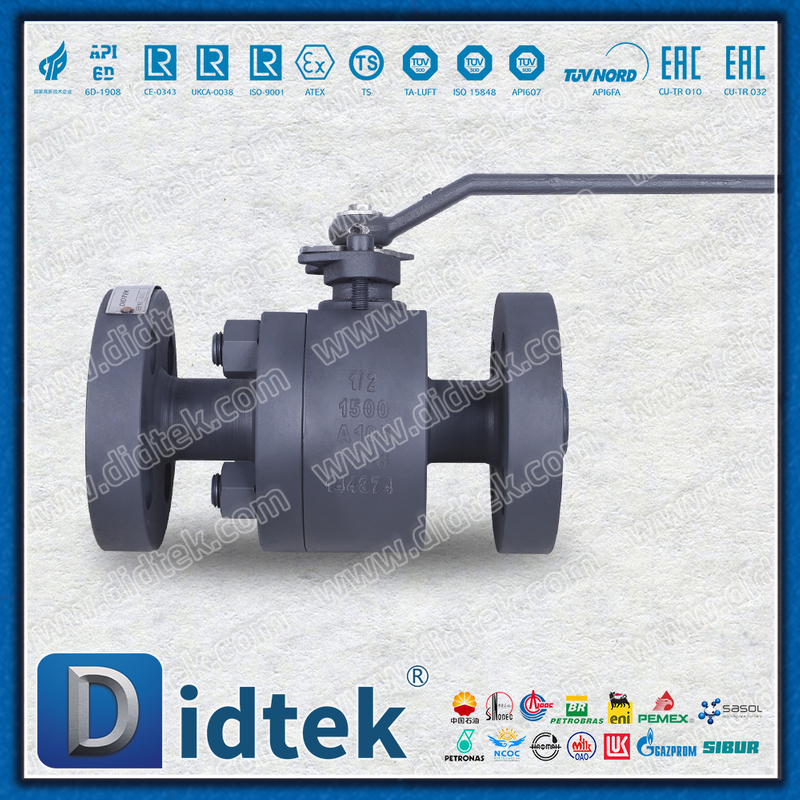

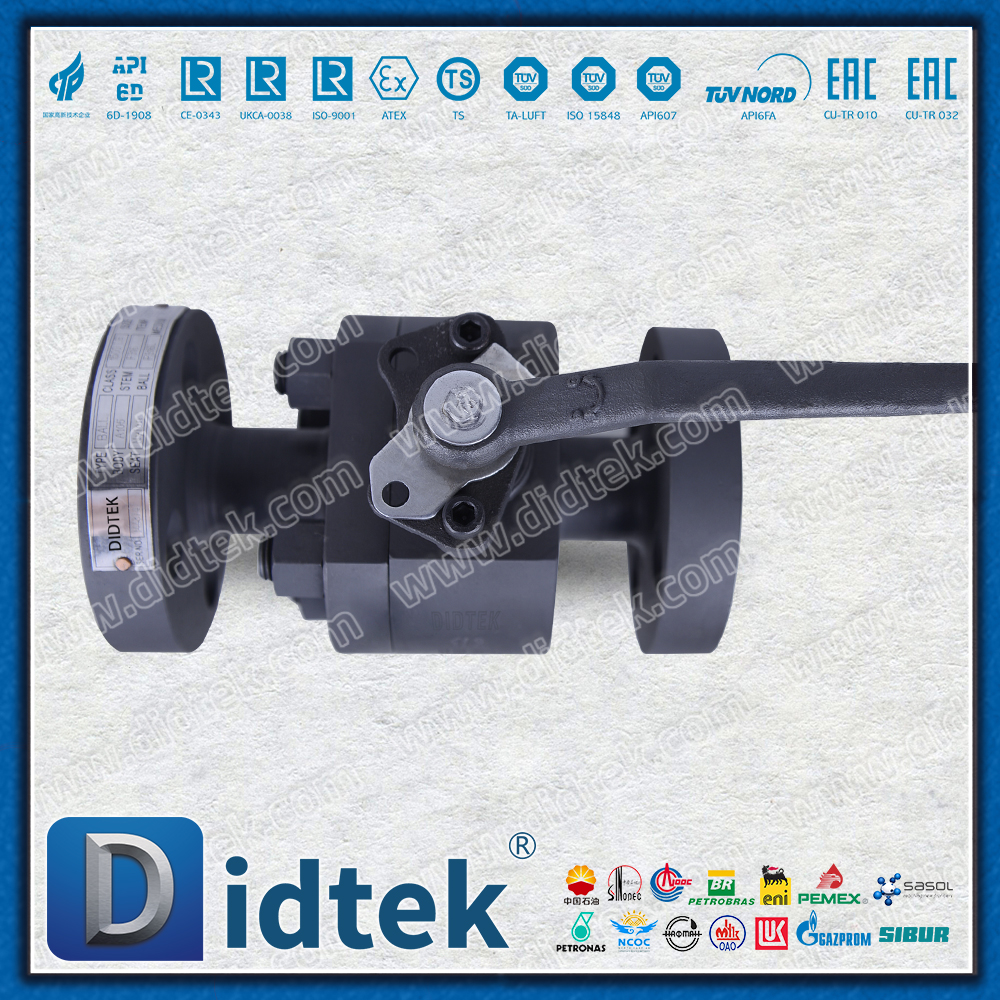

A105 1500LB High Pressure Phosphating Corrosion Protection Metal Seated Floating Ball Valve

Product Overview

The A105 1500LB high-pressure phosphating anti-corrosion metal-sealed floating ball valve is an industrial valve specially designed for high-pressure and harsh working conditions. The product adopts ASTM A105 forged steel valve body, combines 1500LB high-pressure grade and phosphating surface treatment technology, and is equipped with a metal hard sealing system. It provides reliable cut-off service in high-temperature, high-pressure and corrosive environments, and is an ideal choice for industries such as petrochemical and power energy.

Technical specifications

Product features

1. High-pressure phosphating anti-corrosion technology

Surface phosphating treatment

A dense phosphate protective layer is formed, and the corrosion resistance is enhanced by three times

The surface hardness has been significantly enhanced and it has excellent wear resistance

Provide an ideal substrate for subsequent coatings and enhance adhesion

Comprehensive protection system

Phosphating layer thickness: 8-15μm

Salt spray test: No red rust after ≥500 hours

Comply with the requirements of ISO 9717 standard

2. Class 1500 high-voltage design

Ultimate pressure resistance capacity

Design pressure: 25 MPa

Shell test pressure: 37.5 MPa

Sealing test pressure: 27.5 MPa

High-pressure optimized structure

Design for thickening the valve body wall thickness

Strengthen the valve stem drive system

Enhanced bearing structure

3. Metal hard seal system

Super-hard sealing surface

Spherical sealing surface: Supersonic sprayed tungsten carbide, hardness HRC ≥ 65

Valve seat sealing surface: Stellite alloy, hardness HRC ≥ 58

High-temperature adaptability

Maintain stable sealing at a high temperature of 425℃

Matching design of thermal expansion coefficient

Long-life design

The sealing life is ≥ 20,000 cycles

The wear resistance is 5 to 8 times that of soft seals

4. Floating ball high-pressure seal

Self-reinforcing seal: The medium pressure pushes the ball to press against the valve seat. The higher the pressure, the more reliable the seal

Bidirectional blocking: The carefully designed preload ensures reliable bidirectional sealing

Low flow resistance design: Full bore structure minimizes pressure loss

5. Safety protection design

Fire safety: Passed the API 607 fire test

Anti-static design: The resistance between the ball, valve stem and valve body is less than 10 Ω

Anti-blowout valve stem: T-shaped structure design to ensure safe high-pressure operation

Application field

1. Petrochemical industry

High-pressure oil and gas transmission pipelines

Reaction system of oil refining unit

High-pressure hydrogenation unit

2. Electric energy

Power station boiler system

High-pressure steam pipeline

Water supply heating system

3. Industrial systems

High-pressure compressed air system

Industrial gas transportation

High-pressure hydraulic system

4. Special applications

High-temperature and high-pressure corrosive environment

In situations where fire safety is required

Long-term maintenance-free application

Summary

The A105 1500LB high-pressure phosphating anti-corrosion metal-sealed floating ball valve, through the perfect combination of high-quality forged steel materials, professional anti-corrosion treatment and high-pressure sealing technology, provides industrial users with

Reliable high-pressure performance: Class 1500 pressure rating, with outstanding pressure-bearing capacity

Excellent anti-corrosion protection: Phosphating treatment significantly enhances corrosion resistance

Long service life: Metal seals ensure long-term stable operation under high temperature and high pressure

Economic maintenance costs: High-quality materials and professional treatment reduce the total life cycle costs

This product is an ideal choice for high-pressure and harsh working conditions. With its outstanding performance and reliable quality, it provides a strong guarantee for industrial fluid control.
