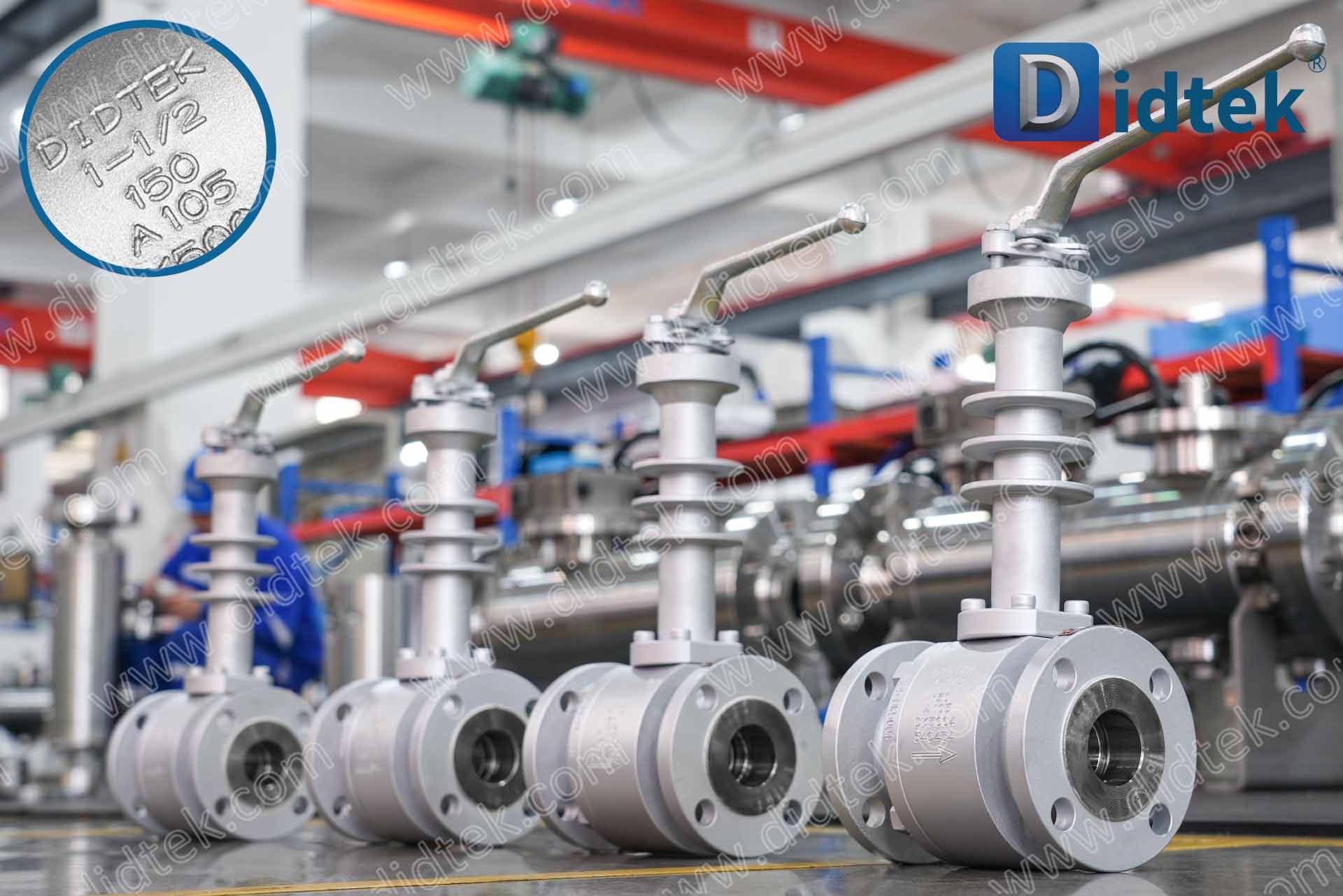

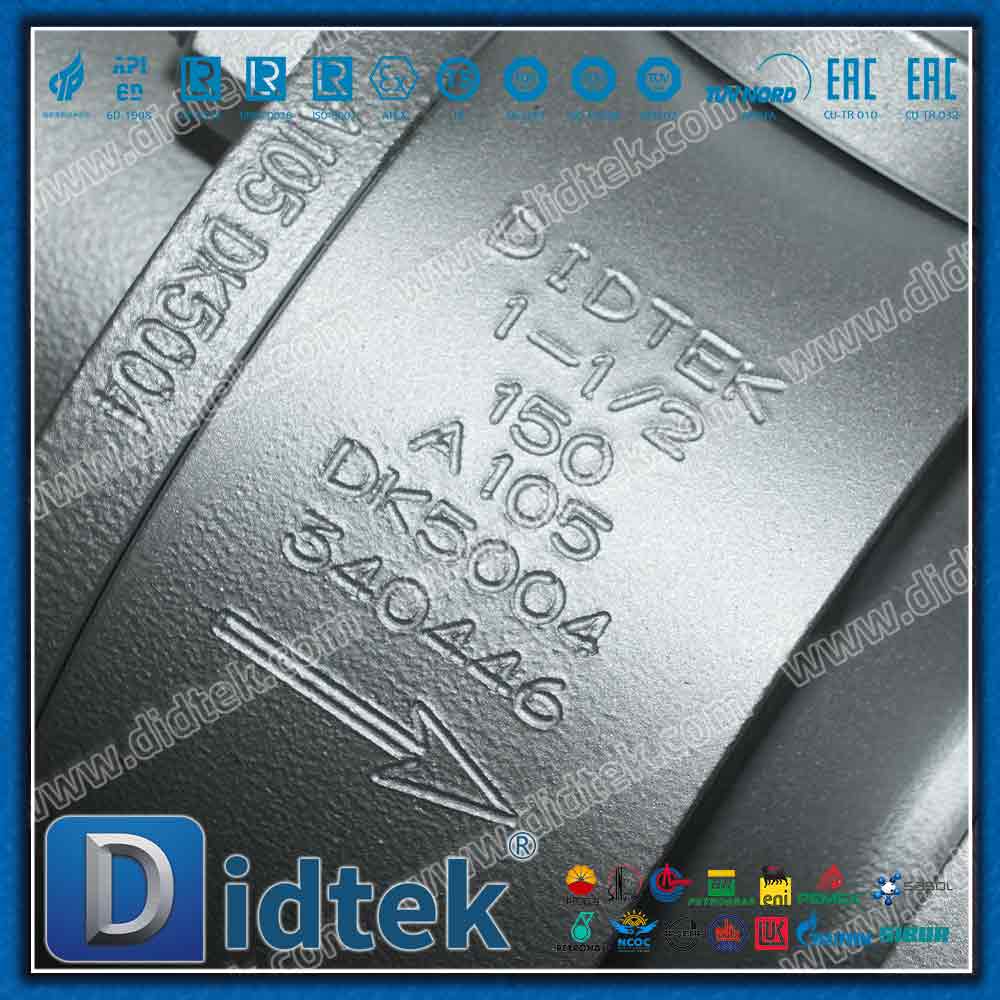

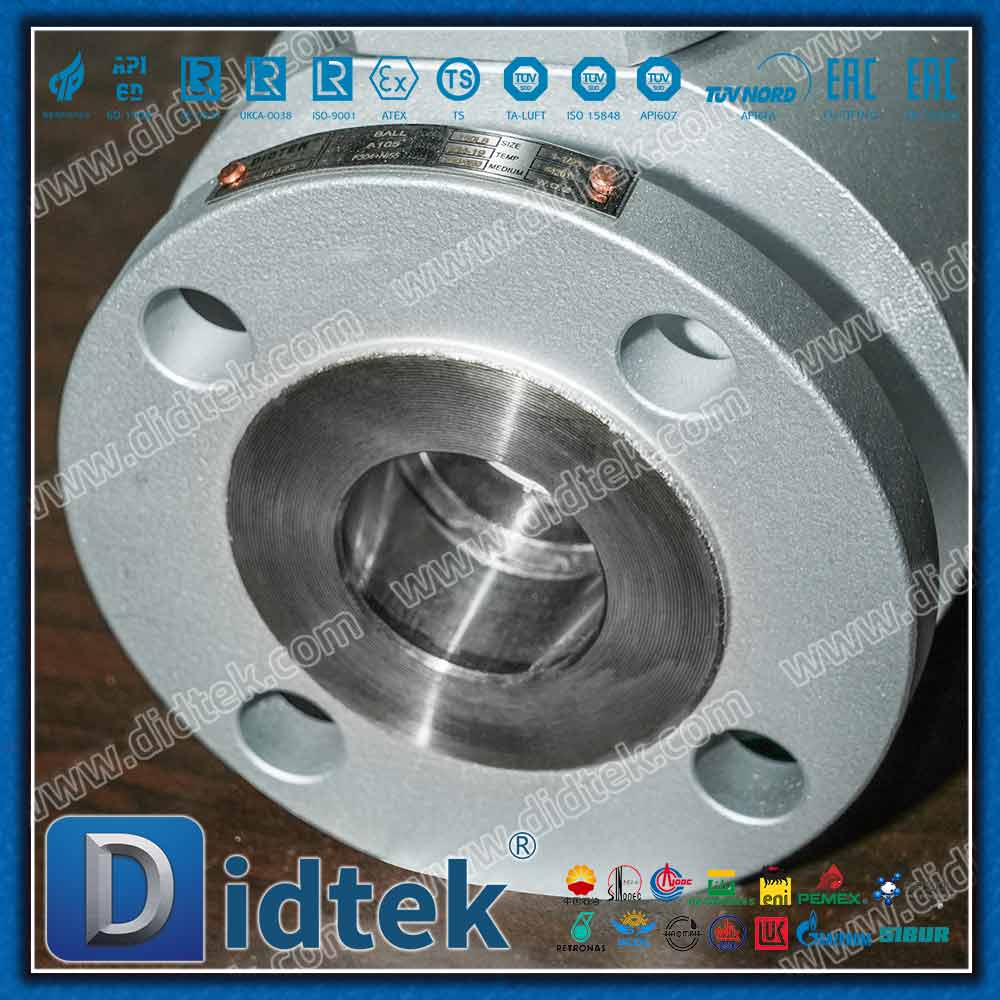

Extend Bonnet High Temperature Metal to Metal Ball Valve

Product Detail

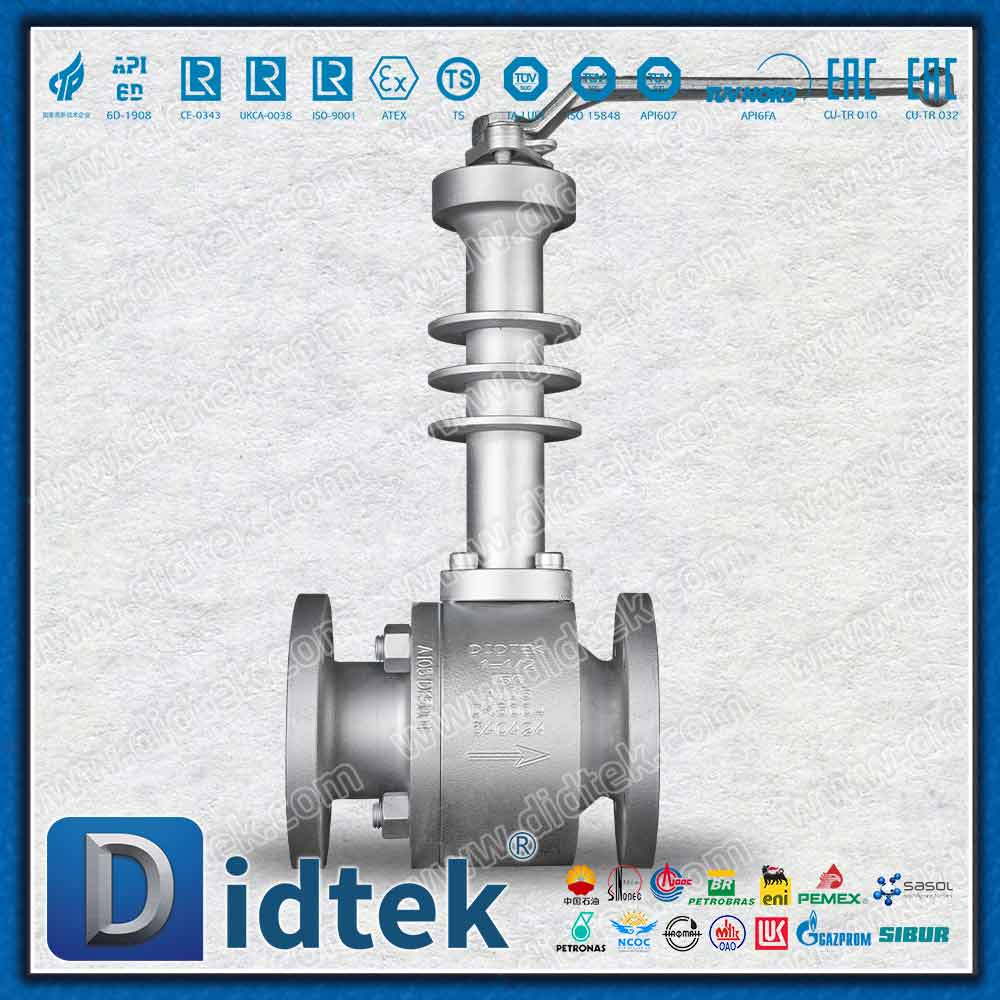

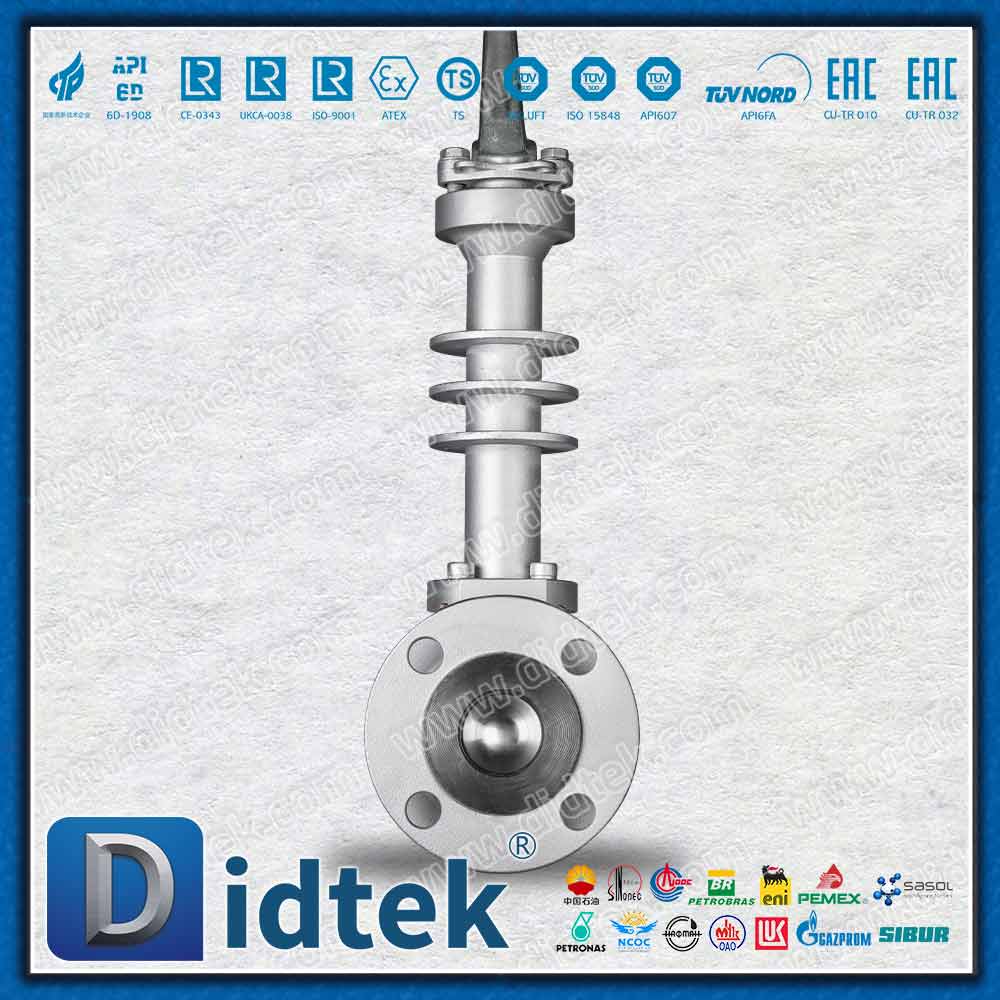

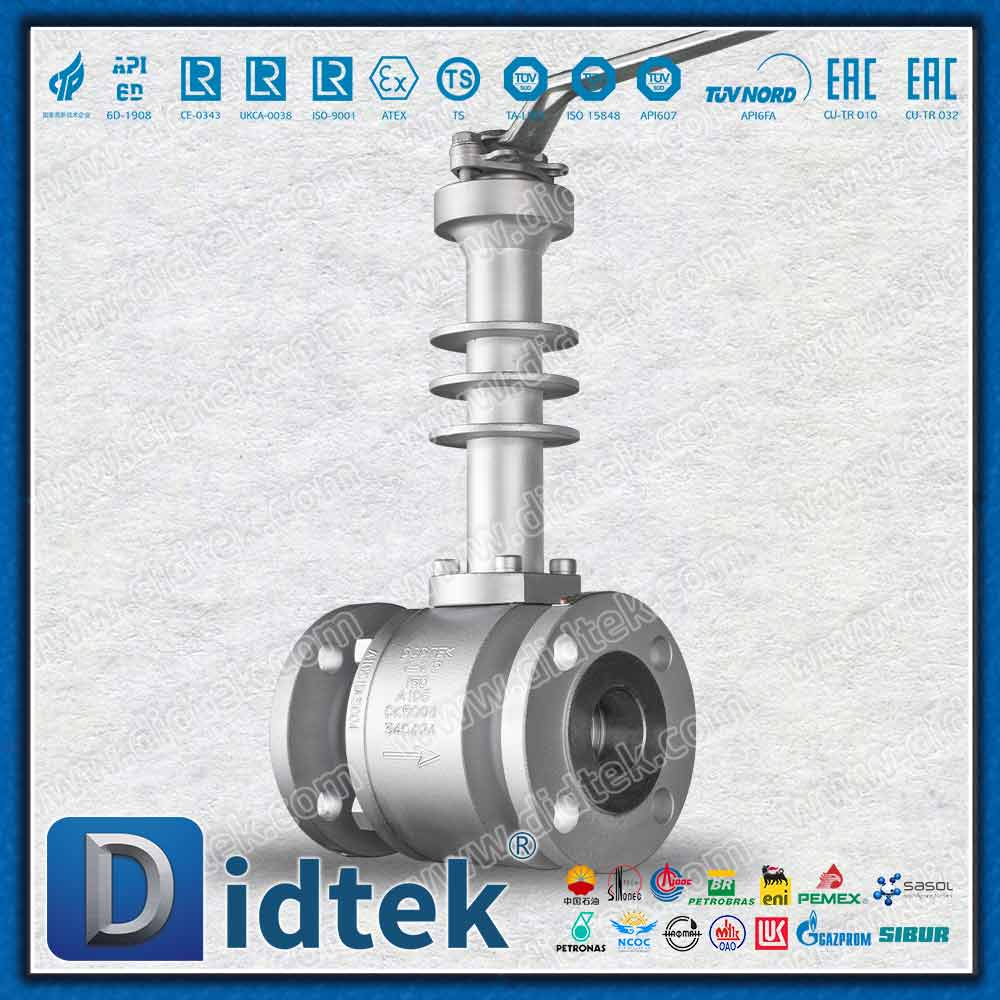

The Extend Bonnet High Temperature Metal-to-Metal Ball Valve is meticulously engineered for critical pipeline services where extreme process temperatures shatter the operational limits of conventional soft-seated valves. Running your hand along the specialized extended bonnet—often referred to as a heat dissipation column—reveals a heavy-duty, precision-forged structure designed with a singular purpose: thermal isolation. By physically distancing the sensitive stem packing and automated actuators from the blistering heat source, this architectural enhancement ensures long-term operational integrity and prevents premature failure of critical control components.

The core of this valve features a formidable metal-to-metal sealing system fortified by advanced surface hardening technologies. Utilizing High-Velocity Oxygen Fuel (HVOF) application methods, the ball and seat surfaces are bonded with Tungsten Carbide (TCC) or Chrome Carbide (CCC). This creates a near-impenetrable barrier with a surface hardness exceeding HRC 70+. The resulting finish is not only visually flawless but mechanically unyielding, resisting severe galling, thermal shock, and aggressive abrasive erosion. Precision-ground to exact tolerances, the internal components interlock to achieve a bubble-tight, Class V or Class VI shut-off. This uncompromising isolation capability makes the valve an indispensable asset for controlling volatile molten salts, highly conductive thermal oils, and pressurized superheated steam.

Product Parameters

Design Description

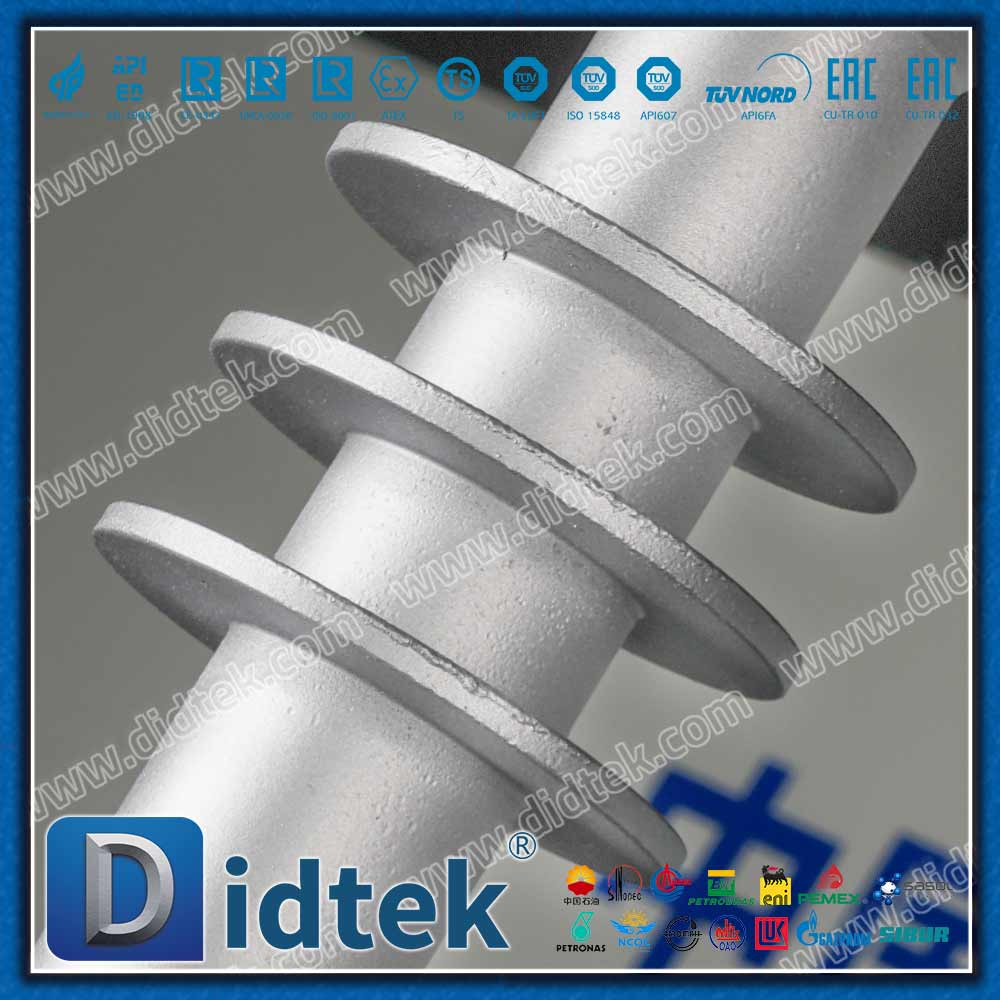

• Thermal Extension Bonnet: The elongated stem housing functions as a highly efficient cooling fin. As extreme thermal energy travels upward, the extended surface area allows heat to dissipate into the ambient environment long before it reaches the vulnerable packing box. This strategic thermal management exponentially extends the life cycle of the internal sealing elements and external actuators.

• Superior Hard Coating (TCC/CCC): Through the rigorous HVOF application process, the ball and seats receive a dense, uniform layer of advanced carbides. This ultra-hard armor achieves a rating of up to HRC 70+, providing exceptional resistance against the scoring, galling, and erosion typically caused by high-velocity particulates and extreme heat.

• Live-Loaded Packing: Engineered to adapt to dynamic environments, the system utilizes spring-energized graphite packing. This dynamic mechanism automatically compensates for the microscopic thermal expansion and contraction of the valve components, maintaining a constant, unyielding seal during rapid and severe temperature fluctuations.

• Spring-Loaded Seats: The heavy-duty metal seats are actively backed by high-temperature resilient alloy springs, such as Inconel X-750. This structural configuration ensures continuous, firm contact between the ball and the sealing face, guaranteeing reliable shut-off performance even when pipeline pressures drop to minimal levels.

• Scraper Seat Design (Optional): For media prone to crystallization, this specialized seat acts as a mechanical wiper. With every actuation, it actively shears away scale, crystallized salts, or particulate buildup from the ball's surface, preventing abrasive damage to the critical sealing faces and ensuring smooth operation.

Parameters

Beyond the raw specifications detailed above, every single valve undergoes a rigorous, 100% quantitative testing protocol in strict accordance with API 598 standards before it ever leaves the facility. This uncompromising approach to quality control ensures that each unit delivers flawless performance upon installation. The commitment to long-term reliability is further backed by an extensive guarantee, covering the equipment for 18 months after shipment or 12 months post-installation. Furthermore, the manufacturing process aligns with the highest global safety and environmental directives. Holding prestigious certifications including API 6D, CE, and ISO 9001, the valve also meets stringent API 607 and API 6FA fire safety standards, alongside ISO 15848 and TA-LUFT requirements for fugitive micro-emissions. This comprehensive compliance guarantees that your facility operates under the highest echelon of industrial safety, supported by flexible global delivery and versatile payment terms tailored to complex procurement cycles.

Application & Function

The Extend Bonnet High Temperature Metal to Metal Ball Valve is widely utilized across the most demanding industrial environments, specifically engineered to thrive where standard sealing materials degrade. Its superior metallurgical properties and thermal management capabilities provide critical process control in the following sectors:

Solar Thermal Power

In concentrated solar power facilities, managing heat transfer fluids is a monumental challenge. This valve excels in handling volatile molten salts at extremely high temperatures, preventing media crystallization from jamming the turning mechanism and ensuring consistent, uninterrupted energy transfer.

Refining & Petrochemical

Heavy industrial refining involves highly abrasive and corrosive processes. The hardened metal-to-metal seal is perfectly suited for catalyst handling, aggressive slurry lines, and high-temperature cracking units, resisting the severe abrasive wear that quickly destroys conventional soft seals.

Power Plants

Modern energy generation requires absolute isolation of critical steam lines. The valve provides uncompromised superheated steam isolation and reliable boiler blowdown services, maintaining strict Class V/VI shut-off standards to prevent dangerous and costly steam leakage.

Mining & Smelting

Extractive metallurgy involves some of the harshest media on the planet. Designed to endure high-pressure acid leaching (HPAL) and the continuous transport of abrasive slurries, the heavy-wall construction ensures continuous operation, significantly reducing maintenance downtime in remote mining operations.
