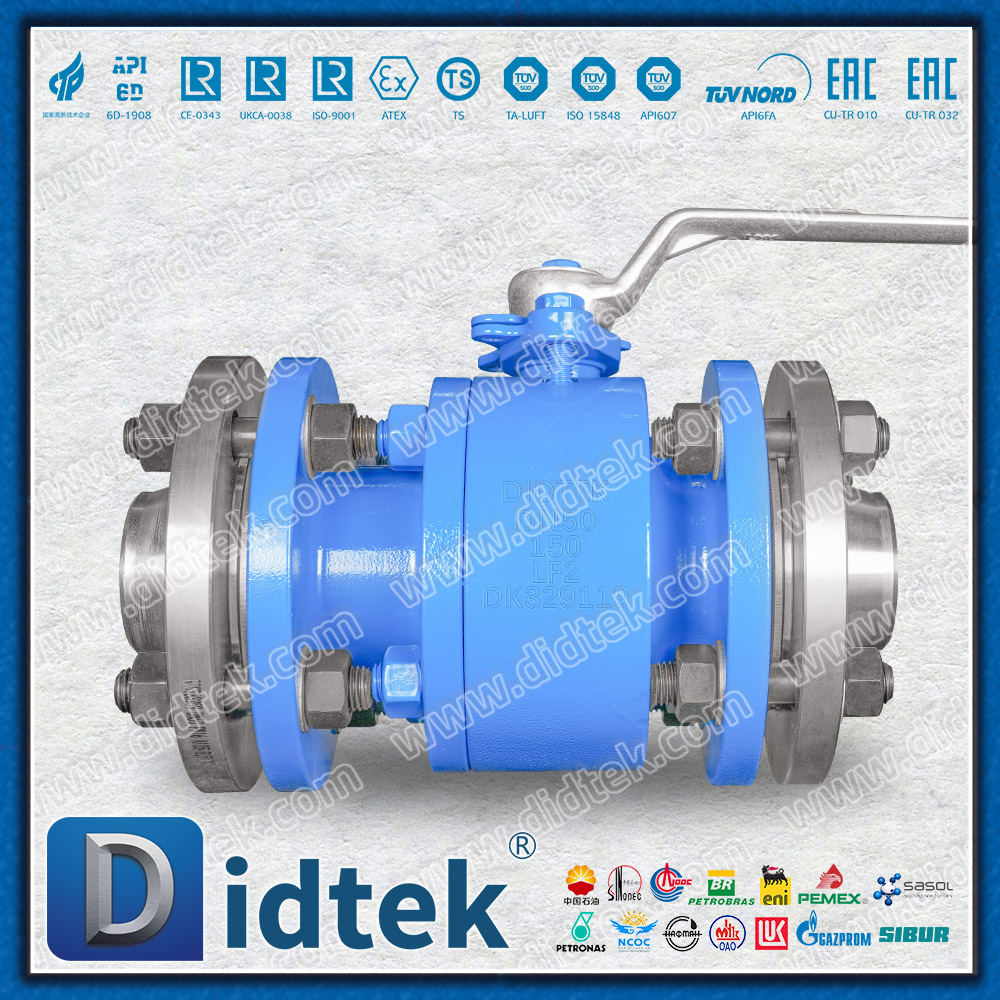

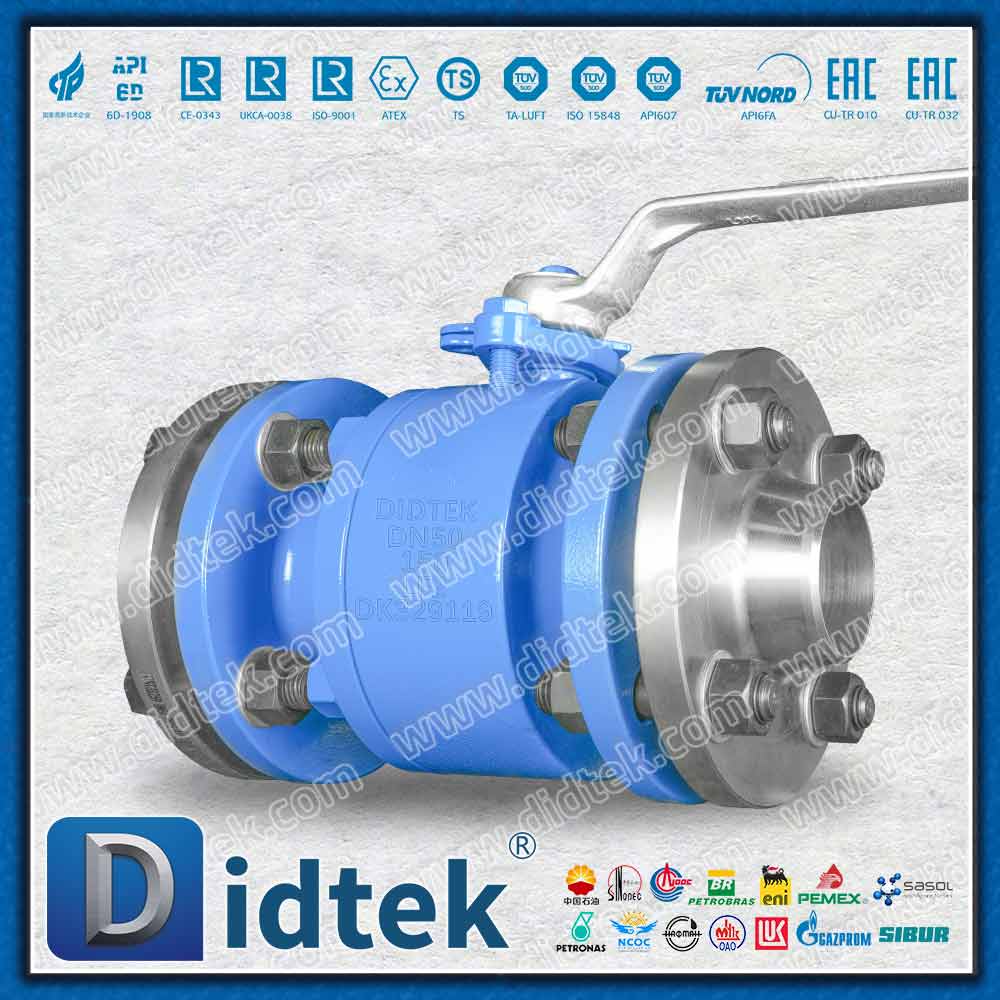

Manual Full Port Floating Ball Valve with Matching Flange

The Manual Full Port Floating Ball Valve with Matching Flanges is a high-efficiency solution designed for seamless integration into industrial piping systems.

Model:
Q41H-150LBR
Brand:
DIDTEK
Code:
FLBV-FFBV-23

Availability:

Quantity:



Inquire

Full Port Floating Ball Valve Flanged Manual Ball Valve Ball Valve with Matching Flanges 2-Piece Flanged Ball Valve Industrial Full Bore Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

The Manual Full Port Floating Ball Valve with Matching Flanges is a high-efficiency solution designed for seamless integration into industrial piping systems. The full-port (full-bore) design ensures an unrestricted flow path equal to the pipe's internal diameter, effectively eliminating pressure drops and allowing for easy pigging operations. By providing a complete set with matching counter-flanges, gaskets, and bolts, this product eliminates installation compatibility issues, ensuring a bubble-tight seal and long-term reliability in water, oil, and gas applications.

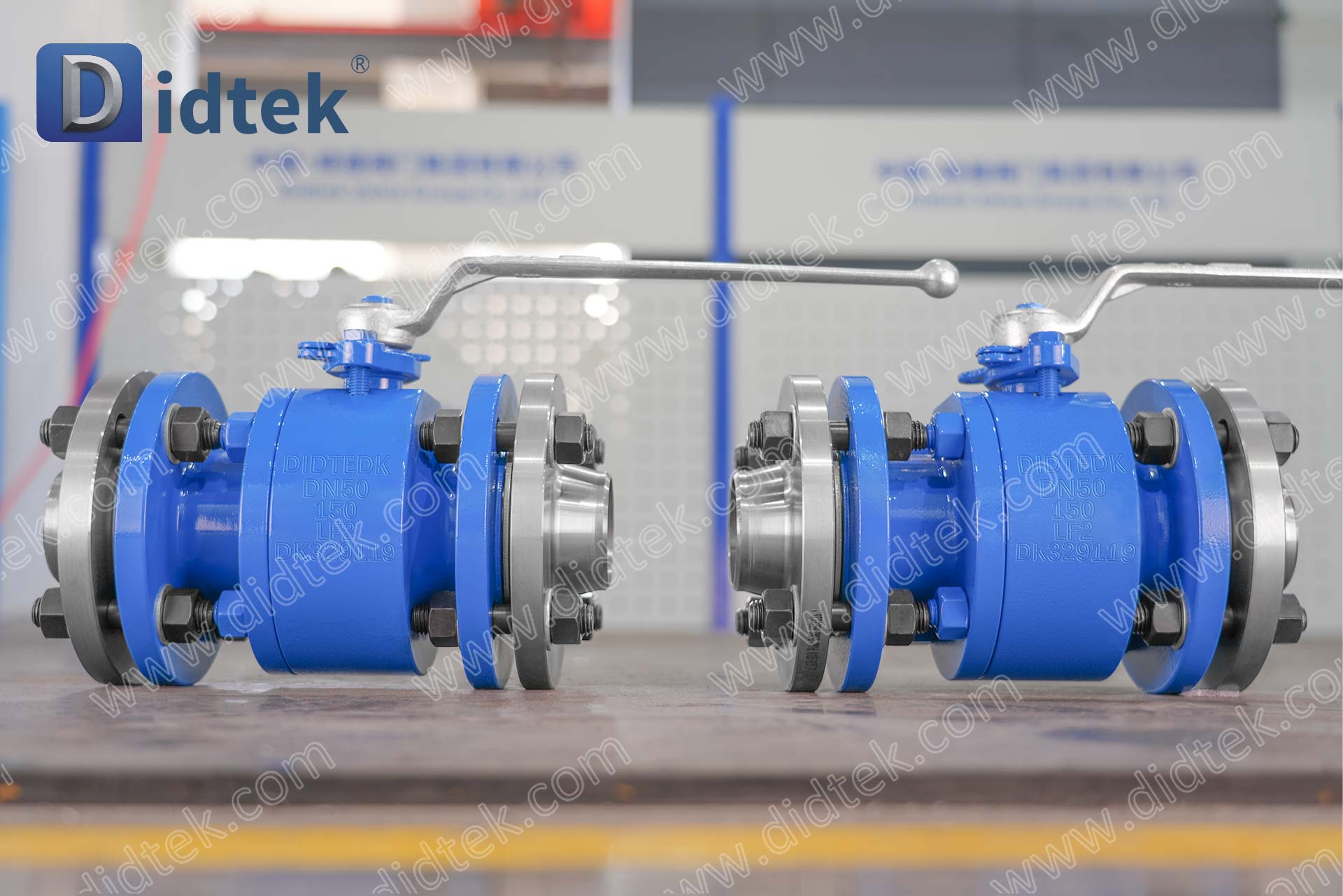

B-23 DIDTEKFFBV-Manual Full Port Floating Ball Valve with Matching Flange

Product Parameters

Parameter Name	Parameter
Size Range	DN50
Pressure Range	150LB
Material	LF2
Trim	Soft Seat: PTFE
Temperature Range	-29°C~120°C
Design According	API6D, BS5351, ASME B16.34
Face to Face	ASME B16.10
End Flanges	GOST 33259-B PN16
Butt Welded Ends	ASME B16.25
Fire Safety	AP1607,API6A
Inspection and Test	API 598,API6D
Operate	Lever
Body Type	Split Body
Seal	PTFE, Rptfe, Devlon, Peek, Stellite,Metal
Suitable Medium	Water, Natual Gas, Oil and some corrosive liquid

Design Description

Unrestricted Flow (Full Port): The internal diameter matches the pipeline, reducing turbulence and energy costs for pumping.
Self-Relieving Floating Ball: The ball is pushed against the downstream seat by line pressure, ensuring an enhanced seal as pressure increases.
One-Stop Installation Kit: Includes CNC-machined matching flanges and high-quality sealing gaskets, reducing procurement and assembly time.
Rugged Manual Operation: Equipped with a heavy-duty lever handle and a locking device to prevent accidental operation in critical systems.
Enhanced Safety Standards: Features an anti-blowout stem, anti-static design, and optional fire-safe certification (API 607).

Parameters

Brand	DIDTEK
Structure	Floating Ball
Material	LF2
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Manual Full Port Floating Ball Valve with Matching Flanges are widely utilized in demanding environments due to their superior material properties:
