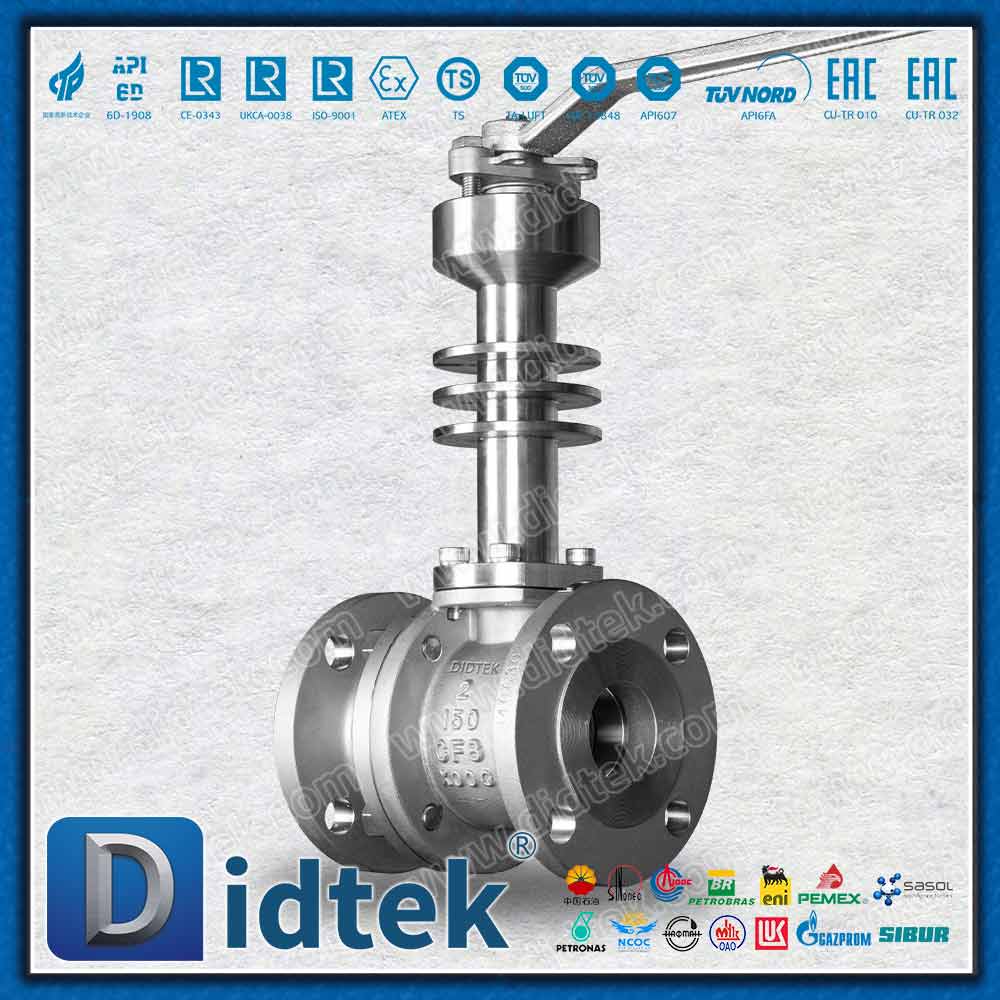

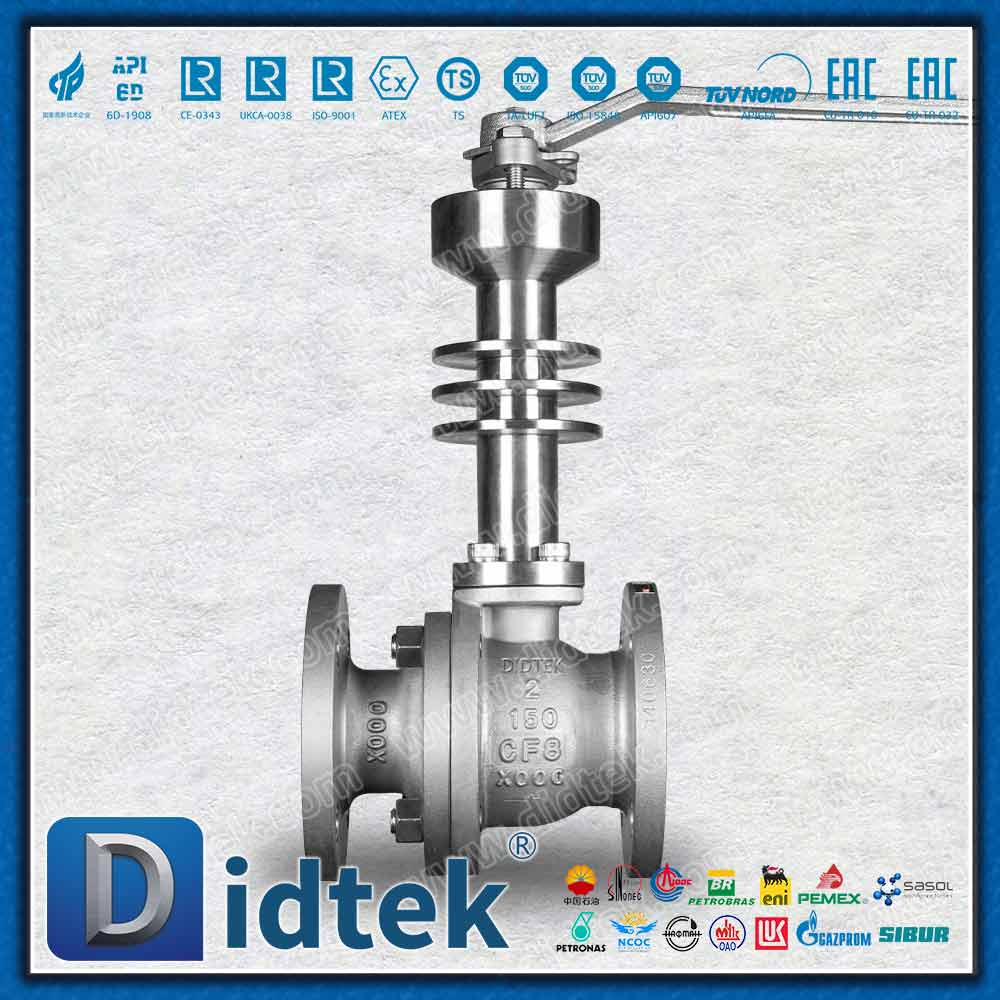

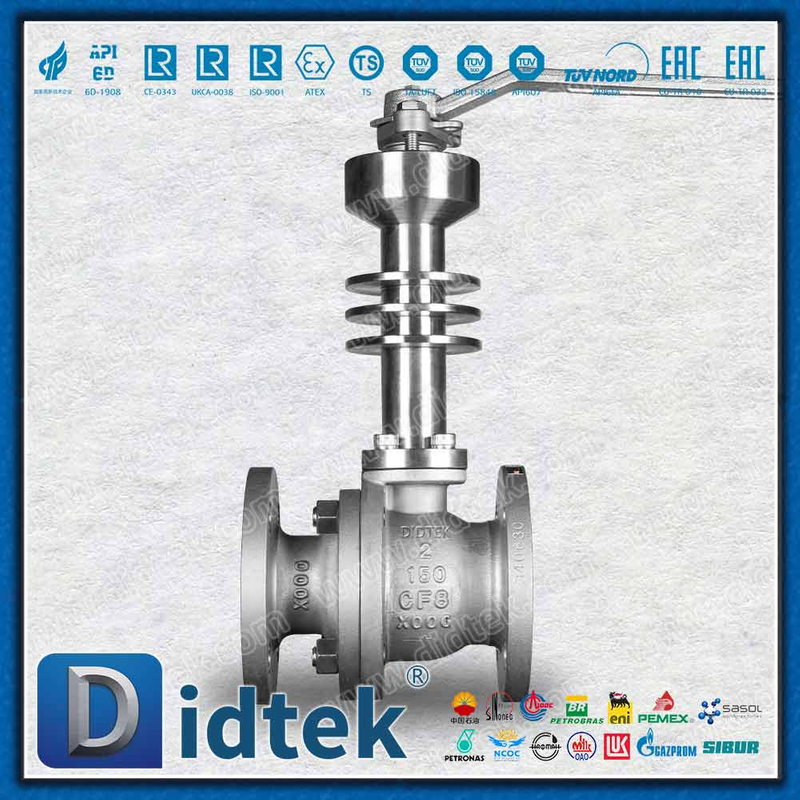

Metal to Metal Floating Ball Valve With Extend Stem

The Metal-to-Metal Floating Ball Valve with Extended Stem is a heavy-duty, high-performance isolation solution engineered for severe industrial services involving abrasive slurries, high temperatures, or extreme thermal insulation requirements.

Model:
Q41H-150LBP
Brand:
DIDTEK
Code:
FLBV-CFMSBV-05

Availability:

Quantity:



Inquire

Metal to Metal Floating Ball Valve Extended Stem Ball Valve High Temperature Ball Valve Cryogenic Floating Ball Valve Hardfaced Ball Valve Manufacturer

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

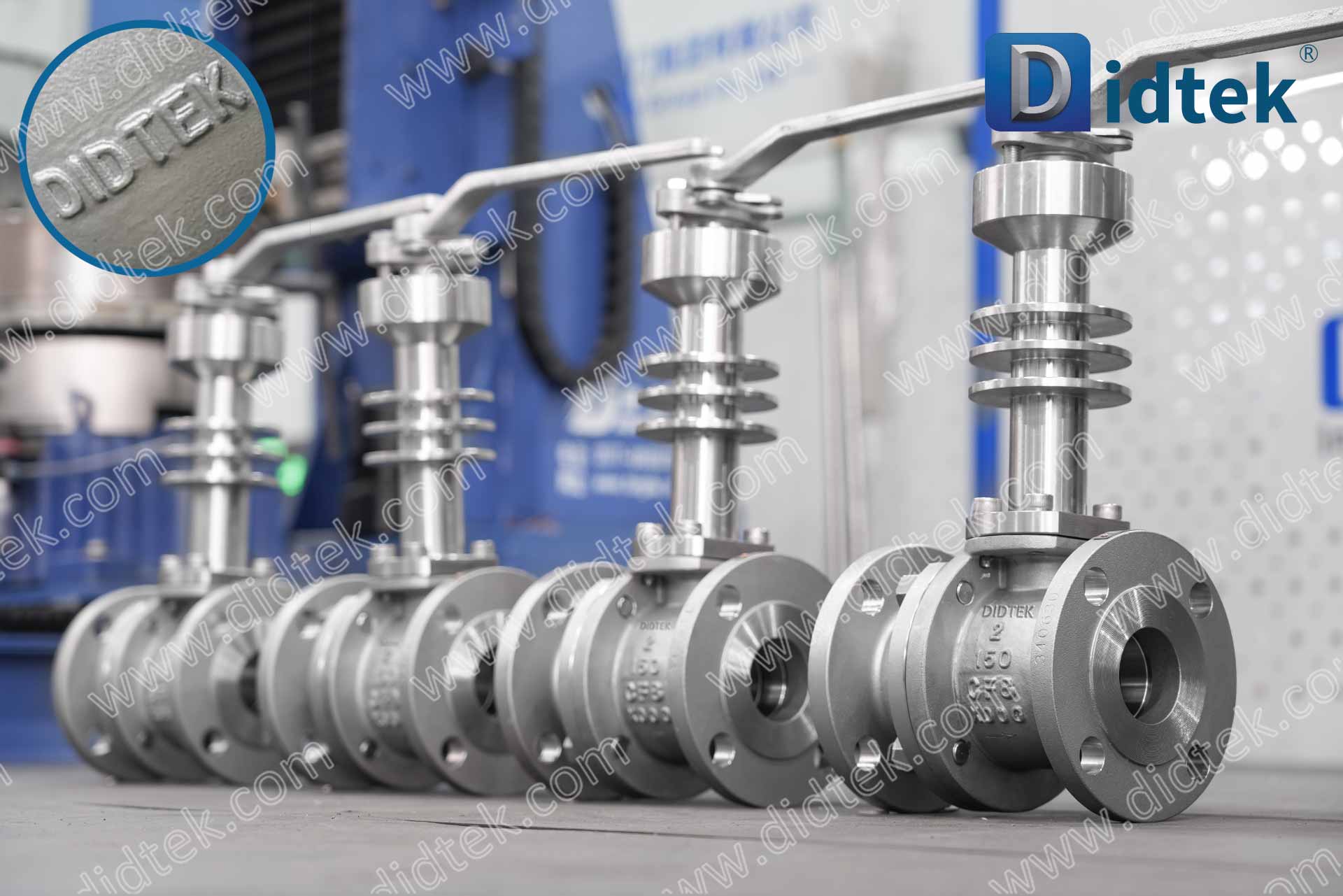

The Metal-to-Metal Floating Ball Valve with Extended Stem is a heavy-duty, high-performance isolation solution engineered for severe industrial services involving abrasive slurries, high temperatures, or extreme thermal insulation requirements. Featuring a precision-lapped metal seat-to-ball interface hardened with Stellite, Tungsten Carbide, or Nickel-based alloys, this valve guarantees superior resistance to wear, erosion, and high-temperature degradation. The integrated extended stem (bonnet extension) design provides essential clearance for thick pipeline insulation lagging, prevents thermal shock to the stem packing in high-temperature media, and isolates cryogenic temperatures from external actuators in low-temperature applications. C-5 DIDTEKCFMSBV-Metal to Metal Floating Ball Valve With Extend Stem

Product Parameters

Parameter Name	Parameter
Size Range	2''
Pressure Range	150LB

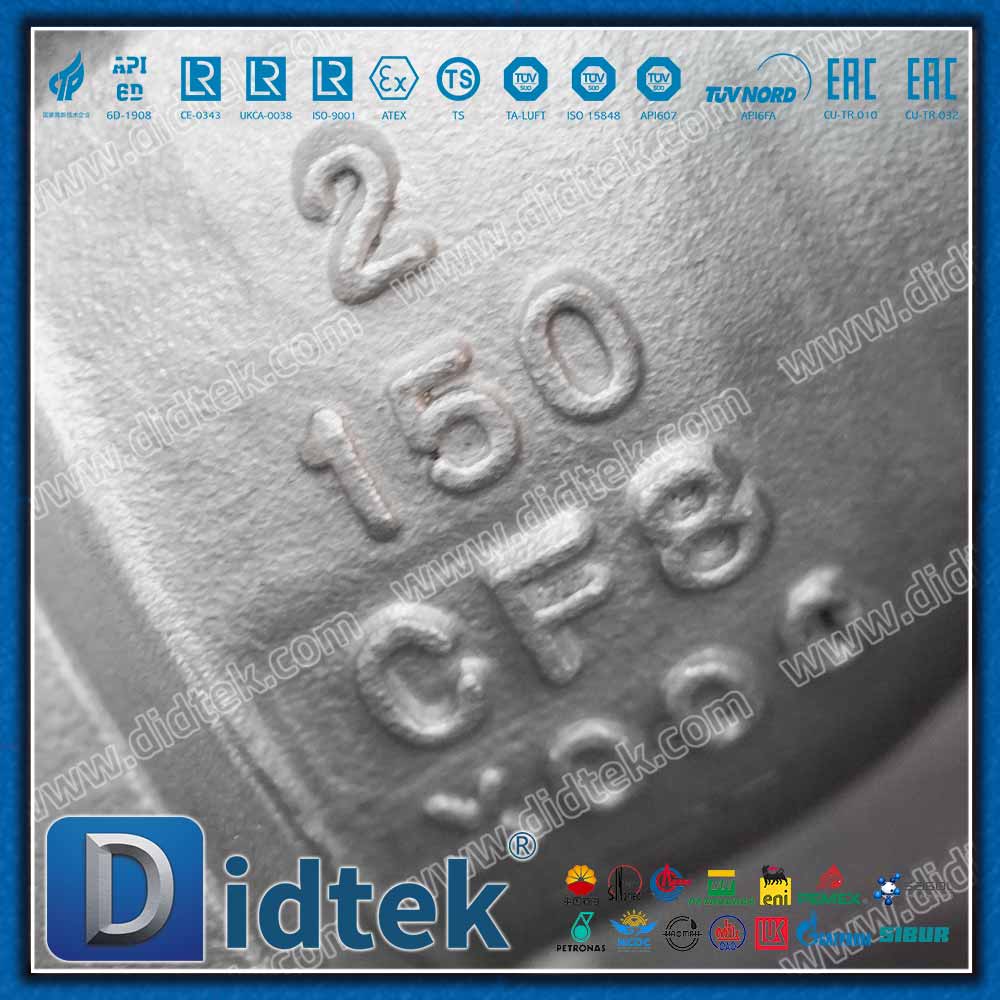

Material	CF8
Seal	Metal Seat: F304+Ni55
Temperature Range	-26°C~420°C
Design According	ISO 17292
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Lever
Body Type	Split Body
Type of Valve	Floating Ball Valve
Suitable Medium	Water, Oil, Steam etc

Design Description

Hardfaced Metal-to-Metal Sealing: Ball and seat surfaces are coated or thermally sprayed with wear-resistant alloys (Stellite, WC-Co), providing long-lasting durability in abrasive and solid-laden fluids.

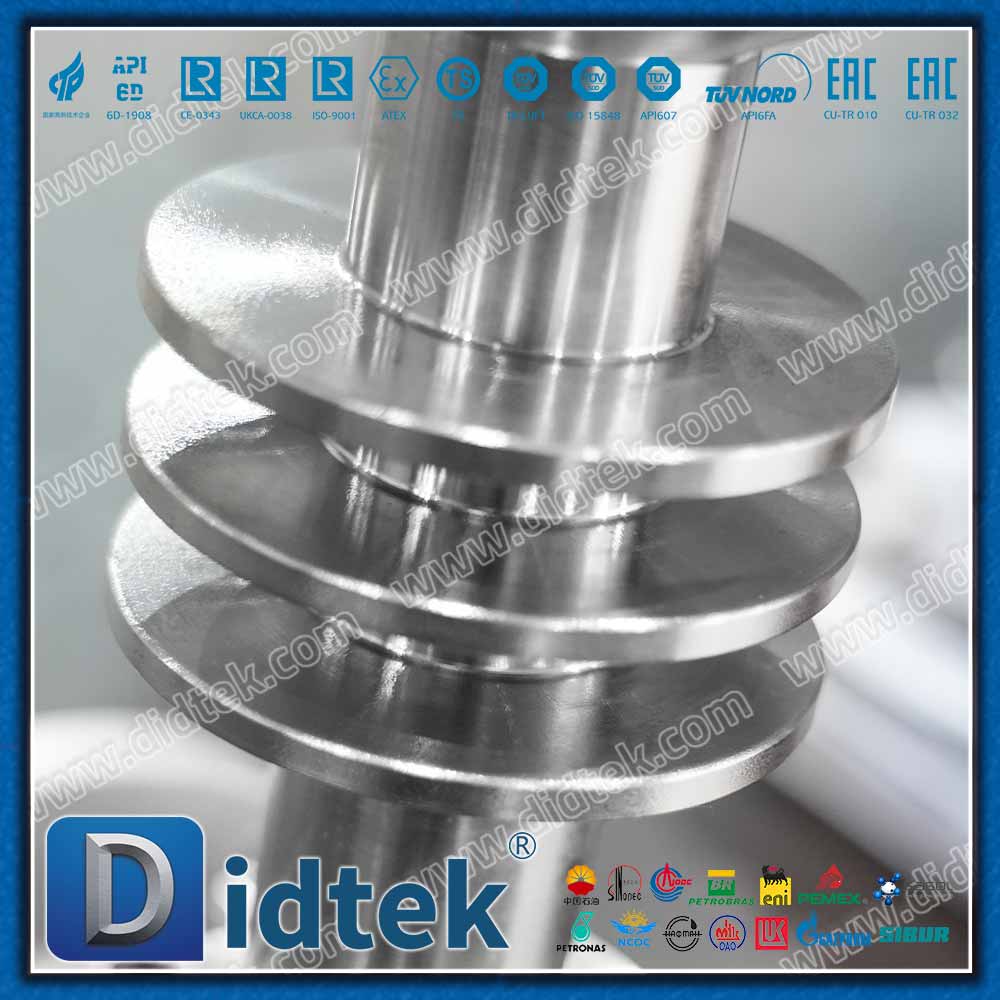

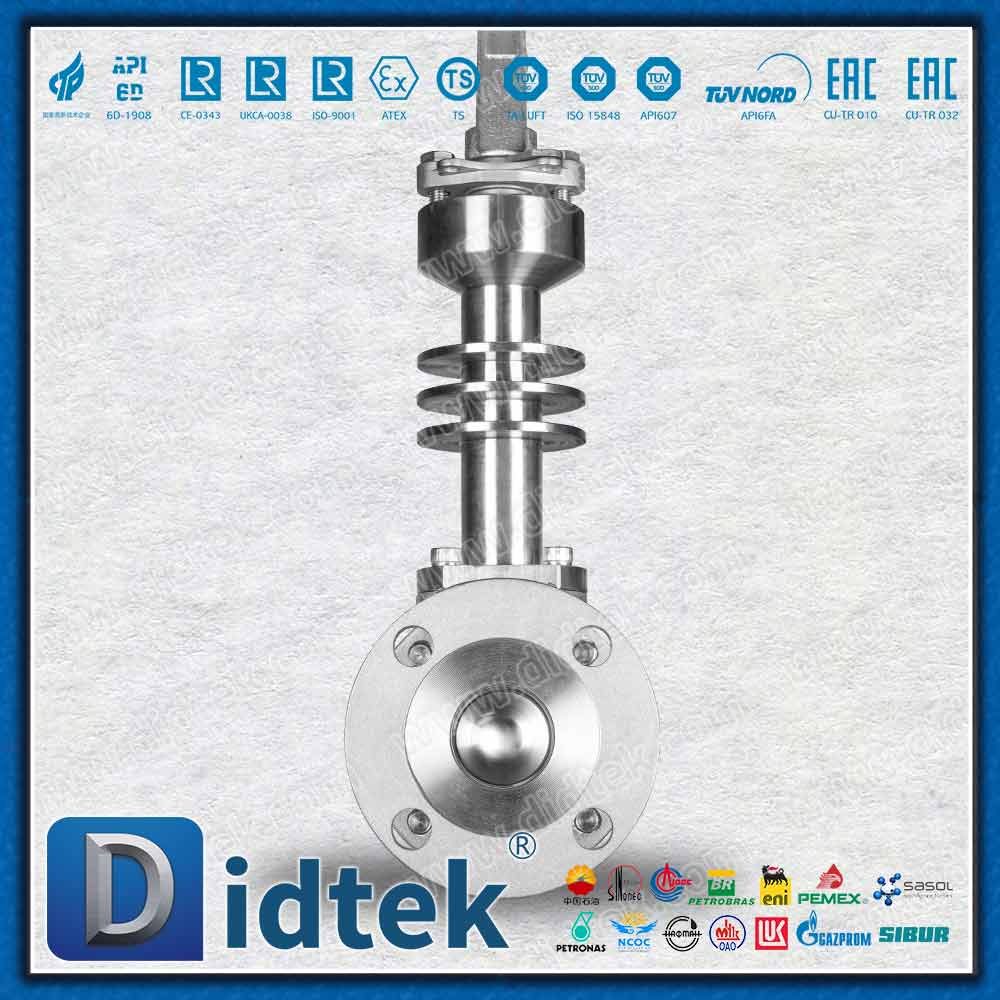

Thermal Isolation Extended Stem: The elevated stem design prevents heat transfer to manual operators or actuators in high-temp loops, and keeps frost/ice formation away from stem seals in cryogenic services.
Floating Ball Flexibility: The floating ball design utilizes line pressure to press the ball against the downstream metal seat, ensuring a reliable initial seal while accommodating normal operational pressure shifts.
Fire-Safe & Anti-Static Design: Naturally fire-safe due to all-metal construction, combined with anti-static grounding to eliminate electrostatic hazard risks in chemical plants.

Parameters

Brand	DIDTEK
Structure	Floating Ball
Material	CF8
Type	Cast Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Metal to Metal Floating Ball Valve With Extend Stem are widely utilized in demanding environments due to their superior material properties:

High-Temperature Chemical Processes: Catalytic cracking and high-temp flue gas or solid-laden fluid lines.
Cryogenic & LNG Services: Liquefied natural gas pipelines requiring extended bonnets to prevent cold-box icing.
Abrasive Slurry Handling: Mining, cement, and paper pulp slurry pipelines where soft seats would rapidly degrade.
