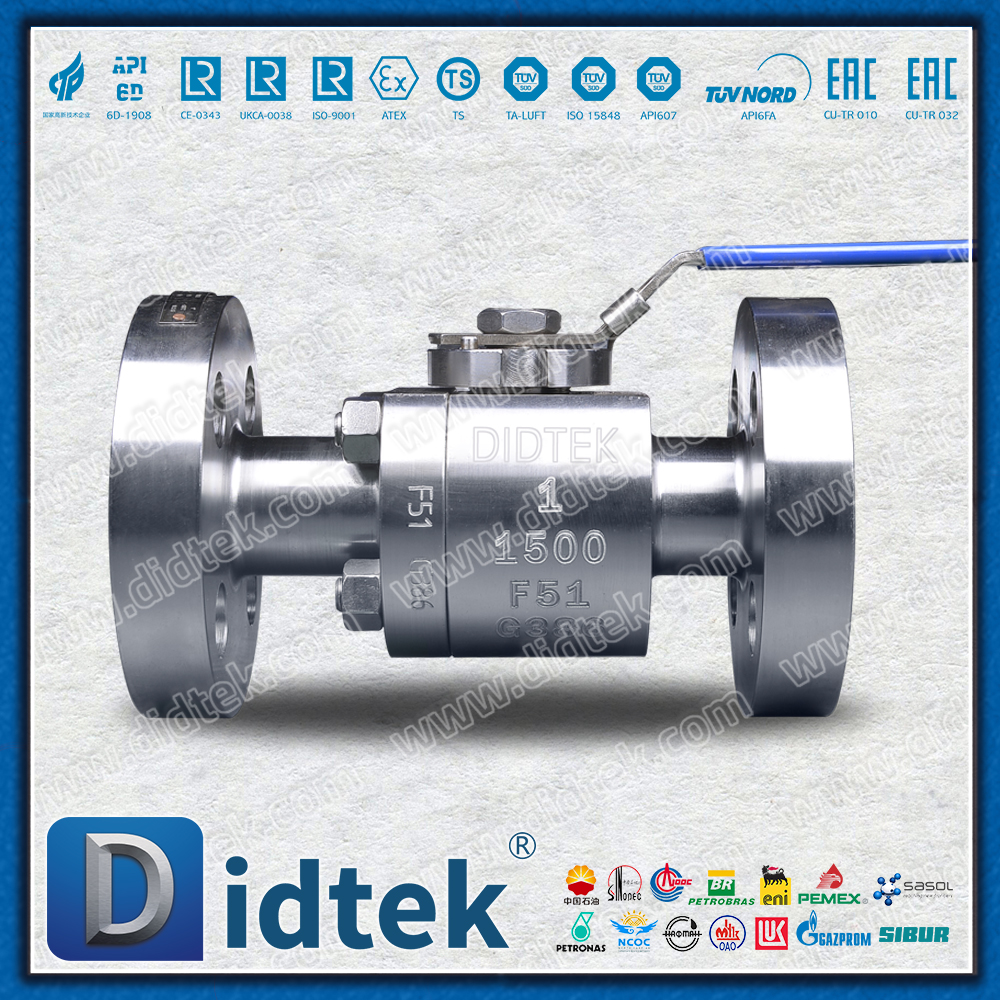

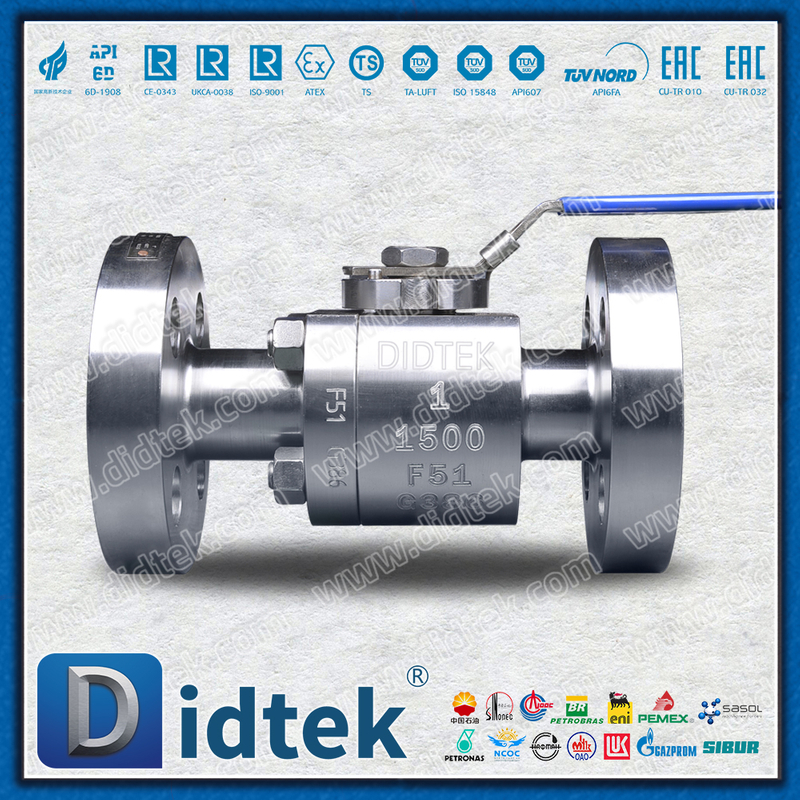

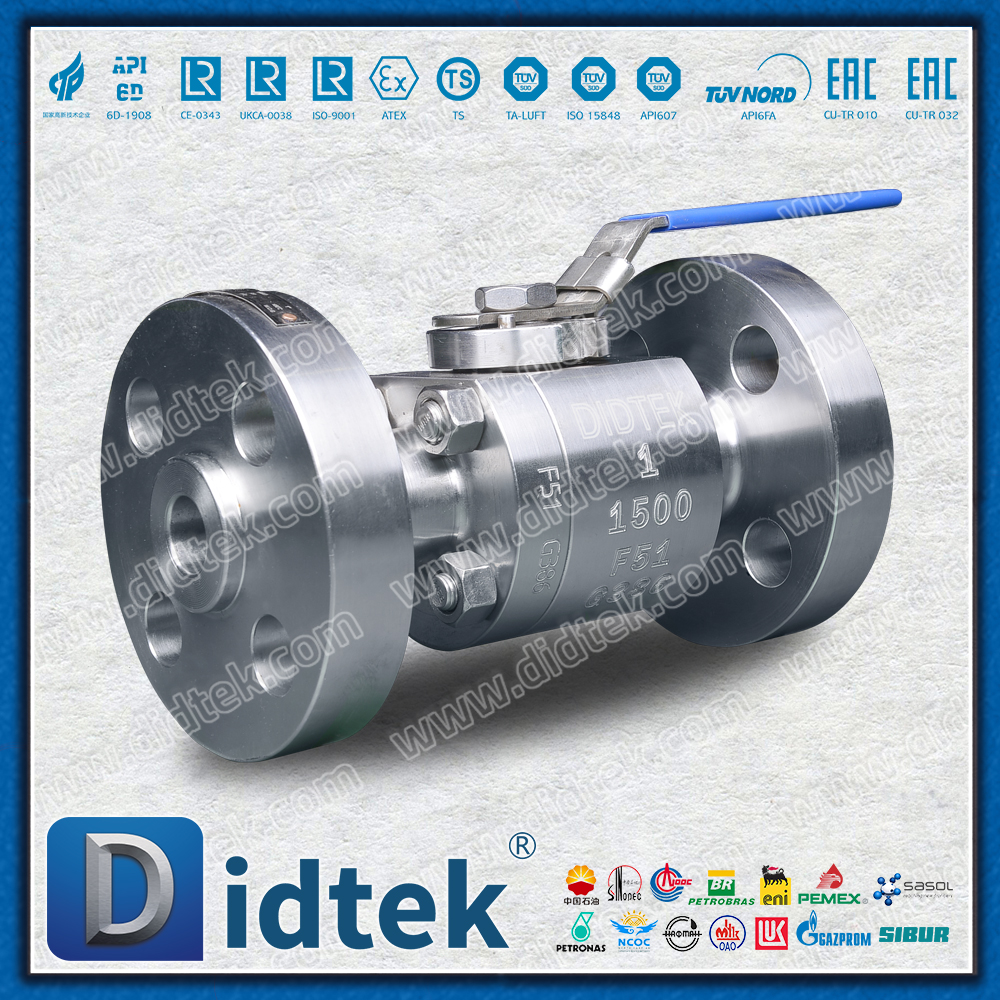

F51 Duplex Stainless Steel Class1500 High Pressure RF Forged Floating Ball Valve

Product Overview

The F51 duplex stainless steel Class1500 high-pressure RF flanged forged steel floating ball valve is a top-grade industrial valve specially designed for high-pressure corrosive working conditions. The product adopts ASTM A182 F51 duplex stainless steel forgings, combined with Class 1500 pressure rating and RF flange connection. While maintaining excellent corrosion resistance, it provides extremely high structural strength and sealing reliability, and is the ultimate solution for harsh environments such as petrochemicals and Marine engineering.

Technical specifications

Product features

1. Outstanding performance of F51 duplex stainless steel

Ultimate corrosion resistance

High chromium (22%), molybdenum (3%), and nitrogen (0.15%) content

The pitting resistance index PREN is ≥ 35

Excellent resistance to chloride stress corrosion cracking

Ultra-high mechanical strength

Tensile strength ≥ 620 MPa

Yield strength ≥ 450 MPa

Hardness HB: 217-277

2. Class 1500 high-voltage design

Ultimate pressure resistance capacity: Design pressure up to 25 MPa

Shell test pressure: 37.5 MPa

Sealing test pressure: 27.5 MPa

High-pressure optimized structure

Increase the wall thickness of the valve body

Strengthen the diameter of the valve stem

Enhanced bearing structure

3. Forging forming process

Dense material: No casting defects, higher pressure resistance safety

Grain optimization: Forging forming achieves the best grain flow direction

Stable quality: Uniform and consistent material properties

4. Floating ball high-pressure seal

Self-reinforcing seal: The medium pressure pushes the ball to press against the valve seat. The higher the pressure, the more reliable the seal

Bidirectional blocking: The carefully designed preload ensures zero leakage in both directions

Low flow resistance design: Full bore structure minimizes pressure loss

5. RF flange connection

Standard compatibility: Complies with ASME B16.5 RF flange dimensions

Reliable sealing: Raised face flange + wound gasket ensures a sealed connection

Easy installation: Standardized connection, convenient for installation and maintenance

Application field

1. Oil and gas

High-pressure oil and gas gathering and transportation pipelines

Exploitation of acidic oil and gas fields

Submarine pipeline system

2. Chemical process

High-pressure reaction device

Transportation of media containing chloride ions

Strongly corrosive chemicals

3. Marine engineering

Seawater treatment system

Offshore platform process piping

Control of subsea equipment

4. Special applications

High chloride ion environment

High-temperature and high-pressure corrosion working conditions

Safety-critical system

Summary

The F51 duplex stainless steel Class1500 high-pressure RF flanged forged steel floating ball valve, through the perfect combination of top-quality material selection, extreme pressure design and precise manufacturing process, provides industrial users with

Ultimate corrosion resistance: Service life is increased by 5 to 8 times in harsh corrosive environments

Absolute high-pressure reliability: Class 1500 pressure rating, with outstanding pressure-bearing capacity

Long service life: 30 years of design life, with the optimal full life cycle cost

Comprehensive standard certifications: Complete API, ASME, and NACE certifications

This product is the ultimate choice for high-pressure corrosion conditions, providing reliable guarantees for safe production in fields such as petrochemicals and Marine engineering.
