Product Overview

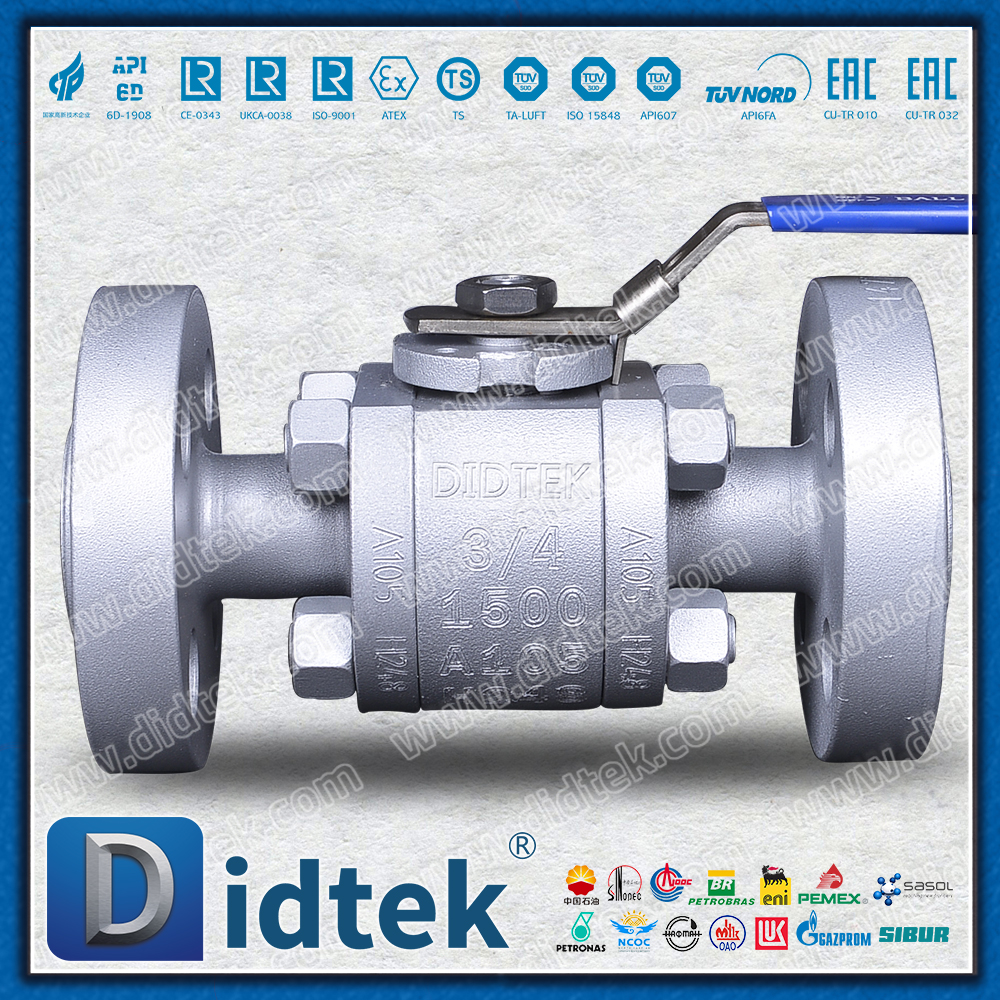

The API 6D A105 RTJ 1500LB high-pressure side-mounted floating ball valve is a special valve for high-pressure pipelines manufactured strictly in accordance with the API 6D standard. It adopts ASTM A105 forged steel valve body and ring connection surface sealing, specially designed for Class 1500 high-pressure working conditions. Combined with the maintenance convenience of side-mounted structure and the reliable sealing of floating ball, it is an ideal cut-off equipment for high-pressure pipelines in oil, natural gas and chemical industries.
Technical specifications
| Parameter category | technical specification |
| Design and manufacturing standards | API 6D |
| Pressure and temperature rated | ASME B16.34 |
| Valve body material | ASTM A105 forged steel |
| Pressure rating | Class 1500 |
| Connection method | RTJ ring connection surface (ASME B16.5) |
| Structural form | side-mounted (two-piece) |
| Spherical structure | floating ball design |
| Operation mode | Manual/gearbox/actuator |
| Temperature range | -29℃ to +425℃ |
| Fire protection design | API 6FA/API 607 |
| Leakage level | API 598 / ISO 5208 Rate A |
Product features
1. API 6D standard certification
Pipeline valve special standard: The entire process of design, manufacture and testing complies with API 6D specifications
Quality system certification: Holds the API 6D logo usage license
Material traceability: A complete material traceability system
2. A105 forged steel high-pressure valve body
High-pressure adaptability: Specifically designed for the Class 1500 high-pressure operating conditions
Advantages of forgings: Optimized grain flow direction, no casting defects, and excellent pressure-bearing capacity
Mechanical properties: Tensile strength ≥ 485 MPa, yield strength ≥ 250 MPa

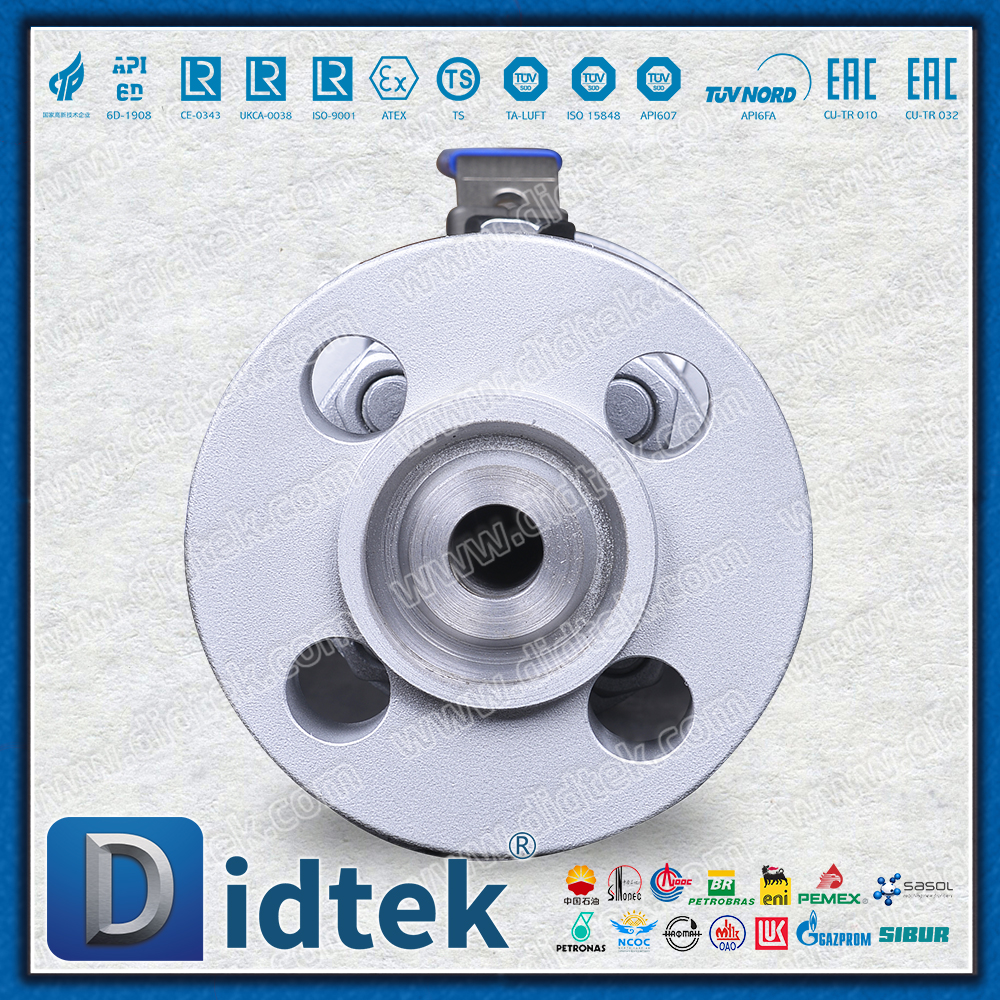

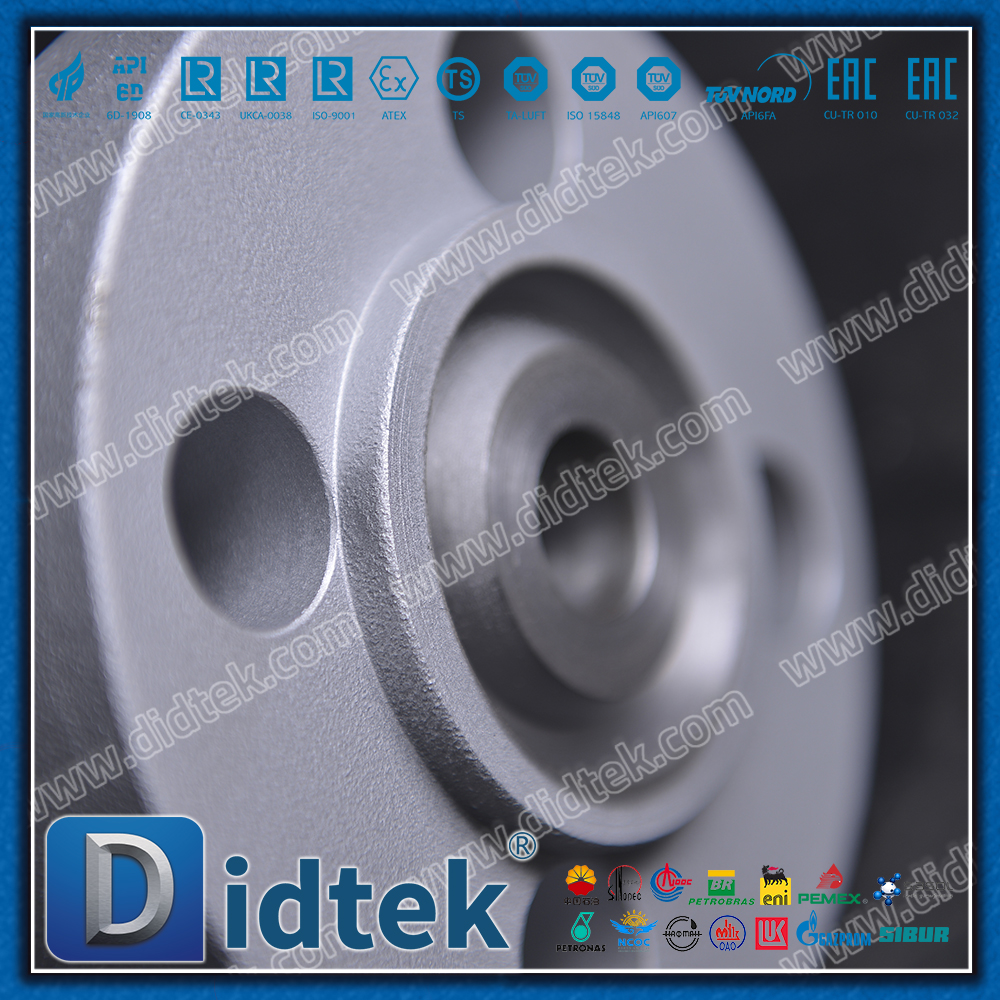

3. RTJ ring connection seal
Reliable high-pressure sealing: Metal ring gaskets achieve the highest level of sealing
Anti-blowout design: The ring groove structure ensures the safety and reliability of the gasket under pressure
Standard compatibility: Complies with the ASME B16.5 ring connection dimension standard
4. Side-mounted maintenance structure
Online maintenance: The valve body opens laterally, and internal components can be replaced online
Compact design: It saves more space compared to the top-mounted structure
Reliable sealing: The valve body connection adopts spiral wound gaskets
5. High-pressure floating ball design
Self-reinforcing seal: The medium pressure pushes the ball to press against the valve seat. The higher the pressure, the tighter the seal
Bidirectional sealing: The carefully designed preload ensures reliable bidirectional blocking
Low flow resistance: Full bore design with minimal pressure loss
Application field
1. Oil and gas
High-pressure oil and gas gathering and transportation pipelines
Wellhead apparatus and oil production trees
Compressor station and pressure regulating station
2. Chemical process
High-pressure reaction device
Ammonia synthesis and urea plant
High-pressure polymerization reaction system
3. Energy and electricity
High-pressure boiler system
Steam transmission pipeline
High-temperature and high-pressure water supply system
4. Industrial systems
High-pressure hydraulic system
Industrial gas compression system
High-voltage test device
Summary
The API 6D A105 RTJ 1500LB high-pressure side-mounted floating ball valve is perfectly combined through strict API standards, high-quality material selection and professional high-pressure design, providing industrial users with:
Absolute high-pressure reliability: Class 1500 pressure rating, with outstanding pressure-bearing capacity
Standard compliance: Complete API 6D certification ensures reliable quality
Convenient maintainability: The side-mounted structure enables rapid online maintenance
Long service life: Designed for 30 years, with the lowest maintenance cost
This product is an ideal choice for high-pressure pipeline systems, process equipment and energy devices, providing the most reliable high-pressure cut-off solution for industrial fluid control.
| Brand | DIDTEK |
| Structure | Ball |
| Valve Material | Didtek provide cast steel, stainless steel, special alloy, CI, DI etc |
| Valve Type | Didtek Produce Ball Valve |
| Valve Test | 100% quantity tested before delivery |
| Valve Guarantee | 18 months after shipments and 12 months after installed |
| Valve Structure | Ball Valve |
| Valve Delivery | 15 - 30 days |
| Valve Sample | Sample Available by Didtek Valve |
| Valve Color | Customer request |
| Valve Packing | Plywood Case for Ball Valve |
| MOQ | 1 Set |
| Valve Certificate | API6D/CE/ISO9001/ISO14001 |
| Place of Origin | Zhejiang, China (Mainland) |
| Delivery Detail: | Shipped in 15-30 days after payment |
| Port | Shanghai Or Ningbo |
| Payment Terms | L/C,D/A,D/P,T/T, Western Union |
