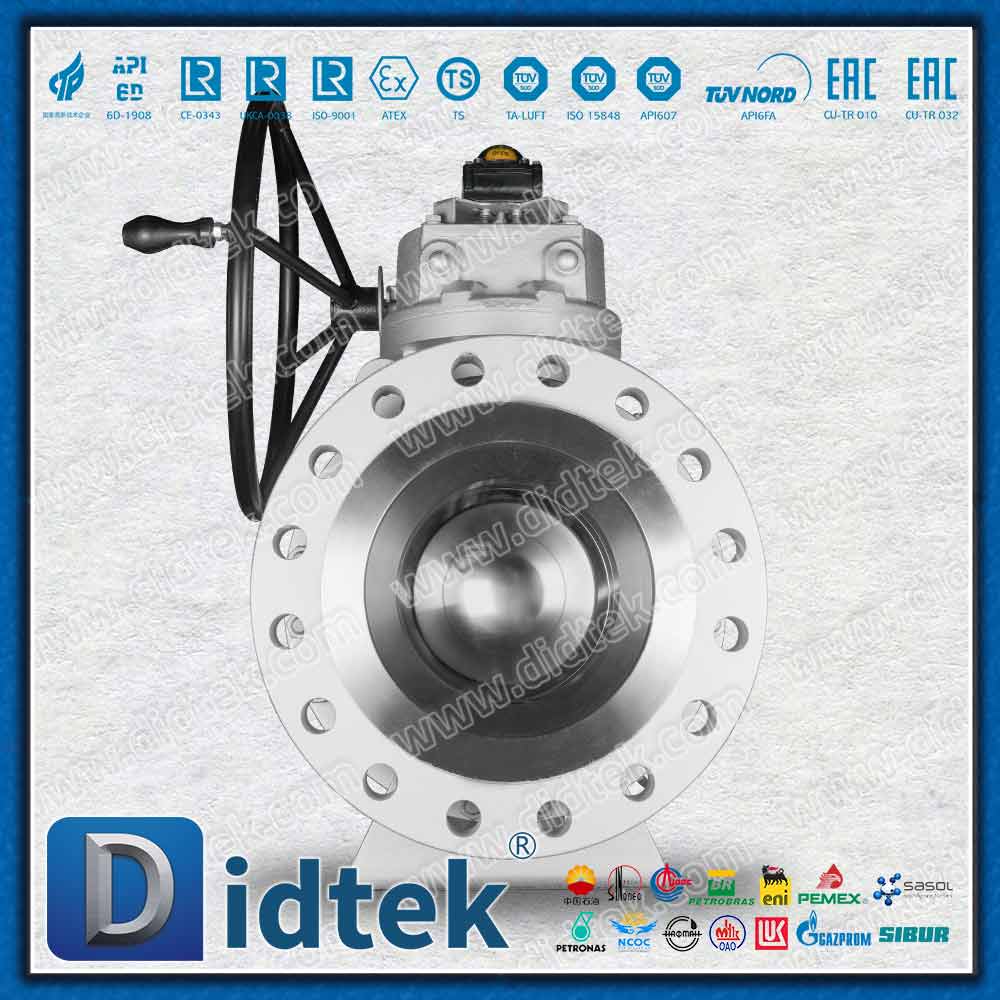

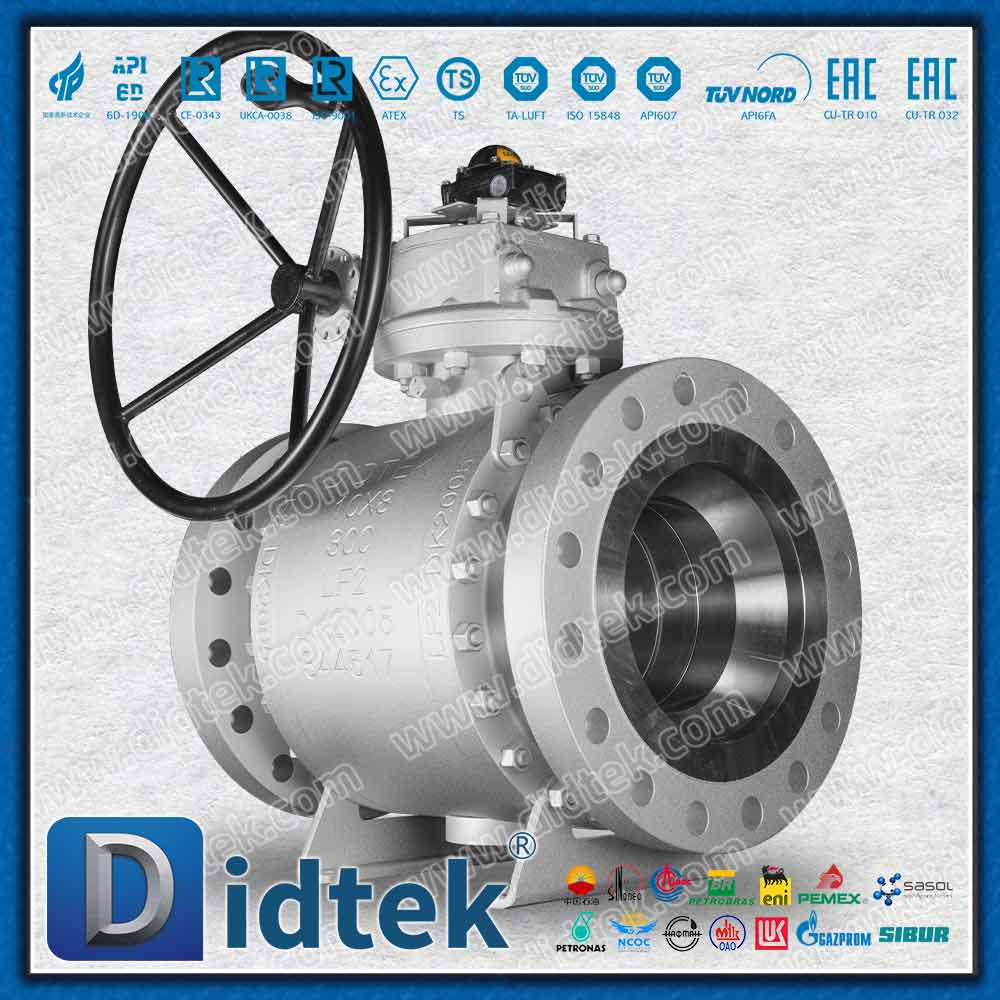

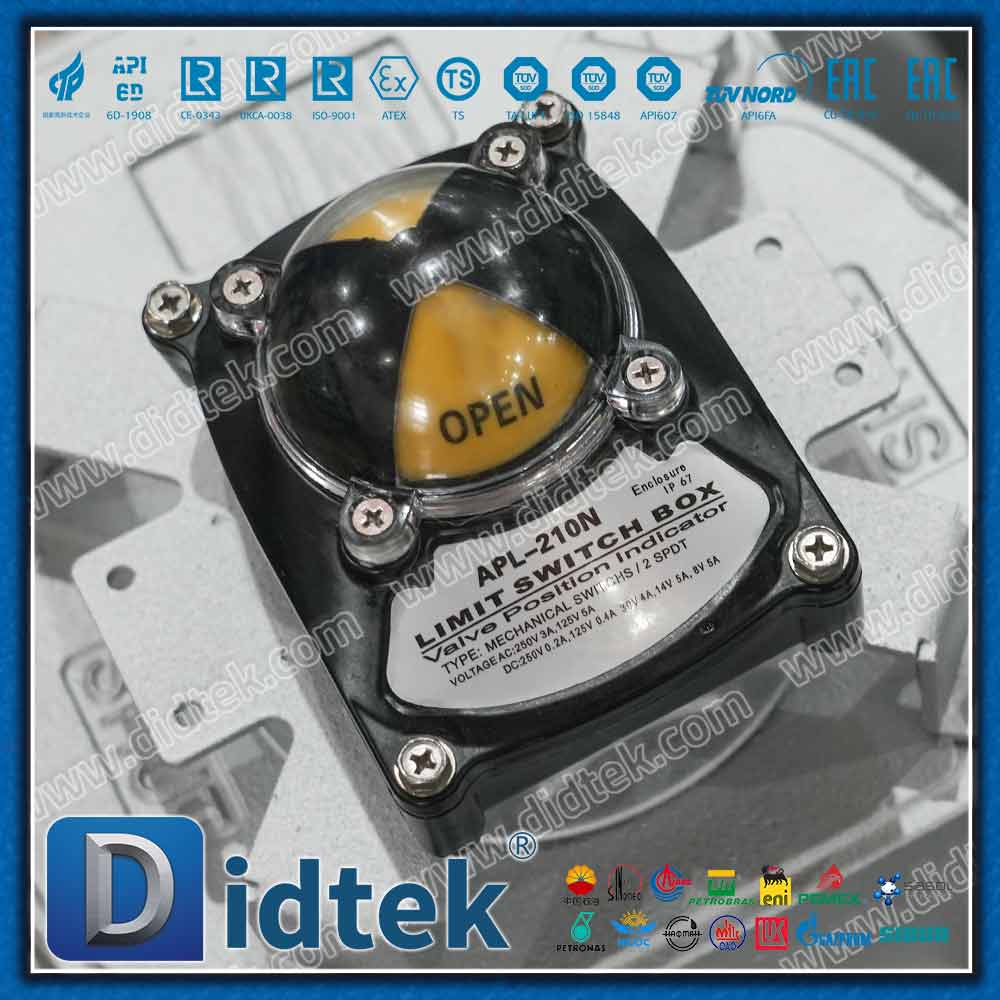

Elgiloy Spring Energized PTFE Lip Seal Trunnion Ball Valve

The Elgiloy Spring Energized PTFE Lip Seal Trunnion Ball Valve is a state-of-the-art solution designed for high-performance sealing in cryogenic and highly corrosive environments.

Model:
Q447F-300LBL
Brand:
DIDTEK
Code:
TRBV-FTBV-050

Availability:

Quantity:



Inquire

Elgiloy Spring Energized Seal PTFE Lip Seal Ball Valve Cryogenic Trunnion Ball Valve API 6D LNG Valve Spring Energized PTFE Seal Manufacturer

Product Description

Product Parameters

Parameters

Application

Product Detail

The Elgiloy Spring Energized PTFE Lip Seal Trunnion Ball Valve is a state-of-the-art solution designed for high-performance sealing in cryogenic and highly corrosive environments. Unlike traditional O-ring seals that may harden or lose elasticity in extreme cold, the Lip Seal utilizes an Elgiloy spring—a specialized super-alloy with exceptional fatigue resistance—to provide constant energizing force to the PTFE jacket. This ensures a bubble-tight seal from vacuum to high pressure (Class 2500) and in temperatures ranging from -196℃ to +200℃. Its trunnion-mounted design minimizes operating torque, making it the premier choice for LNG, hydrogen, and aggressive chemical services.

Product Parameters

Parameter Name	Parameter

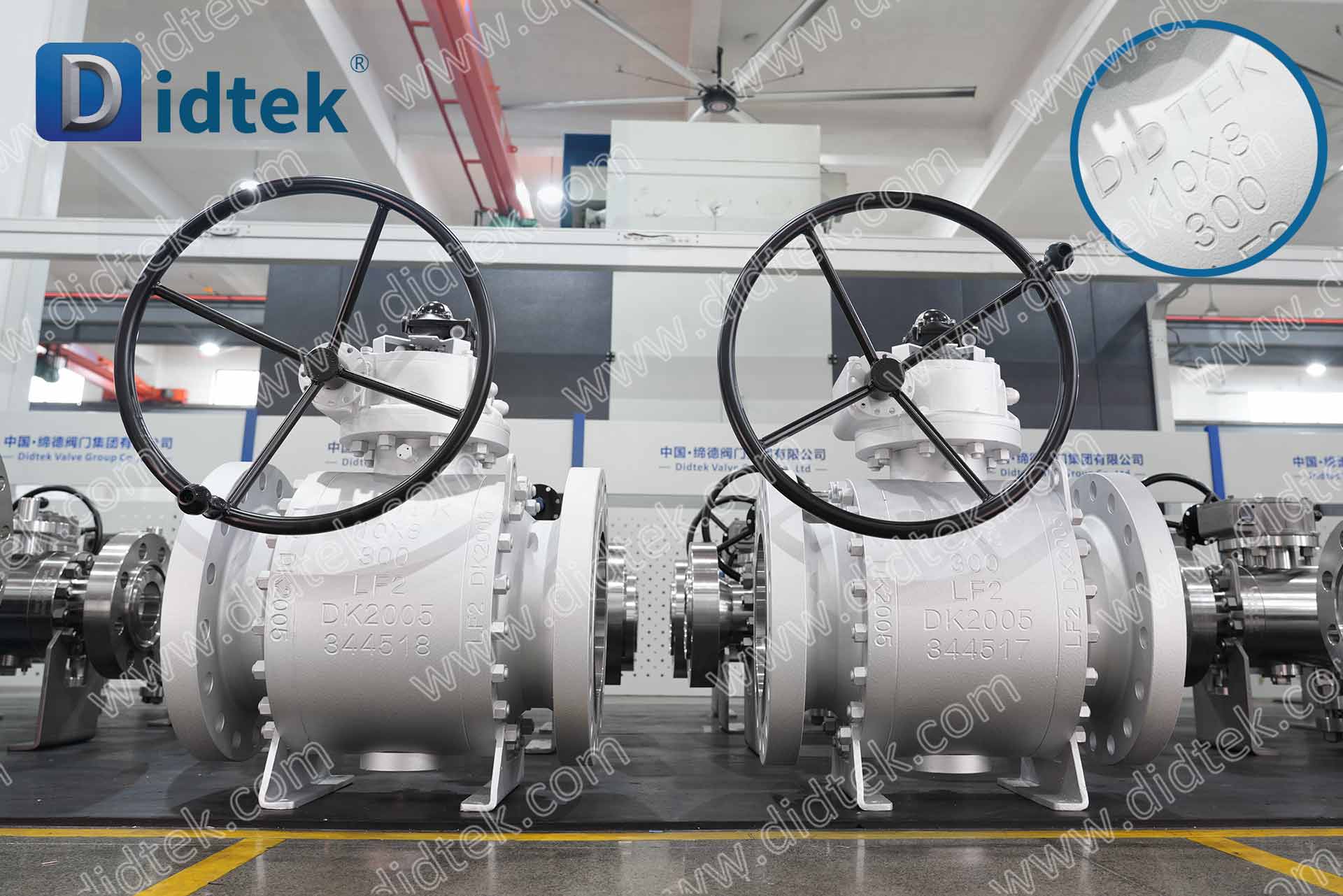

Size Range	10''*8''
Pressure Range	300LB

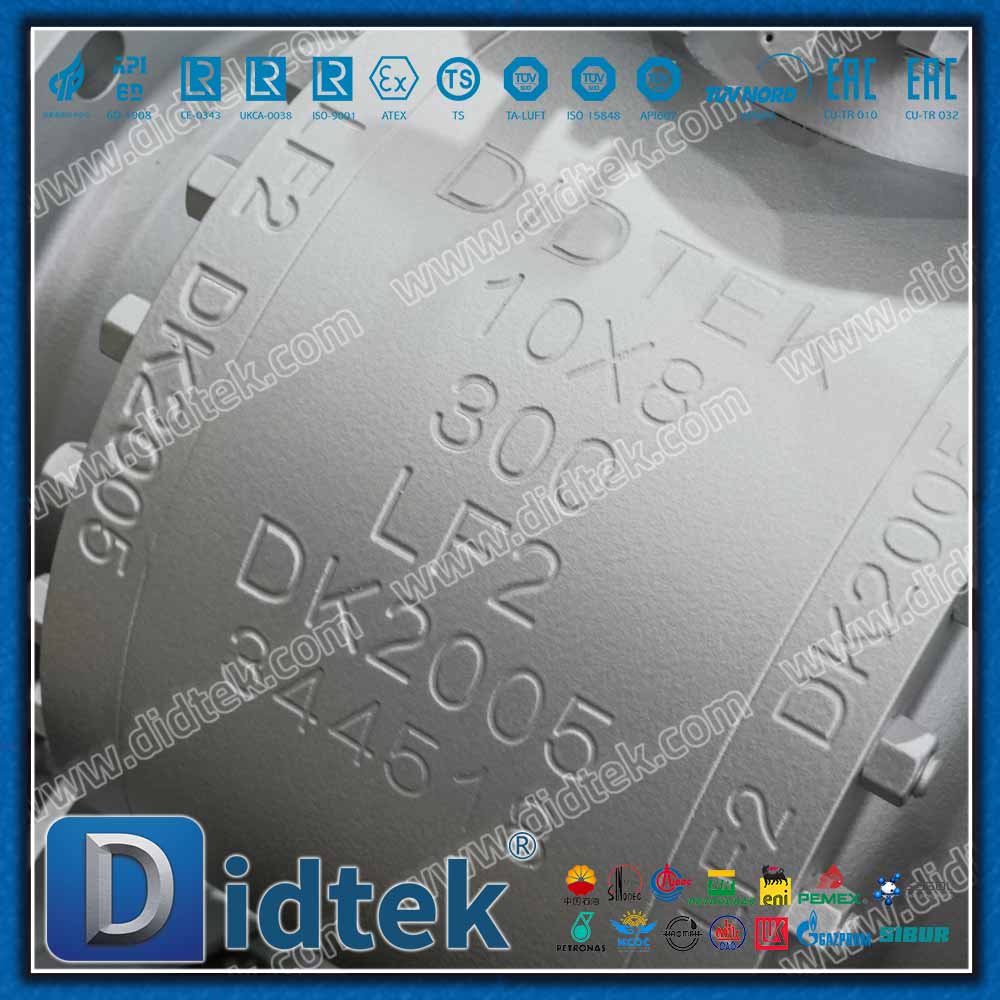

Material	LF2
Seal	Soft Seat
Temperature Range	-46°C~190°C
Design According	API 6D
Face to Face	ASME B16.10

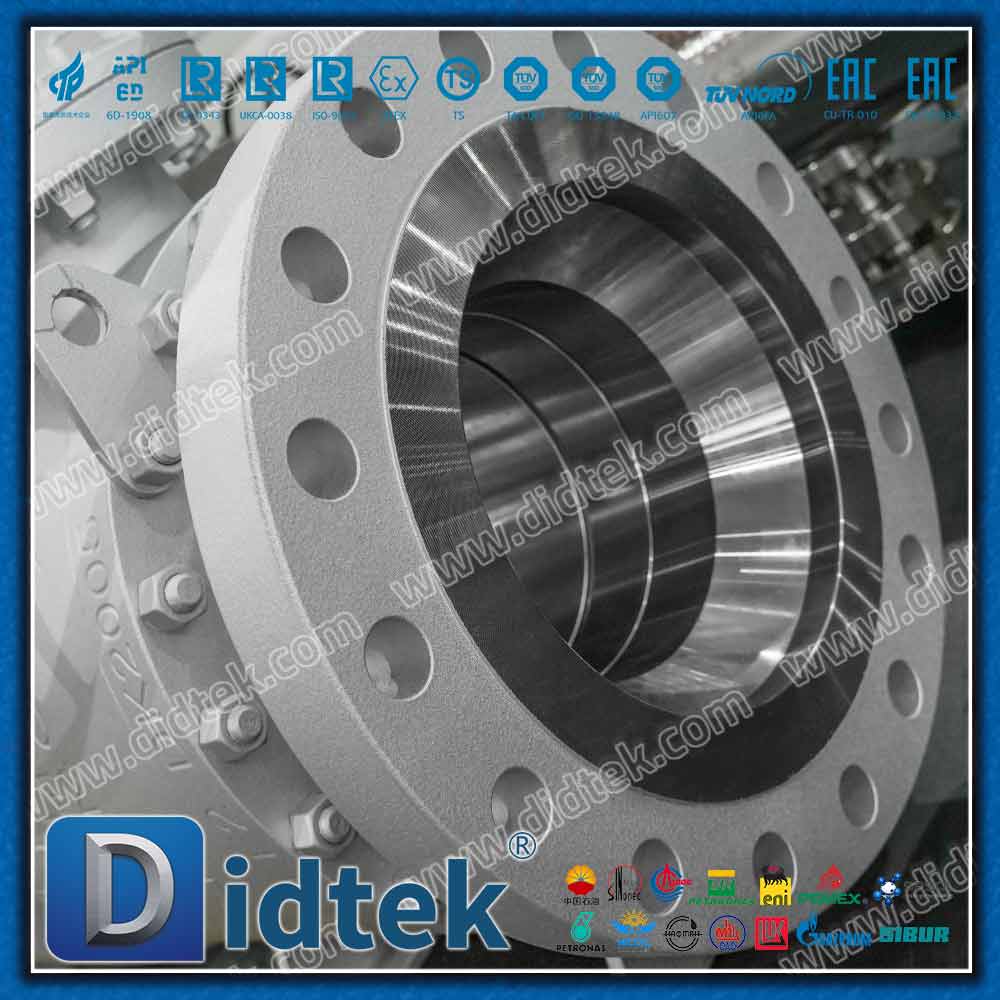

End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598

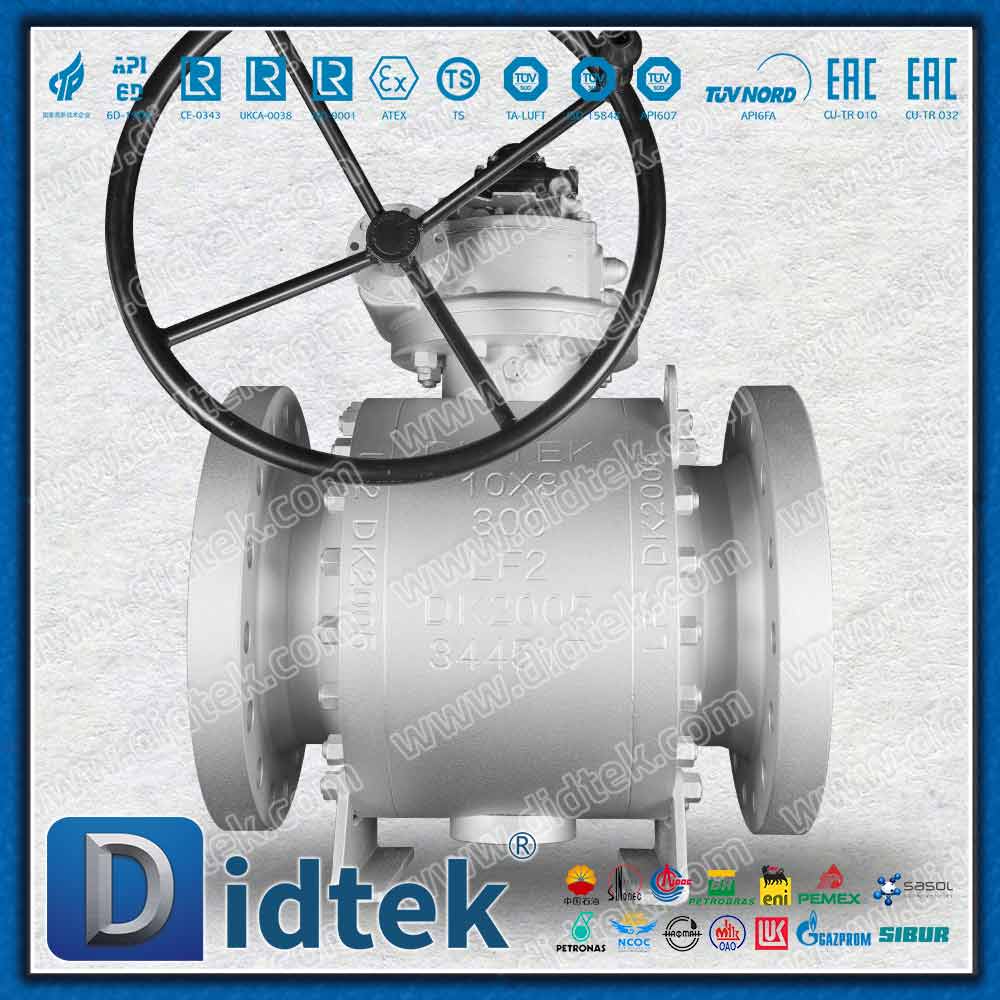

Operate	Worm Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil and some corrosive liquid

Design Description

Elgiloy Super-Alloy Spring: The internal spring is made of Elgiloy (Co-Cr-Ni alloy), which maintains its elastic modulus and corrosion resistance even in liquid nitrogen temperatures, far surpassing stainless steel.
PTFE/Modified PTFE Lip Seal: The jacket is made of high-grade PTFE or Carbon/Glass-filled PTFE, offering near-zero friction and universal chemical compatibility.
Dynamic Sealing Integrity: The spring-energized design automatically compensates for seal wear, thermal contraction, and pressure fluctuations, ensuring long-term maintenance-free operation.
Cryogenic Design Excellence: Features extended bonnets and drip trays for cryogenic service to protect the stem packing and actuator from freezing.
Low Torque Trunnion Support: The trunnion-mounted ball reduces the load on seats, significantly lowering the force required to cycle the valve at high pressures.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Carbon Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Elgiloy Spring Energized PTFE Lip Seal Trunnion Ball Valve are widely utilized in demanding environments due to their superior material properties:

LNG Industry: Loading/unloading arms, storage tanks, and regasification facilities.
Hydrogen Service: High-pressure gaseous or liquid hydrogen transport.
Chemical Processing: Handling highly aggressive acids, solvents, and volatile organic compounds (VOCs).
Aerospace: Fuel and oxidizer control for rocket launch systems.
