Intelligent Electric Operator CD4MCU Ball Valve With Control Box

The Intelligent Electric Operator CD4MCU Ball Valve with Control Box is a state-of-the-art automated flow control solution designed for the most aggressive and highly corrosive environments.

Model:
Q947F-250
Brand:
DIDTEK
Code:
TRBV-CTBV-041

Availability:

Quantity:



Inquire

Intelligent Electric Ball Valve CD4MCU Super Duplex Ball Valve Electric Actuated Valve with Control Box Corrosion Resistant Smart Valve API 6D CD4MCU Valve Manufacturer

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

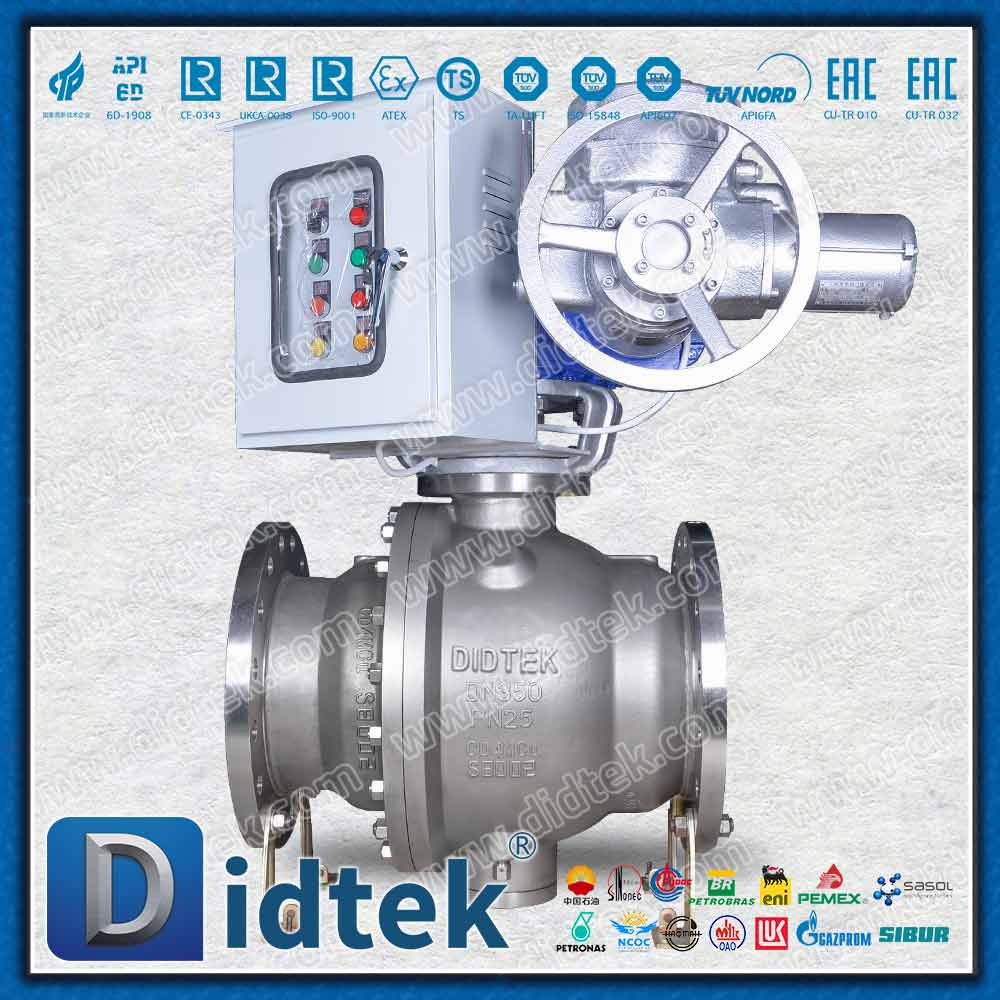

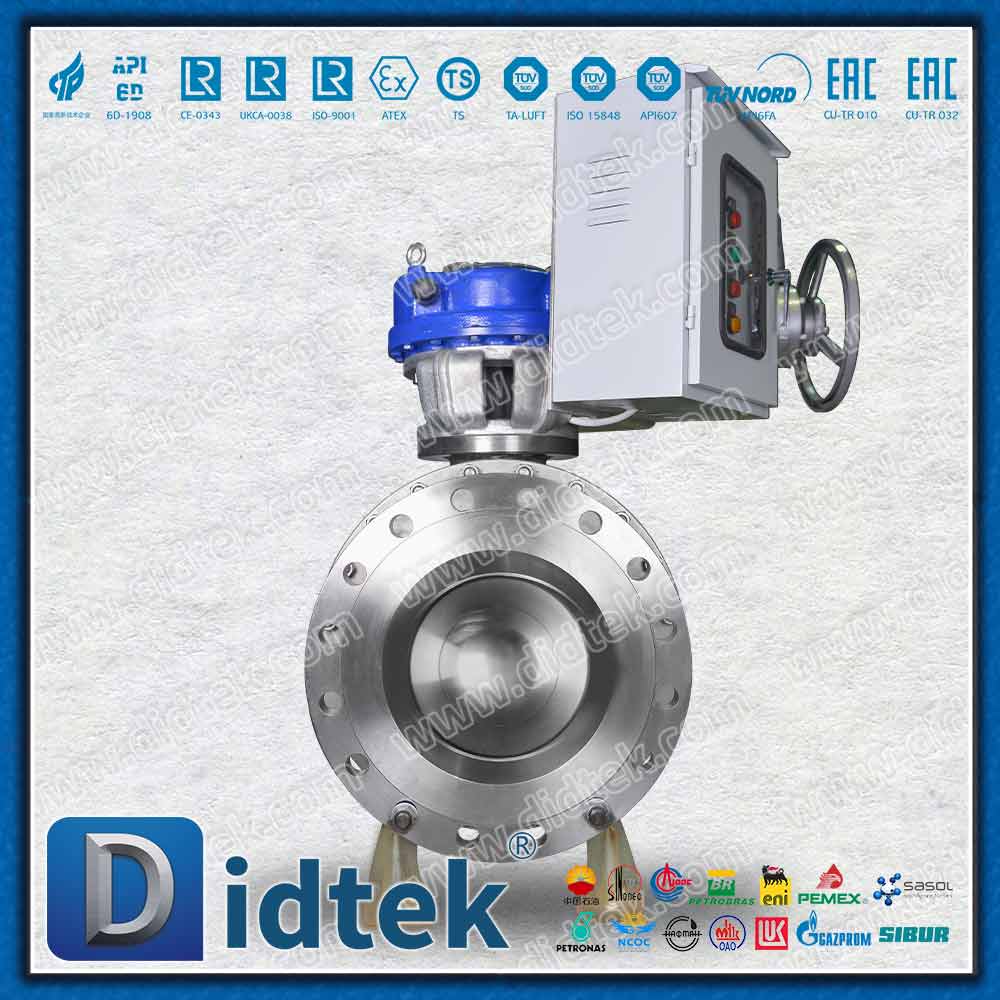

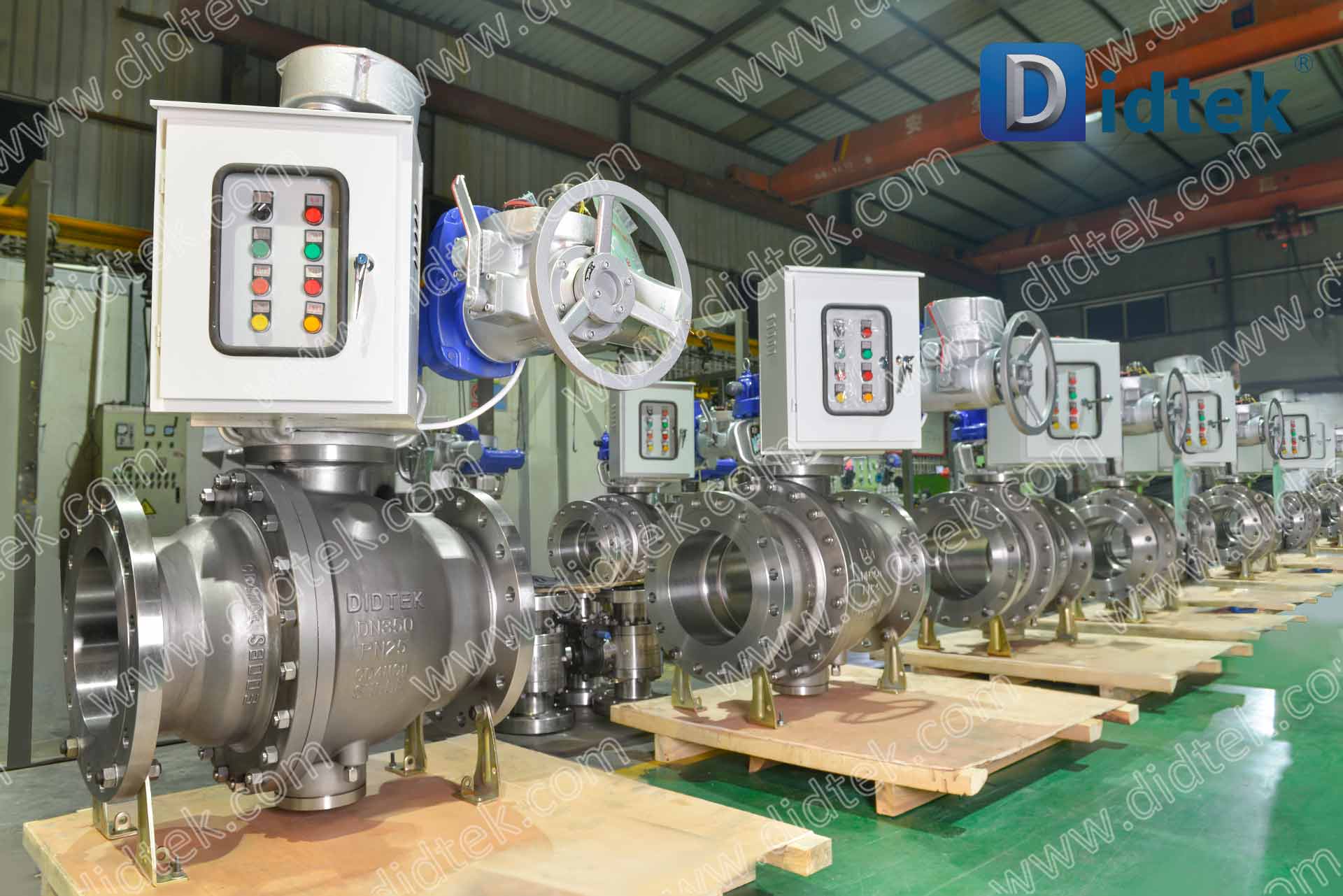

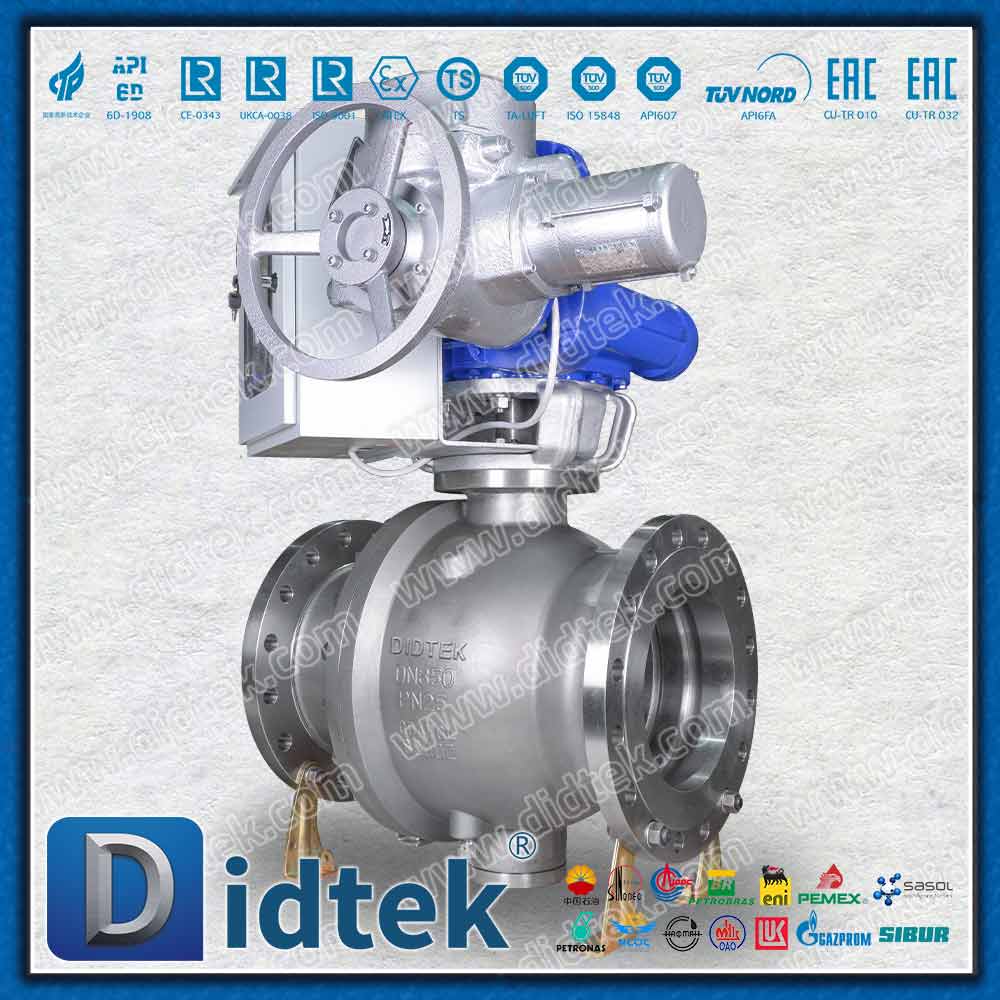

The Intelligent Electric Operator CD4MCU Ball Valve with Control Box is a state-of-the-art automated flow control solution designed for the most aggressive and highly corrosive environments. Manufactured from CD4MCU (ASTM A890 Grade 1A Super Duplex Stainless Steel), the valve offers exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking in environments involving sulfuric acid, seawater, and harsh chemical slurries. Equipped with an advanced Intelligent Electric Actuator and an external Control Box, this system enables remote monitoring, precise positioning, real-time diagnostics, and seamless integration with DCS/PLC architectures via industrial fieldbus protocols. A-41 DIDTEKCTBV -Intelligent Electric Operator CD4MCU Ball Valve With Control Box

Product Parameters

Parameter Name	Parameter
Size Range	DN350
Pressure Range	PN25
Material	CD4MCU
Seal	Soft Seat: RPTFE
Temperature Range	-29°C~316°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Electric
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Oil, Gas

Design Description

CD4MCU Super Duplex Material: Boasts a PREN (Pitting Resistance Equivalent Number) > 35, providing vastly superior corrosion resistance compared to standard 316L or 2205 duplex steels.

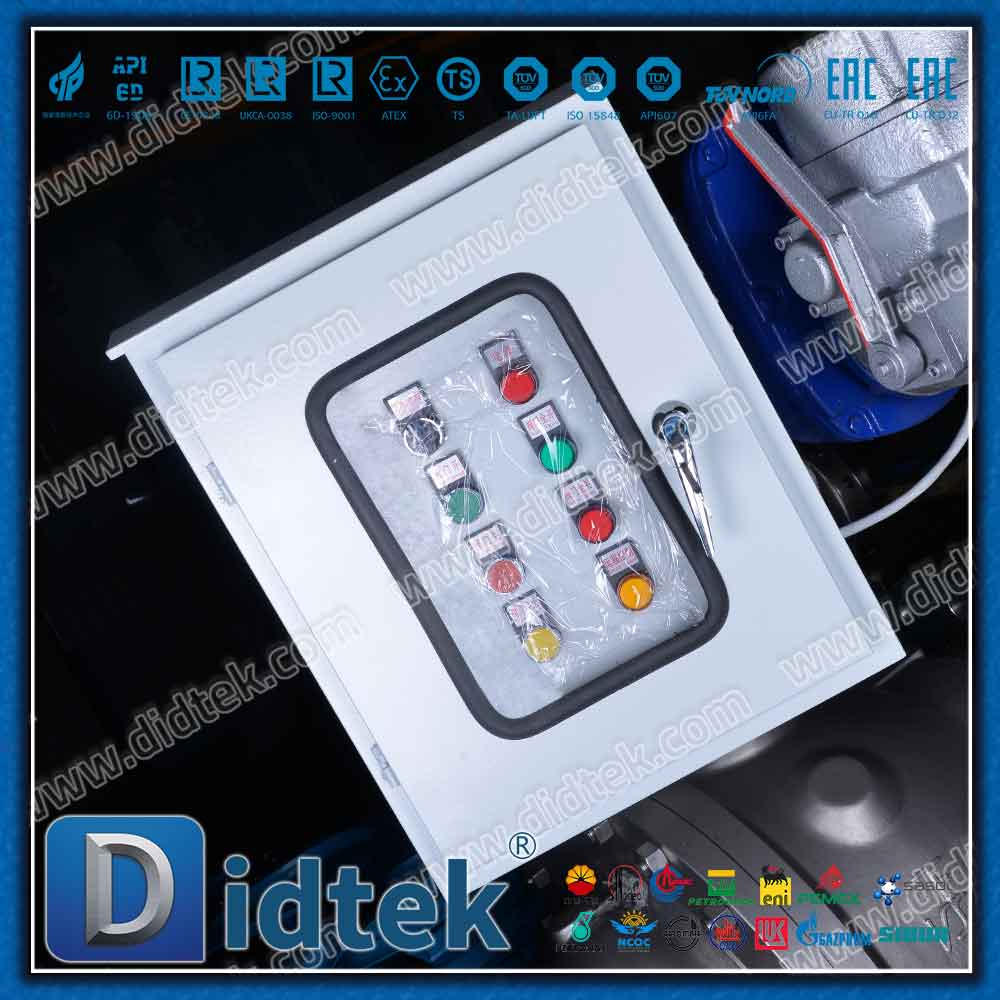

Intelligent Local/Remote Control Box: The standalone control box features an intuitive LCD screen, local/remote selector switches, and visual status indicators, allowing operators to configure and troubleshoot without opening the actuator housing.

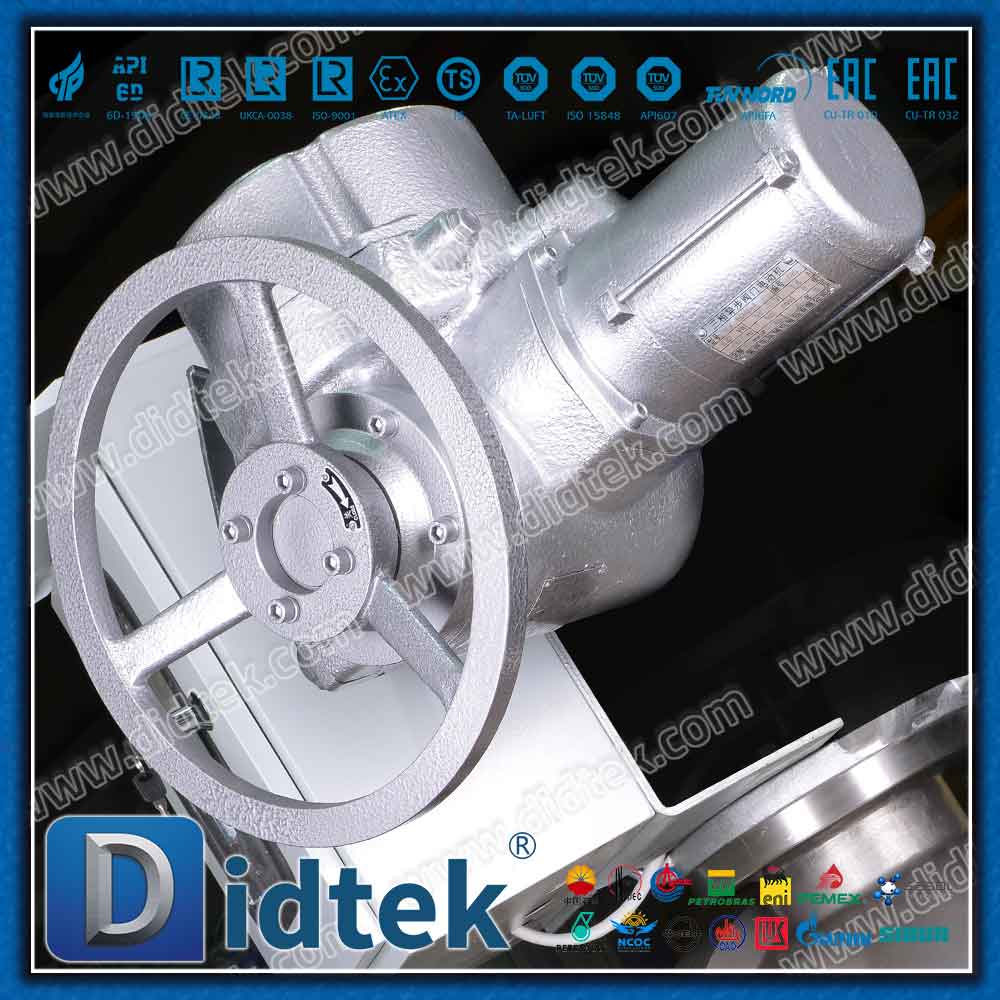

Smart Actuator Diagnostics: Features built-in torque protection, electronic limit sensing, thermal motor overload protection, and predictive maintenance feedback.
Zero-Leakage Sealing Options: Available with reinforced soft seats (PEEK/PTFE) for absolute chemical sealing or hardened metal-to-metal seats for abrasive slurry applications.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	ASTM A890 Grade 1A Super Duplex Stainless Steel
Type	Cast Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Intelligent Electric Operator CD4MCU Ball Valve With Control Box are widely utilized in demanding environments due to their superior material properties:

Seawater Desalination Plants: High-pressure RO feed pumps and concentrated brine disposal lines.
Chemical & Fertilizer Processing: Sulfuric acid, phosphoric acid, and aggressive chloride-rich fluid control.
Mining & Mineral Processing: Abrasive and corrosive acidic slurry transportation systems.
