Didtek Devlon Soft Seated Reduced-Bore Trunnion Ball Valve With NACE Standard

The Devlon Soft-Seated Reduced-Bore Trunnion Ball Valve with NACE Standard is a heavy-duty, high-performance isolation solution engineered specifically for sour oil and gas transmission pipelines and severe industrial processing.

Model:
Q347F-250L
Brand:
DIDTEK
Code:
TRBV-CTBV-042

Availability:

Quantity:



Inquire

NACE Trunnion Ball Valve Devlon Soft Seated Ball Valve Reduced Bore Trunnion Valve Sour Service Ball Valve NACE MR0175 API 6D Reduced Port Ball Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

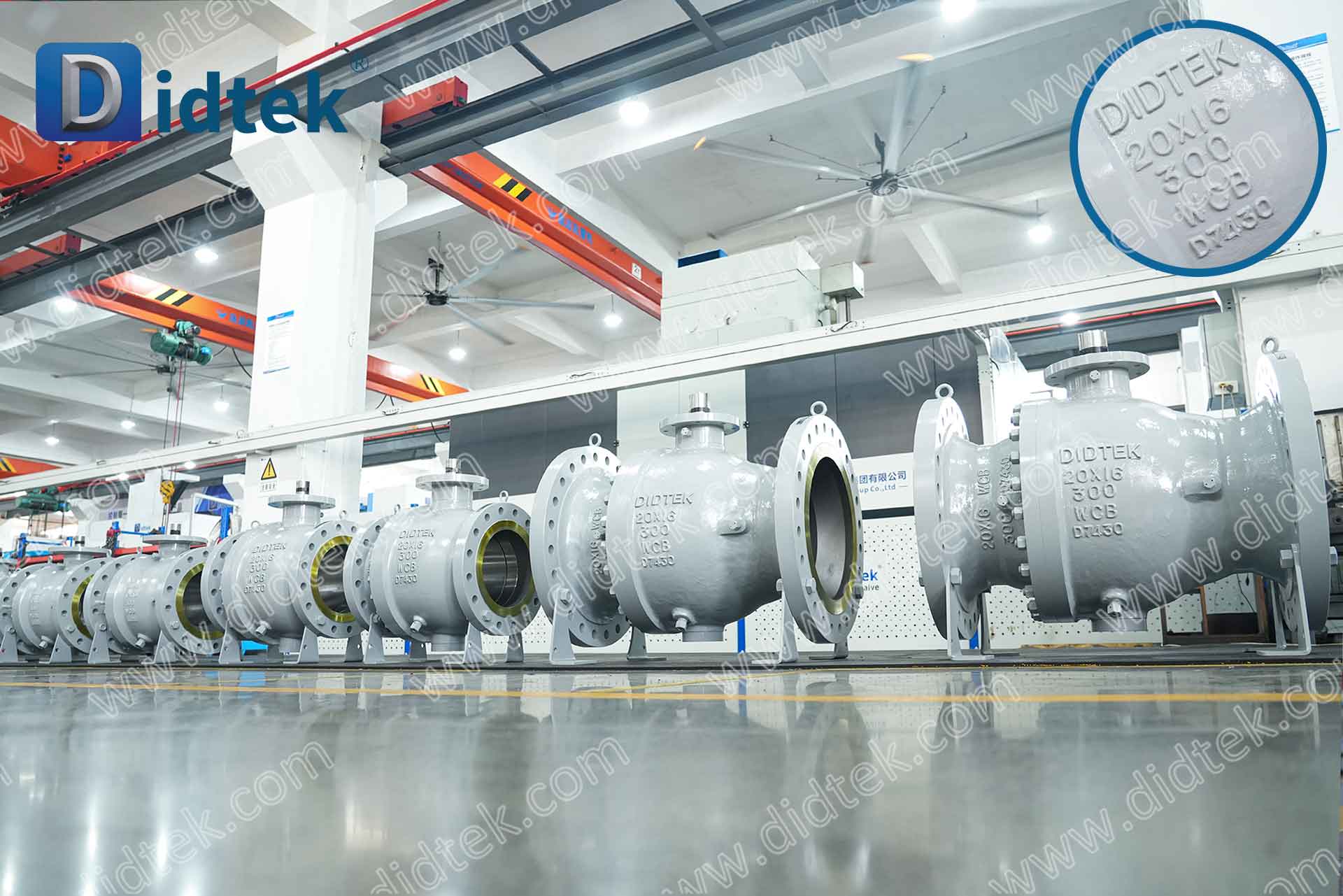

The Devlon Soft-Seated Reduced-Bore Trunnion Ball Valve with NACE Standard is a heavy-duty, high-performance isolation solution engineered specifically for sour oil and gas transmission pipelines and severe industrial processing. Designed in full compliance with NACE MR0175 / ISO 15156 standards, this valve utilizes carefully selected sour-service forged materials and controlled hardness limits to resist sulfide stress cracking (SSC) in $\text{H}_2\text{S}$-laden environments. Featuring a robust trunnion-mounted fixed-ball architecture, it ensures stable operation and low torque under high pressure differentials. The high-performance Devlon seat inserts provide exceptional wear resistance, high mechanical strength, and superior resistance to cold flow compared to standard PTFE, guaranteeing a reliable bubble-tight shut-off in a cost-effective reduced-bore design. A-43 DIDTEKCTBV - Devlon Soft Seated Reduced-Bore Trunnion Ball Valve With NACE Standard

Product Parameters

Parameter Name	Parameter
Size Range	12"
Pressure Range	300LB
Material	WCB
Seal	Soft Seat: RPTFE
Temperature Range	-46°C~120°C
Design According	ISO 17292
Face to Face	ASME B16.10
End Flanges	GOST 33259-2015
End Connection Type	F
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Natur Gas

Design Description

NACE MR0175 / ISO 15156 Compliance: Manufactured using sour-service-certified materials and strict hardness control ($\le 22\text{ HRC}$), ensuring safety and longevity in corrosive sour gas fields.
High-Performance Devlon Seat Inserts: Devlon provides superior compressive strength, lower friction, and excellent resistance to deformation under high pressure, outperforming standard soft-seat materials.
Trunnion-Mounted Stability: Fixed-ball design absorbs high line thrusts, maintaining low and predictable operating torques across high-pressure ratings.
Reduced-Bore (Venturi) Economy: Optimized flow path design offers a lighter footprint and cost-saving advantages for piping networks where full-bore pigging is not required.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	A216 WCB
Type	Cast Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

EAC Approval ISO17292 C3 Printing Metal to Metal Ball Valve are widely utilized in demanding environments due to their superior material properties:

Sour Oil & Gas Gathering Pipelines: Upstream production and transmission lines handling corrosive hydrocarbons containing hydrogen sulfide.
Natural Gas Processing Plants: Sweetening and dehydration units requiring dependable sour-service isolation.
Offshore & Onshore Refineries: High-pressure refinery hydrocarbon loops subject to sour corrosion constraints.
