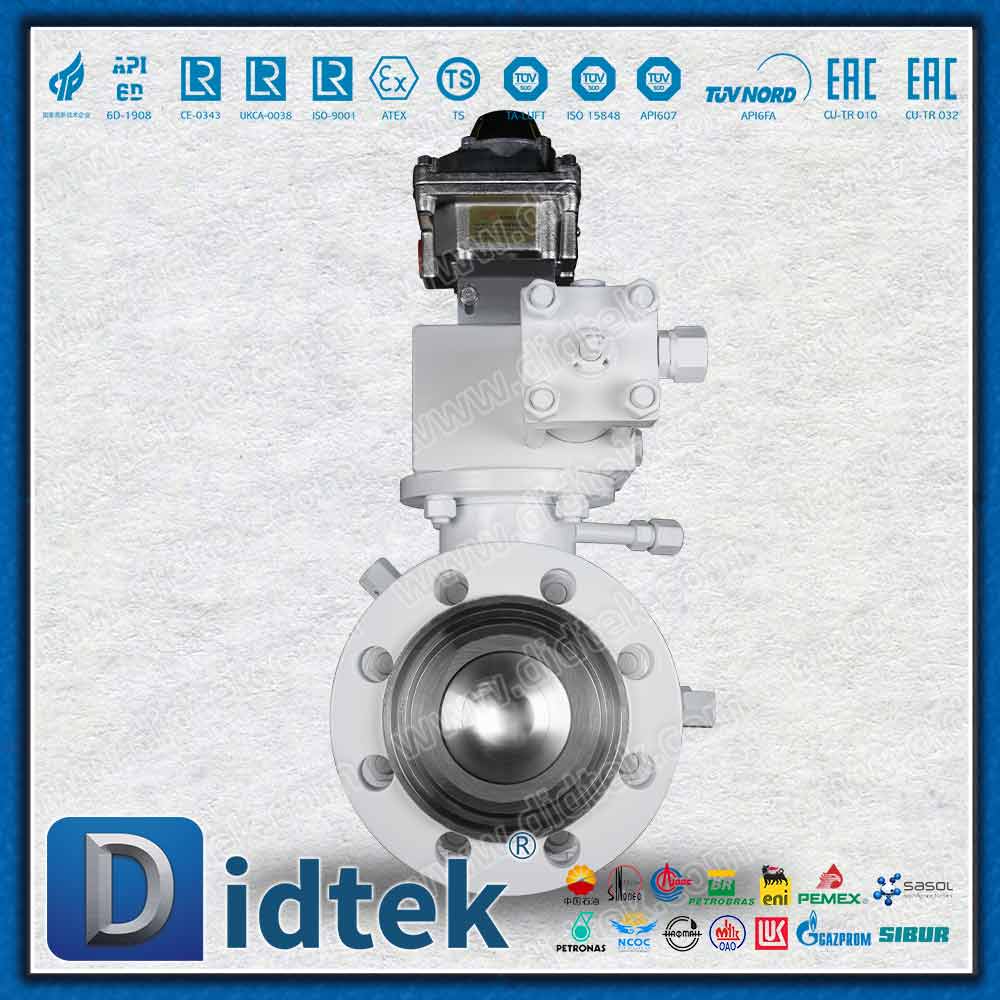

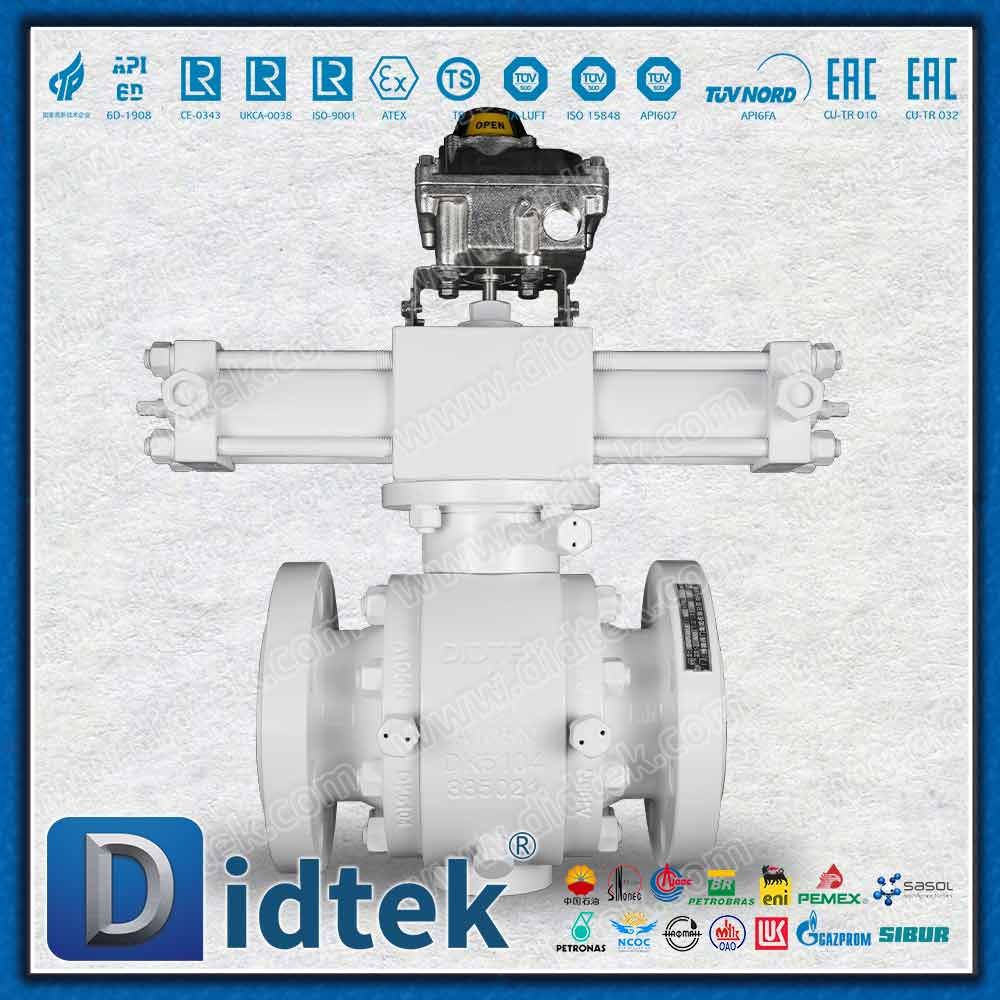

Heavy Duty Marine Pneumatic and Hydraulic Forged Steel Metal-Seated Trunnion Mounted Ball Valve

Heavy Duty Marine Pneumatic and Hydraulic Forged Steel Metal-Seated Trunnion Mounted Ball Valve

The Heavy Duty Marine Pneumatic and Hydraulic Forged Steel Metal-to-Metal Seated Trunnion Mounted Ball Valve is an elite, severe-service automated isolation solution engineered specifically for offshore platforms, FPSO vessels, and deep-water subsea manifolds.

Model:
Q747H-300LBC
Brand:
DIDTEK
Code:
TRBV-FTMSBV-013

Availability:

Quantity:



Inquire

Heavy Duty Marine Ball Valve Hydraulic Trunnion Ball Valve Pneumatic Metal Seated Ball Valve Offshore Forged Steel Ball Valve Subsea Metal to Metal Ball Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

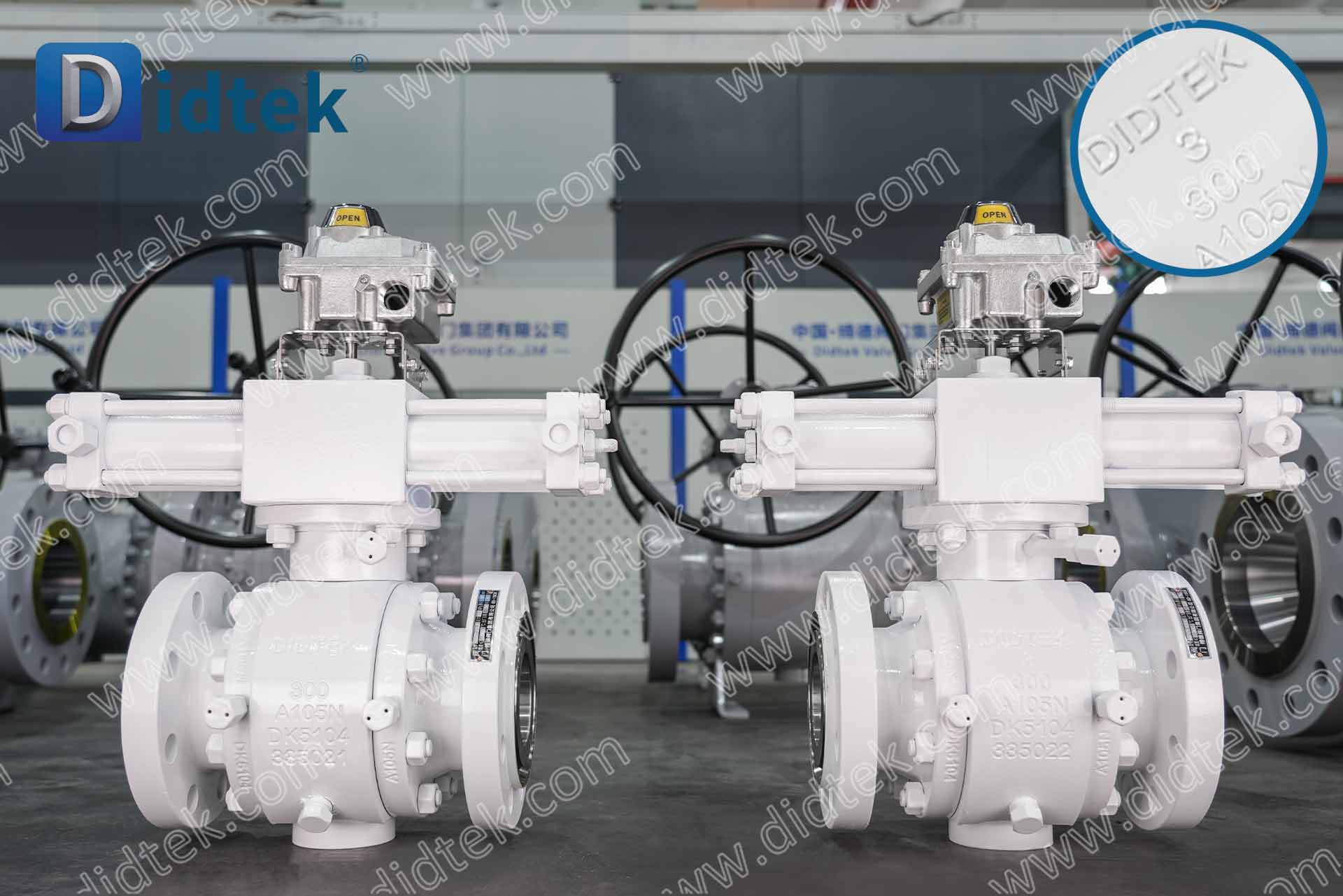

The Heavy Duty Marine Pneumatic and Hydraulic Forged Steel Metal-to-Metal Seated Trunnion Mounted Ball Valve is an elite, severe-service automated isolation solution engineered specifically for offshore platforms, FPSO vessels, and deep-water subsea manifolds. Fabricated from high-integrity forged alloys such as Duplex Stainless Steel (F51/F60) or Super Duplex, the valve features a robust trunnion-mounted fixed-ball architecture that absorbs massive pipeline thrusts and operational vibrations. Powered by heavy-duty pneumatic or high-pressure hydraulic actuators, it ensures rapid, fail-safe remote control and critical emergency shutdown (ESD) performance. Enhanced with an HVOF-sprayed tungsten carbide metal-to-metal sealing system, it delivers exceptional resistance to sand erosion, high differential pressures, and aggressive marine environments. D-13 DIDTEKFTMSBV -Didtek Marine Engineering Pneumatic-Hyd

Product Parameters

Parameter Name	Parameter

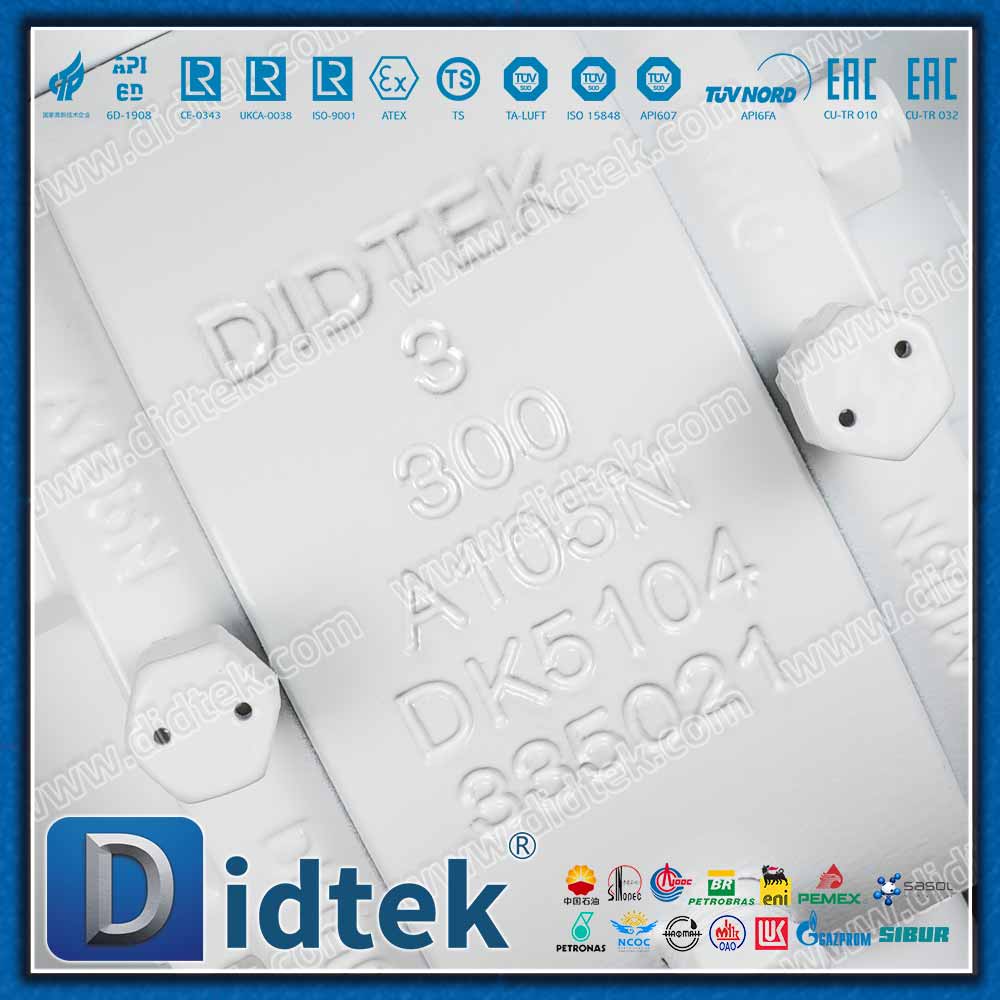

Size Range	3''
Pressure Range	300LB
Material	A105N
Seal	Metal Seat
Temperature Range	-196°C~450°C
Design According	API 608
Face to Face	ASME B16.10

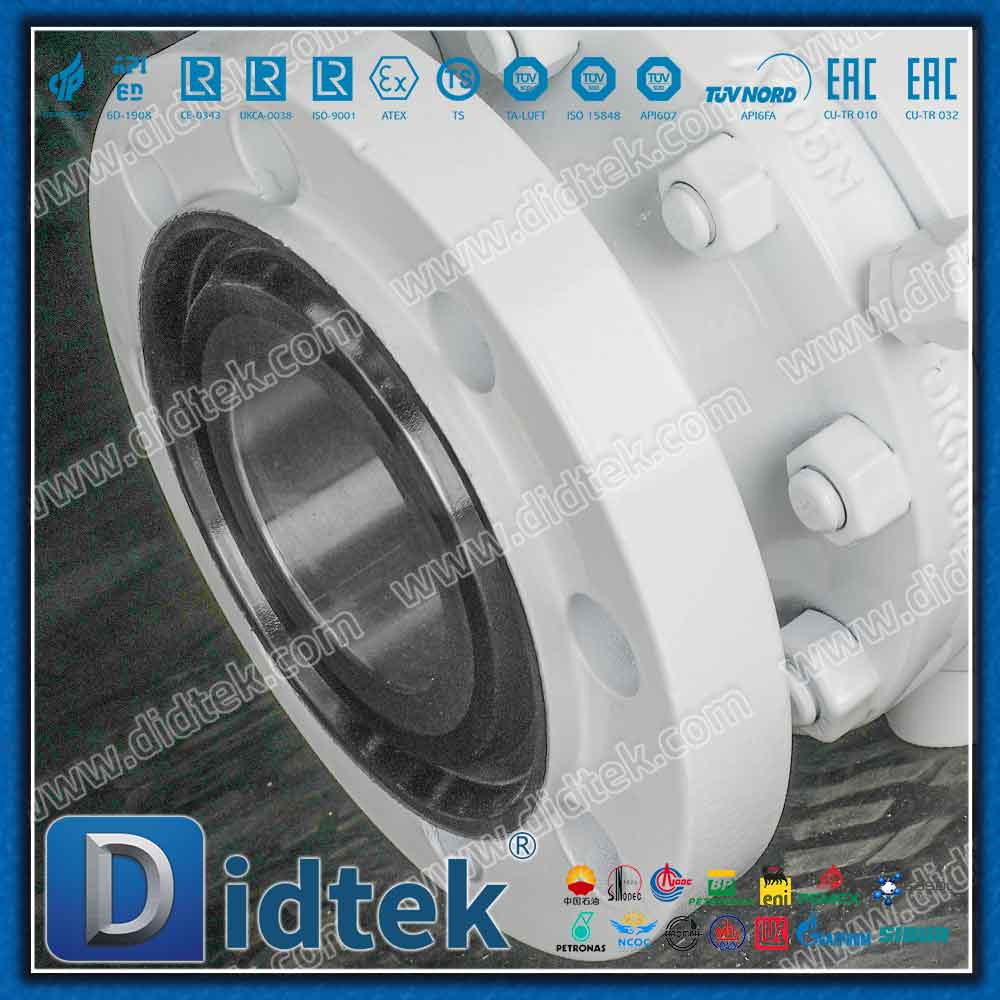

End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Pneumatic & Hydraulic
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil and some corrosive liquid

Design Description

Marine-Grade Forged Alloys: Constructed from corrosion-resistant forged duplex or super duplex stainless steels, providing superior mechanical strength and resistance to marine stress corrosion cracking.
Trunnion-Mounted Stability: The fixed-ball design minimizes operating torque under extreme pressures and prevents ball displacement during high-velocity offshore fluid surges.

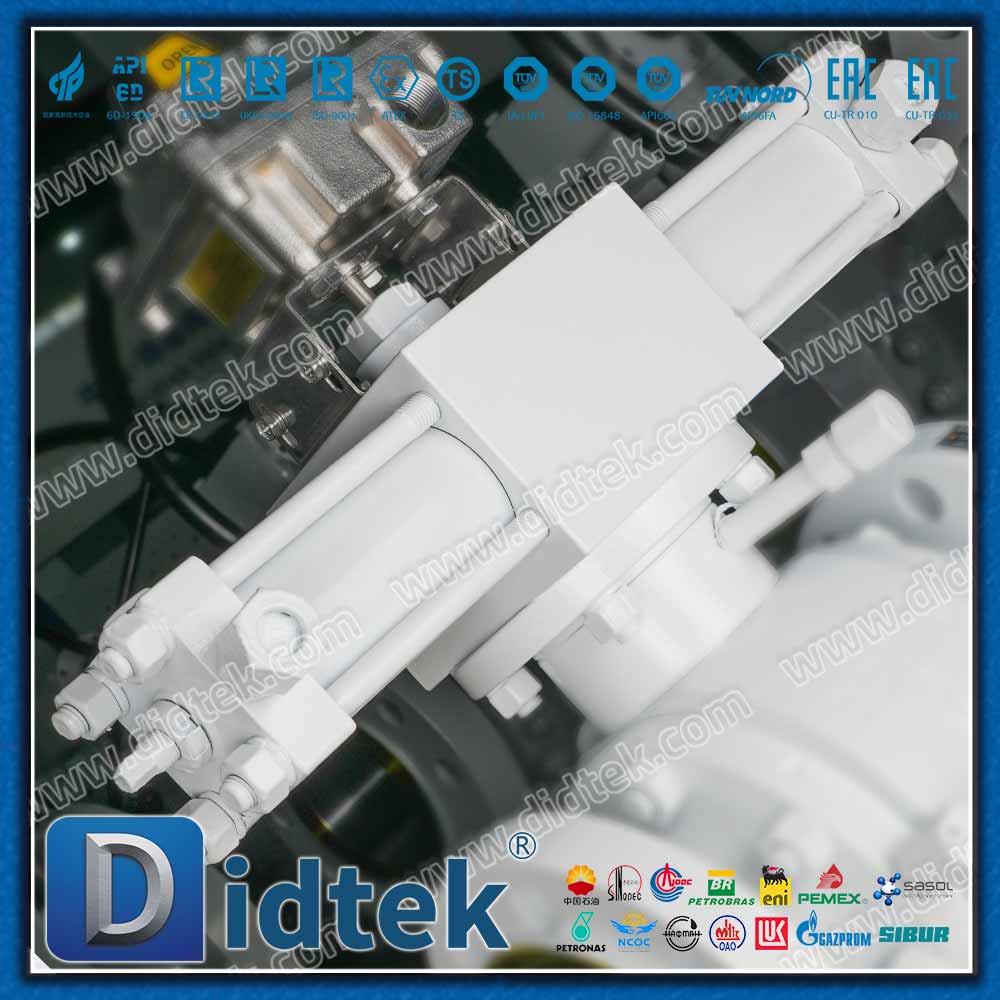

Pneumatic & Hydraulic Actuator Integration: Compatible with heavy-duty rack-and-pinion, scotch-yoke pneumatic units, or high-pressure hydraulic cylinders for fast ESD action.
HVOF Metal-to-Metal Armor: Ball and seats hardened with ultra-durable Tungsten Carbide or Stellite, ensuring long-term bubble-tight integrity in abrasive, sand-producing oil wells.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Carbon Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Heavy Duty Marine Pneumatic and Hydraulic Forged Steel Metal-Seated Trunnion Mounted Ball Valve are widely utilized in demanding environments due to their superior material properties:

Offshore Production & Subsea Manifolds: High-pressure wellhead trees, subsea gathering systems, and production export lines.
FPSO Hydrocarbon Processing: Severe service crude oil separation, gas treatment, and high-pressure water injection modules.
Critical Emergency Shutdown (ESD) Loops: Offshore safety systems requiring dependable, high-speed hydraulic or pneumatic valve closure.
