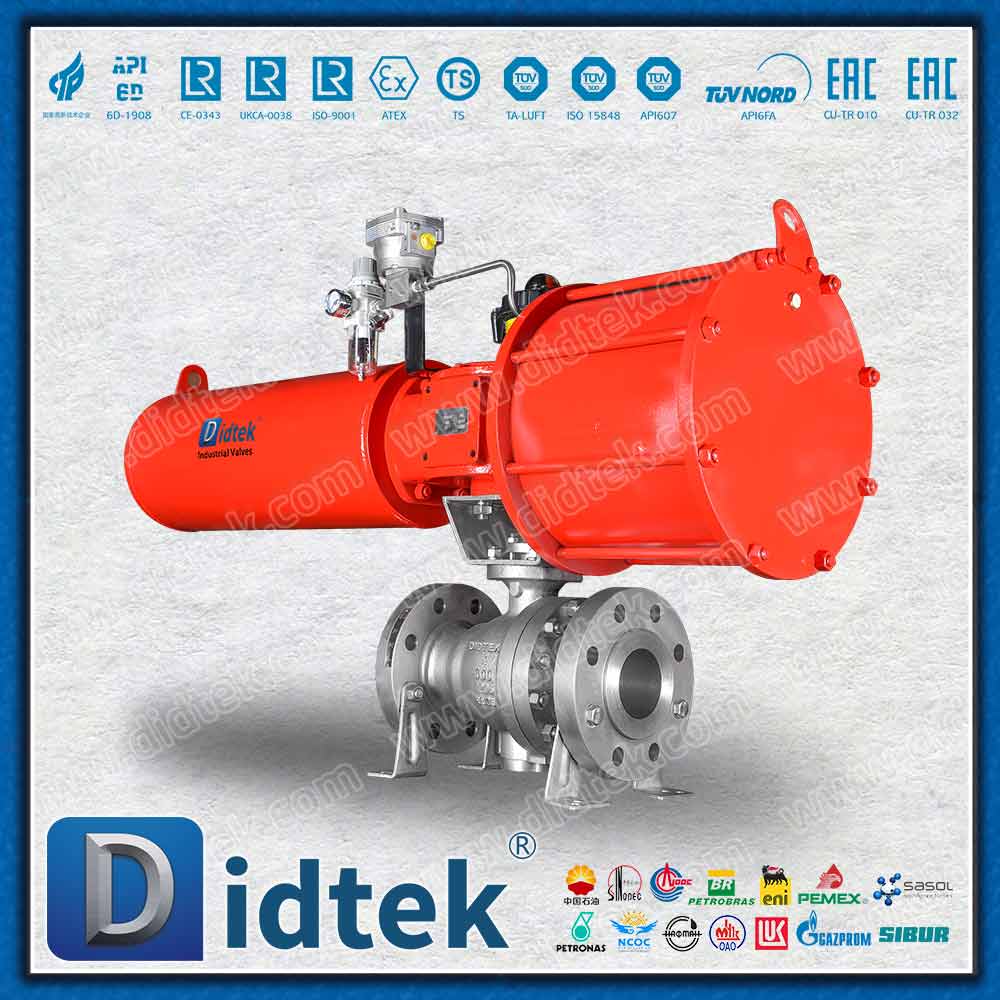

Single Acting Pneumatic Trunnion Ball For Fertilizer Applications

The Single Acting Pneumatic Trunnion Ball Valve for Fertilizer Applications is a heavy-duty, automated flow control solution engineered specifically for the harsh and corrosive chemical environments found in fertilizer manufacturing plants.

Model:
Q647H-600LB2205
Brand:
DIDTEK
Code:
TRBV-CTMSBV-009

Availability:

Quantity:



Inquire

Pneumatic Trunnion Ball Valve for Fertilizer Single Acting Pneumatic Ball Valve Spring Return Actuated Ball Valve Urea Plant Ball Valve Chemical Processing Trunnion Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

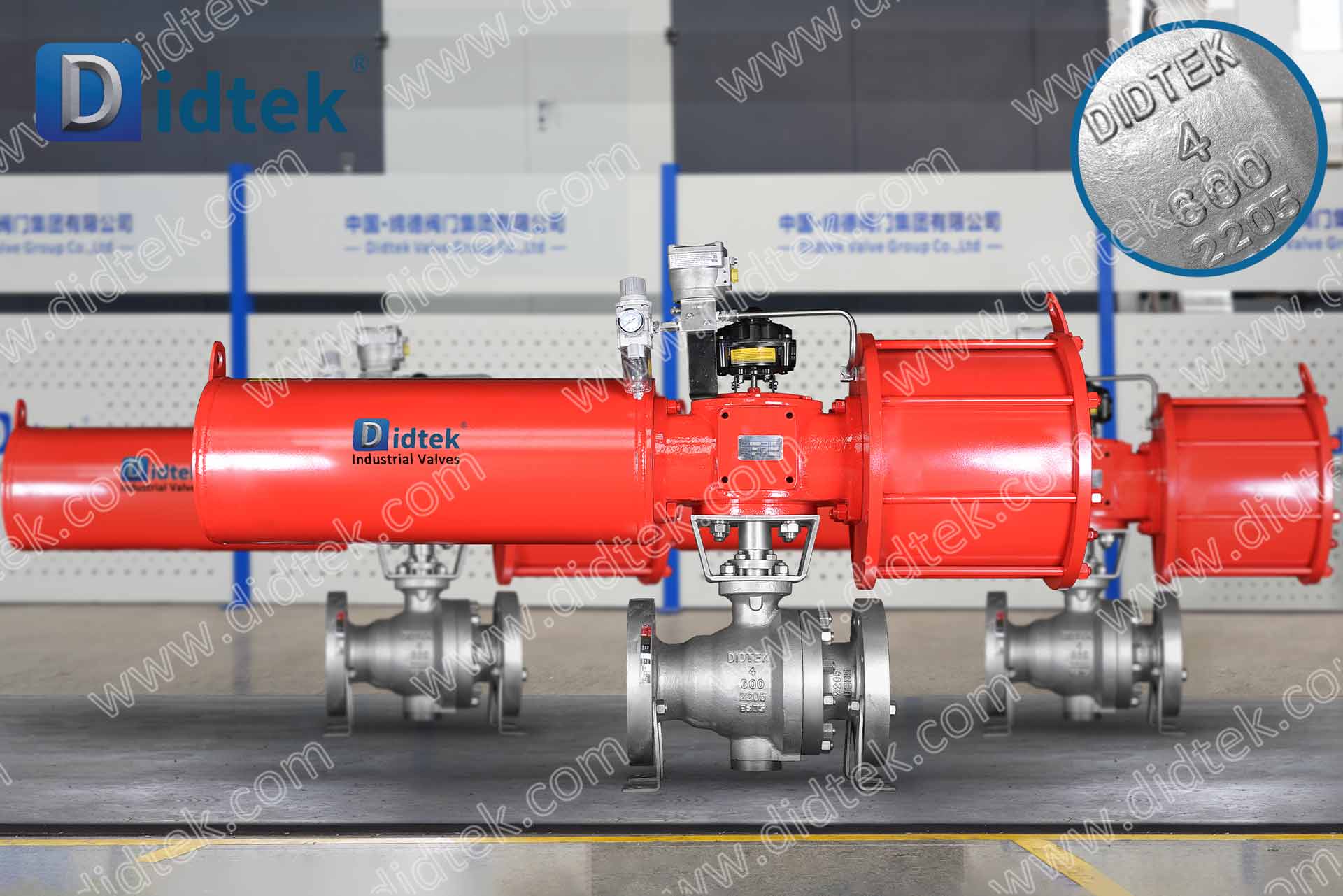

The Single Acting Pneumatic Trunnion Ball Valve for Fertilizer Applications is a heavy-duty, automated flow control solution engineered specifically for the harsh and corrosive chemical environments found in fertilizer manufacturing plants (such as urea, ammonia, and compound fertilizer production lines). Equipped with a reliable single-acting (spring-return) pneumatic actuator, this valve provides automatic fail-safe positioning (fail-close or fail-open) upon loss of air supply, ensuring critical emergency shutdown (ESD) safety. Built with a robust trunnion-mounted fixed-ball design, it handles high-pressure differentials and abrasive chemical slurries with minimal operating torque, guaranteeing long-term leak-tight performance in fertilizer processing units. C-9 DIDTEKCTMSBV -Single Acting Pneumatic Trunnion Ball For Fertilizer Applications

Product Parameters

Parameter Name	Parameter
Size Range	4''
Pressure Range	600LB
Material	2205
Seal	Metal Seat: 2205 + Ni 60
Temperature Range	-29°C~200°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Pneumatic
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Oil, Gas

Design Description

Fail-Safe Spring-Return Actuation: The single-acting pneumatic actuator uses internal springs to automatically return the valve to a predetermined safe position during power or air supply failure, meeting strict plant safety requirements.
Trunnion-Mounted Stability: Fixed-ball configuration absorbs high pipeline thrusts, preventing ball jamming and ensuring smooth operation even in large-diameter fertilizer transport lines.
Fertilizer-Grade Corrosion & Wear Resistance: Trim and body materials are specifically selected (such as 316L, Duplex stainless steel, or Alloy 20/Inconel overlays) to resist aggressive urea, ammonia, and acid slurries.
Bubble-Tight Sealing Options: Available with specialized PEEK/PTFE soft seats or lapped metal-to-metal seats designed to prevent leakage of hazardous or volatile fertilizer media.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Duplex SS 2205
Type	Cast Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Single Acting Pneumatic Trunnion Ball For Fertilizer Applications are widely utilized in demanding environments due to their superior material properties:

Urea Synthesis & Stripping Units: High-pressure reactor effluent lines and carbamate solution handling.
Ammonia Production Plants: Liquid ammonia storage, vaporization, and high-pressure gas distribution pipelines.
Phosphoric Acid & Compound Fertilizer Processing: Corrosive acid slurries, phosphoric acid lines, and neutralization loops.
