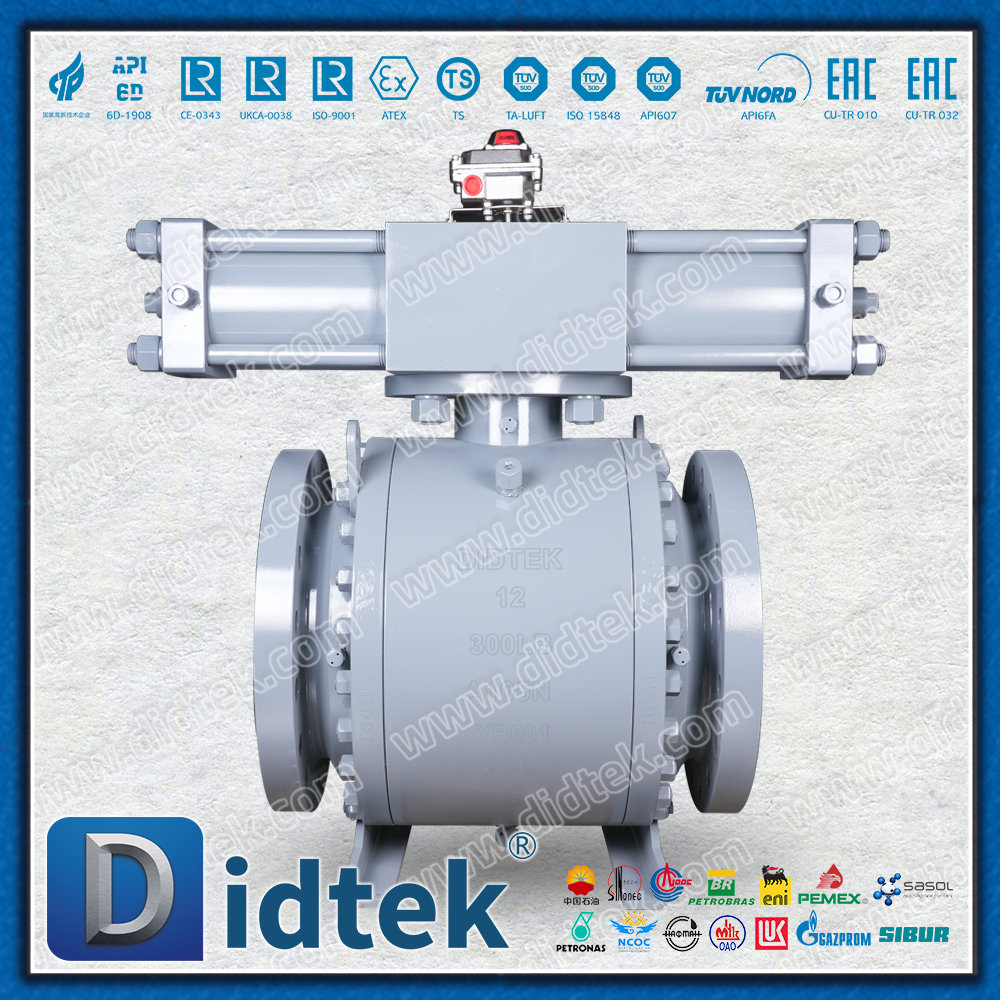

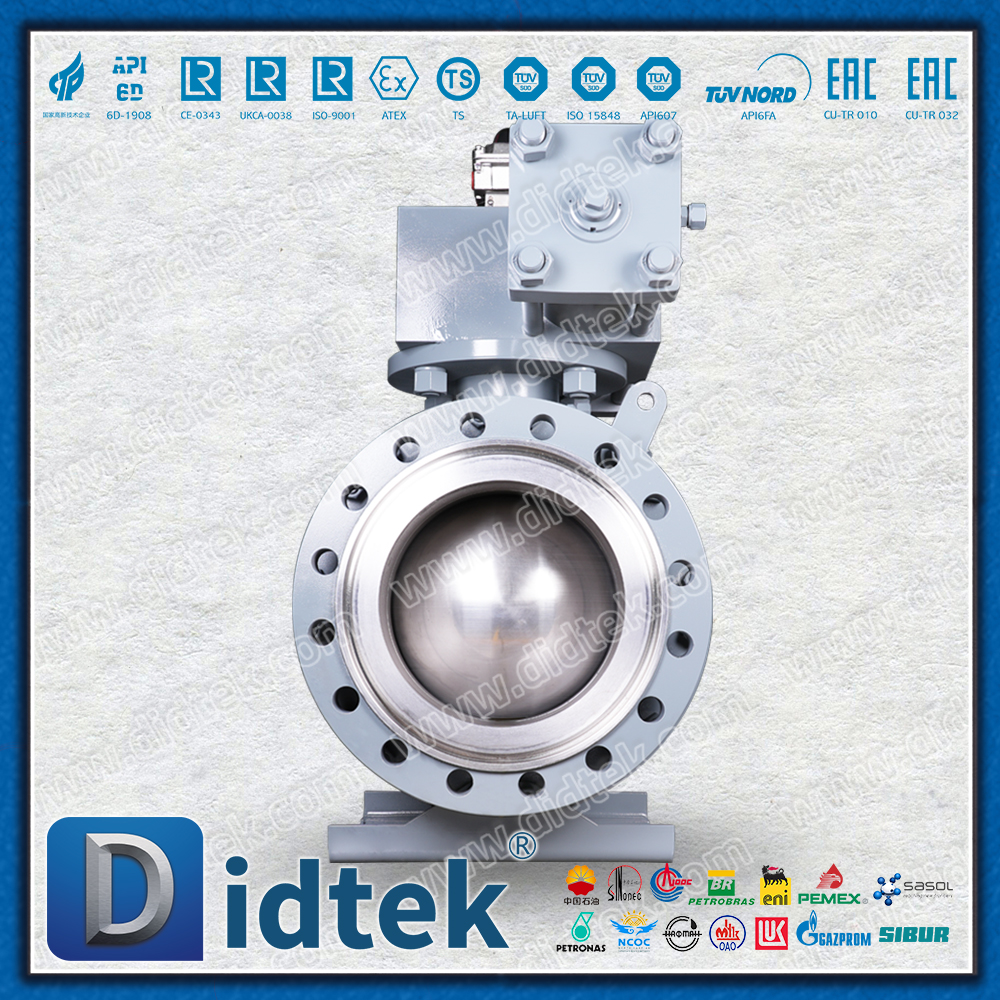

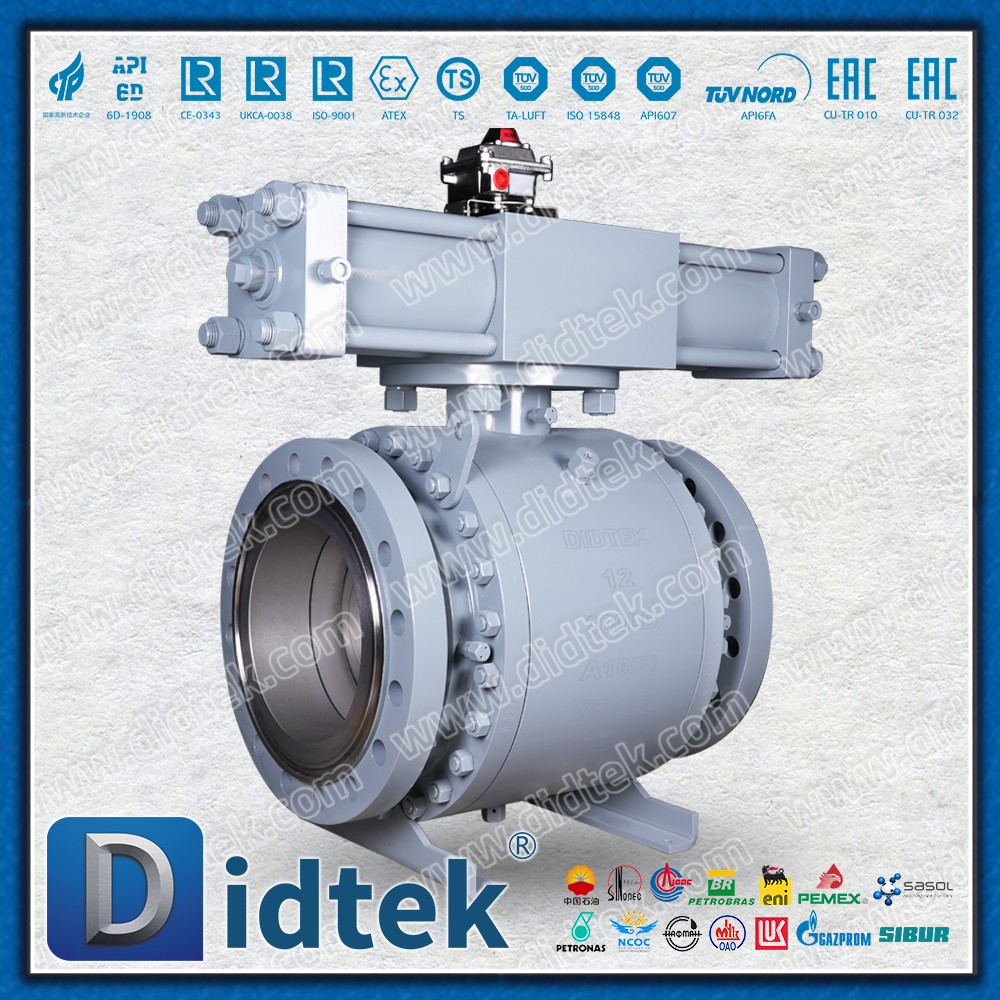

Marine Pneumatic Hydraulic Trunnion Ball Valve for Offshore Engineering

The Marine Pneumatic & Hydraulic Trunnion Ball Valve for Offshore Engineering is an elite, heavy-duty automated flow control solution engineered specifically for offshore platforms, FPSO vessels, and deep-water marine subsea pipelines.

Model:
Q747H-300LBC
Brand:
DIDTEK
Code:
TRBV-FTMSBV-014

Availability:

Quantity:



Inquire

Marine Trunnion Ball Valve Offshore Hydraulic Ball Valve Pneumatic Actuated Trunnion Valve Marine Engineering Ball Valve Manufacturer High Pressure Offshore Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

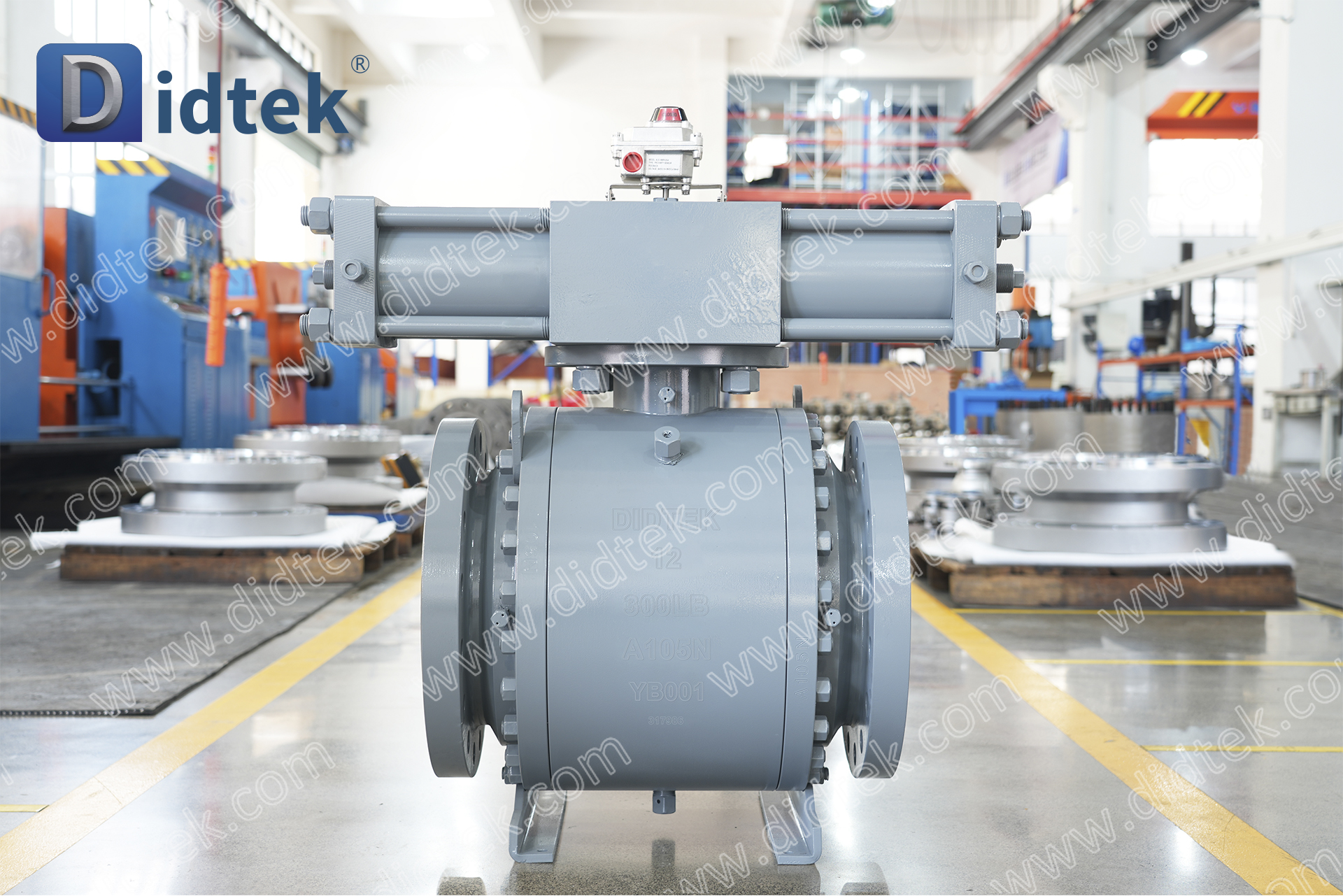

The Marine Pneumatic & Hydraulic Trunnion Ball Valve for Offshore Engineering is an elite, heavy-duty automated flow control solution engineered specifically for offshore platforms, FPSO vessels, and deep-water marine subsea pipelines. Fabricated from high-integrity forged alloys (such as Duplex Stainless Steel F51/F60 or low-temperature carbon steel), the valve features a robust trunnion-mounted fixed-ball architecture that absorbs massive pipeline thrusts and operational vibrations. Driven by heavy-duty pneumatic or high-pressure hydraulic actuators, it ensures rapid, fail-safe remote control and critical emergency shutdown (ESD) performance. Configured with either resilient soft seats or HVOF metal-to-metal sealing, it delivers exceptional reliability and bubble-tight shut-off in aggressive marine environments. 批量图

Product Parameters

Parameter Name	Parameter
Size Range	12''
Pressure Range	300LB
Material	A105N
Seal	Metal Seat
Temperature Range	-196°C~450°C
Design According	API 608
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Pneumatic & Hydraulic
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil and some corrosive liquid

Design Description

Marine-Grade Forged Construction: Built from corrosion-resistant forged materials designed to withstand severe saline marine atmospheres and prevent structural degradation.

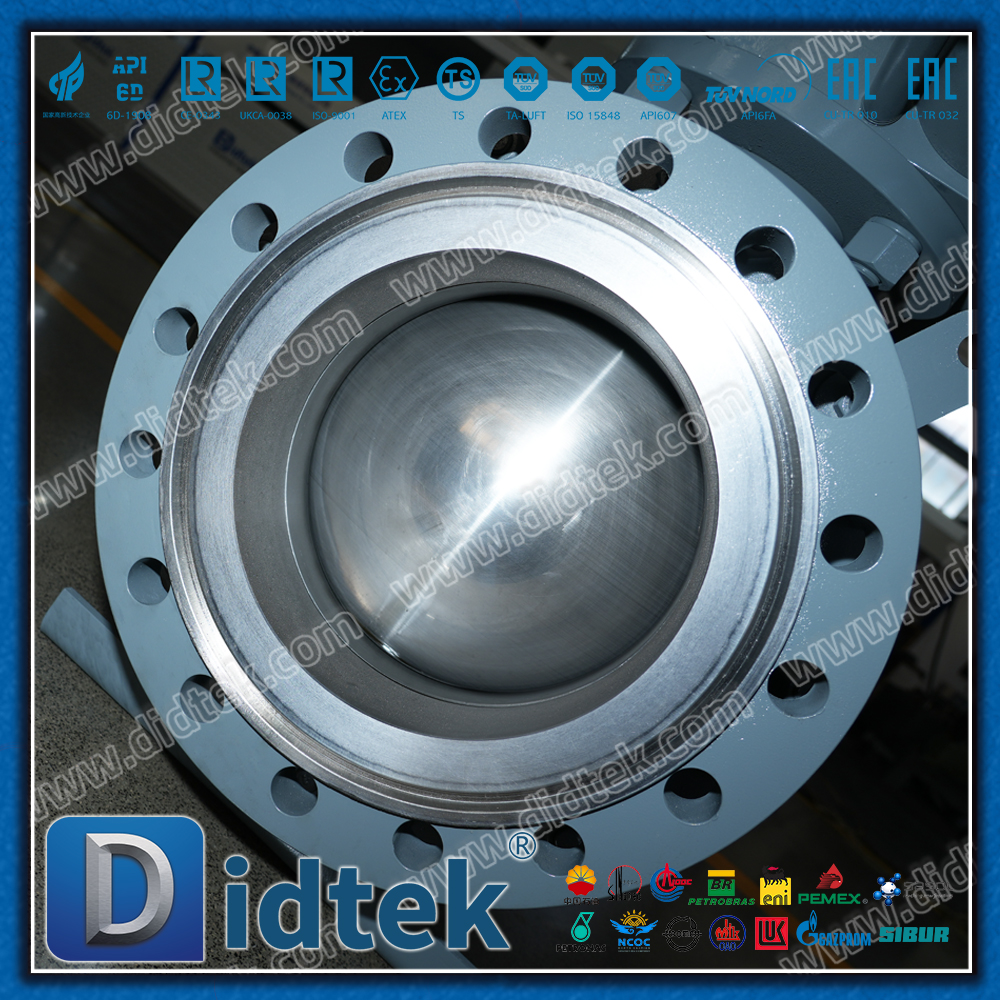

Trunnion-Mounted High Stability: The fixed-ball design minimizes operating torque under extreme pressures and prevents ball displacement during high-velocity offshore fluid surges.

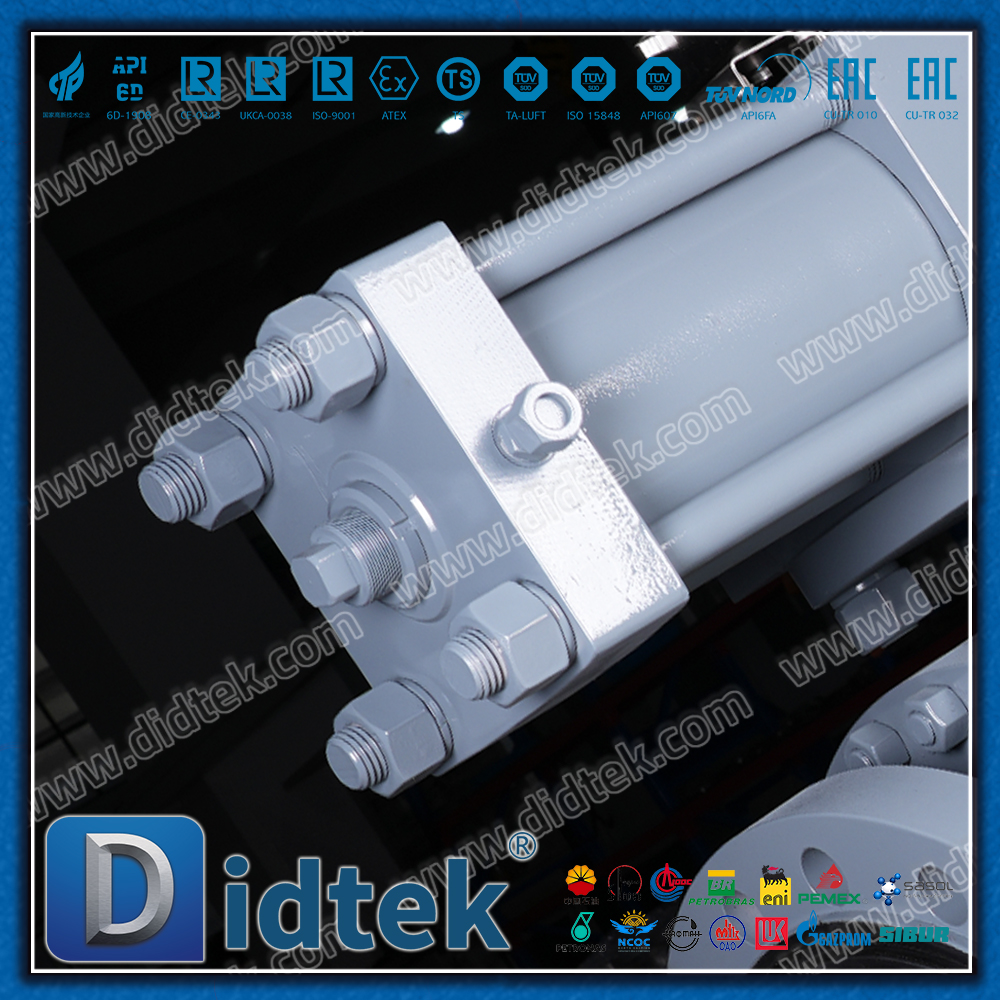

Pneumatic & Hydraulic Actuator Flexibility: Compatible with heavy-duty rack-and-pinion, scotch-yoke pneumatic units, or high-pressure hydraulic cylinders for fast ESD action.
Offshore Corrosion & Safety Compliance: Enhanced with marine epoxy coating systems and certified to API 607 fire-safe and low fugitive emission standards.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Carbon Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Marine Pneumatic Hydraulic Trunnion Ball Valve for Offshore Engineering are widely utilized in demanding environments due to their superior material properties:

Offshore Production & Subsea Manifolds: High-pressure wellhead trees, subsea gathering systems, and main export lines.
FPSO Hydroprocessing & Utility Lines: Crude oil separation, gas treatment, and high-pressure water injection modules on floating vessels.
Emergency Shutdown (ESD) Loops: Critical safety isolation systems requiring dependable, high-speed hydraulic or pneumatic valve closure.
