Q367-320L
DIDTEK
FWBV-FWBV-010
| Availability: | |
|---|---|
| Quantity: | |
Product Detail |

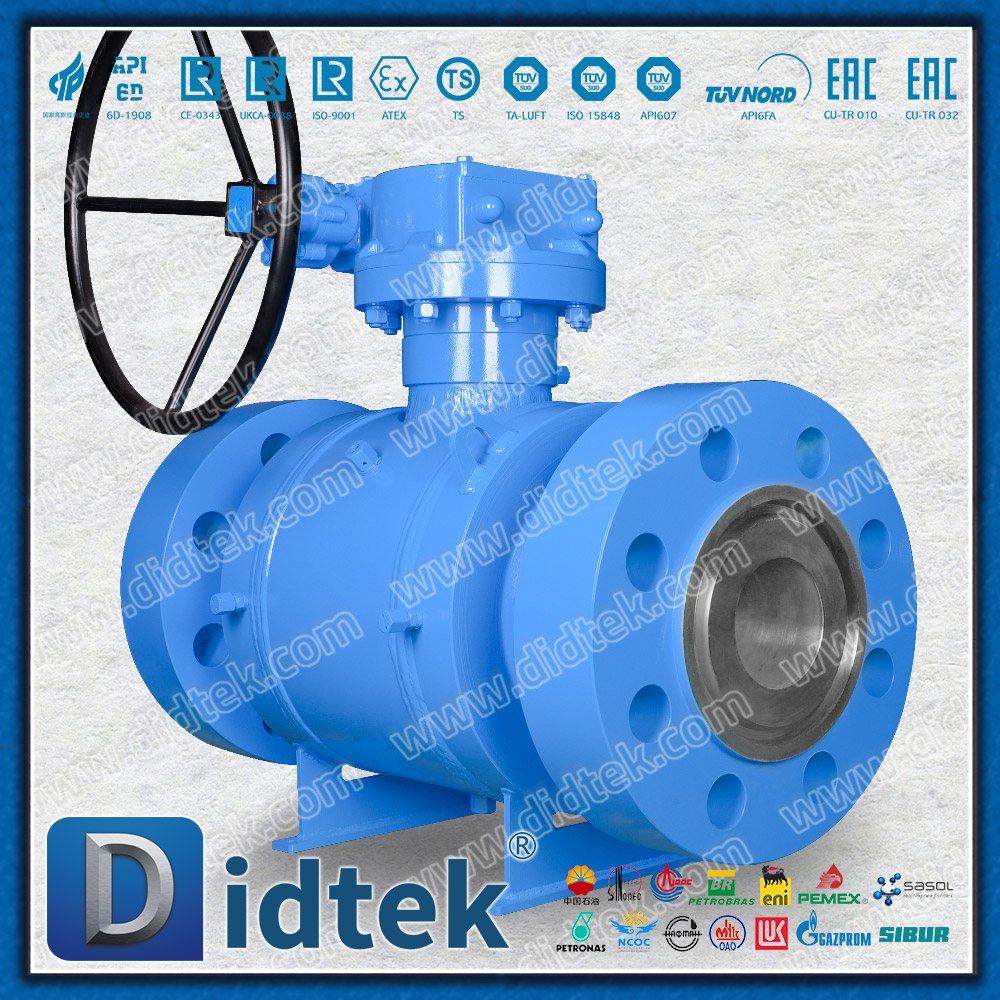

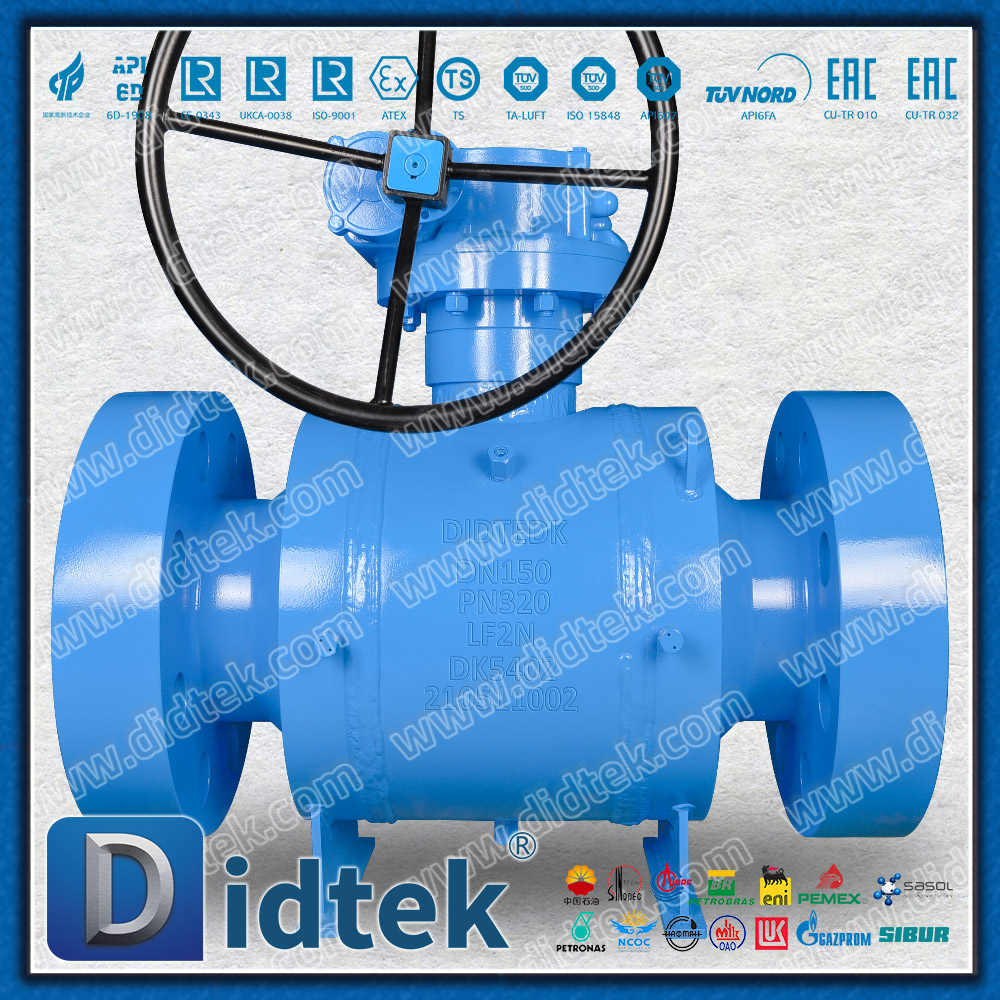

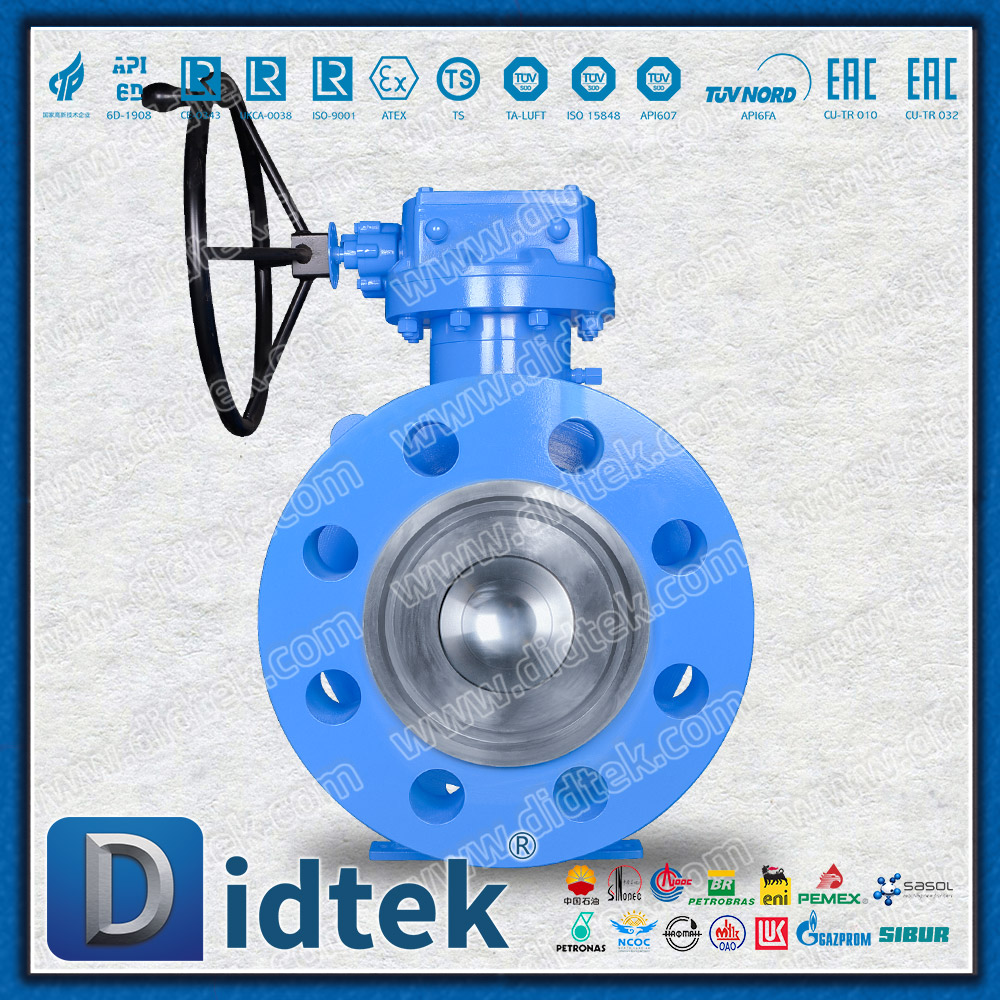

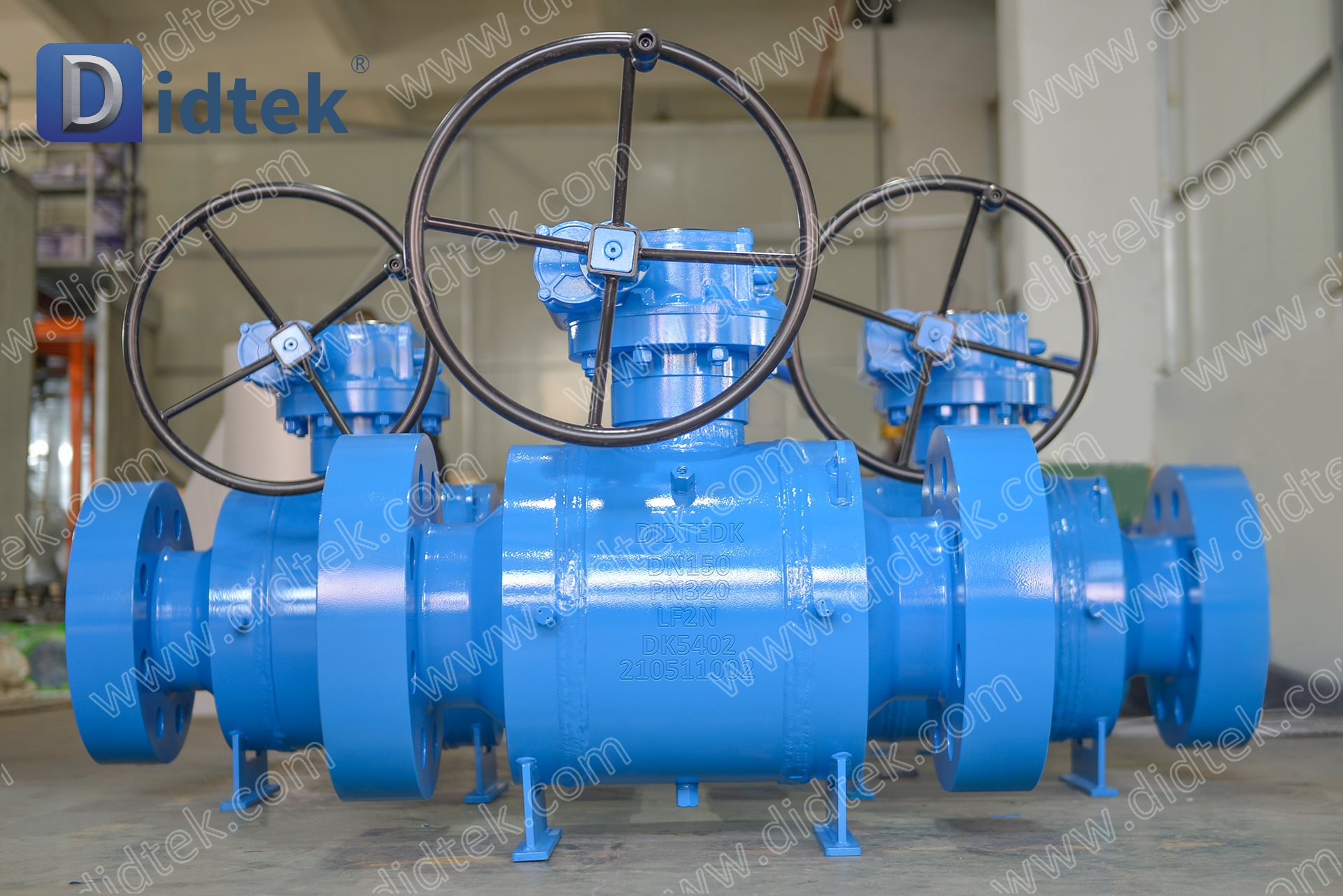

Engineered for durability, the Didtek Forged Trunnion Ball Valve ensures reliable, maintenance-free operation under extreme pressure and temperature.
Product Parameters |
| Parameter Name | Parameter |
| Size Range | 6'' |
| Pressure Range | 2500LB |
| Material | LF2M |
| Seal | Soft Seat: Devlon |
| Temperature Range | -29°C~100°C |
| Design According | API598 |
| End to End Dimension | ASME B16.10 |
| End Flanges | ASME B16.25 |
| End Connection Type | RF |
| Fire Safety | API607 |
| Inspection and Test | API 598 |
| Operate | Bare Stem |
| Body Type | Full Welded Ball Valve |
| Type of Valve | Trunnion Ball Valve |
| Suitable Medium | Water, Natual Gas, Oil and some corrosive liquid |
Design Description
Seamless Fully Welded Body: Eliminates body-joint flange leakage paths entirely, offering maximum structural integrity and making it ideal for direct burial or high-stress transmission lines.
Trunnion-Mounted Fixed Ball: The ball is anchored by upper and lower trunnions, minimizing operating torque under high pressures and ensuring smooth, reliable bi-directional sealing.
Double Block and Bleed (DBB): Provides independent isolation of both upstream and downstream seat lines with a vent or bleed facility in the body cavity for integrity verification.

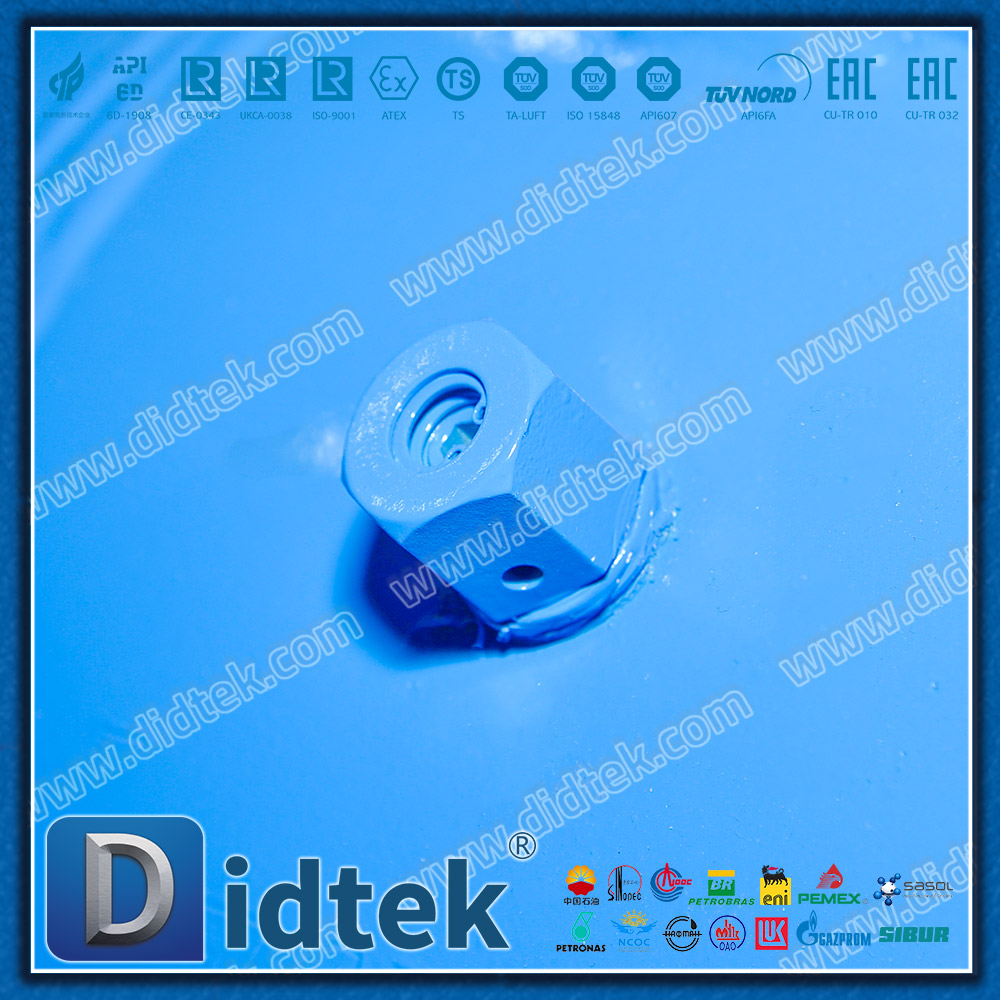

Emergency Sealant Injection: Equipped with emergency grease injection fittings on the stem and seats for quick in-line sealing restoration in case of unexpected seat wear.
Parameters |
| Brand | DIDTEK |
| Structure | Full Welded Ball Valve |
| Material | Aluminum-magnesium series anti-rust aluminum alloy |
| Type | Forged Ball Valve |
| Test | 100% quantity tested before delivery |
| Guarantee | 18 months after shipments and 12 months after installed |
| Delivery | 15 - 60 days |
| Sample | Sample Available by Didtek Valve |
| Color | Customer request |
| Packing | Plywood Case |
| MOQ | 1 Set |
| Certificate | API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc. |
| Place of Origin | Zhejiang, China (Mainland) |
| Delivery Detail | Shipped in 15-30 days after payment |
| Port | Shanghai Or Ningbo |
| Payment Terms | L/C,D/A,D/P,T/T, Western Union |
Application & Function |
Forged Fully Welding Trunnion Ball Valves are widely utilized in demanding environments due to their superior material properties:
Long-Distance Oil & Gas Transmission: Cross-country transmission pipelines handling natural gas, crude oil, and refined products.
City Gas Distribution Networks: Underground main distribution lines, pressure regulating stations, and branch isolation.
Offshore & Onshore Terminals: Bunkering facilities, tank farms, and high-pressure gathering manifolds.
