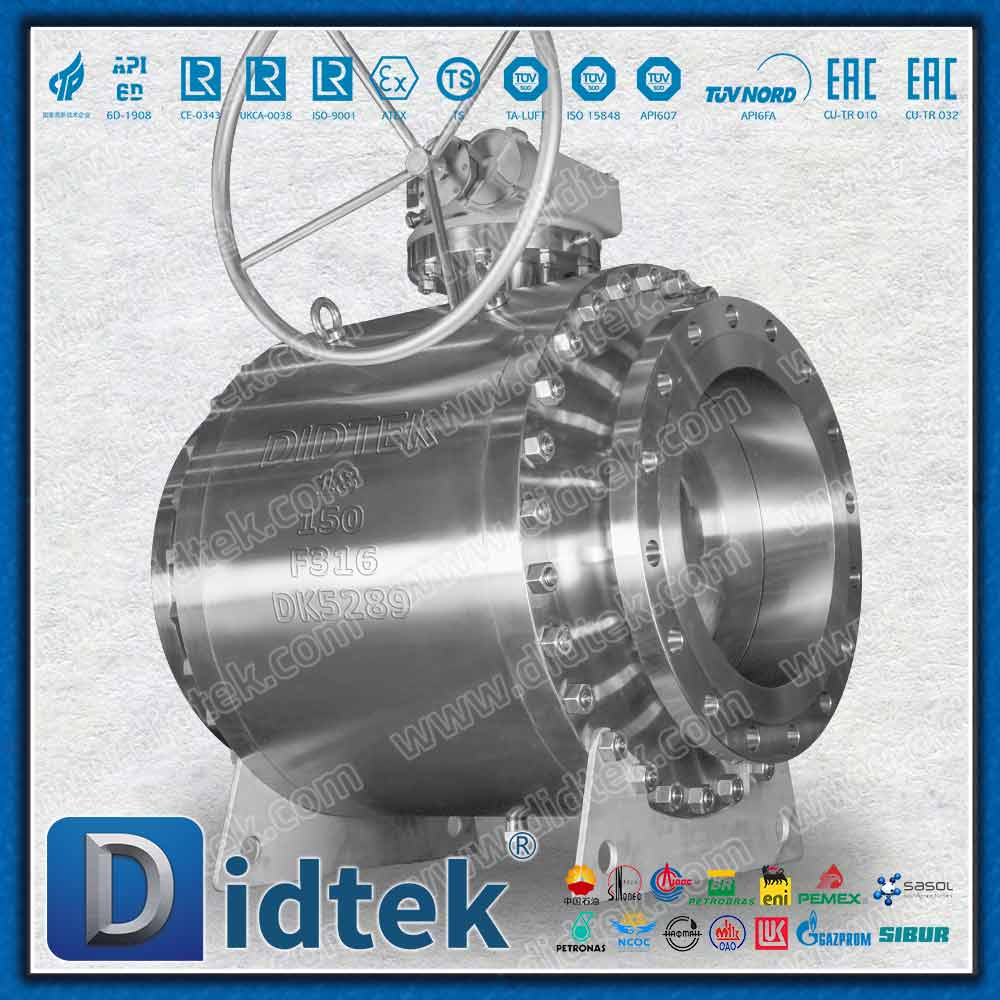

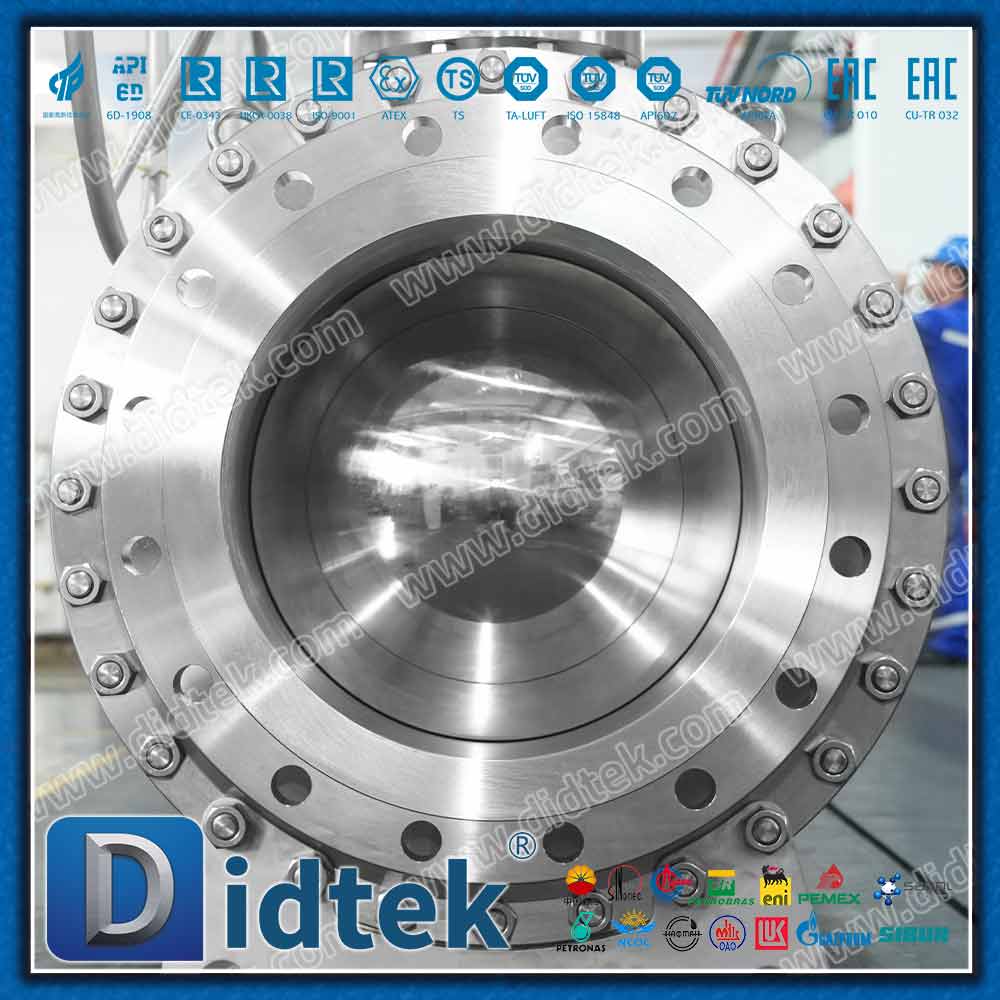

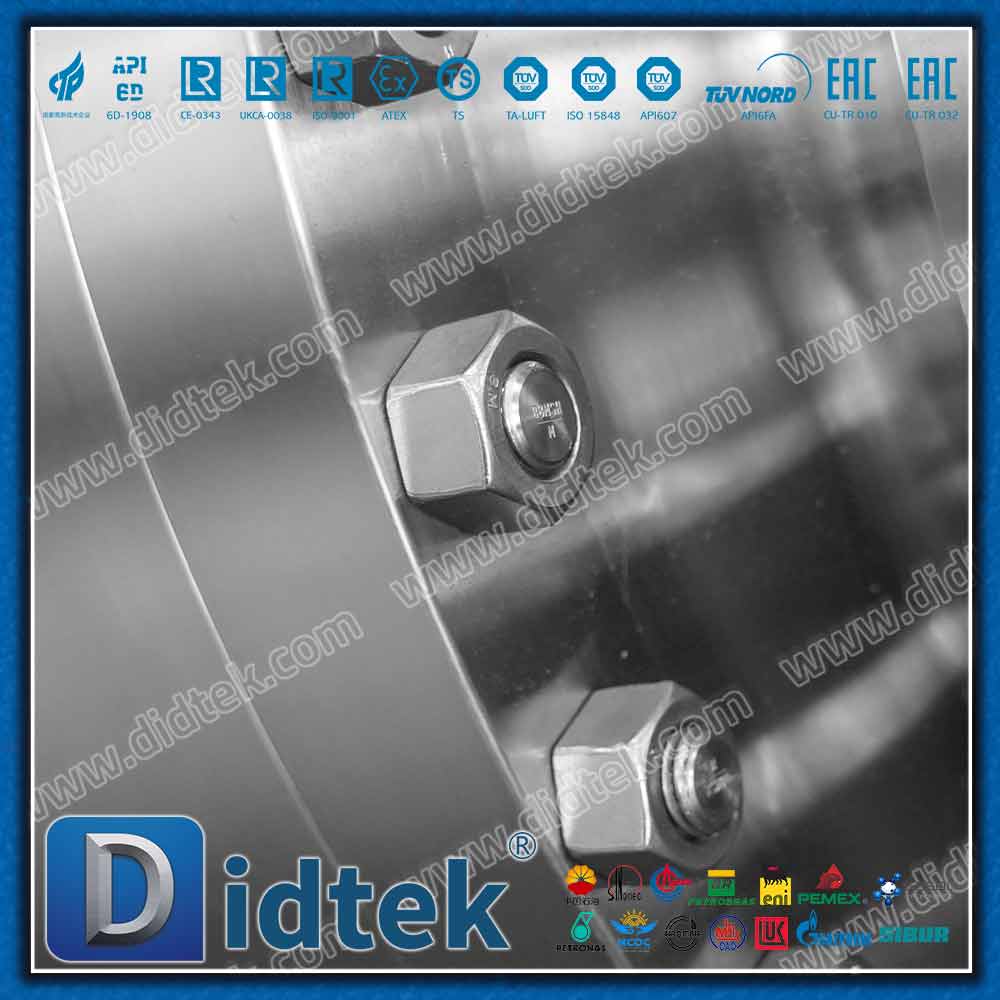

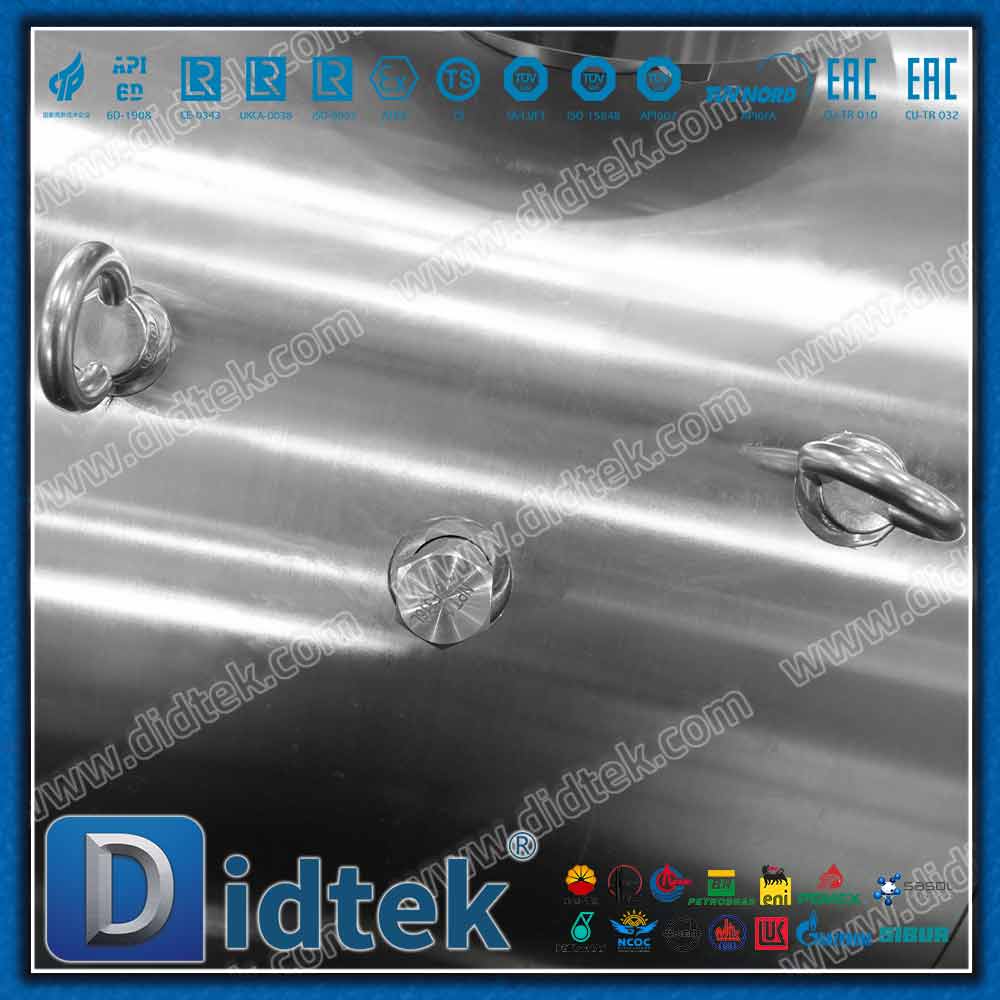

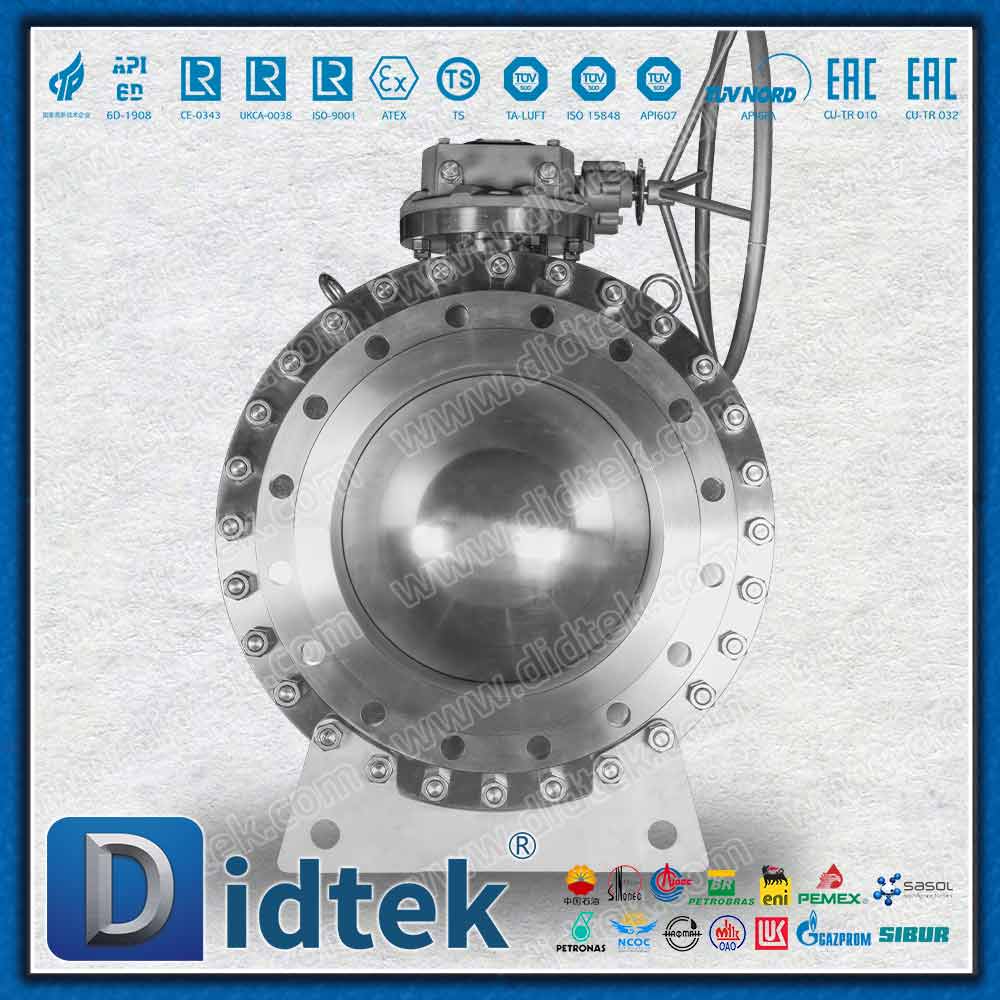

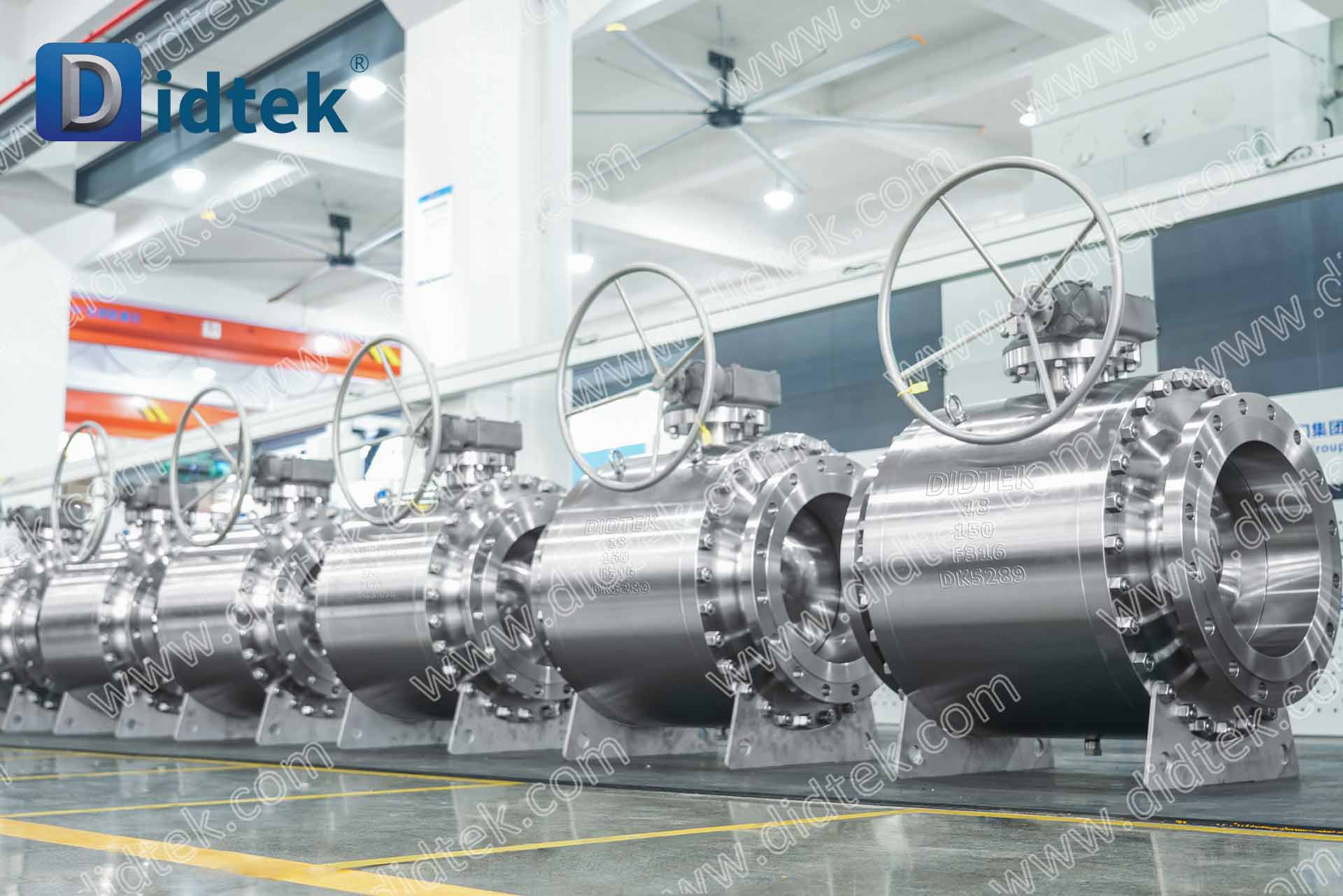

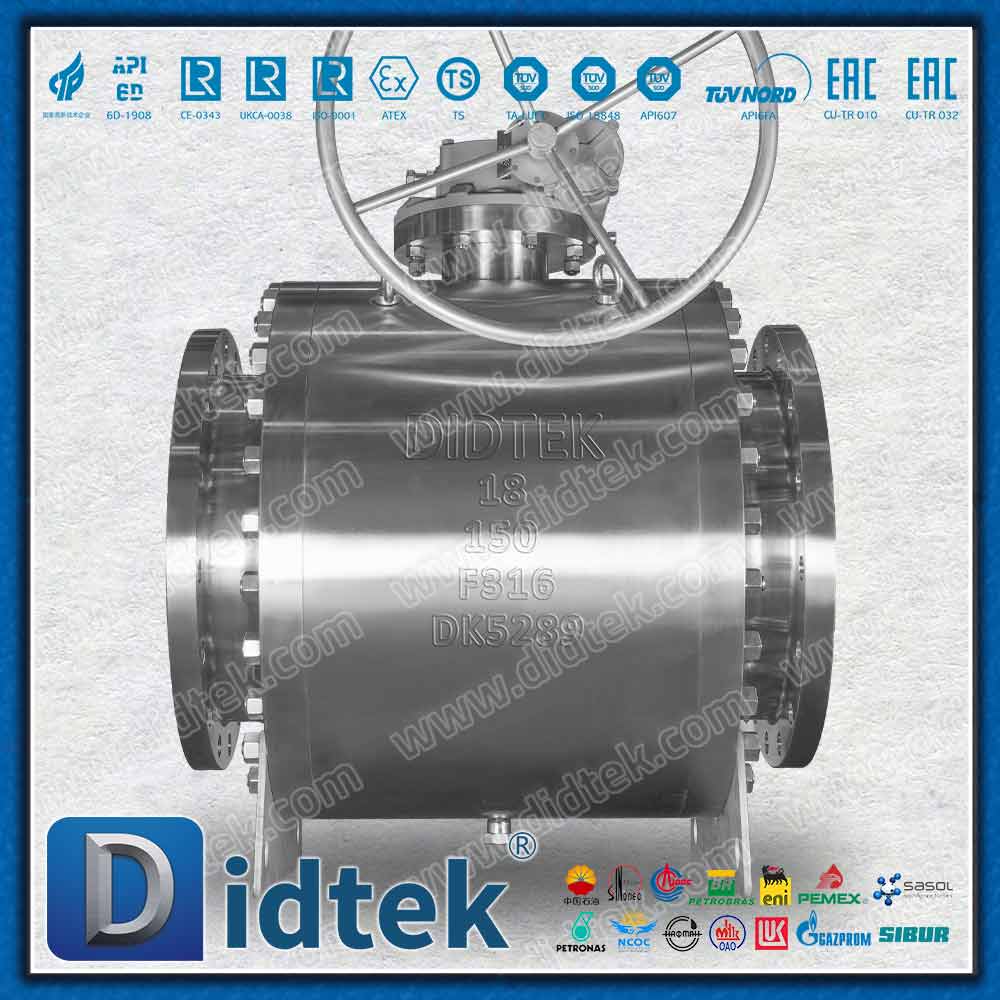

PTFE Elgiloy Marine Engineering FPSO F316 Trunnion Ball Valve

The PTFE Elgiloy Marine Engineering FPSO F316 Trunnion Ball Valve is engineered specifically for the demanding requirements of offshore floating production, storage, and offloading (FPSO) facilities and subsea topside piping.

Model:
Q347F-150LB
Brand:
DIDTEK
Code:
TRBV-FTBV-060

Availability:

Quantity:



Inquire

FPSO Trunnion Ball Valve Marine Engineering Ball Valve Elgiloy Spring Ball Valve F316 Marine Grade Ball Valve PTFE Seated Trunnion Valve

Product Description

Product Parameters

Parameters

Application

Product Detail

The Elgiloy Spring Energized PTFE Lip Seal Trunnion Ball Valve is a state-of-the-art solution designed for high-performance sealing in cryogenic and highly corrosive environments. Unlike traditional O-ring seals that may harden or lose elasticity in extreme cold, the Lip Seal utilizes an Elgiloy spring—a specialized super-alloy with exceptional fatigue resistance—to provide constant energizing force to the PTFE jacket. This ensures a bubble-tight seal from vacuum to high pressure (Class 2500) and in temperatures ranging from -196℃ to +200℃. Its trunnion-mounted design minimizes operating torque, making it the premier choice for LNG, hydrogen, and aggressive chemical services.

Product Parameters

Parameter Name	Parameter
Size Range	18''
Pressure Range	150LB
Material	F316
Seal	Soft Seat: RPTFE
Temperature Range	-75°C~150°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 607 / ISO 10497
Inspection and Test	API 598
Operate	Worm Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil and some corrosive liquid

Design Description

Elgiloy Spring-Energized Seats: The use of Elgiloy (Cobalt-Nickel alloy) spring backing provides superior corrosion resistance, high fatigue strength, and constant seat loading against the ball across wide temperature fluctuations.
Marine-Grade F316 Construction: Forged F316 stainless steel body and trim provide maximum defense against pitting and crevice corrosion in harsh marine salt-spray atmospheres.
Trunnion-Mounted Stability: Fixed-ball design absorbs high pipeline thrusts and prevents ball jamming, ensuring smooth and reliable operation in high-pressure offshore lines.
Fugitive Emission & Fire-Safe Compliance: Certified to API 607 fire-safe standards and engineered with low-emission stem packing to protect marine ecosystems from hydrocarbon leaks.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Austenitic Stainless Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

PTFE Elgiloy Marine Engineering FPSO F316 Trunnion Ball Valve are widely utilized in demanding environments due to their superior material properties:

FPSO Production & Export Lines: Critical oil and gas isolation on floating production vessels.
Offshore Topsides: High-corrosion seawater and hydrocarbon processing on platforms.
Subsea & Marine Terminals: Offshore pipeline manifolds requiring high-reliability and low-maintenance valves.
