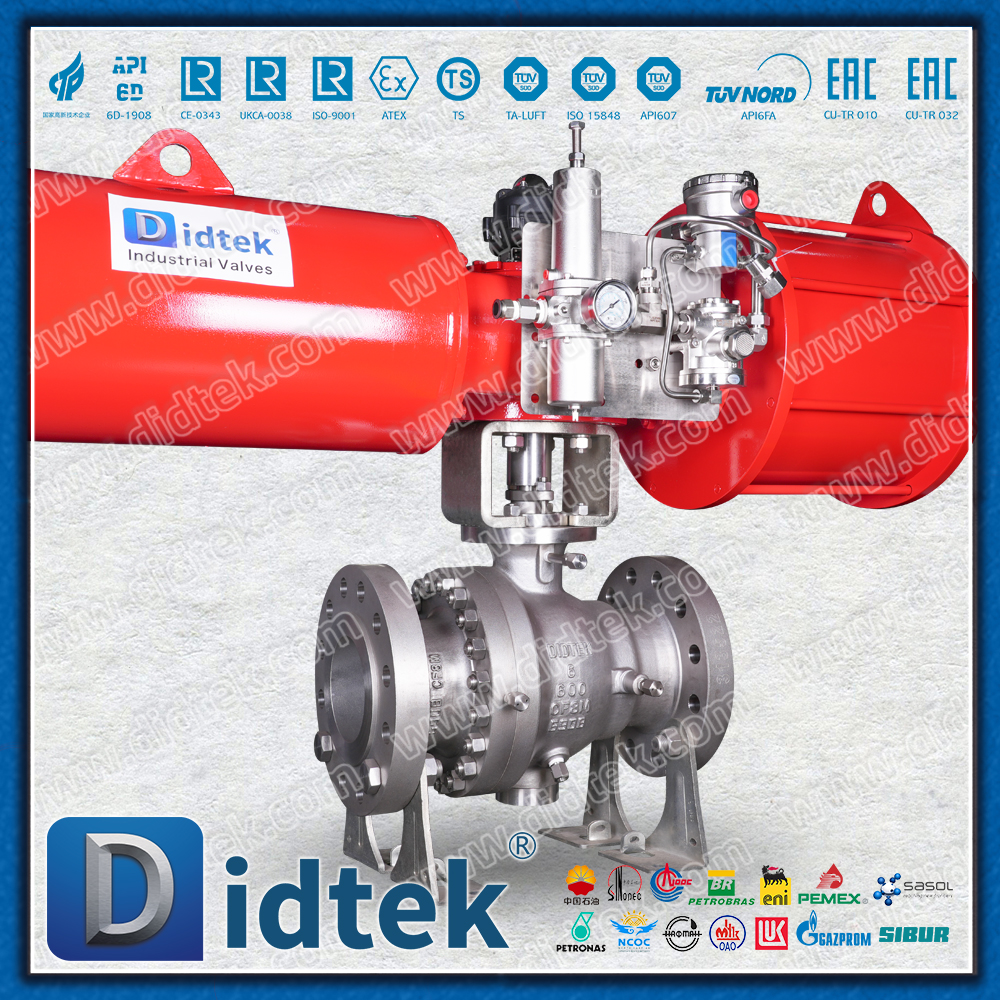

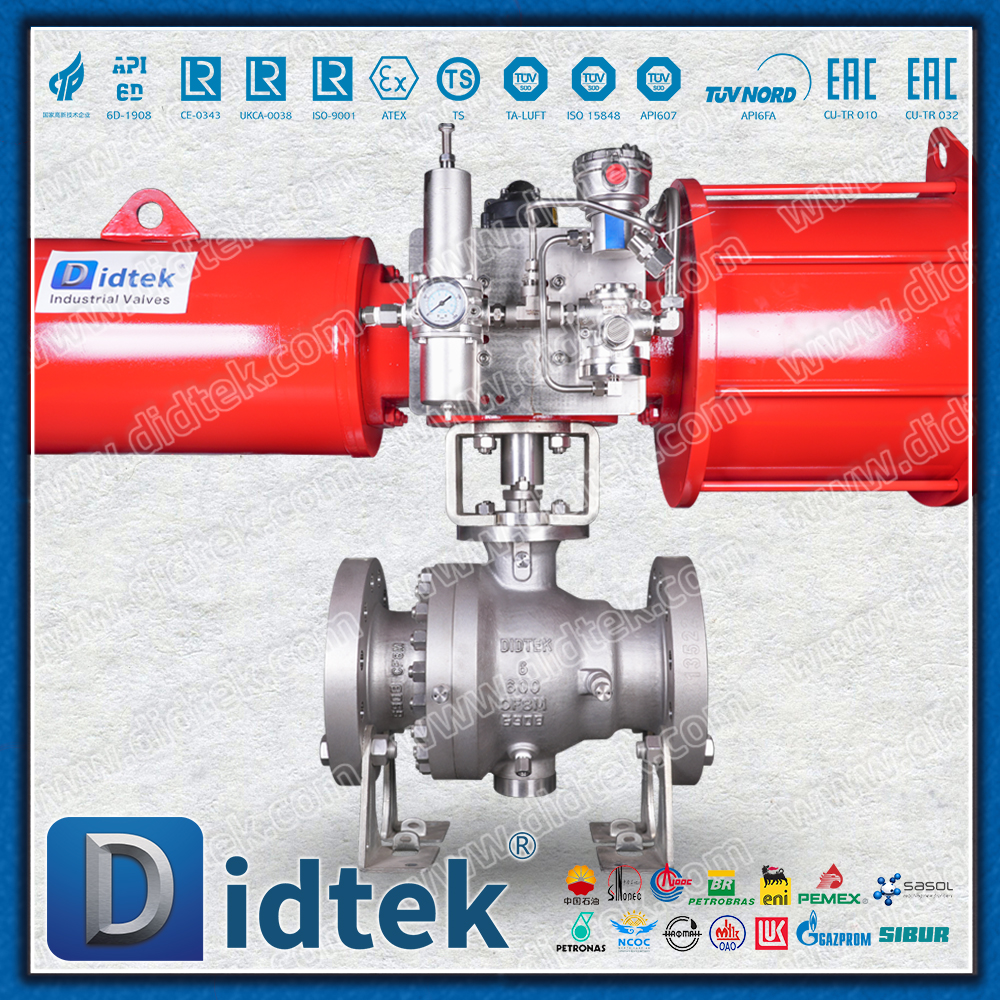

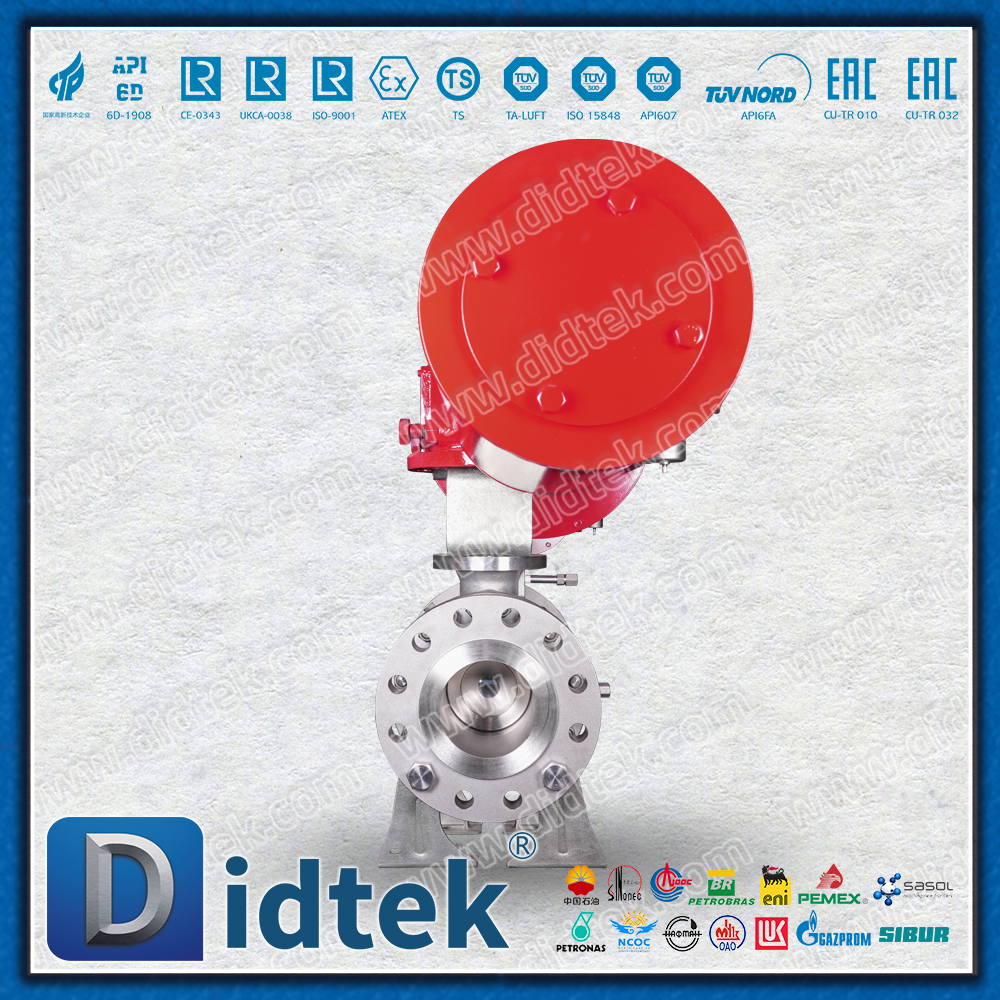

CF8M Full Bore Flange Pneumatic Ball Valve

The CF8M Full Bore Flange Pneumatic Ball Valve is a versatile and reliable automated flow control solution designed for general-to-moderate corrosive industrial applications.

Model:
Q644H-600LBR
Brand:
DIDTEK
Code:
TRBV-CTBV-039

Availability:

Quantity:



Inquire

cf8m ball valve Full Bore Pneumatic Ball Valve Stainless Steel Flanged Ball Valve Pneumatic Actuated 316 Ball Valve API / ISO Standard Flanged Ball Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

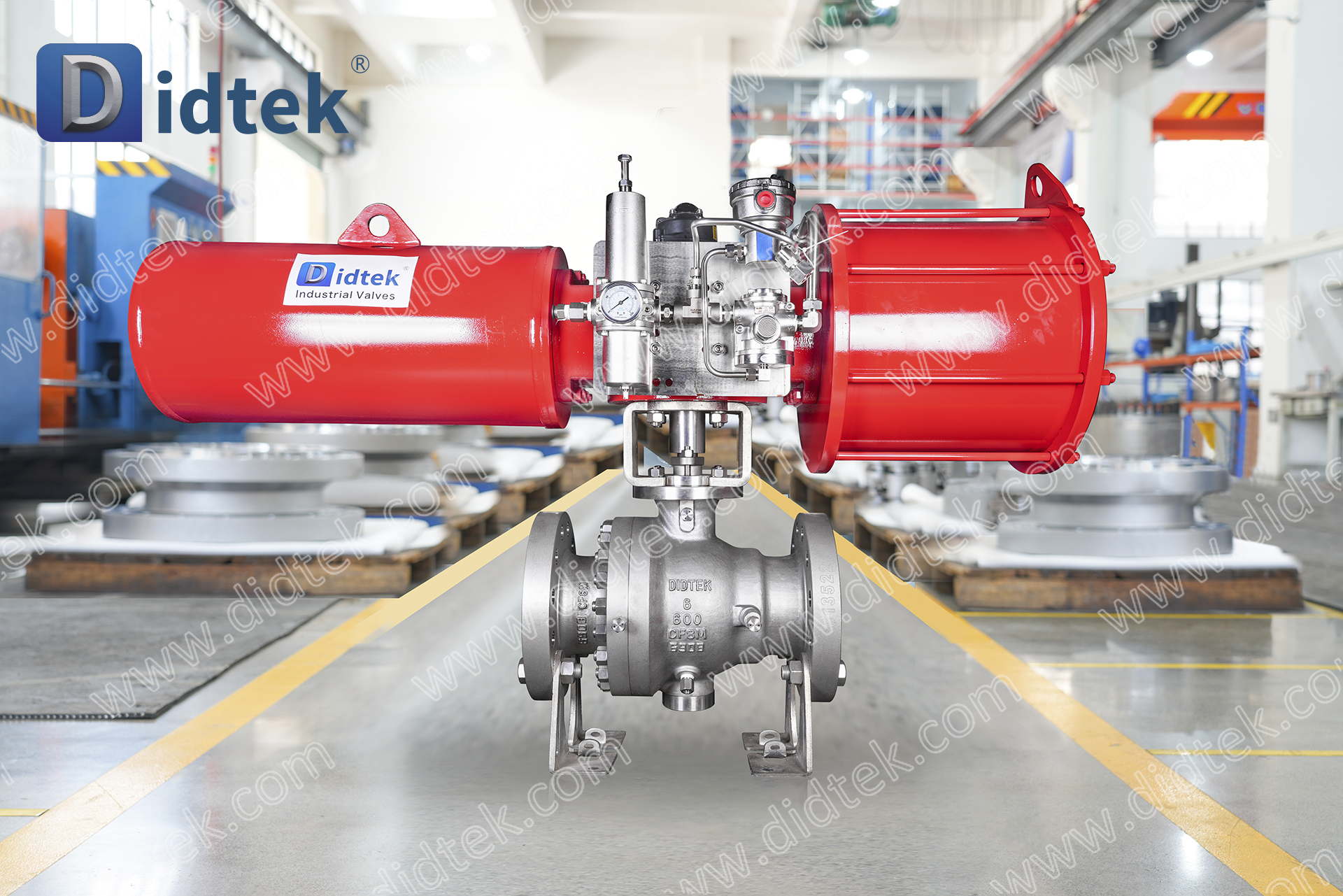

The CF8M Full Bore Flange Pneumatic Ball Valve is a versatile and reliable automated flow control solution designed for general-to-moderate corrosive industrial applications. Constructed from high-quality ASTM A351 CF8M (316 Stainless Steel), the valve offers excellent resistance to organic acids, chemical solutions, and atmospheric corrosion. The Full Bore design ensures maximum flow capacity with minimal pressure drop, making it ideal for viscous fluids or lines requiring pigging. Powered by a high-performance Pneumatic Actuator (available in double-acting or spring-return configurations), this valve delivers rapid emergency shut-off and precise automated operation. Didtek CF8M Full Bore Flange Pneumatic Ball Valve

Product Parameters

Parameter Name	Parameter
Size Range	6''
Pressure Range	600LB
Material	CF8M
Seal	Soft Seat: PEEK
Temperature Range	-29°C~204°C
Design According	API 6D
Face to Face	ASME B16.10

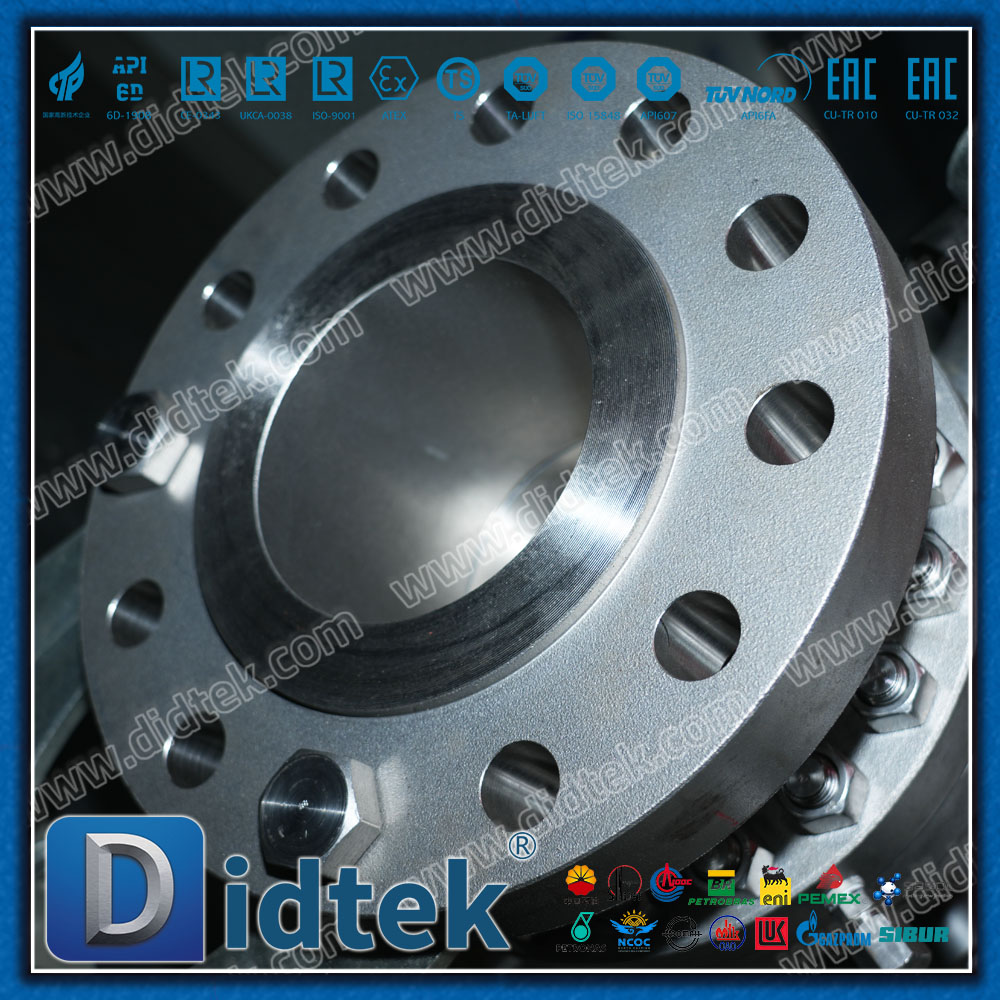

End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598
Operate	Pneumatic
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Oil, Gas

Design Description

CF8M Cast Stainless Steel: Excellent corrosion and temperature resistance, making it the industry standard for chemical and water treatment processing.
Full Bore Flow Design: The inner diameter of the ball matches the pipeline, eliminating flow restriction and reducing energy consumption.

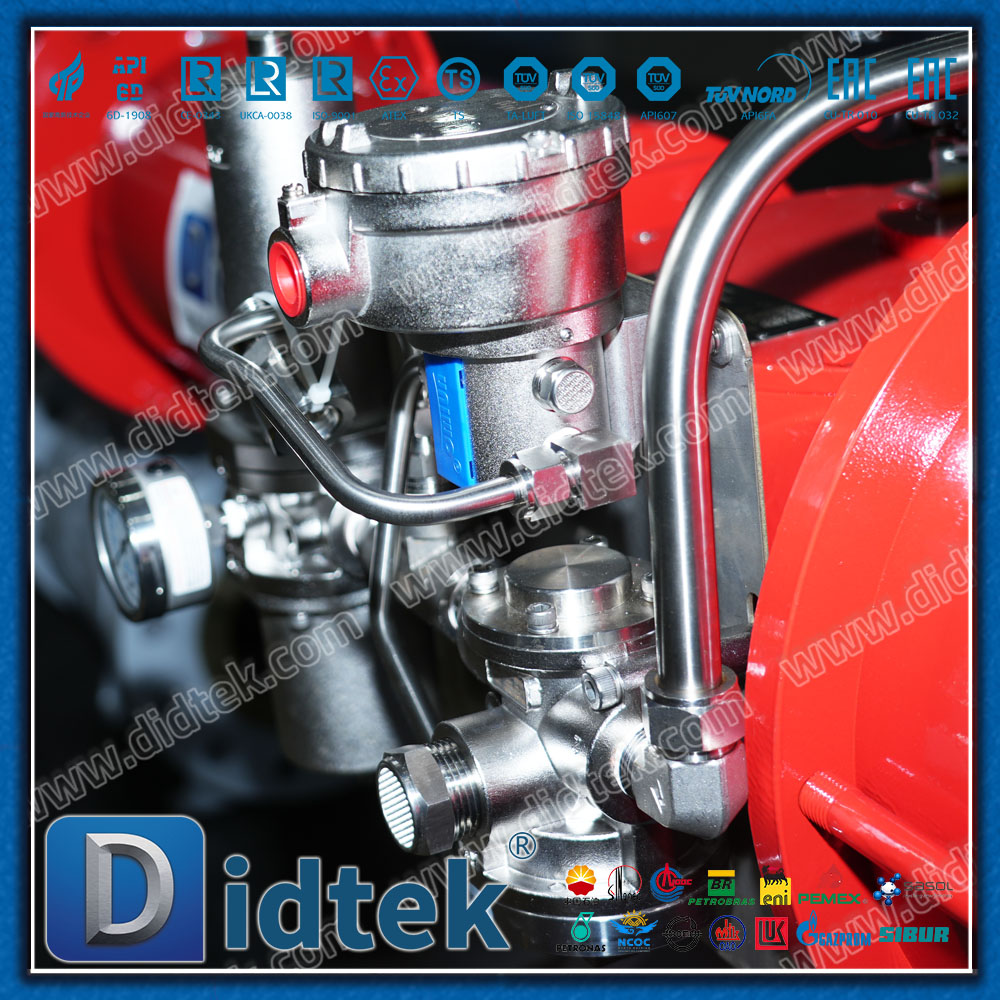

Reliable Pneumatic Actuation: Rack-and-pinion pneumatic actuators provide quick response times, high cycle life, and easy integration with accessories like solenoid valves and limit switch boxes.
Anti-Blowout Stem & Fire-Safe Design: Engineered with safety features to prevent stem ejection under pressure and maintain seal integrity in case of external fire.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	CF8M
Type	Cast Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Intelligent Electric Operator CD4MCU Ball Valve With Control Box are widely utilized in demanding environments due to their superior material properties:

Chemical & Petrochemical: General chemical fluid isolation and corrosive liquid processing.
Water & Wastewater Treatment: Desalination plants, municipal water supply, and sewage systems.
Food & Beverage / Pharmaceuticals: Clean fluid transport requiring stainless steel hygiene standards.
