QW347-20316Ti
DIDTEK
FWBV-FWBV-008
| Availability: | |
|---|---|
| Quantity: | |
Product Detail |

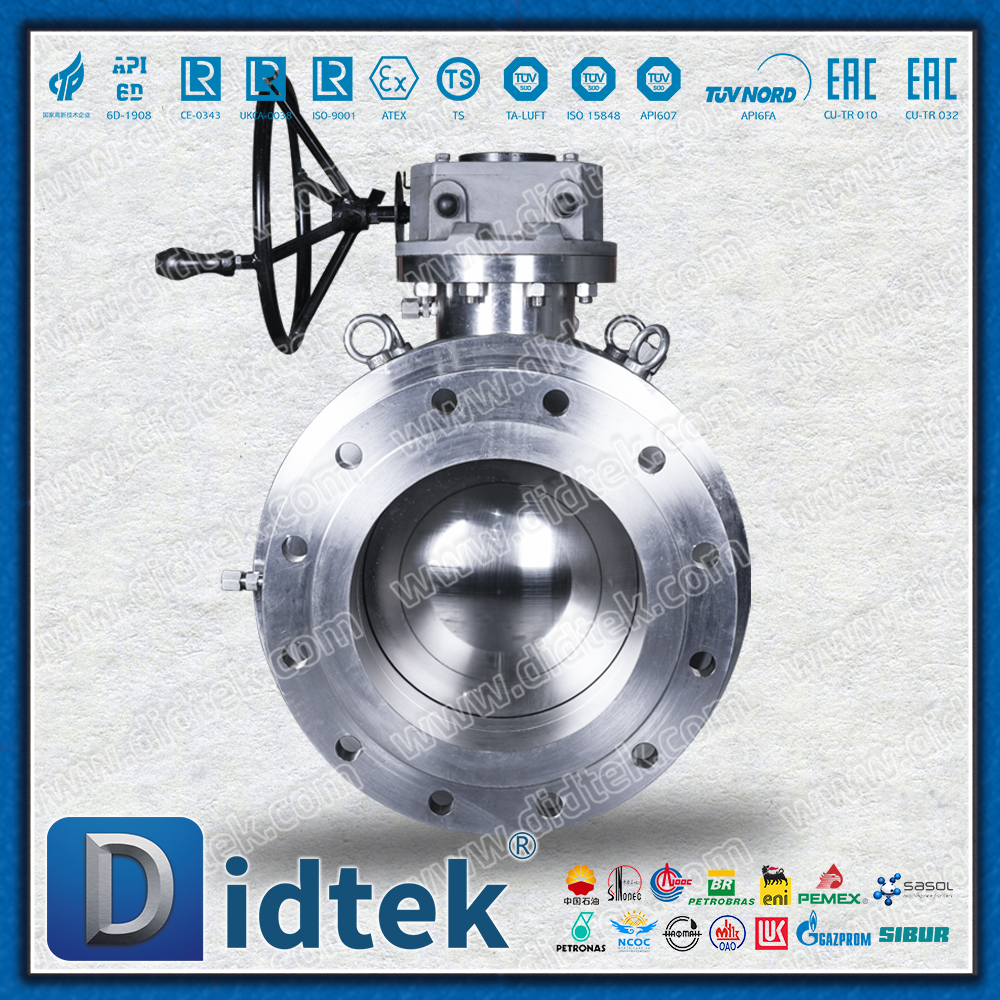

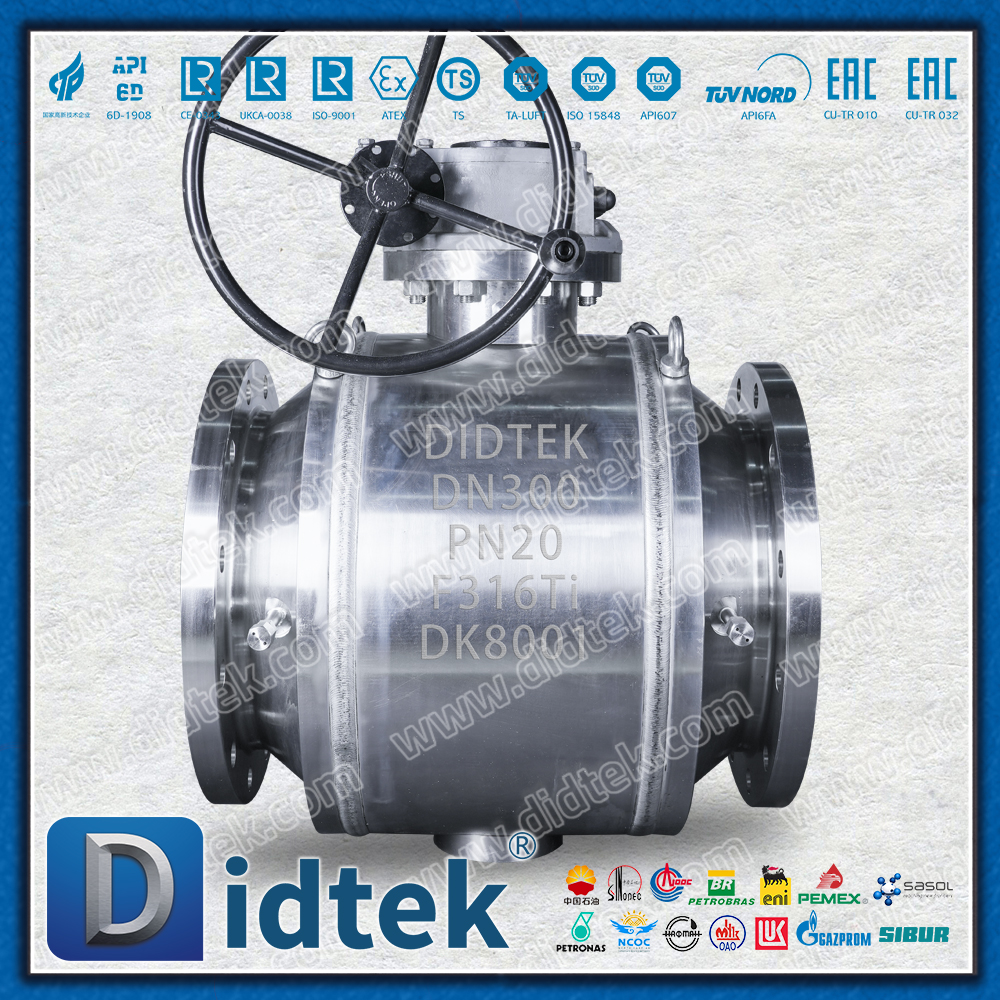

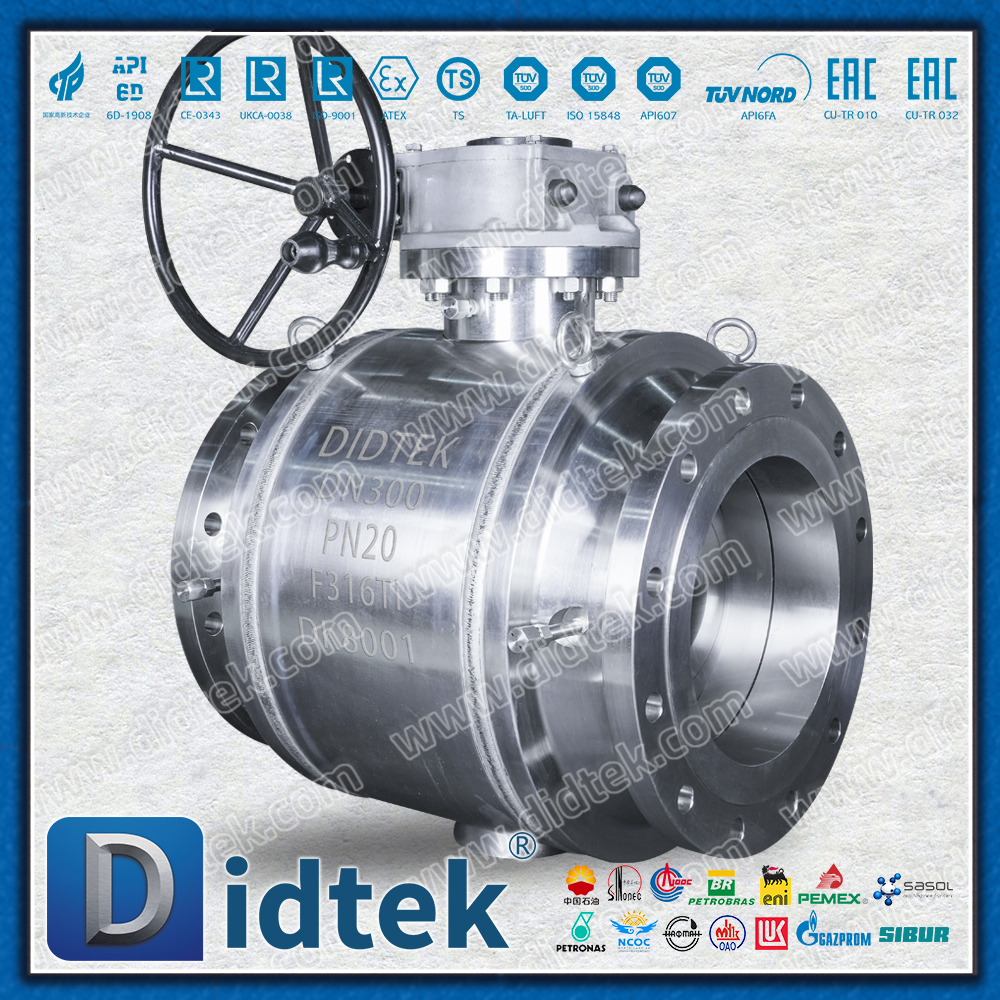

The Fully Welded Trunnion Ball Valve with F316Ti Body & HNBR Seat is an elite, corrosion-resistant isolation solution engineered specifically for sour gas pipelines, aggressive hydrocarbon processing, and high-integrity industrial transport systems.
Product Parameters |
| Parameter Name | Parameter |
| Size Range | 12'' |
| Pressure Range | 2500LB |
| Material | LF2M |
| Seal | Soft Seat: Devlon |
| Temperature Range | -29°C~100°C |
| Design According | API598 |
| End to End Dimension | ASME B16.10 |
| End Flanges | ASME B16.25 |
| End Connection Type | RF |
| Fire Safety | API607 |
| Inspection and Test | API 598 |
| Operate | Bare Stem |
| Body Type | Full Welded Ball Valve |
| Type of Valve | Trunnion Ball Valve |
| Suitable Medium | Water, Natual Gas, Oil and some corrosive liquid |
Design Description
F316Ti Stabilized Stainless Steel Body: Titanium-stabilized austenitic stainless steel ensures high resistance to intergranular corrosion and enhanced stability in chemical and marine environments.
HNBR High-Performance Seats: Hydrogenated Nitrile seats offer superior mechanical strength, abrasion resistance, and excellent resistance to sour gas ($H_2S$), crude oil, and amine solutions.
Seamless Fully Welded Construction: Completely eliminates body-joint flanges, preventing external leak paths and providing maximum structural rigidity against pipeline bending loads.
Trunnion-Mounted Fixed Ball & DBB: Anchored ball reduces operating torque under pressure, while double block and bleed capability ensures reliable independent isolation.
Parameters |
| Brand | DIDTEK |
| Structure | Full Welded Ball Valve |
| Material | Aluminum-magnesium series anti-rust aluminum alloy |
| Type | Forged Ball Valve |
| Test | 100% quantity tested before delivery |
| Guarantee | 18 months after shipments and 12 months after installed |
| Delivery | 15 - 60 days |
| Sample | Sample Available by Didtek Valve |
| Color | Customer request |
| Packing | Plywood Case |
| MOQ | 1 Set |
| Certificate | API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc. |
| Place of Origin | Zhejiang, China (Mainland) |
| Delivery Detail | Shipped in 15-30 days after payment |
| Port | Shanghai Or Ningbo |
| Payment Terms | L/C,D/A,D/P,T/T, Western Union |
Application & Function |
Fully Welded Trunnion Ball Valve with F316Ti Body & HNBR Seat :
Sour Gas & Upstream Oil Fields: High-pressure gathering lines and transmission networks handling $H_2S$-containing hydrocarbon streams.
Petrochemical & Chemical Processing: Corrosive chemical transport, amine units, and aggressive refinery streams requiring stainless steel metallurgy.
Offshore Platforms & Marine Pipelines: Topsides processing manifolds and subsea-tied pipeline installations demanding superior corrosion resistance.
