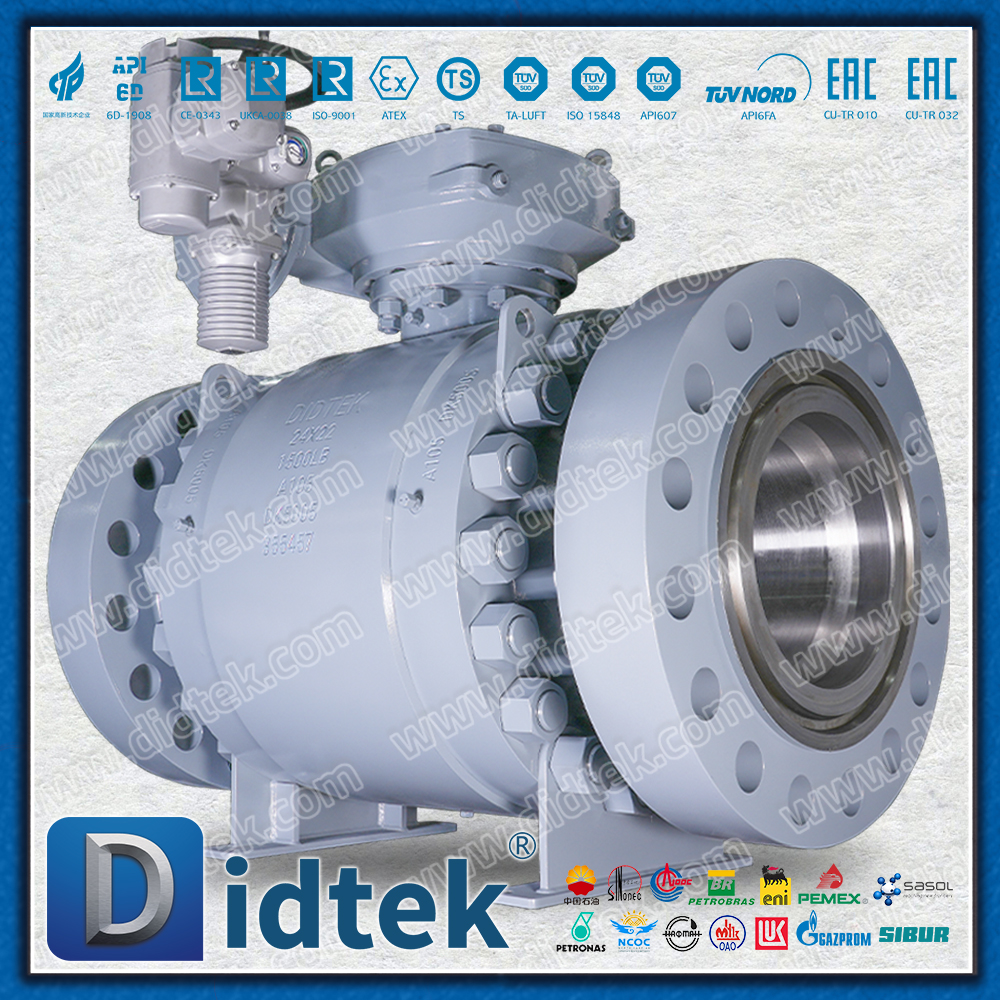

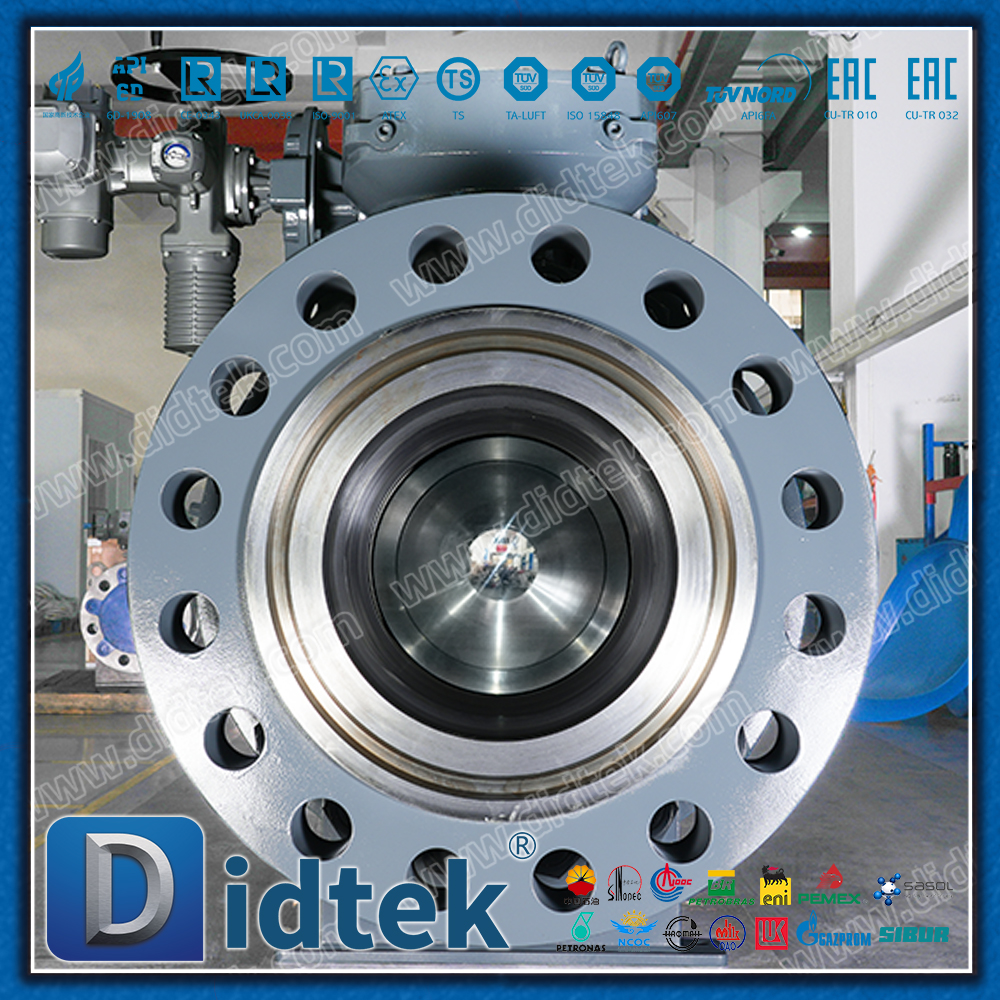

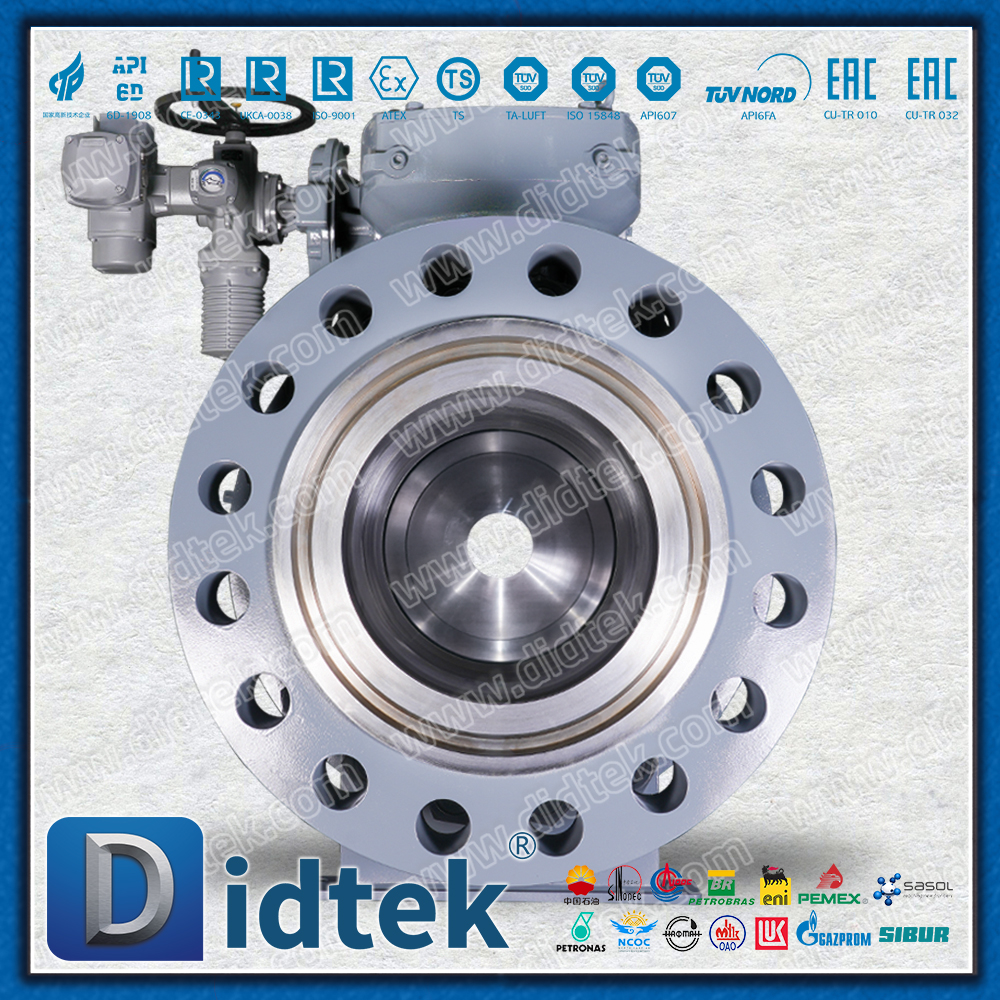

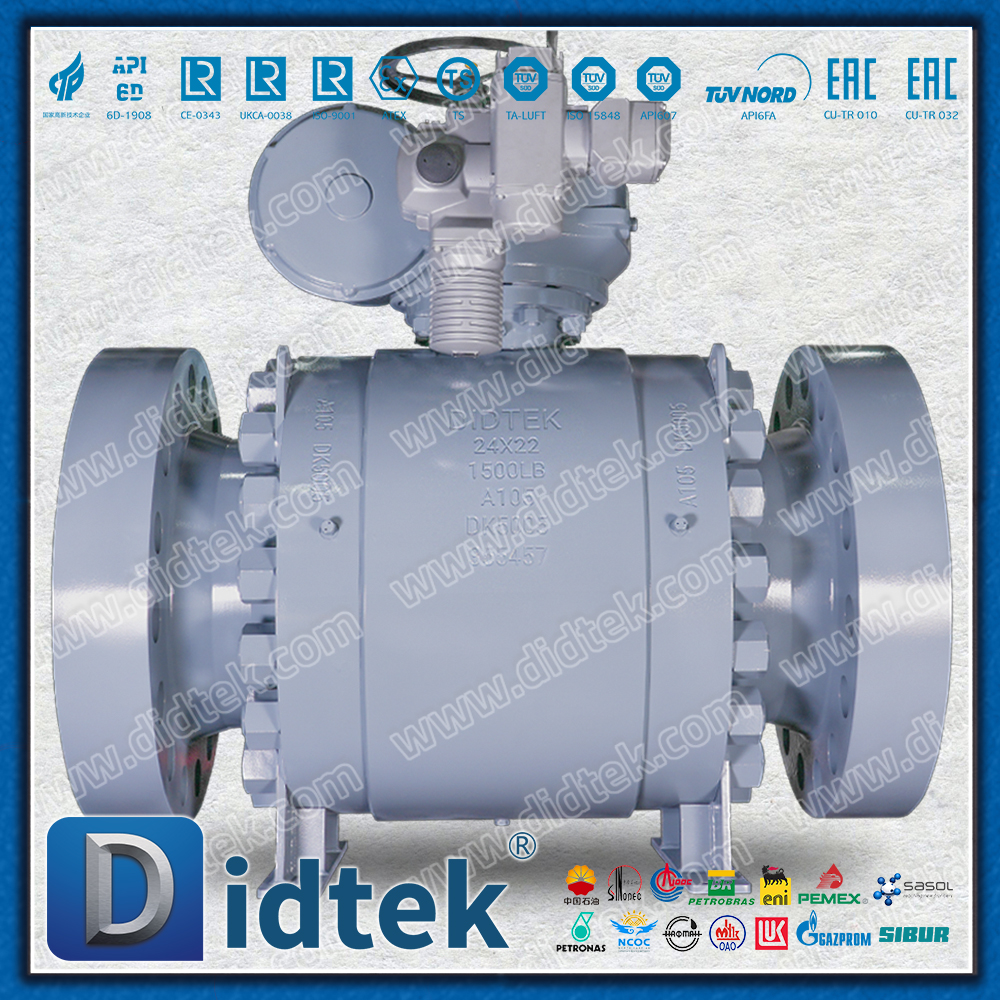

ESD Marine Engineering Trunnion Mounted Auma Electric Ball Valve For High Pressure Gas

The ESD Marine Engineering Trunnion Mounted Auma Electric Ball Valve for High Pressure Gas is an elite, severe-service Emergency Shutdown (ESD) automated control valve assembly engineered specifically for offshore oil and gas platforms, FPSO vessels, subsea tie-backs, and high-pressure natural gas processing facilities.

Model:
Q947F-1500LBC
Brand:
DIDTEK
Code:
TRBV-FTBV-062

Availability:

Quantity:



Inquire

Auma Electric Actuated Ball Valve ESD Marine Ball Valve High Pressure Gas Trunnion Ball Valve Offshore Emergency Shutdown Valve SIL 3 Auma Ball Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

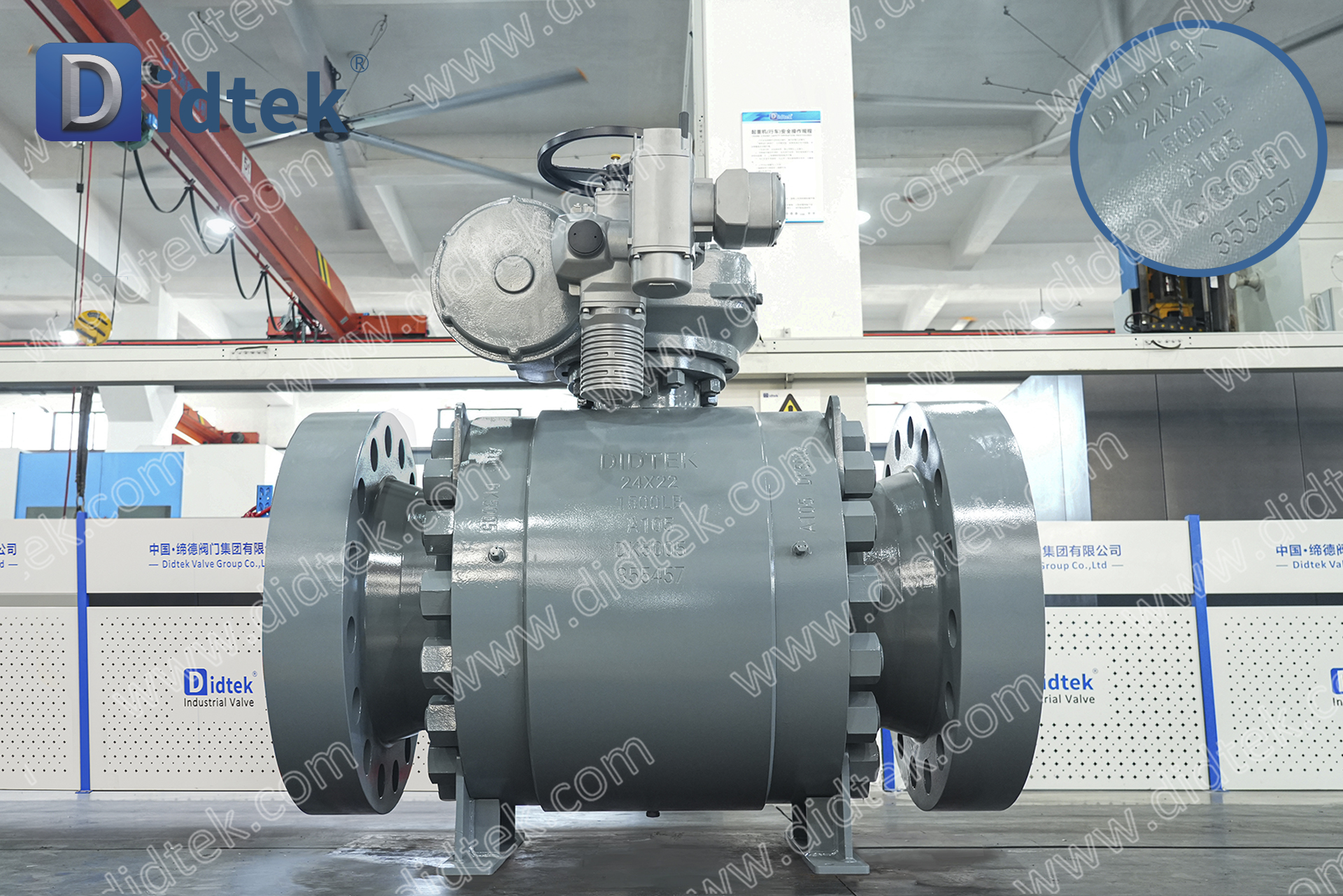

The ESD Marine Engineering Trunnion Mounted Auma Electric Ball Valve for High Pressure Gas is an elite, severe-service Emergency Shutdown (ESD) automated control valve assembly engineered specifically for offshore oil and gas platforms, FPSO vessels, subsea tie-backs, and high-pressure natural gas processing facilities. B-62 DIDTEKFTBV - ESD Marine Engineering Trunnion Mounted Auma Elec

Product Parameters

Parameter Name	Parameter
Size Range	24"×22"
Pressure Range	1500LB
Material	A105
Seal	Soft Seat: Devlon
Temperature Range	-29°C~100°C
Design According	API6D
End to End Dimension	ASME B16.10
End Flanges	ASME B16.25
End Connection Type	RF
Fire Safety	API607
Inspection and Test	API 598
Operate	Bare Stem
Body Type	Full Welded Ball Valve
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Natual Gas, Oil and some corrosive liquid

Design Description

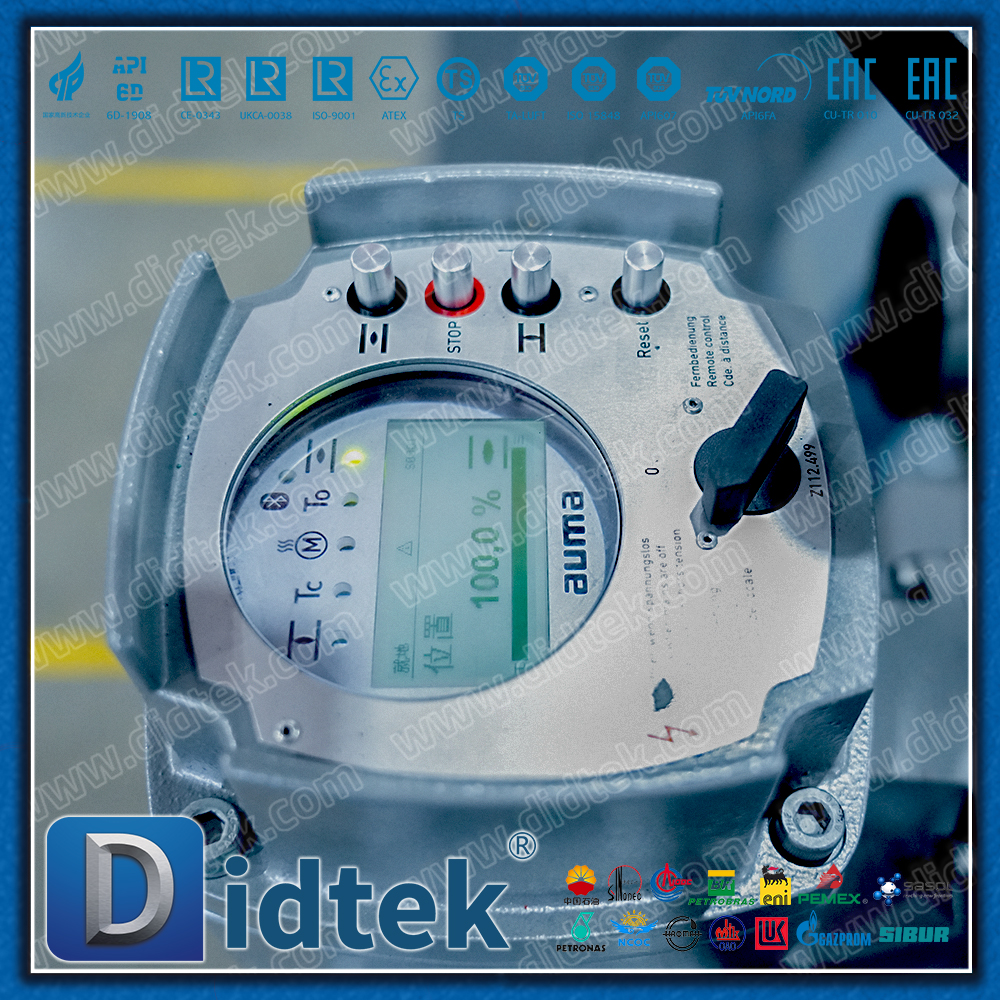

Auma SIL-Certified Explosion-Proof Actuation: Powered by Auma intelligent explosion-proof electric actuators (ATEX/IECEx certified) with AC-SIL control logic and FQM mechanical spring return for fail-safe ESD performance.
High-Pressure Trunnion Mounted Architecture: Dual-supported fixed ball design minimizes operating torque under Class 900–2500 differential gas pressures, ensuring ultra-fast and smooth actuation.
Marine & Sour Gas Compliance: Designed in full accordance with NACE MR0175 / ISO 15156 for sour $H_2S$ gas service and coated with C5-M marine heavy-duty corrosion protection systems.
Fire-Safe & Low Fugitive Emission Integrity: Certified to API 607 / API 6FA fire-safe standards and ISO 15848-1 Class AH low emission requirements, preventing hazardous gas releases.

Parameters

Brand	DIDTEK
Structure	Full Welded Ball Valve
Material	Aluminum-magnesium series anti-rust aluminum alloy
Type	Forged Trunnion Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Devlon Soft Seated Reduced-Bore Trunnion Ball Valve With NACE Standard are widely utilized in demanding environments due to their superior material properties:

Offshore Platform Emergency Shutdown (ESD): Wellhead isolation, riser shut-off, and main hydrocarbon export lines on platforms.
FPSO Gas Processing Modules: High-pressure natural gas compression, dehydration, and gas lift skids on floating production units.
High-Pressure Gas Transmission & Terminals: Offshore gas receiving terminals, subsea manifold isolation, and high-pressure metering stations.
