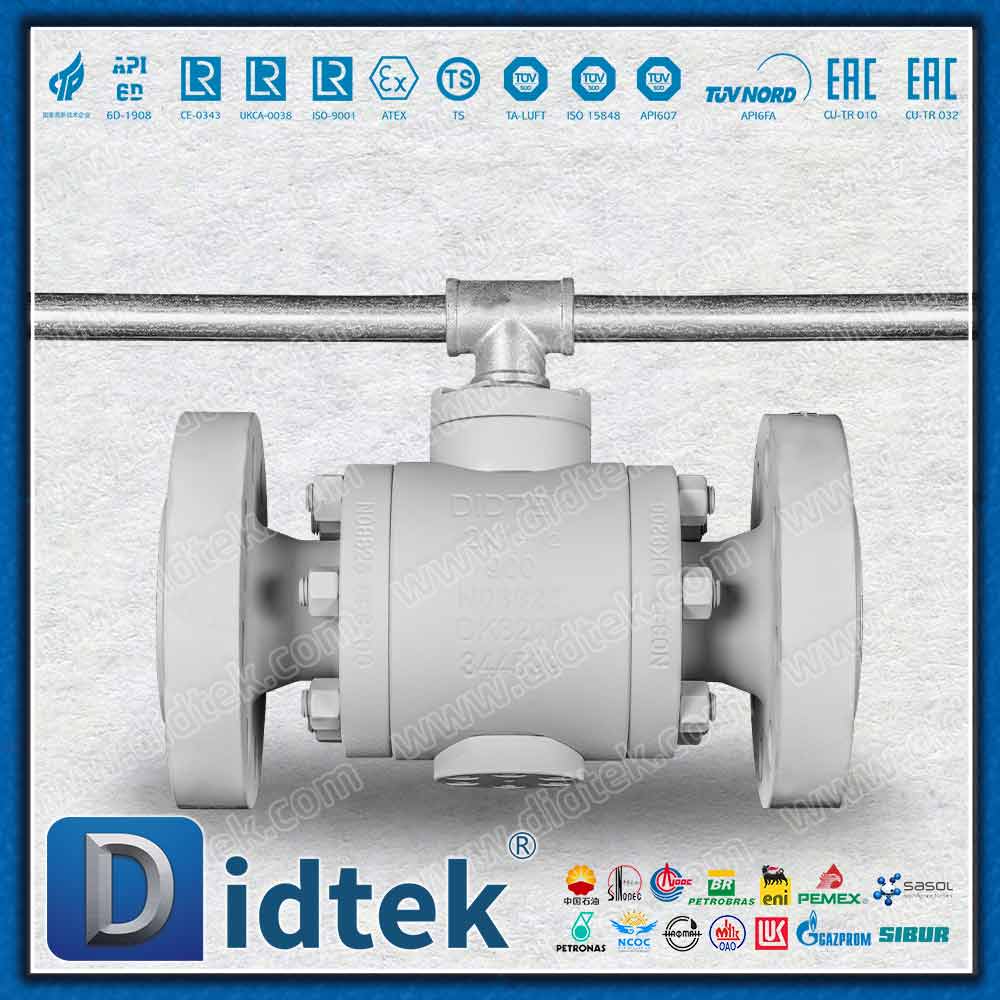

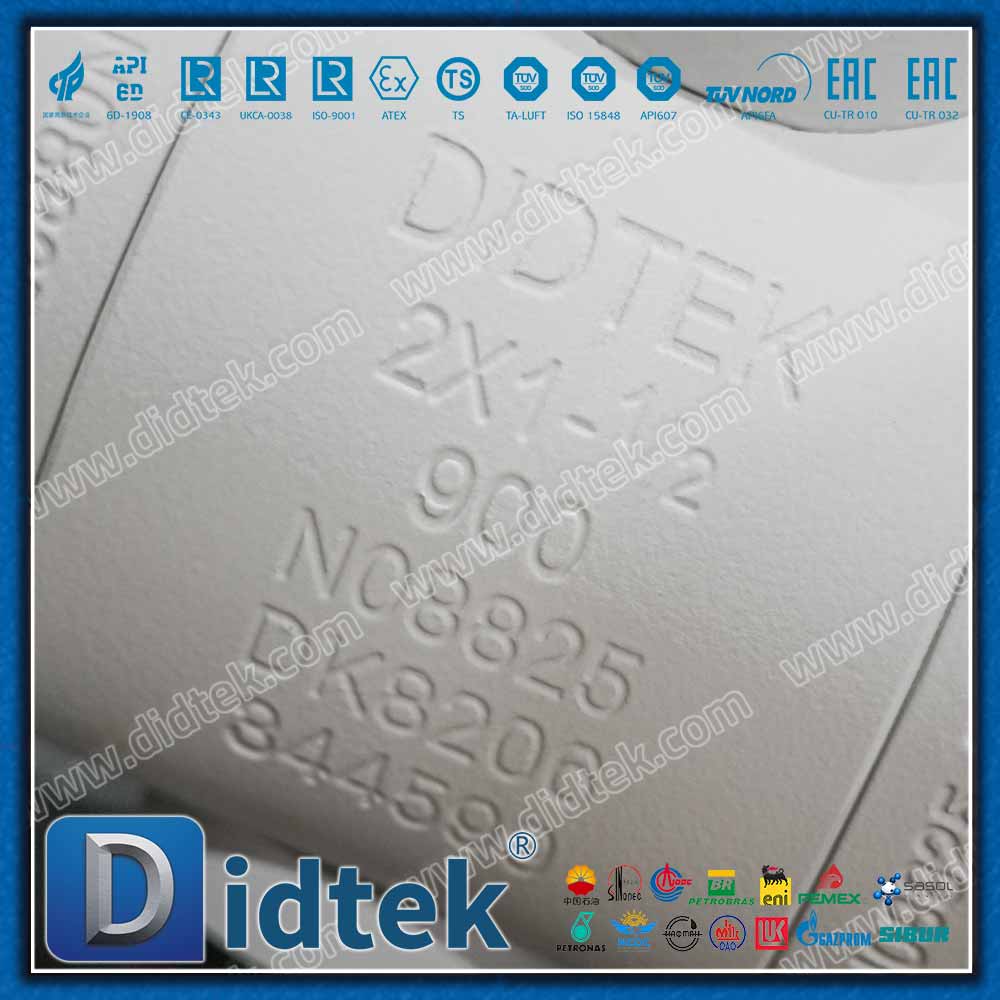

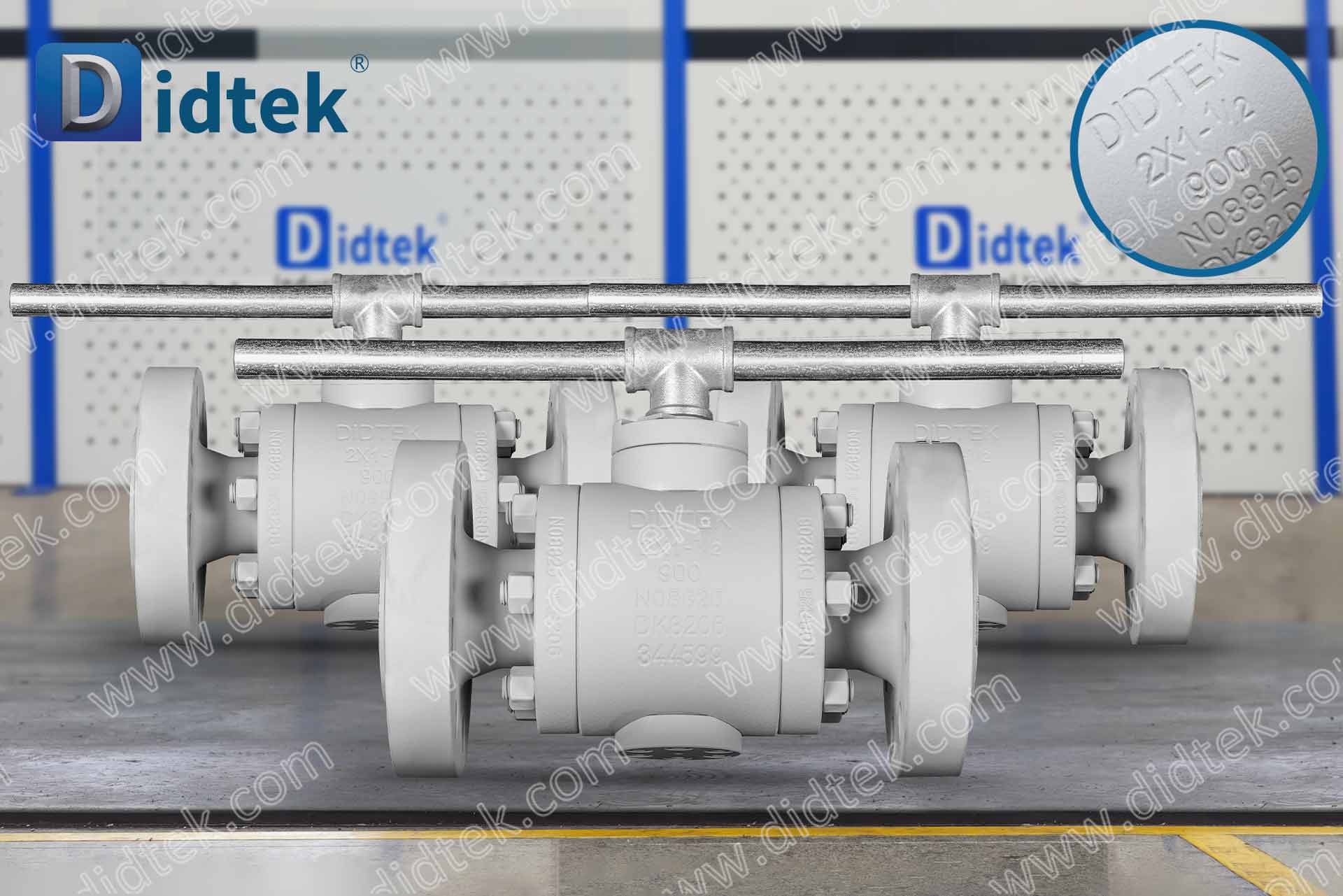

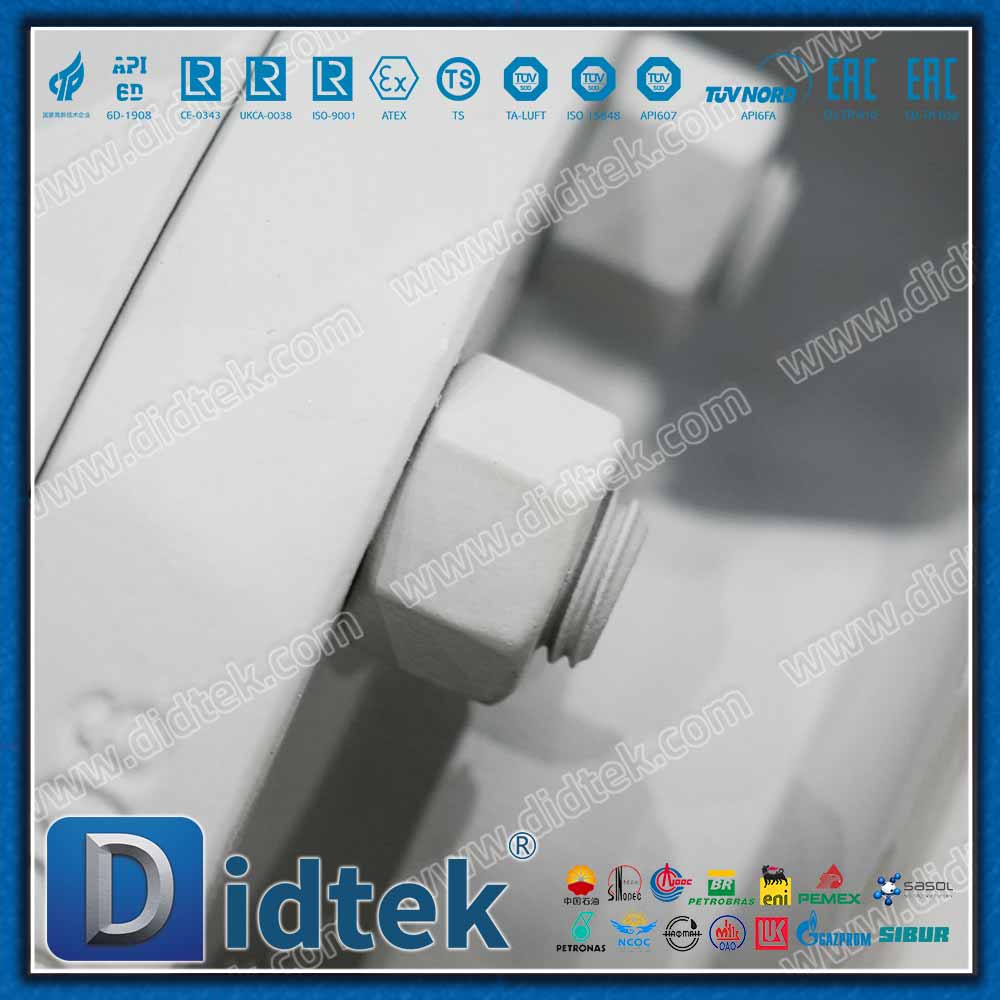

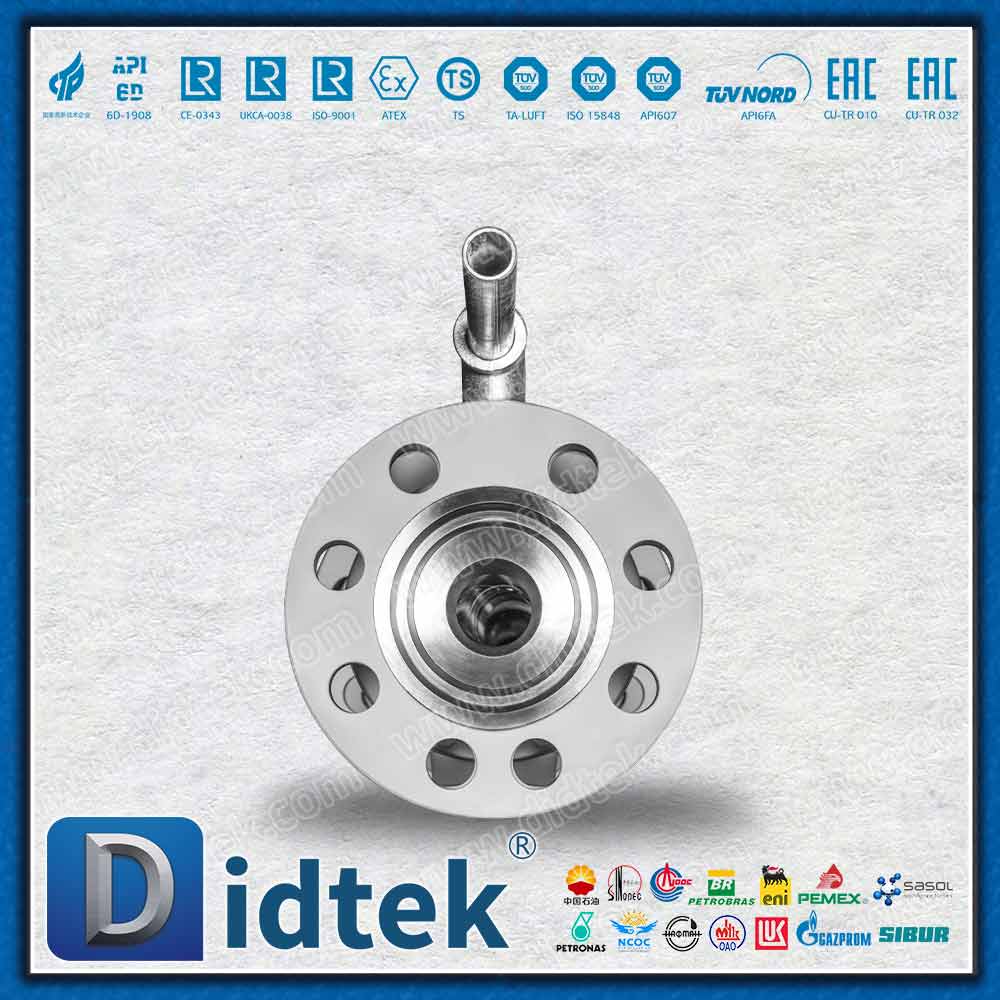

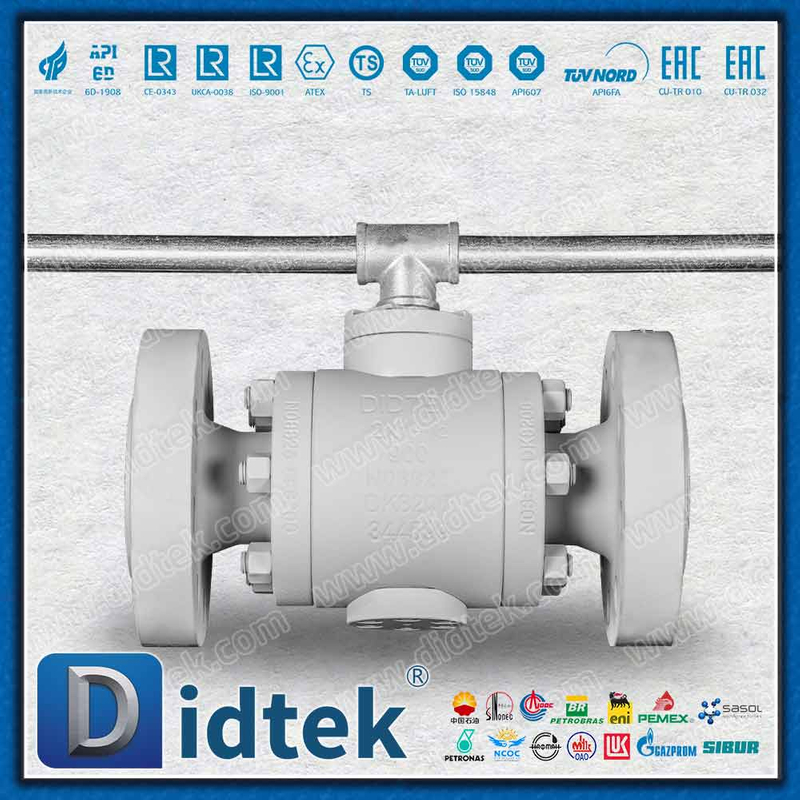

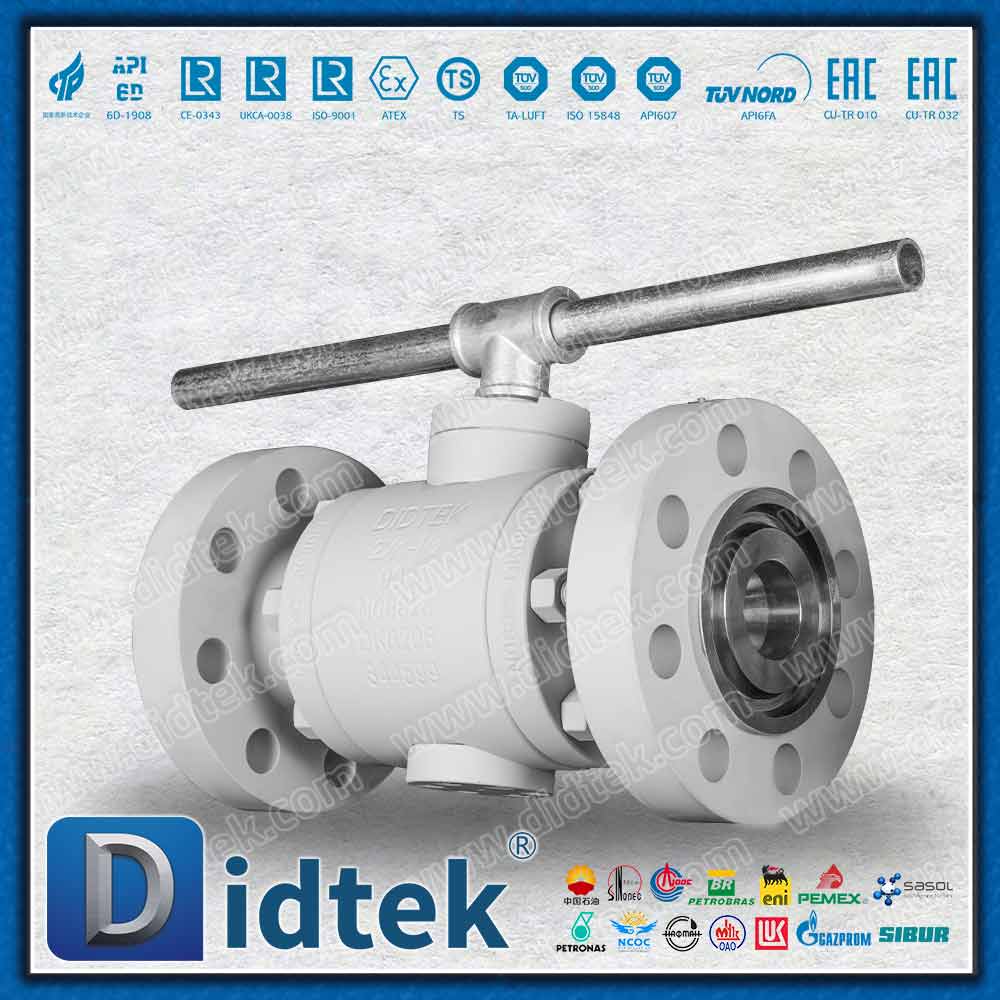

Inconel 825 Trunnion Ball Valve

The Inconel 825 900LB Trunnion Ball Valve with Spring Energized Seal is a high-integrity, heavy-duty flow control solution engineered for extreme-pressure environments and highly corrosive chemical or sour gas processes.

Model:
Q47F-900LB
Brand:
DIDTEK
Code:
TRBV-FTBV-052

Availability:

Quantity:



Inquire

LF2 Trunnion Ball Valve Class 900 High Pressure Ball Valve Spring Energized Seal Ball Valve UNS N08825 Ball Valve Manufacturer Corrosion Resistant Acid Ball Valve

Product Description

Product Parameters

Parameters

Application

Product Detail

The Inconel 825 900LB Trunnion Ball Valve with Spring Energized Seal is a high-integrity, heavy-duty flow control solution engineered for extreme-pressure environments and highly corrosive chemical or sour gas processes. Constructed from solid or heavy-overlay Inconel 825 (UNS N08825 nickel-iron-chromium alloy), the valve offers exceptional resistance to sulfuric acid, phosphoric acid, chloride stress corrosion cracking, and localized pitting. Built to withstand Class 900 high-pressure ratings, it incorporates a robust trunnion-mounted fixed-ball design to minimize operational torque under immense differential pressures. Combined with an advanced Spring-Energized Sealing mechanism, it ensures continuous, self-adjusting contact against the ball, delivering bubble-tight shut-off across cyclical pressure surges.

Product Parameters

Parameter Name	Parameter
Size Range	2''x1/2''
Pressure Range	900LB
Material	Inconel 825
Seal	Soft Seat: PEEK
Temperature Range	-45°C~200°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5

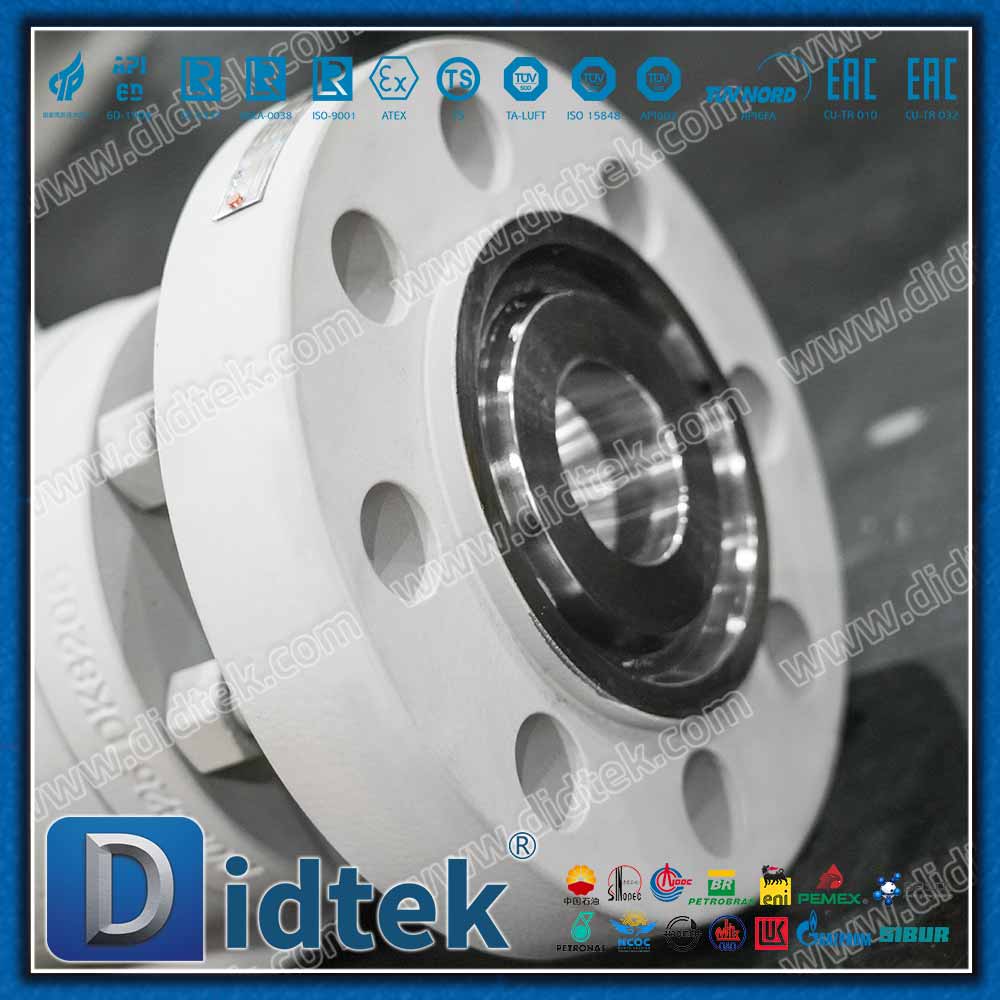

End Connection Type	RTJ
Fire Safety	API 607
Inspection and Test	API 598
Operate	Lever
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil etc

Design Description

Inconel 825 Super-Alloy Defense: Offers outstanding resistance to oxidizing and reducing acids, stress corrosion cracking (SCC), and marine environments, making it ideal for aggressive chemical loops.
Spring-Energized Sealing Mechanism: High-performance metal springs behind the seat insert provide continuous mechanical pre-load, guaranteeing reliable sealing performance even under low-pressure or zero-pressure conditions.
Trunnion-Mounted High-Pressure Stability: Fixed-ball design absorbs high pipeline thrusts in Class 900 systems, preventing ball jamming and ensuring smooth, low-torque actuation.
Fugitive Emission & Fire-Safe Design: Complies with strict environmental and safety standards, featuring low-emission stem packing and API 607 fire-safe certification.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Iron Nickel Based Corrosion Resistant Alloy
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Inconel 825 900LB Trunnion Ball Valve With Spring Energized Seal are widely utilized in demanding environments due to their superior material properties:

Chemical & Petrochemical Processing: Handling concentrated sulfuric acid, phosphoric acid, and aggressive chloride-bearing chemical streams.
Offshore Sour Gas & Oil Production: High-pressure upstream wellhead and manifold systems exposed to H2 and corrosive brines.
Flue Gas Desulfurization (FGD) & Environmental Systems: High-pressure scrubber loops and acid recovery plants.
