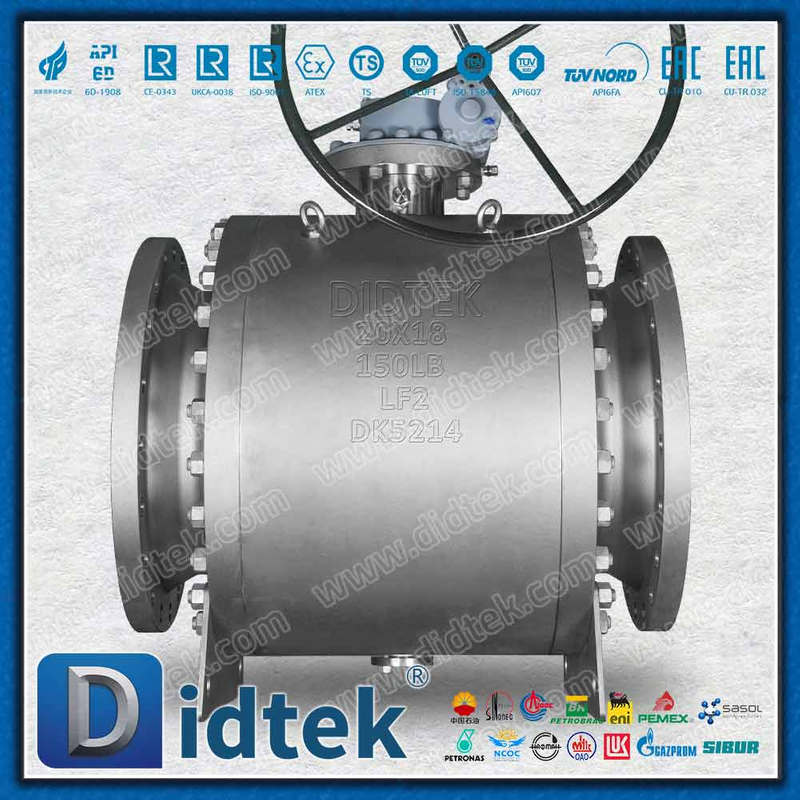

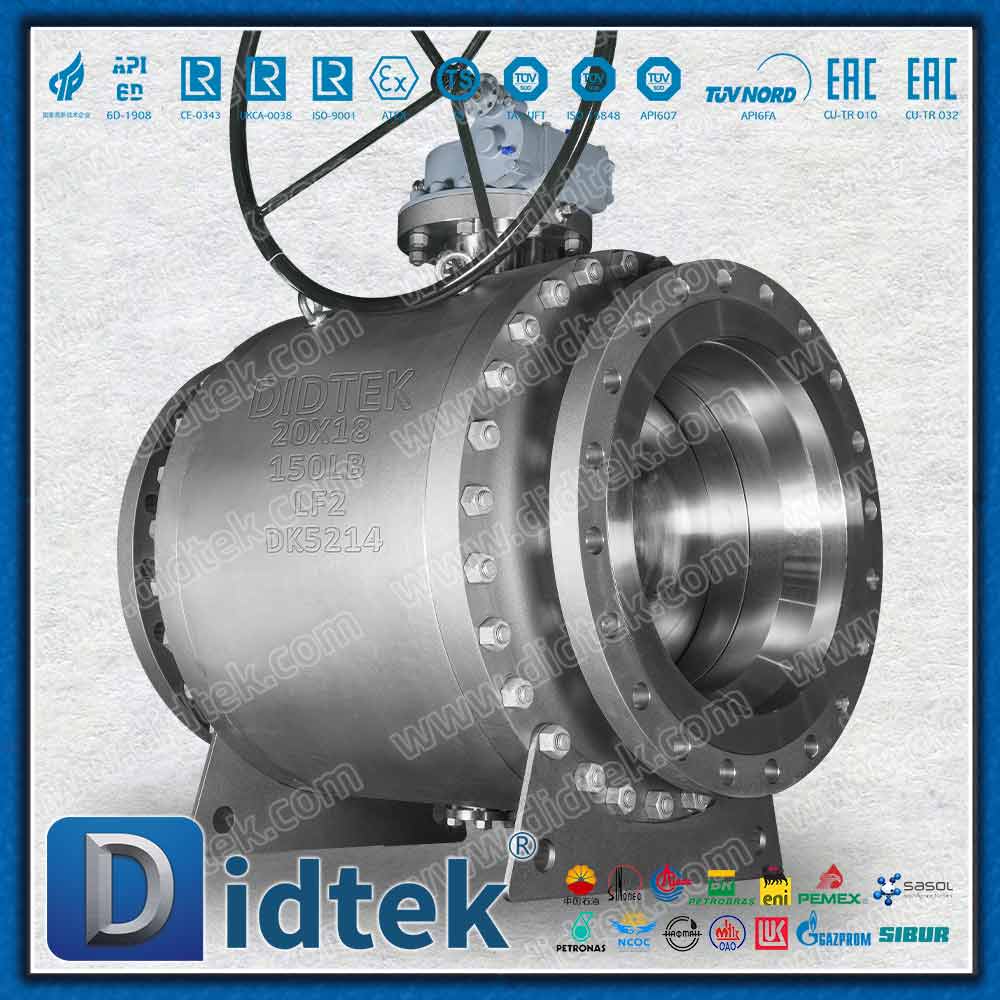

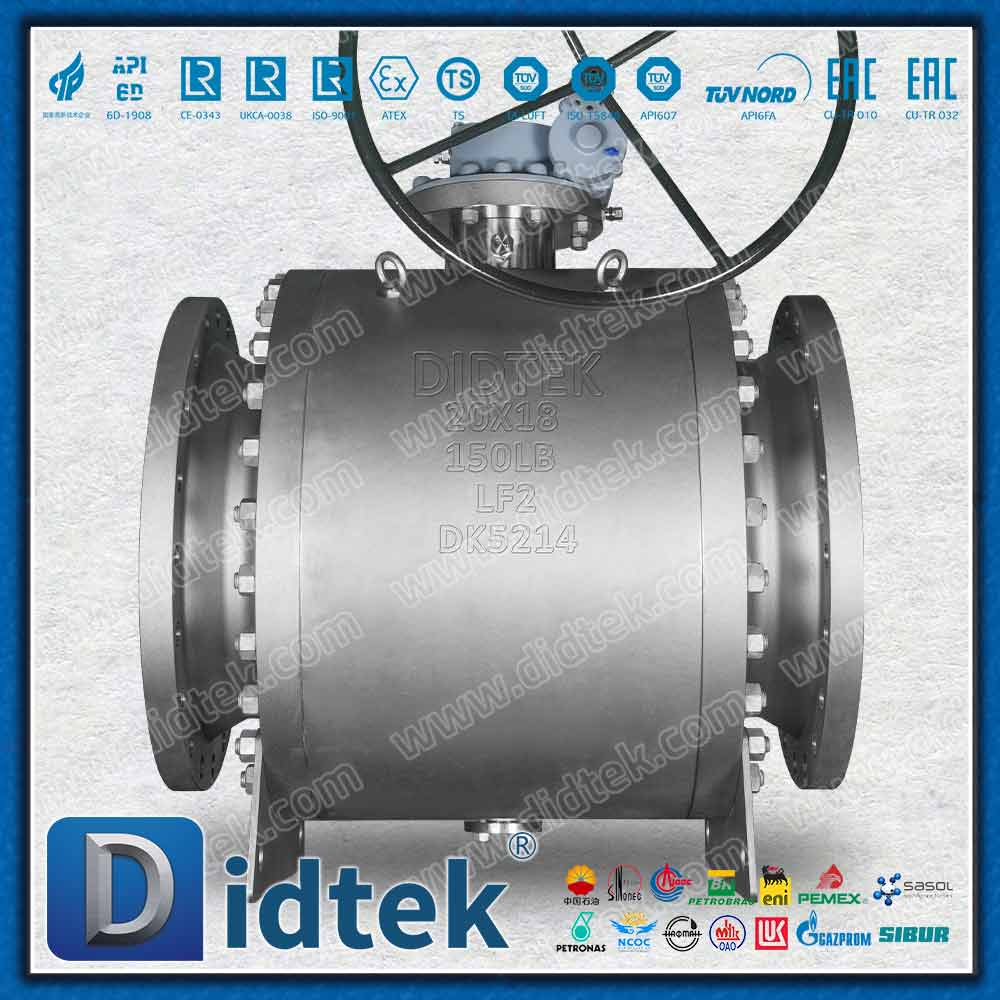

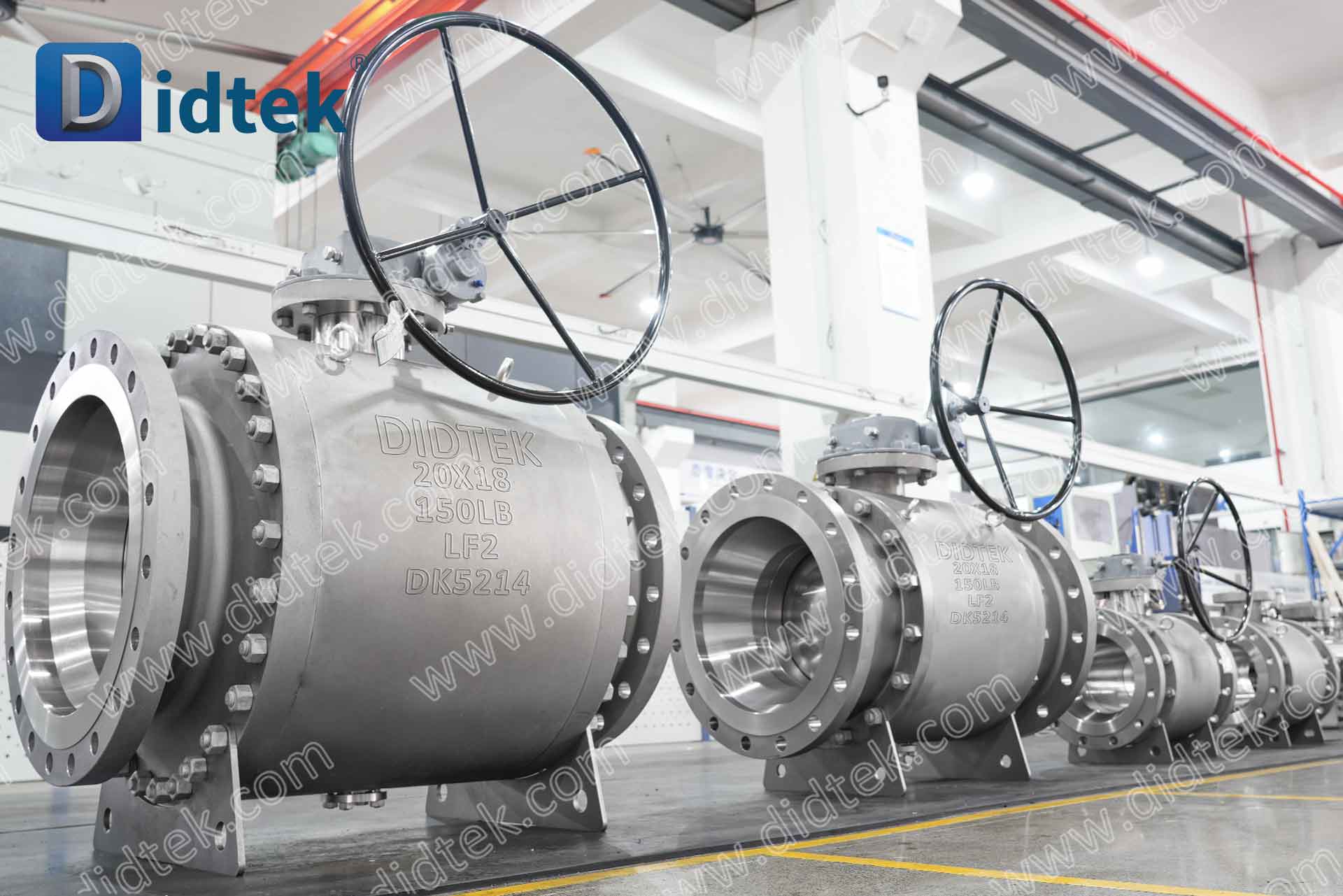

LF2 + Inconel 625 Overlay With PTFE Elgiloy Lip Seal Trunnion Ball Valve

The LF2 + Inconel 625 Overlay Trunnion Ball Valve is a heavy-duty, high-integrity isolation solution engineered for severe-service oil, gas, and cryogenic-to-ambient applications.

Model:
Q347F-150LBL
Brand:
DIDTEK
Code:
TRBV-FTBV-058

Availability:

Quantity:



Inquire

LF2 Inconel 625 Clad Ball Valve Lip Seal Trunnion Ball Valve Elgiloy Spring Energized Ball Valve Sour Service Trunnion Ball Valve API 6D LF2 Ball Valve Manufacturer

Product Description

Product Parameters

Parameters

Application

Product Detail

The LF2 + Inconel 625 Overlay Trunnion Ball Valve is a heavy-duty, high-integrity isolation solution engineered for severe-service oil, gas, and cryogenic-to-ambient applications. Built with a forged ASTM A350 LF2 body that delivers exceptional low-temperature toughness down to -46℃, the internal wetted surfaces are fully armored with a high-integrity Inconel 625 weld overlay to combat aggressive sour gas H2/CO2 and chloride corrosion. The advanced Lip Seal design—featuring a PTFE seating insert backed by a high-performance Elgiloy alloy spring—provides self-energized, bubble-tight sealing under fluctuating pressures and extreme cyclic conditions. Fully compliant with NACE MR0175 and API 6D standards, this trunnion-mounted valve guarantees maximum reliability in critical upstream and midstream energy projects.

Product Parameters

Parameter Name	Parameter
Size Range	20''X18''
Pressure Range	150LB
Material	LF2
Seal	Soft Seat: Inconel 625+RPTFE
Temperature Range	-40°C~200°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 607 / ISO 10497
Inspection and Test	API 598
Operate	Worm Gear
Body Type	Split Body
Type of Valve	Trunnion Ball Valve
Suitable Medium	Water, Steam, Oil and some corrosive liquid

Design Description

LF2 Low-Temperature Body Integrity: Forged A350 LF2 material provides superior structural strength and certified impact toughness at low temperatures, preventing brittle failure in cold climates.
Inconel 625 Corrosion Armor: The critical cavity and sealing areas are cladded with Alloy 625, offering world-class resistance to sulfide stress cracking and localized corrosion.
Spring-Energized Lip Seal System: The Elgiloy spring exerts continuous mechanical load on the PTFE lip, ensuring dynamic contact and zero leakage even during rapid pressure drops or thermal shocks.
Trunnion-Mounted Heavy-Duty Design: Fixed-ball configuration absorbs pipeline thrusts, drastically reducing operational torque and ensuring smooth actuation for automated systems.

Parameters

Brand	DIDTEK
Structure	Trunnion Ball
Material	Low Temperature Carbon Steel
Type	Forged Ball Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

LF2 + Inconel 625 Overlay With PTFE Elgiloy Lip Seal Trunnion Ball Valve are widely utilized in demanding environments due to their superior material properties:

Sour Gas Transmission Pipelines: High-pressure pipelines carrying H2S-rich natural gas in cold regions.
Offshore & Onshore Upstream Oil & Gas: Wellhead isolation, gathering stations, and manifold systems.
Refinery & Petrochemical Processing: Hydrocarbon processing units requiring corrosion-resistant, low-temperature rated valves.
