The Cast Chromium-Molybdenum Alloy Steel WC6 Swing Check Valve is a heavy-duty, high-temperature backflow prevention solution engineered specifically for power generation steam systems, refinery hydroprocessing, and high-pressure chemical processes up to 540℃

  • H 41H-600LBC

  • DIDTEK

  • CSV-CSSCV-027

Availability:
Quantity:
Inquire

Previous:
Next:
WC6 Swing Check Valve Chrome Moly Alloy Steel Check Valve Cast Steel High Temperature Check Valve ASTM A217 WC6 Check Valve ASME Class 600/900 Alloy Check Valve
Product Detail
Product Parameters
Parameters
Application & Function

Product Detail

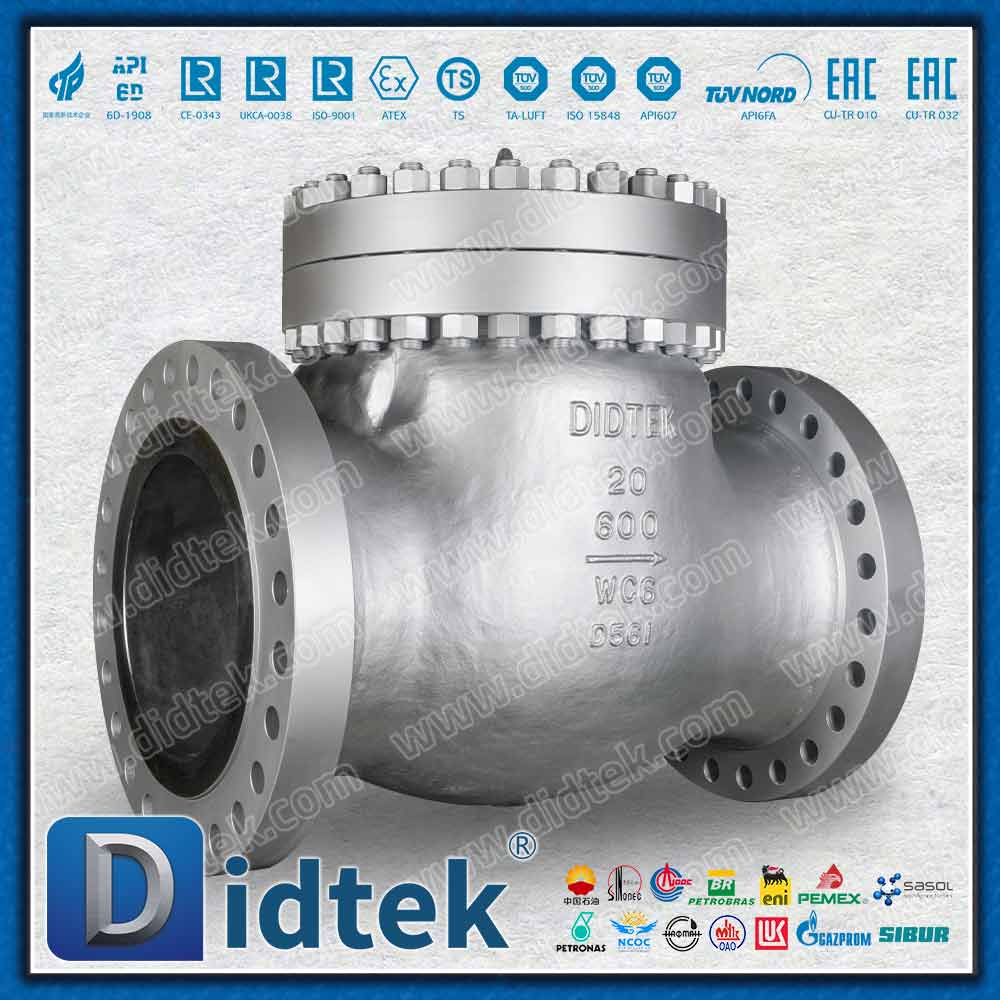

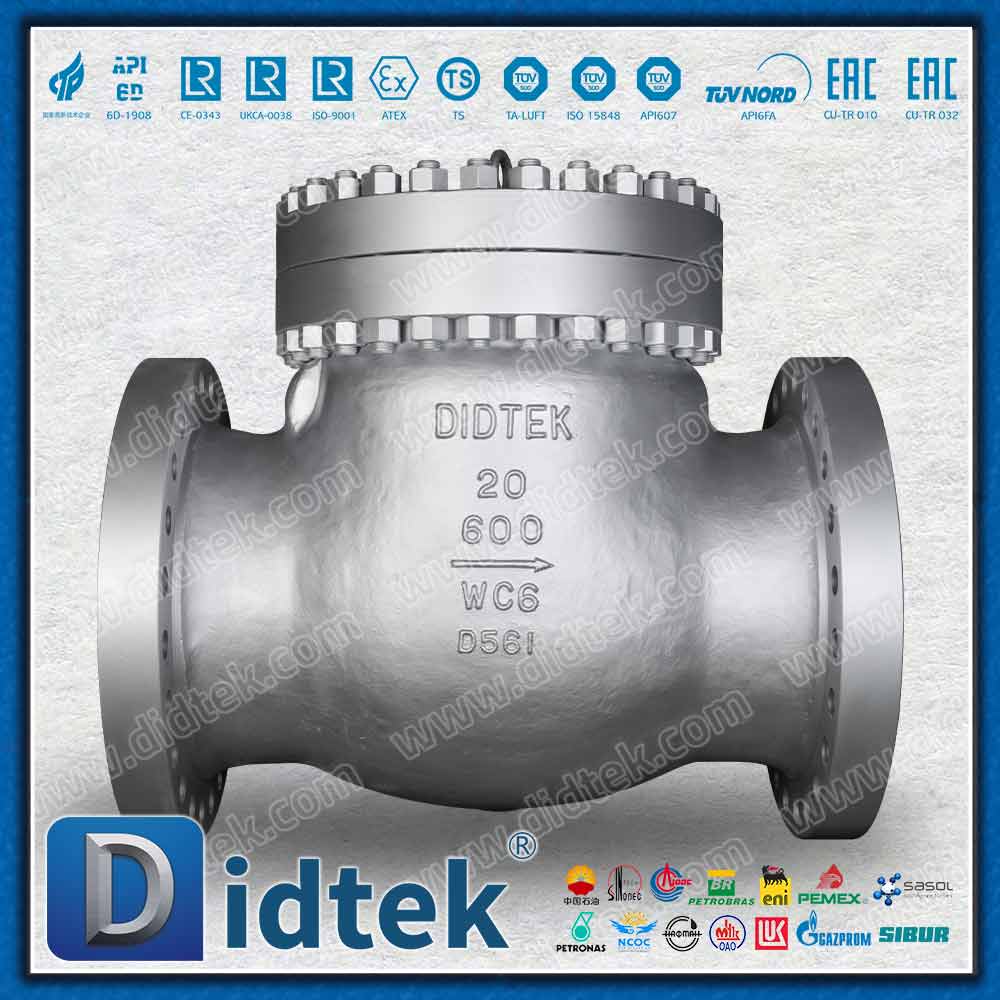

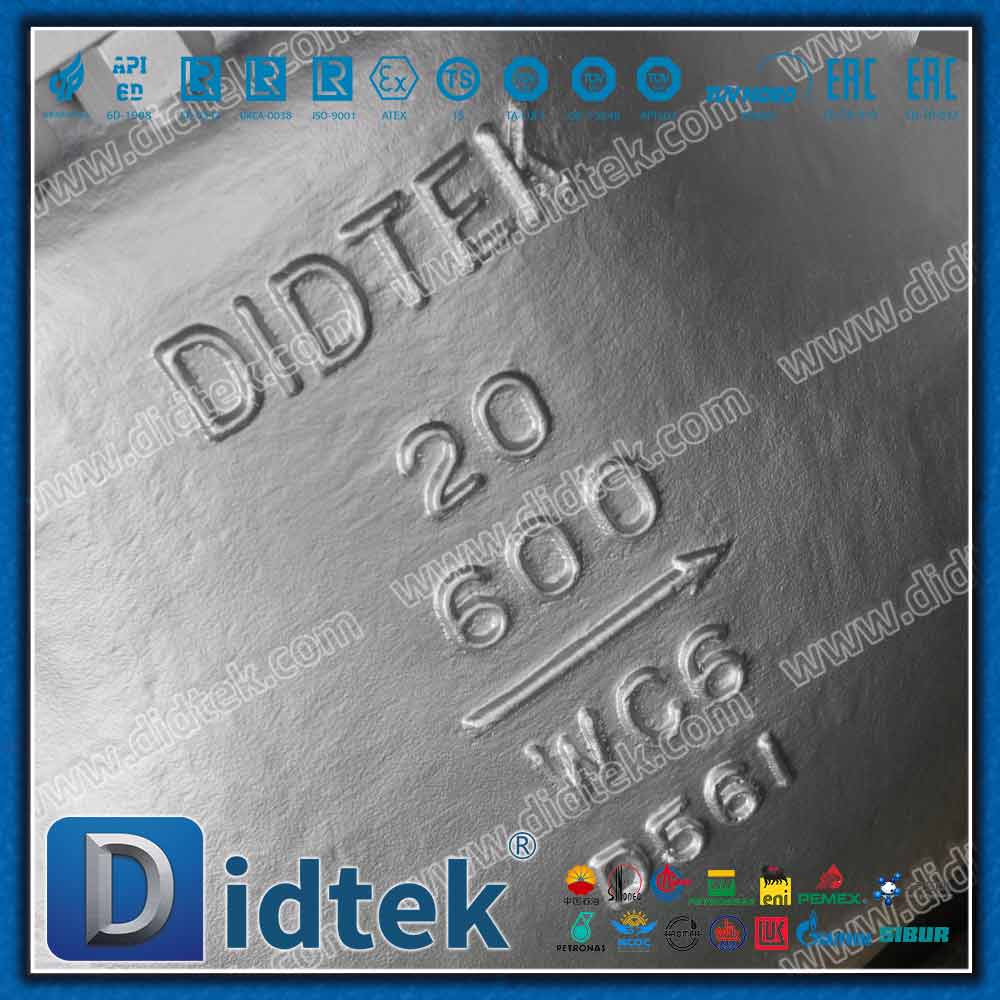

The Cast Chromium-Molybdenum Alloy Steel WC6 Swing Check Valve is a heavy-duty, high-temperature backflow prevention solution engineered specifically for power generation steam systems, refinery hydroprocessing, and high-pressure chemical processes up to 540℃. Fabricated from premium ASTM A217 WC6 (1.25% Cr - 0.5% Mo) alloy steel castings, the valve body delivers exceptional resistance to high-temperature creep, thermal fatigue, and hydrogen attack. Featuring a responsive swing-type disc mechanism with Stellite hardfaced seating surfaces, it ensures low flow resistance, rapid closure upon flow reversal, and reliable, leak-tight protection for critical high-temperature industrial equipment.

C-27 DIDTEKCSSCV-Cast Chromium‑Molybdenum Alloy Steel WC6 Swing Check Valve

Product Parameters

Parameter Name
Parameter
Size Range20''
Pressure Range600LB
MaterialWCB
Disc

ASTM A216 WCB + Stellite

Temperature Range335°C
Design AccordingAPI 6D
Face to FaceASME B16.10
End FlangesASME B16.25
End Connection TypeBW
Fire Safety/
Inspection and TestAPI 598
OperateN/A
Body TypeSplit Body
Type of ValveCheck Valve
Suitable MediumWater

Design Description

  • WC6 Chrome-Moly Alloy Casting: Excellent high-temperature tensile strength and creep resistance, making it the industry standard for high-pressure steam and hydrocarbon loops.

  • Stellite Hardfaced Seating: Seat and disc sealing surfaces are overlayed with cobalt-based Stellite alloy to resist wear, scoring, and erosion under high-velocity hot steam.

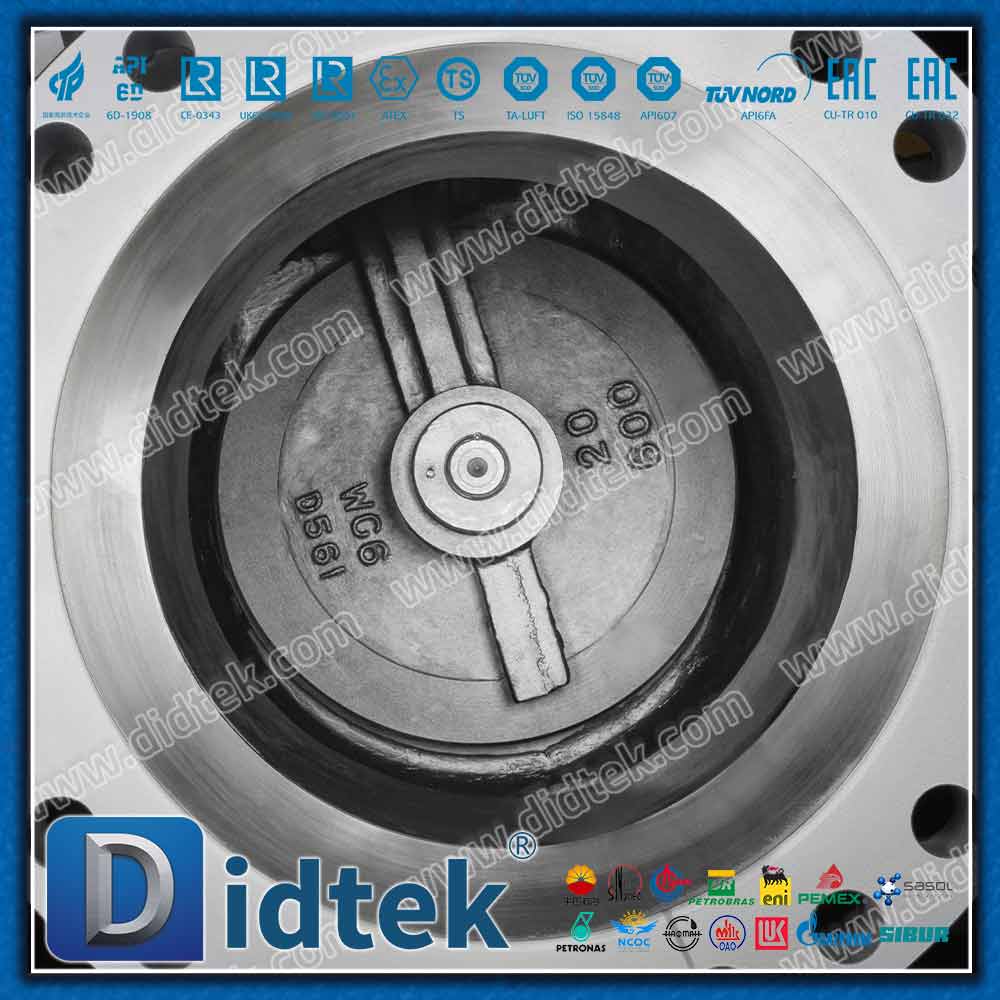

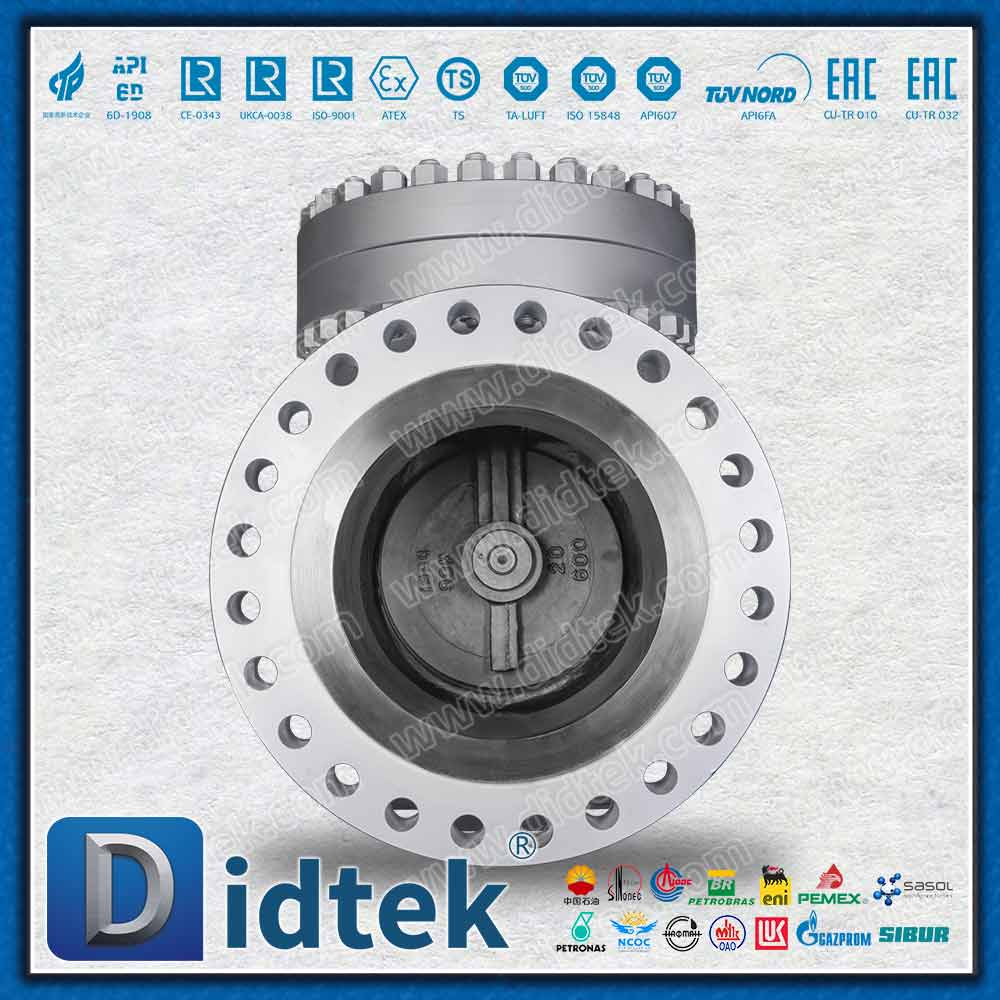

  • Reliable Swing Disc Action: The hinged disc swings completely out of the flow path during forward flow, minimizing pressure drop and dropping shut swiftly during flow reversal.

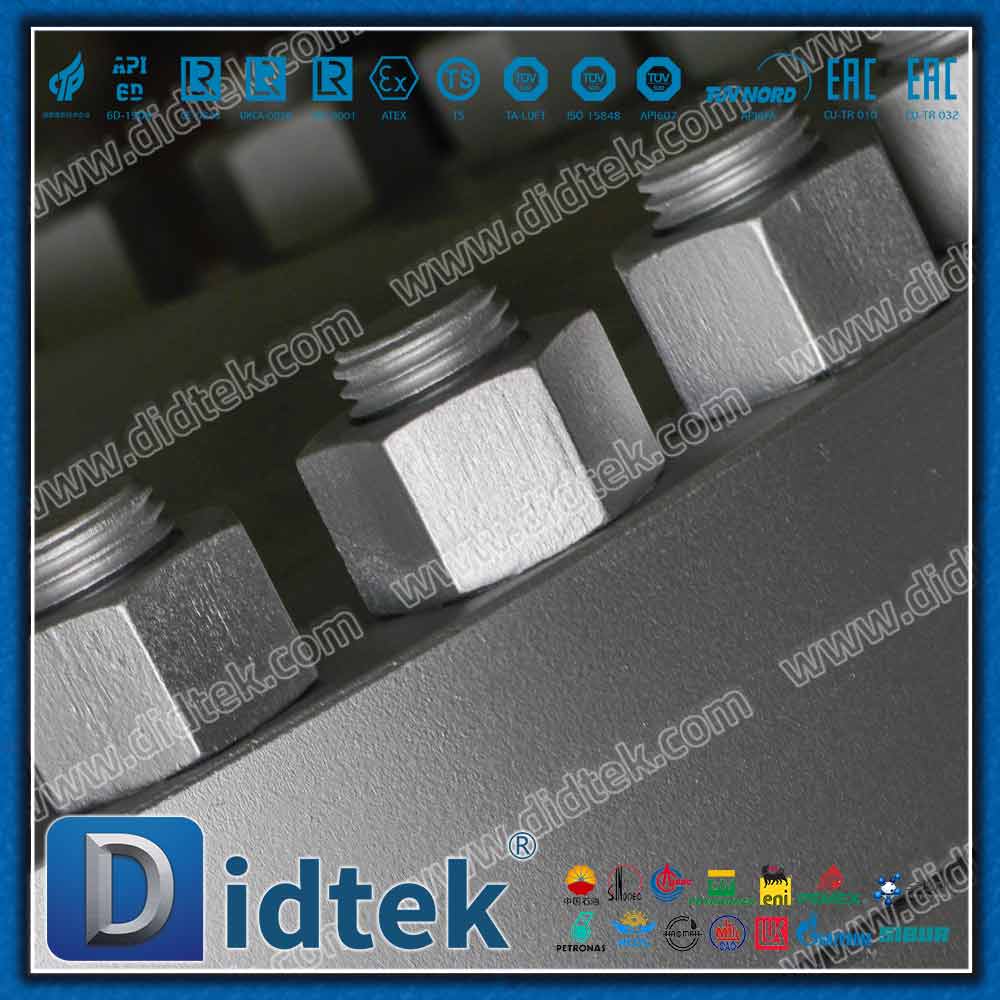

  • Robust Bolted Cover Construction: Heavy-duty bolted bonnet design with spiral-wound stainless steel/graphite gaskets ensures secure, leak-free body joint sealing under thermal cycling.

Parameters

BrandDIDTEK
StructureCheck
MaterialWCB
TypeSwing Check Valve
Test100% quantity tested before delivery
Guarantee18 months after shipments and 12 months after installed
Delivery15 - 60 days
SampleSample Available by Didtek Valve
ColorCustomer request
PackingPlywood Case
MOQ1 Set
CertificateAPI6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of OriginZhejiang, China (Mainland)
Delivery DetailShipped in 15-30 days after payment
PortShanghai Or Ningbo
Payment TermsL/C,D/A,D/P,T/T, Western Union


Application & Function

Cast Chromium-Molybdenum Alloy Steel WC6 Swing Check Valve:

  • Power Plant Main Steam Systems: Boiler feedwater, superheated steam, and auxiliary turbine lines.

  • Refinery Hydroprocessing Units: High-temperature hydrotreaters, catalytic reforming, and high-pressure catalytic cracking loops.

  • High-Temperature Chemical Processing: High-pressure hot gas transfer and chemical reactor discharge lines.
