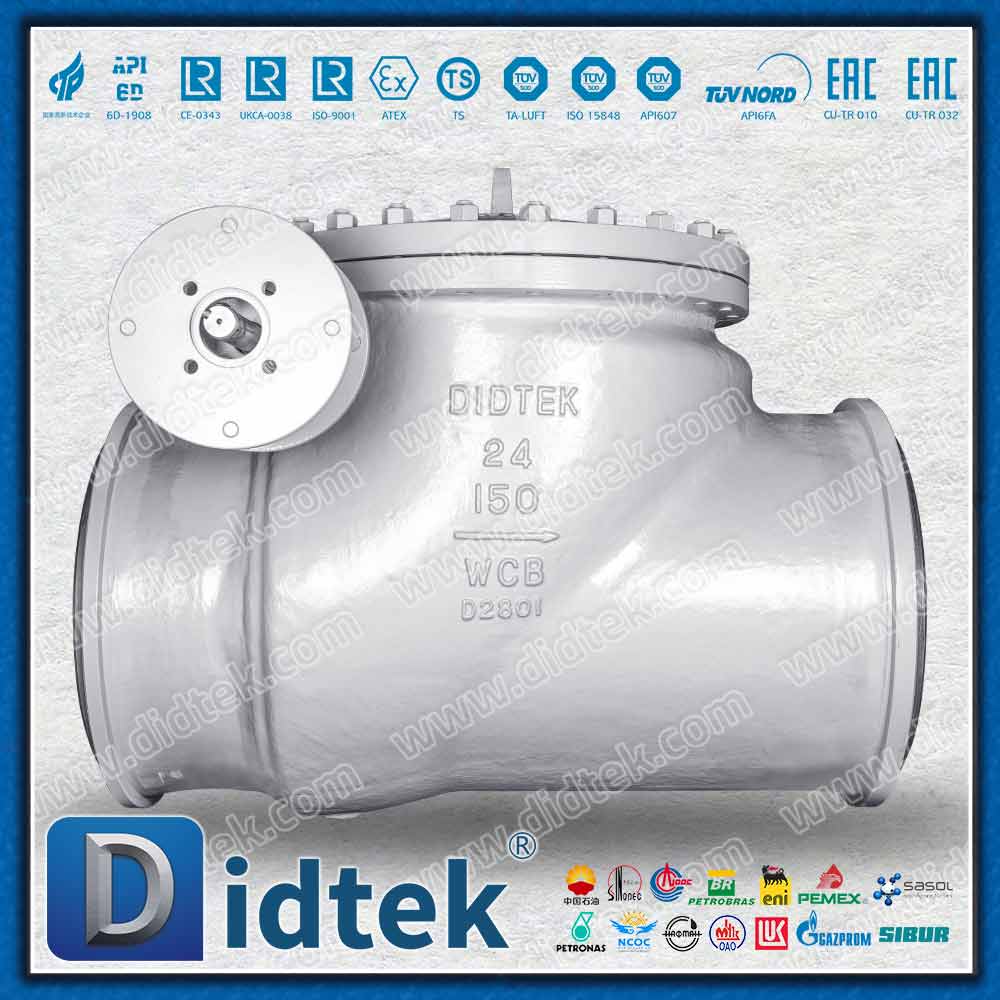

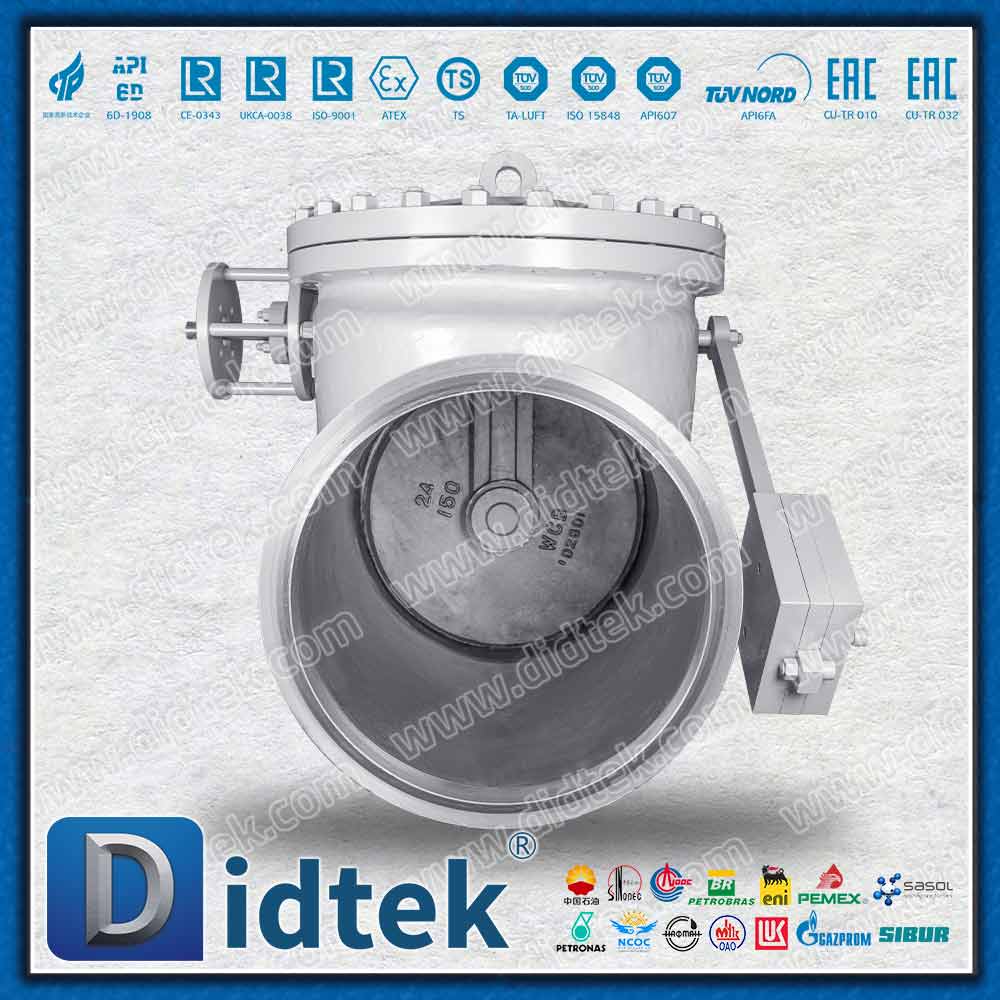

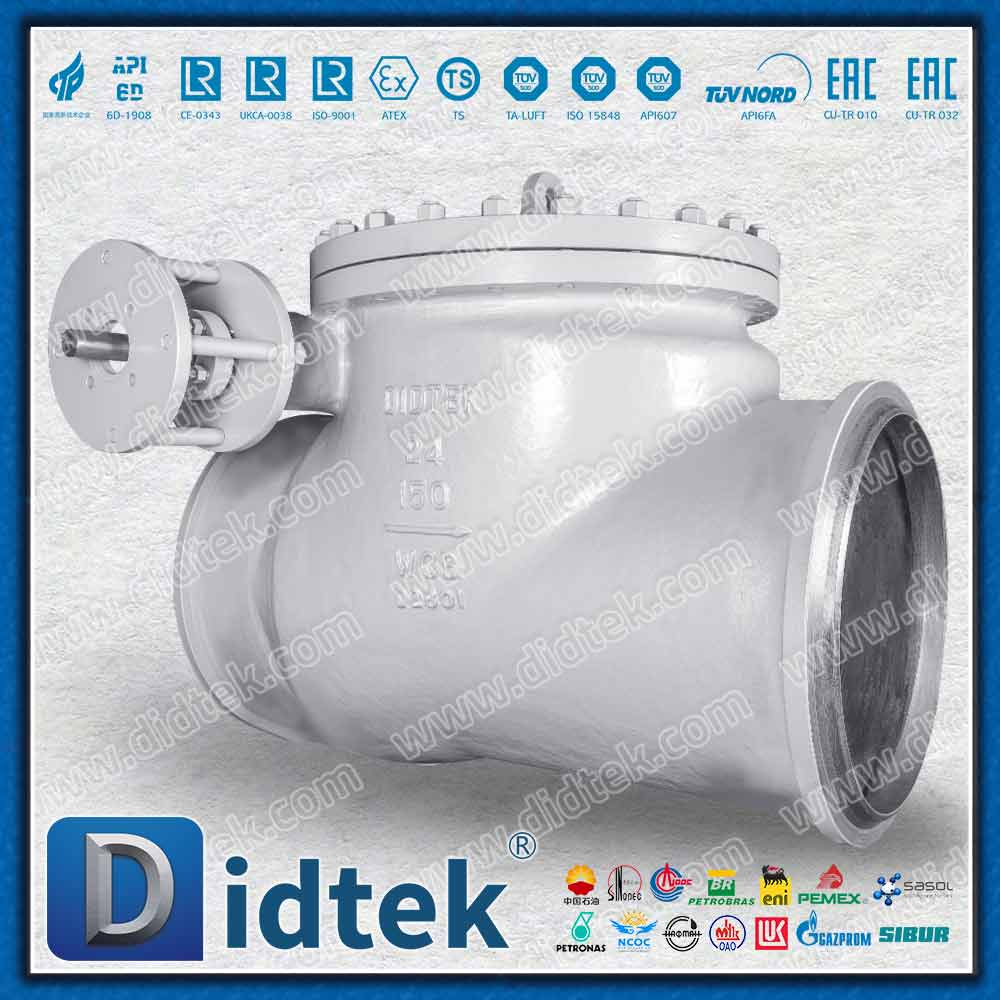

Heavy Calibre Heavy Hammer Swing Check Valve

The Heavy Calibre Heavy Hammer Swing Check Valve is a critical safety device engineered for large-scale municipal water, power plant circulation, and industrial pumping stations.

Model:
H64H-150LBC
Brand:
DIDTEK
Code:
CSV-CSSCV-026

Availability:

Quantity:



Inquire

Heavy Calibre Swing Check Valve Heavy Hammer Check Valve Manufacturer Large Diameter Counterweight Non-Return Valve Hydraulic Slow-Closing Check Valve Pump Discharge Water Hammer Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

The Heavy Calibre Heavy Hammer Swing Check Valve is a critical safety device engineered for large-scale municipal water, power plant circulation, and industrial pumping stations. In large-diameter pipelines, sudden pump shutdowns create massive kinetic energy and destructive water hammer surges. Equipped with a robust counterweight (heavy hammer) and lever mechanism, this valve ensures controlled, silent closure. The gravity-assisted design provides a fail-safe operation without needing external power, protecting upstream pumps and piping from catastrophic mechanical shock.

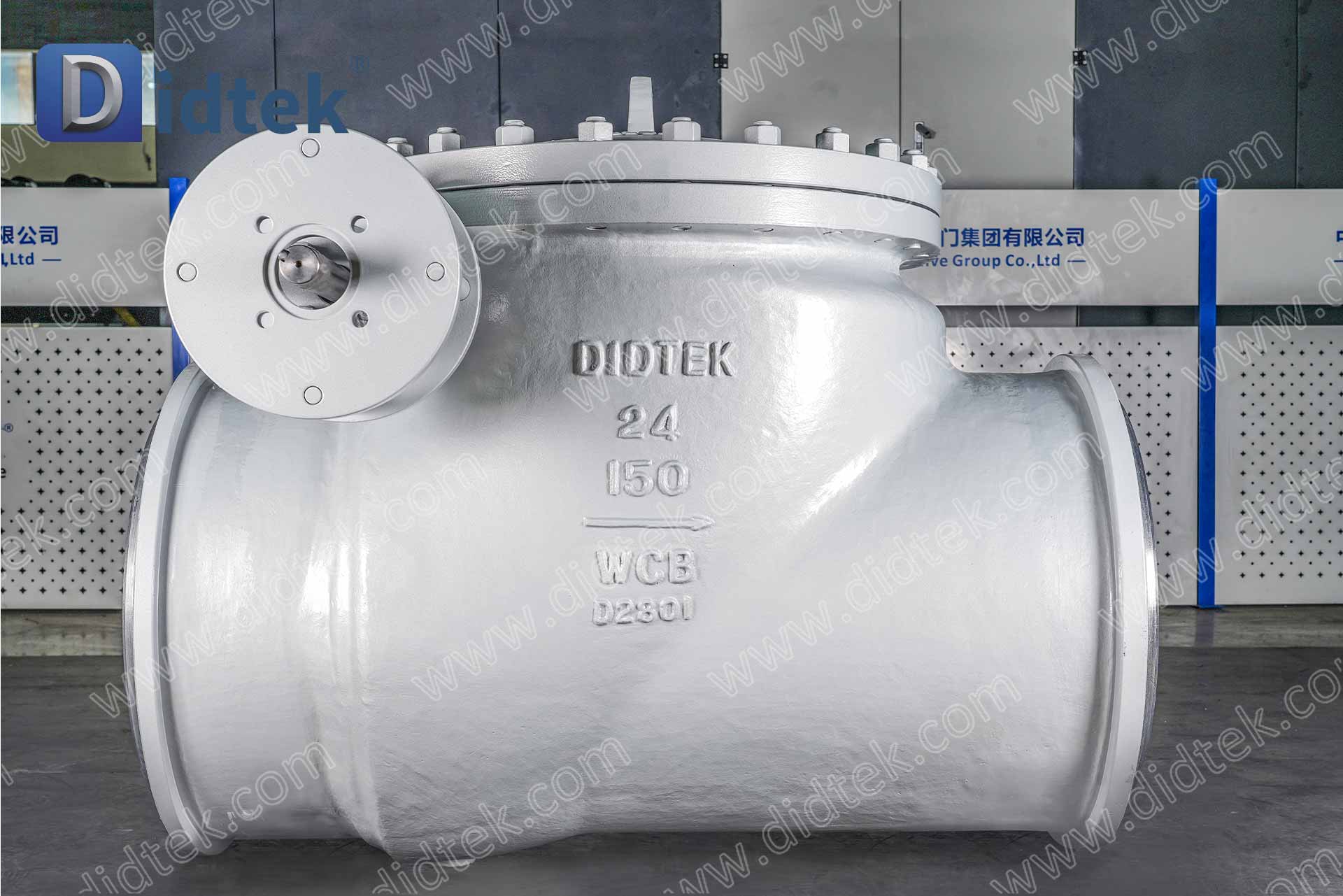

C-26 DIDTEKCSSCV Heavy Calibre Heavy Hammer Swing Check Valve

Product Parameters

Parameter Name	Parameter
Size Range	24''
Pressure Range	150LB
Material	WCB
Disc	ASTM A216 WCB + Stellite
Temperature Range	335°C
Design According	API 6D
Face to Face	ASME B16.10
End Flanges	ASME B16.25
End Connection Type	BW
Fire Safety	/
Inspection and Test	API 598
Operate	N/A
Body Type	Split Body
Type of Valve	Check Valve
Suitable Medium	Water

Design Description

Dual-Stage Hydraulic Slow-Closing: Can be integrated with a hydraulic damper to fast-close (approx. 80%) to stop backflow, then slow-close (final 20%) to eliminate water hammer.
Gravity-Driven Fail-Safe: The heavy hammer utilizes gravity to assist the disc in closing, operating flawlessly without external electrical or pneumatic power.
Visual Disc Position Indication: The external lever directly reflects the internal disc angle, allowing operators to verify the flow status at a single glance.
Low Pressure Drop (Full Bore): The streamlined swing disc design opens fully into the valve cavity, maximizing flow capacity and minimizing pumping energy costs.
Wear-Resistant Hard-Faced Seating: Available with stainless steel or Stellite hard-faced seats to resist high-velocity erosion in large volume pipelines.

Parameters

Brand	DIDTEK
Structure	Check
Material	WCB
Type	Swing Check Valve
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Small-bore High-pressure Three-way Handle Trunnion Ball Valve are widely utilized in demanding environments due to their superior material properties:

Municipal Water Supply: Pump discharge isolation for mega-scale treated or raw water transmission.
Thermal & Nuclear Power Plants: Condenser cooling water loops and circulation systems.
Desalination Plants: Heavy-duty intake and discharge pipelines handling high volumes.
Flood Control & Irrigation: Drainage pump stations and agricultural irrigation lifters.
