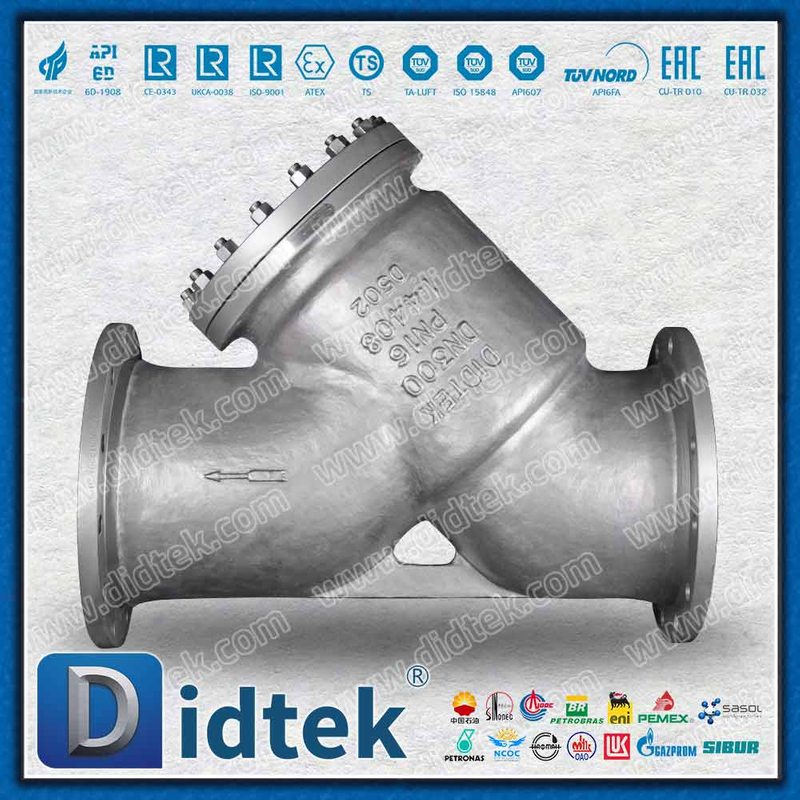

DIN EN 1.4408 Y Strainer With 80 Mesh

The DIN EN 1.4408 Y-Strainer with 80 Mesh is a high-performance filtration device engineered to remove unwanted solid particles and debris from fluid pipelines, protecting sensitive downstream equipment such as control valves, pumps, and meters.

Model:
GL41H-16R
Brand:
DIDTEK
Code:
STR-DYST-005

Availability:

Quantity:



Inquire

EN 1.4408 Y Strainer Stainless Steel 316 Y-Strainer 80 Mesh Strainer Flanged Y Strainer Manufacturer Industrial Water Pipeline Filter

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

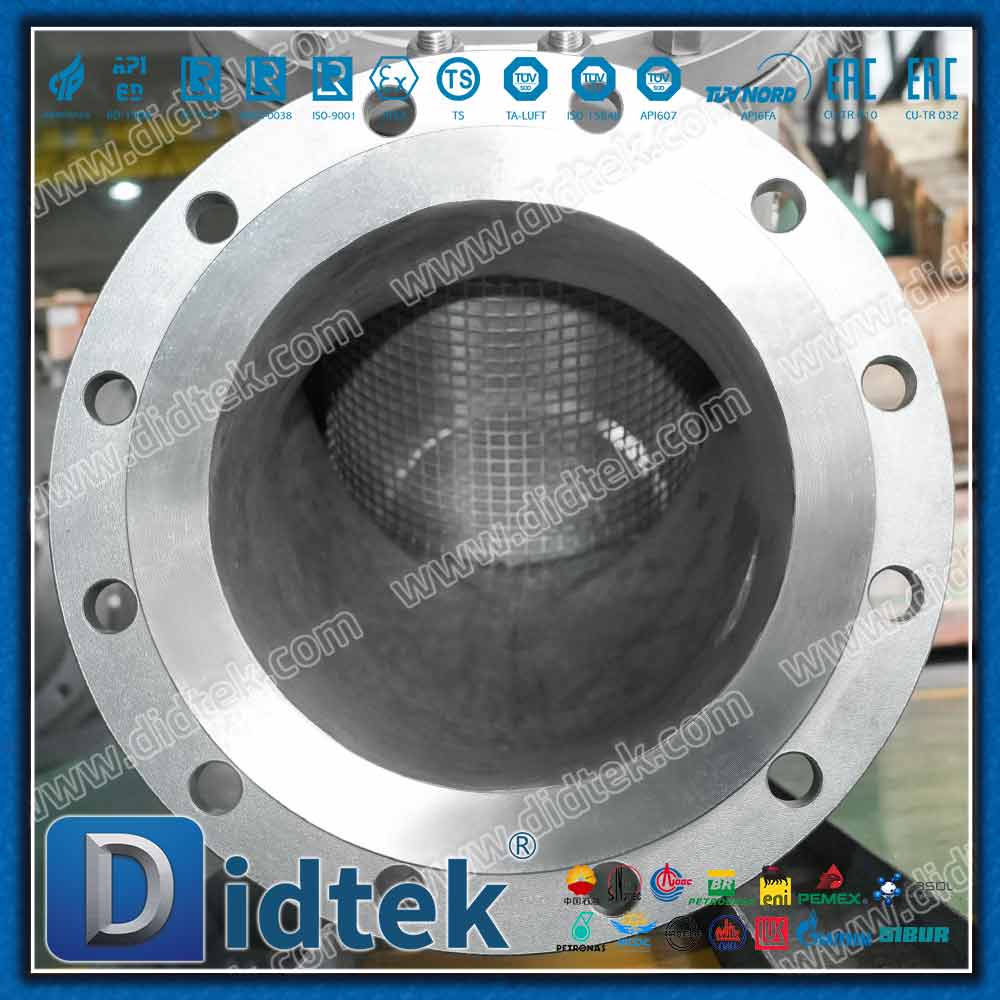

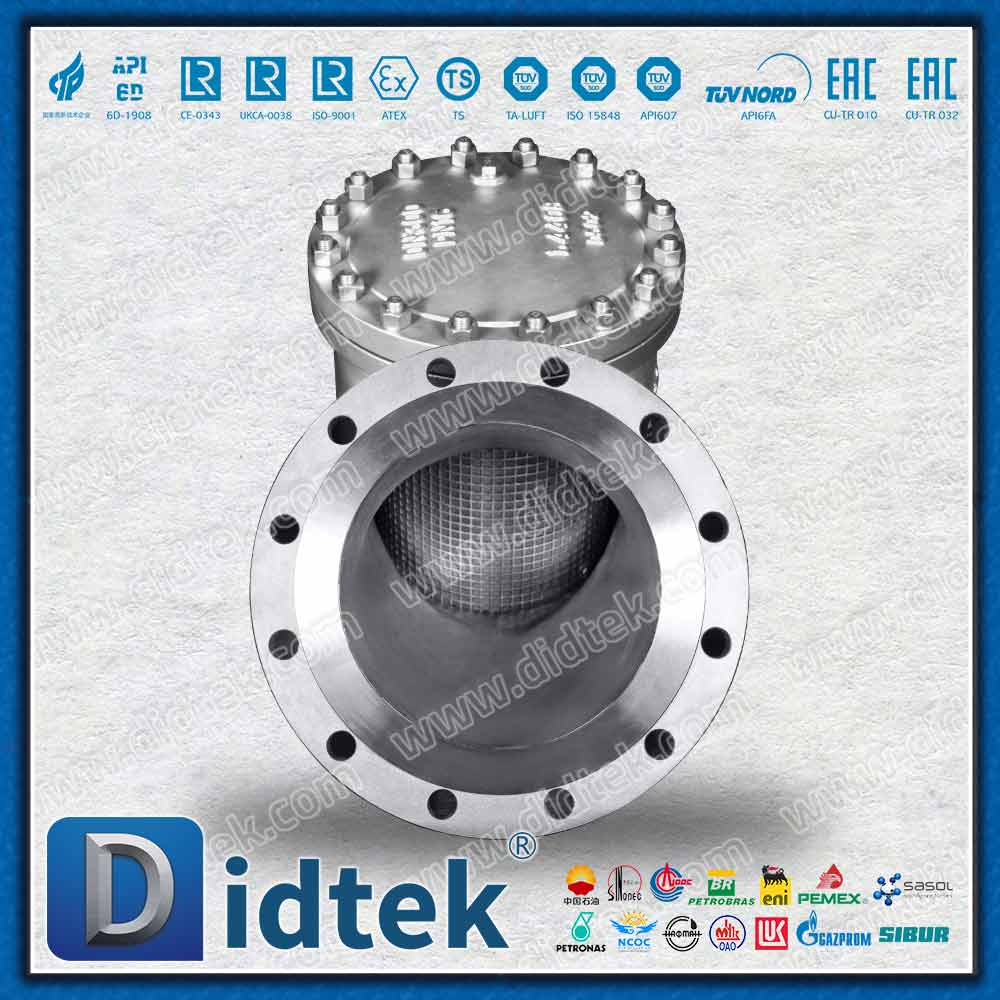

The DIN EN 1.4408 Y-Strainer with 80 Mesh is a high-performance filtration device engineered to remove unwanted solid particles and debris from fluid pipelines, protecting sensitive downstream equipment such as control valves, pumps, and meters. Constructed from corrosion-resistant DIN EN 1.4408 (equivalent to ASTM CF8M / 316 Stainless Steel), the strainer body offers exceptional resistance to chemical attack and pitting. Equipped with a precision 80-mesh stainless steel screen (approx. 0.18mm aperture), it effectively traps fine suspended impurities while maintaining optimal flow efficiency. Its robust Y-pattern design ensures minimal pressure drop and allows for quick, easy maintenance via the bolted blow-off cover.

Product Parameters

Parameter Name	Parameter
Size Range	DN300
Pressure Range	PN16
Material	1.4408
Screen Mesh	80 Mesh
Temperature Range	-29°C~150°C
Design According	EN 12516, ASME B16.34, AD 2000-W0
Face to Face	ASME B16.10
End Flanges	ASME B16.5
End Connection Type	RF
Fire Safety	API 6FA
Inspection and Test	API 598
Type of Valve	Y-Pattern Strainer
Suitable Medium	Water, Oil, Steam etc

Design Description

Corrosion-Resistant 1.4408 Body: Premium austenitic stainless steel casting provides superior longevity and chemical resistance in aggressive industrial and marine environments.
Precision 80-Mesh Filtration: The fine 80-mesh screen captures microscopic particulate matter and pipeline debris down to 180, safeguarding delicate system components.
Low Pressure Drop Y-Pattern: Streamlined internal flow geometry minimizes flow resistance and pressure loss compared to traditional bucket strainers.

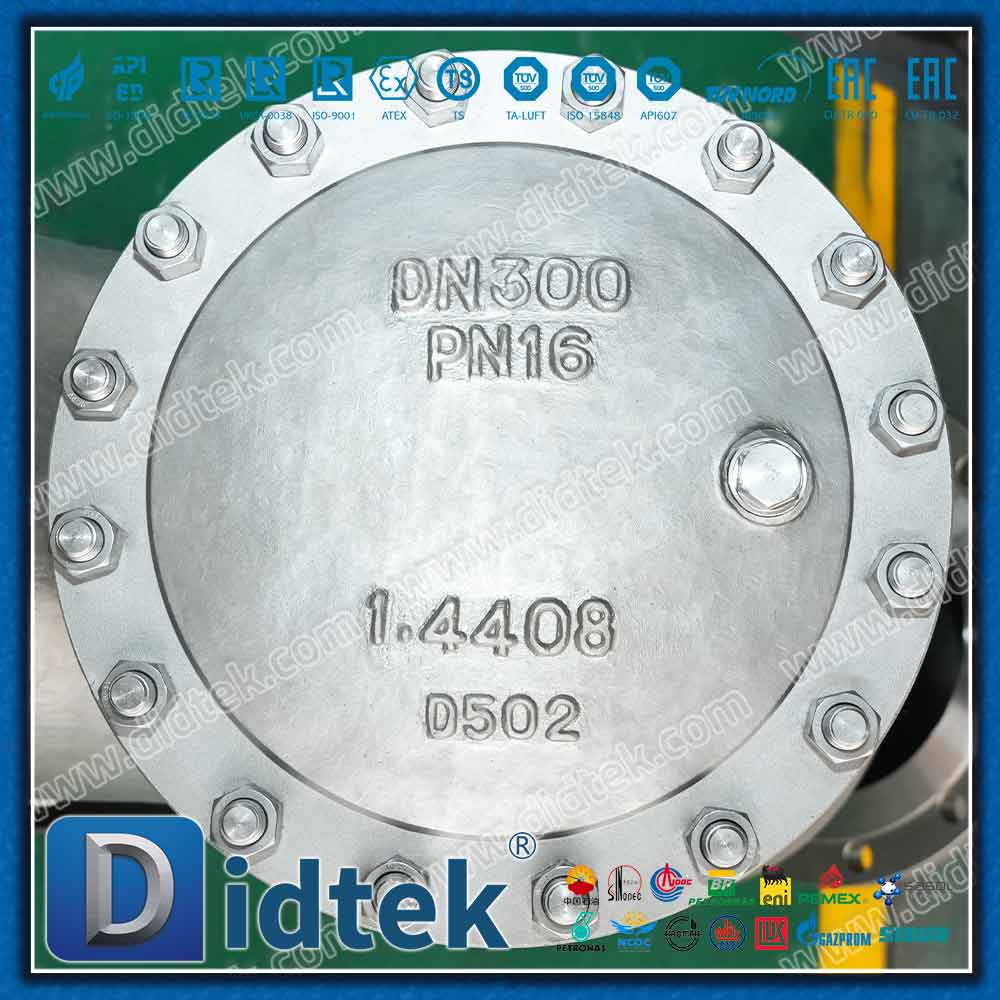

Easy Maintenance Clean-Out: Features a threaded or bolted cover plug, allowing for quick removal, inspection, and cleaning of the internal screen without full pipeline dismantling.

Parameters

Brand	DIDTEK
Structure	Strainer
Material	1.4408
Type	Strainer
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

DIN EN 1.4408 Y Strainer With 80 Mesh are widely utilized in demanding environments due to their superior material properties:

Chemical & Pharmaceutical Processing: Protecting pumps and control valves from solid debris in aggressive chemical transfer lines.
Water Treatment & RO Systems: Fine filtration in municipal water supply, desalination, and high-purity water loops.
Food & Beverage Industries: Filtering liquid ingredients and processing water to ensure product purity.
