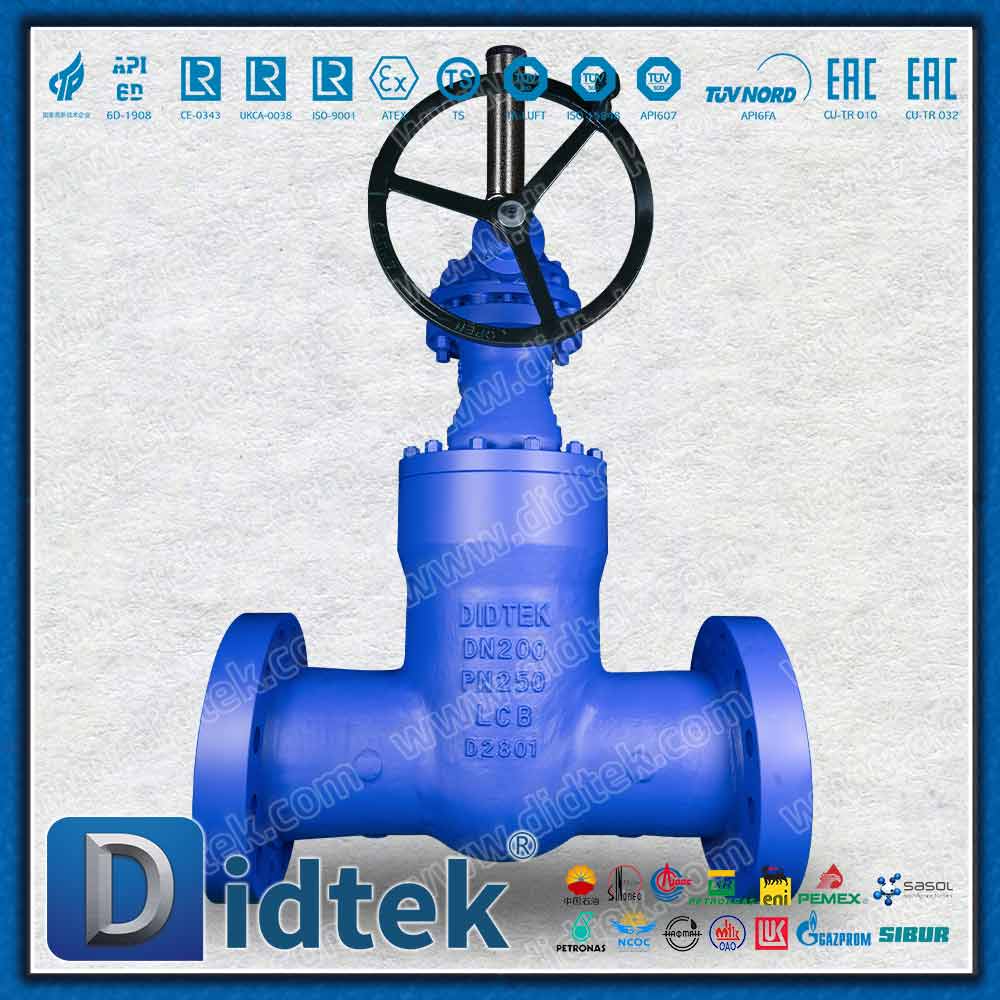

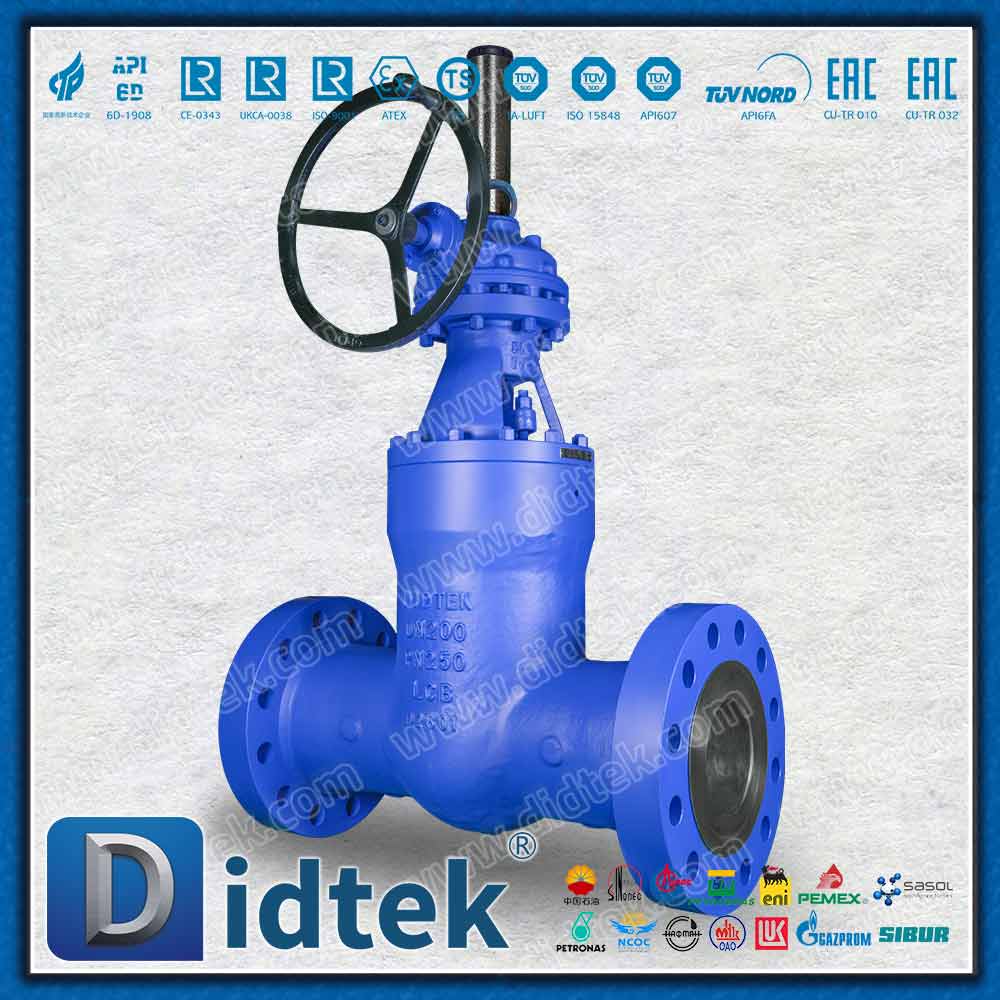

LCB Pressure Seal Gear Operator Gate Valve for Nutrient Deaerated Water

The LCB Pressure Seal Gear Operated Gate Valve is a high-integrity solution specifically engineered for high-pressure Nutrient Deaerated Water systems.

Model:
Z540-250L
Brand:
DIDTEK
Code:
DIV-DGV-028

Availability:

Quantity:



Inquire

LCB Pressure Seal Gate Valve Deaerated Water Valve Gear operated gate valve High Pressure LCB Valve Self-sealing Bonnet Gate Valve

Product Detail

Product Parameters

Parameters

Application & Function

Product Detail

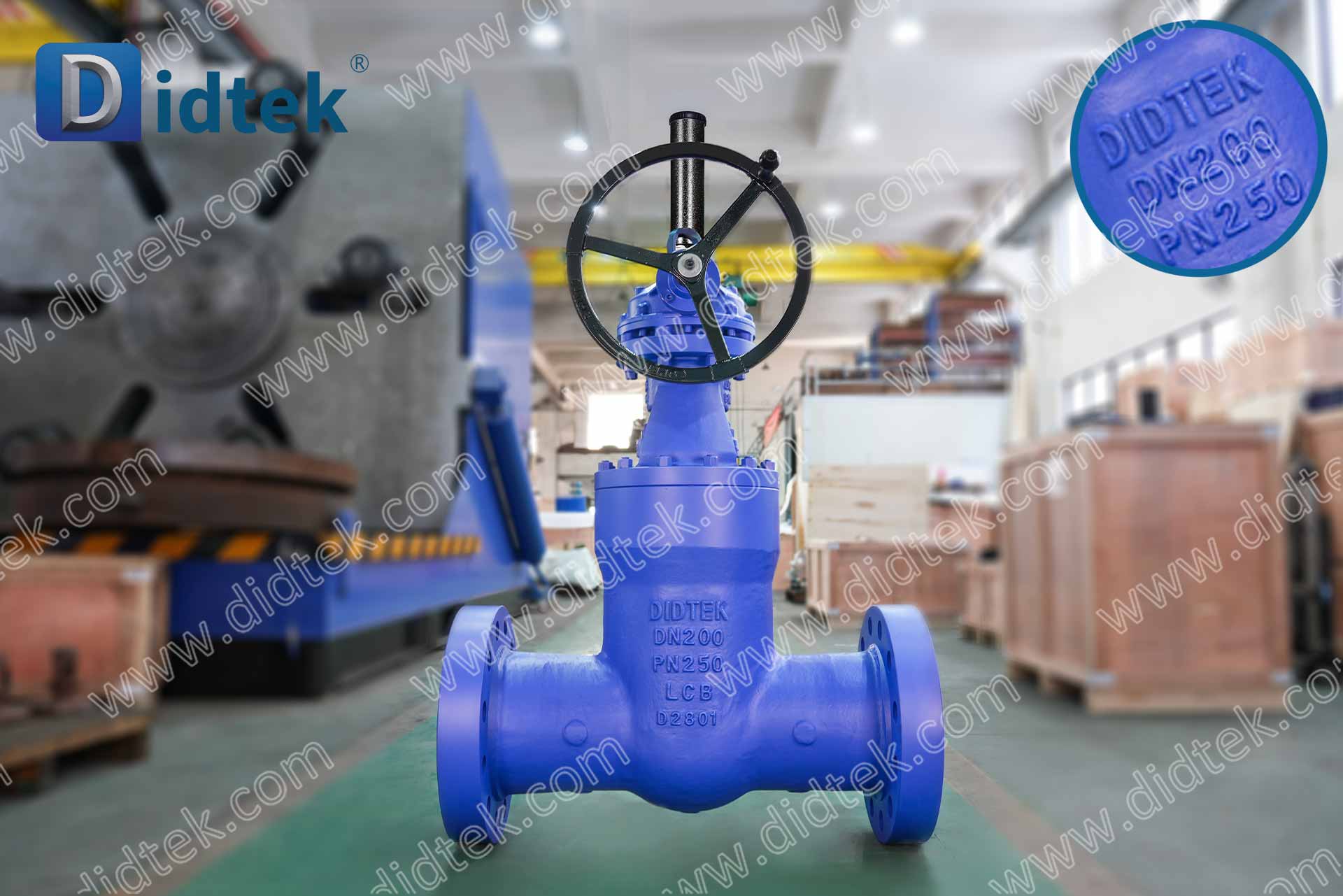

The LCB Pressure Seal Gear Operated Gate Valve is a high-integrity solution specifically engineered for high-pressure Nutrient Deaerated Water systems. Constructed from ASTM A352 LCB, it provides exceptional impact toughness and structural stability in varying environmental temperatures. The Pressure Seal design utilizes internal fluid pressure to tighten the bonnet seal, making it superior to traditional bolted bonnets for high-pressure isolation. Equipped with a high-ratio gear operator, this valve ensures smooth and reliable manual operation for boiler feed water and thermal power applications. A-78-DIDTEKCSGV- Didtek LCB Pressure Seal Gear Operator Gate Valve for Nutrient Deaerated

Product Parameters

Parameter Name	Parameter

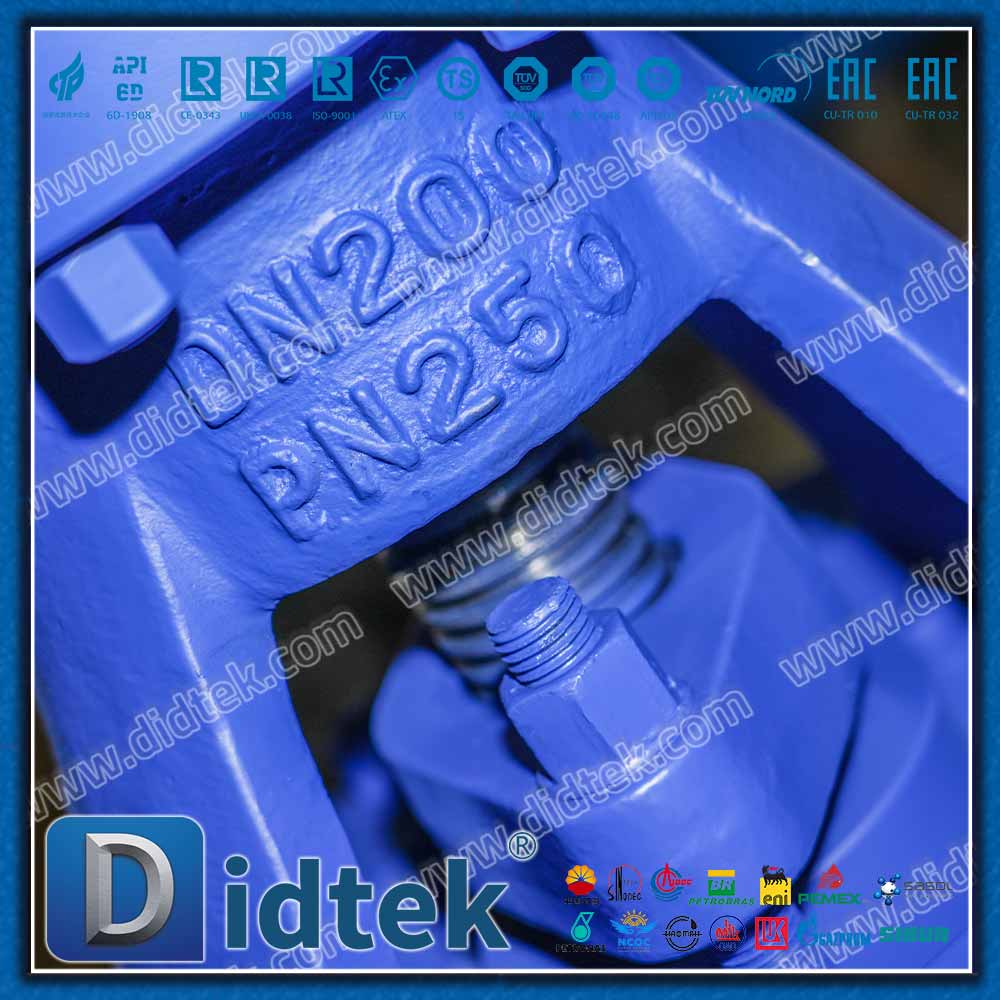

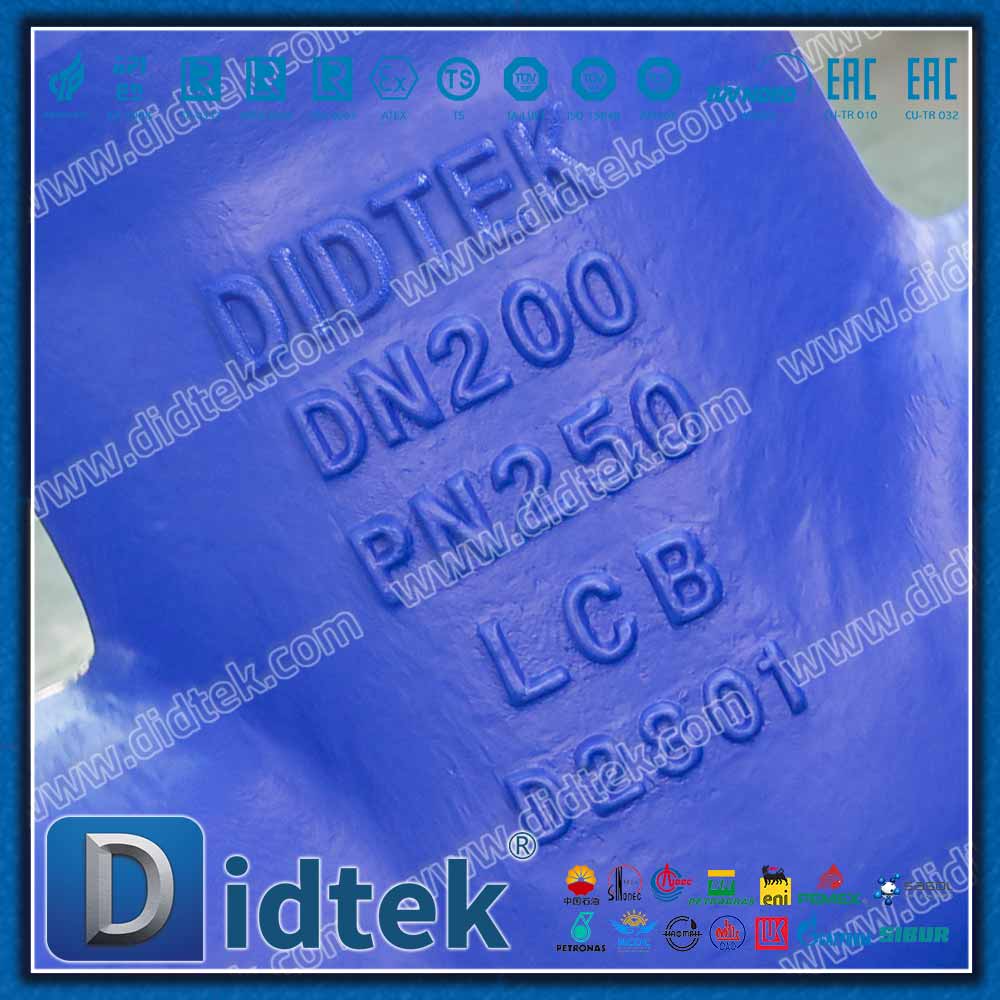

Size Range	DN200
Pressure Range	PN250

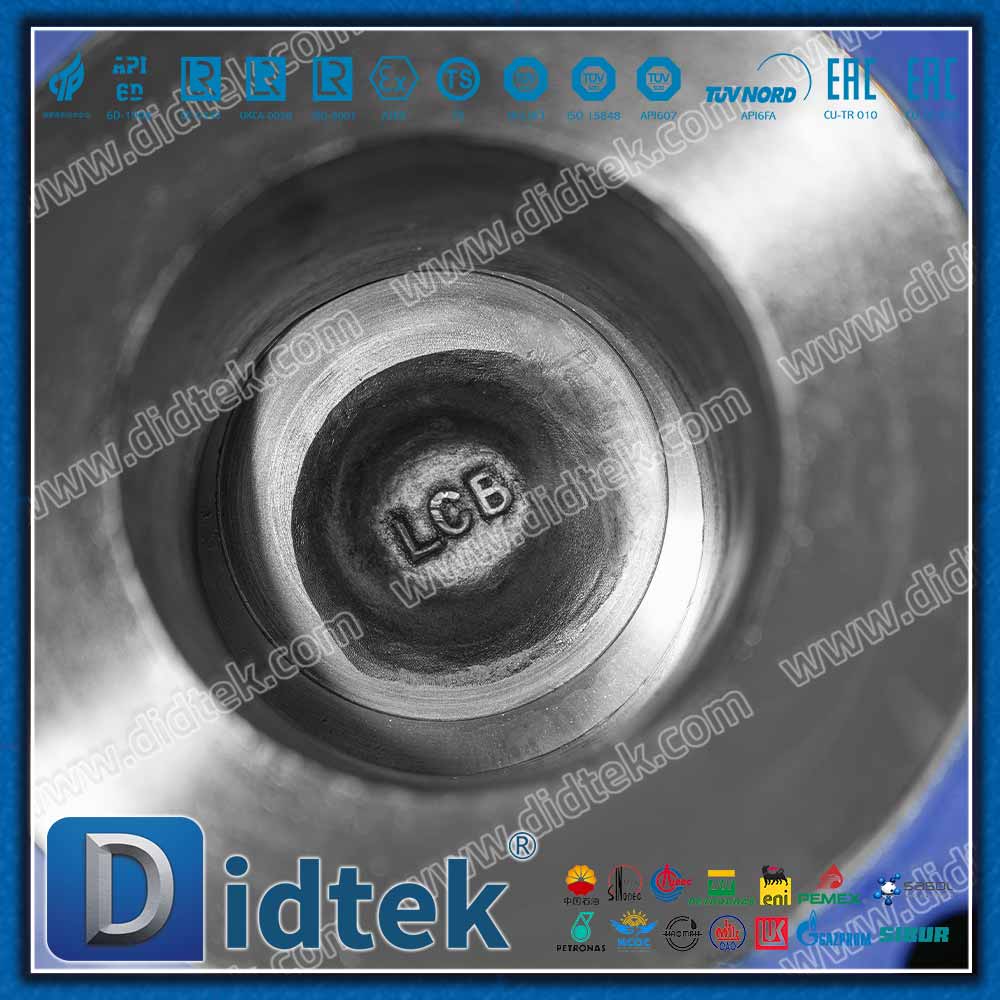

Material	LCB
Wedge	LCB+STL
Temperature Range	-46°C~340°C
Design According	EN 12516-1
End to End Dimension	EN558-1
End Flanges	GOST 33259-B
End Connection Type	GOST-B
Fire Safety	API607
Inspection and Test	EN 12266-1
Operate	Bevel Gear
Body Type	Gate
Type of Valve	Gate Valve
Suitable Medium	Water, Steam, oil, acid, air, nitrogen, natural gas etc.

Design Description

Pressure-Responsive Sealing: The self-reinforcing pressure seal mechanism ensures that the higher the line pressure, the tighter the bonnet seal, eliminating the risk of gasket blowout in high-pressure deaerated water lines.
LCB Low-Temp Resilience: The A352 LCB material is ideal for facilities in colder regions or systems subject to thermal cycling, preventing brittle fracture where standard WCB might fail.
Optimized for Deaerated Water: Features Stellite-faced (Trim 5) seating surfaces to resist the "wire-drawing" effect and erosion typical of high-velocity deaerated water flows.

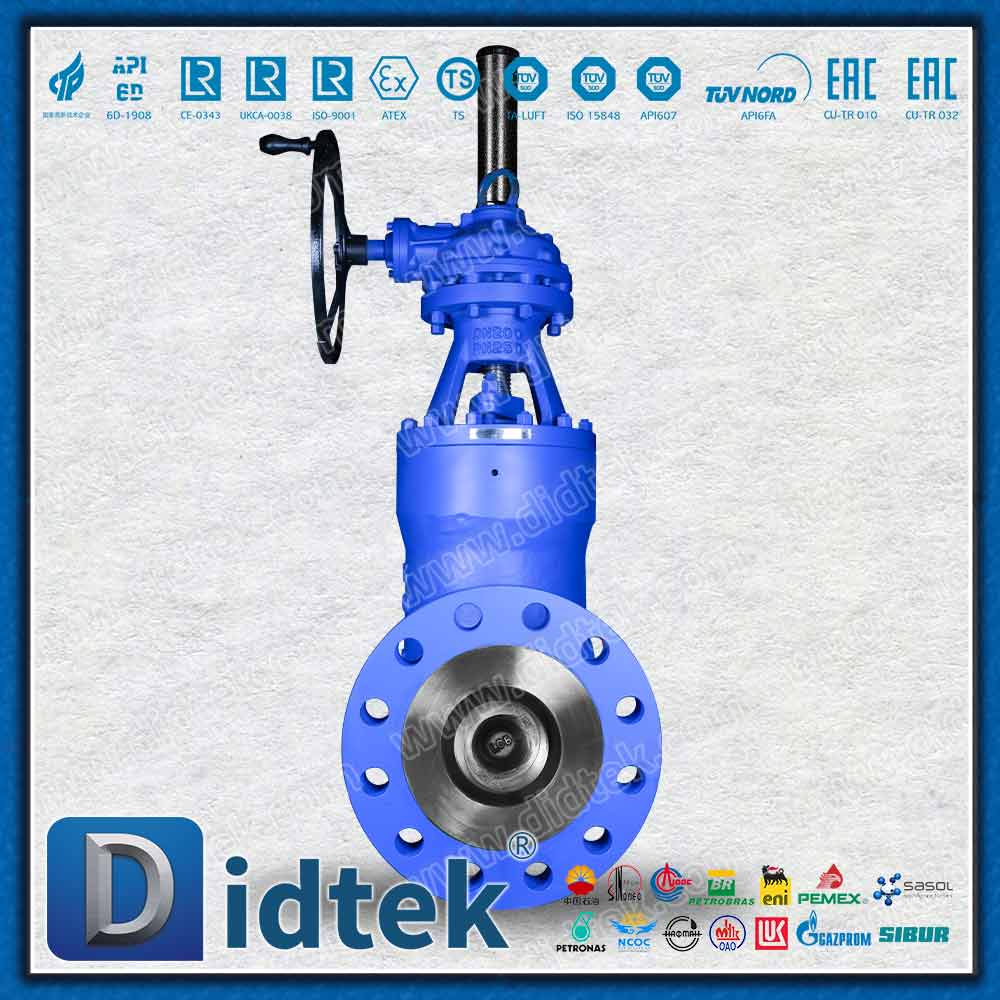

Mechanical Advantage (Gear Operator): The precision-engineered worm gearbox allows for effortless manual shut-off against high differential pressures, providing self-locking safety.
Full Port Flow: Minimizes pressure drop across the valve, ensuring efficient water supply to boilers and deaerators.

Parameters

Brand	DIDTEK
Structure	Gate Valve
Material	LCB
Type	Gate
Test	100% quantity tested before delivery
Guarantee	18 months after shipments and 12 months after installed
Delivery	15 - 60 days
Sample	Sample Available by Didtek Valve
Color	Customer request
Packing	Plywood Case
MOQ	1 Set
Certificate	API6D, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc.
Place of Origin	Zhejiang, China (Mainland)
Delivery Detail	Shipped in 15-30 days after payment
Port	Shanghai Or Ningbo
Payment Terms	L/C,D/A,D/P,T/T, Western Union

Application & Function

Pressure Seal 2500LB RTJ Gate Valve are widely utilized in demanding environments due to their superior material properties:

Supercritical Power Plants: Main steam, re-heat, and feed water isolation systems.
High-Pressure Petrochemical: Hydrocracking, catalytic reforming, and synthesis gas units.
Extreme High-Pressure Pipelines: Critical shut-off for ultra-high pressure distribution lines.
