Z41H-A
DIDTEK
DIV-DGV-027
| Availability: | |
|---|---|
| Quantity: | |
Product Detail |

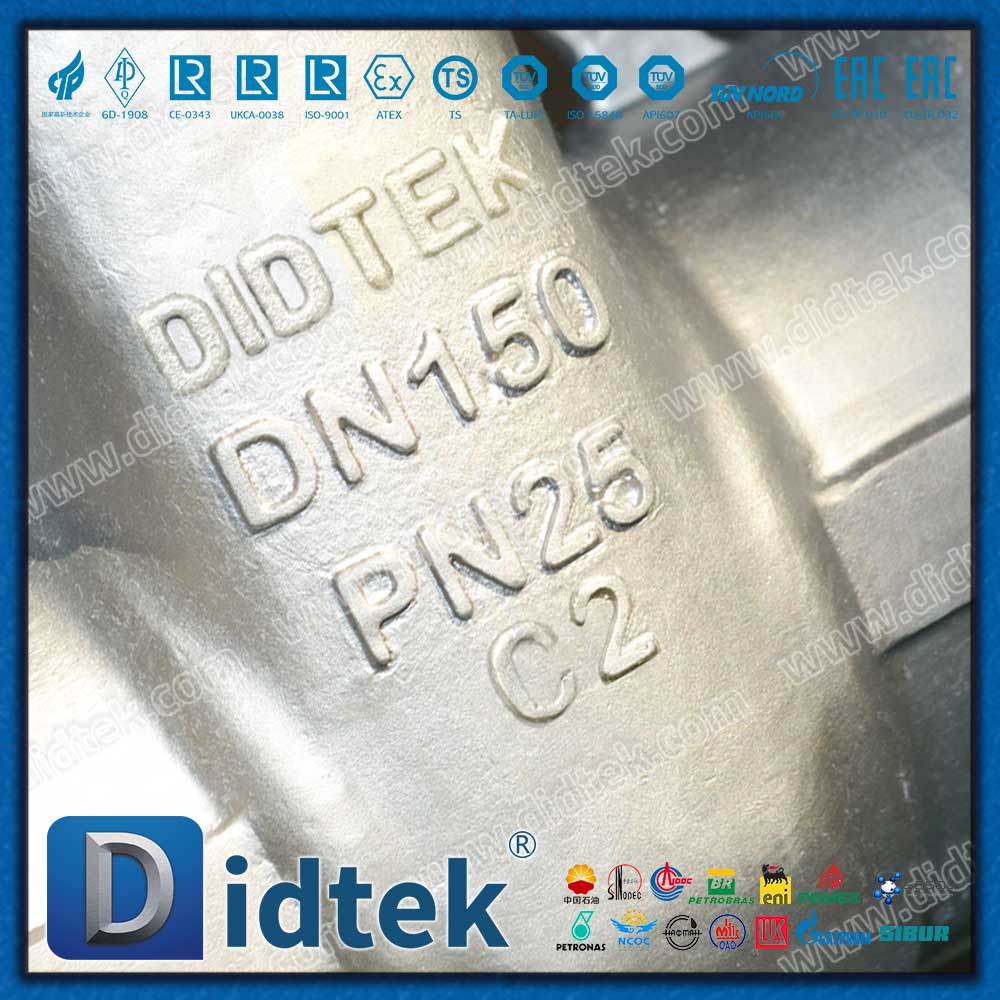

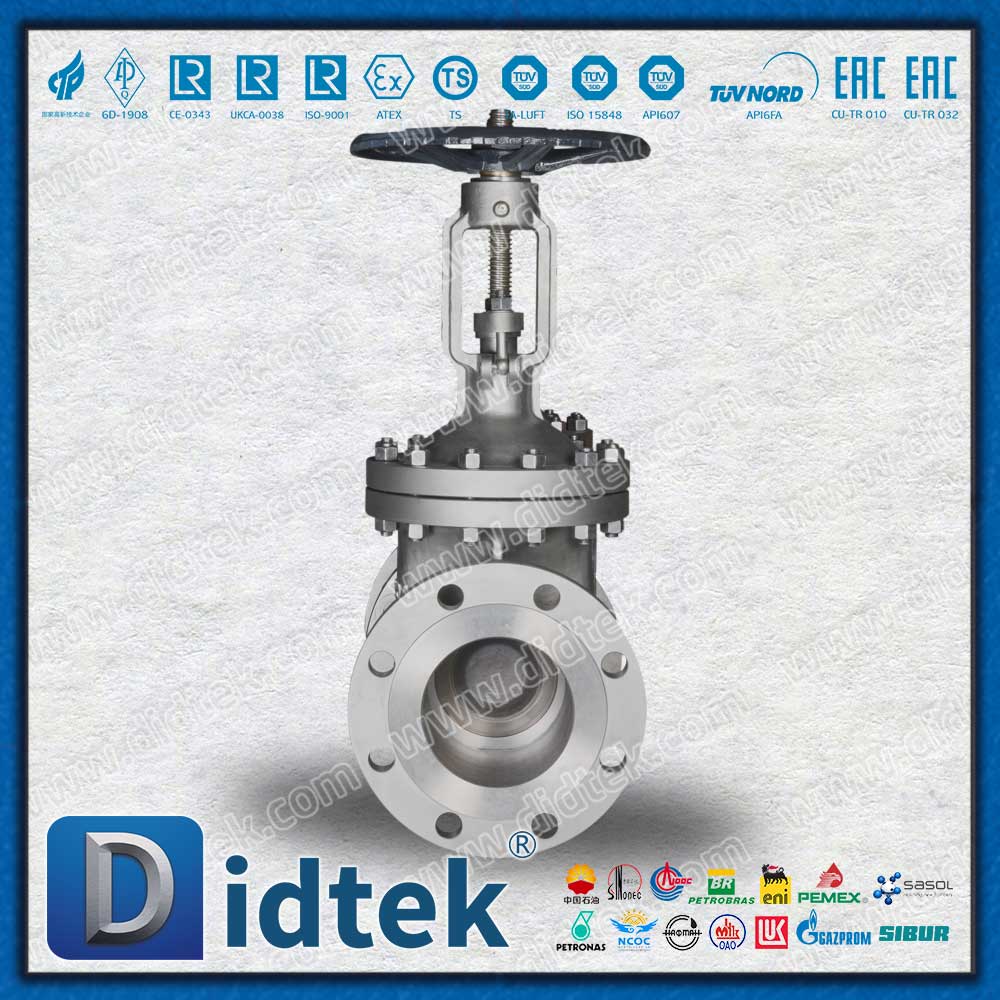

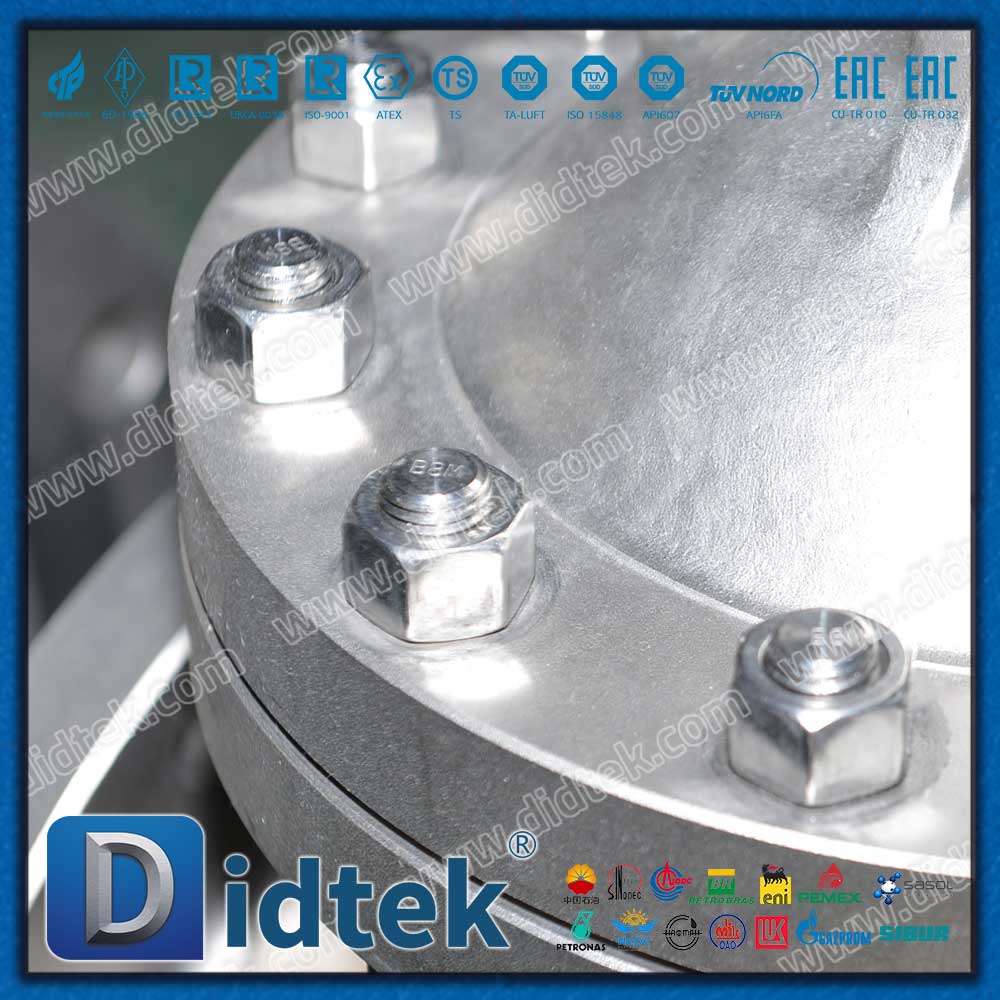

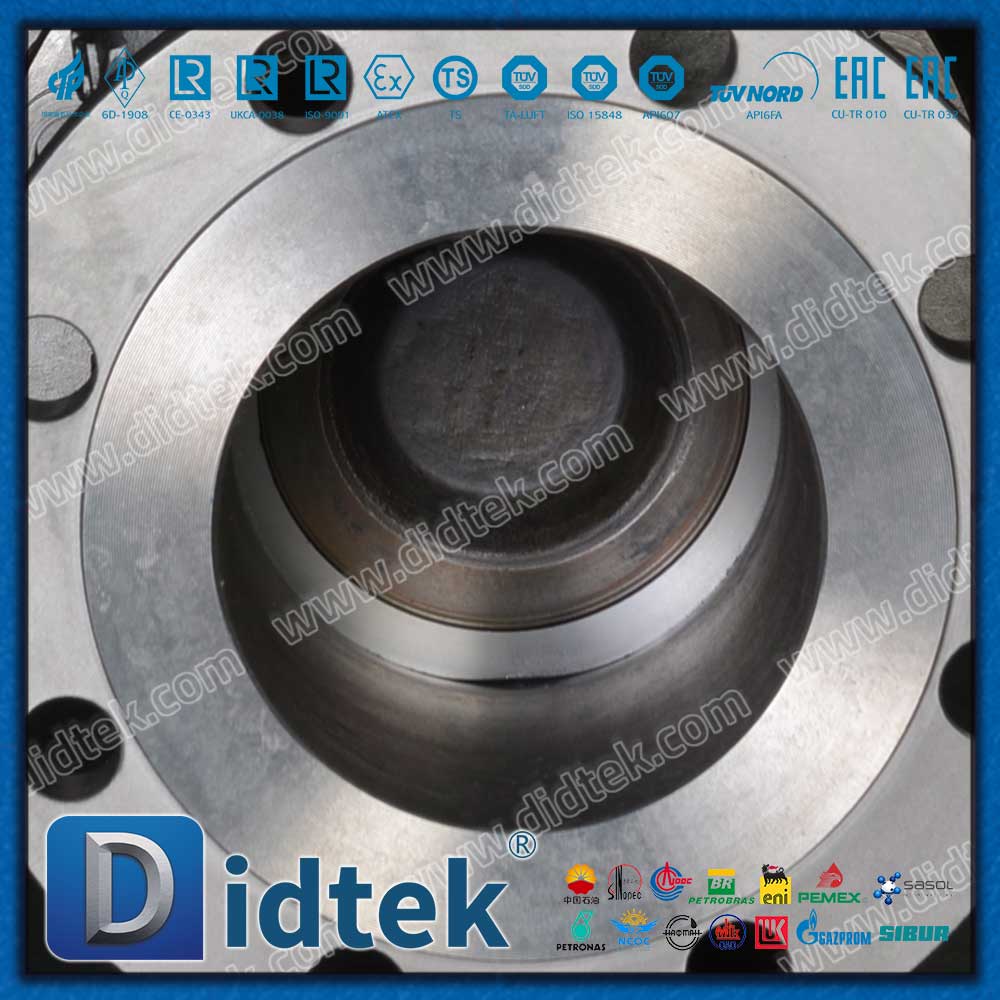

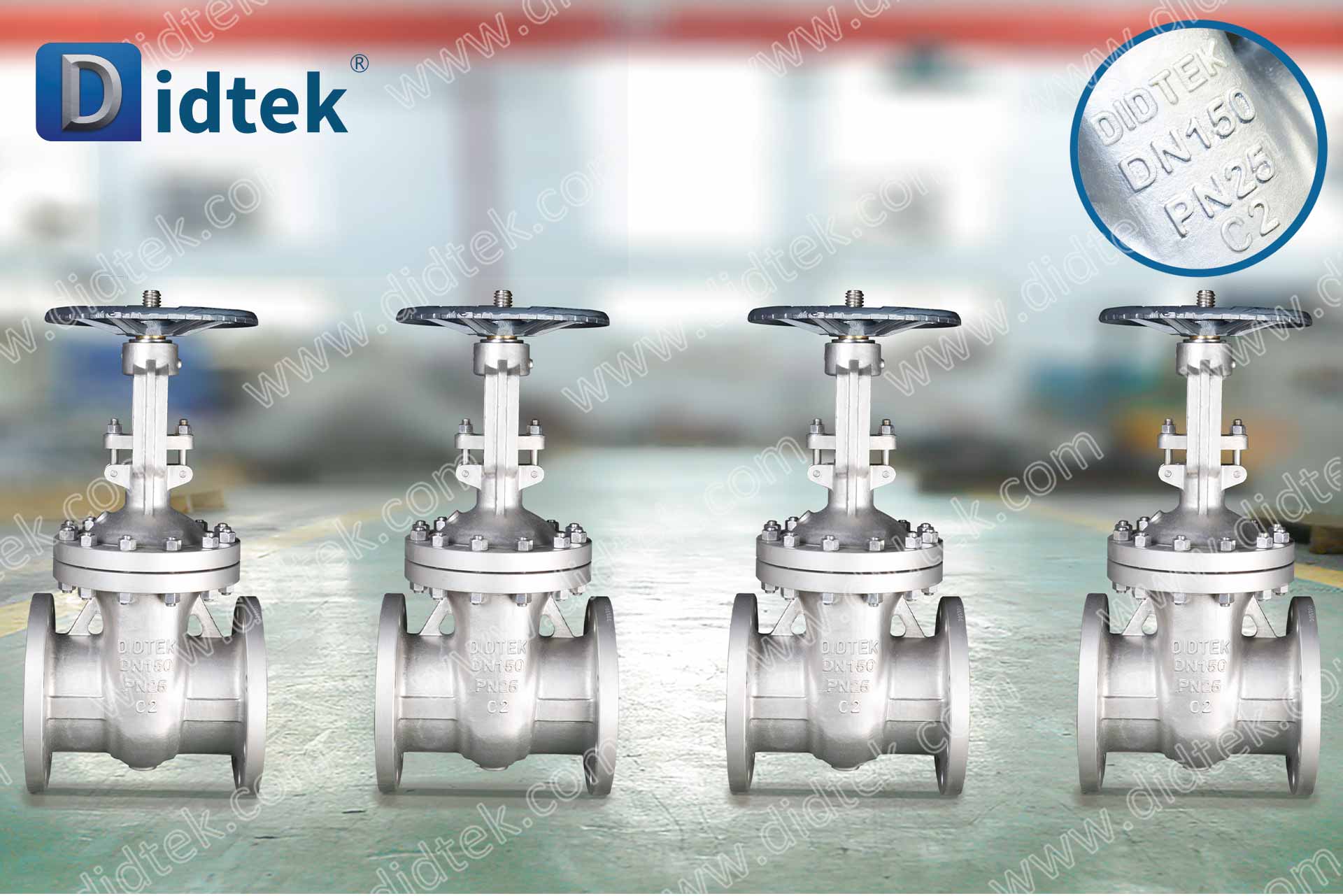

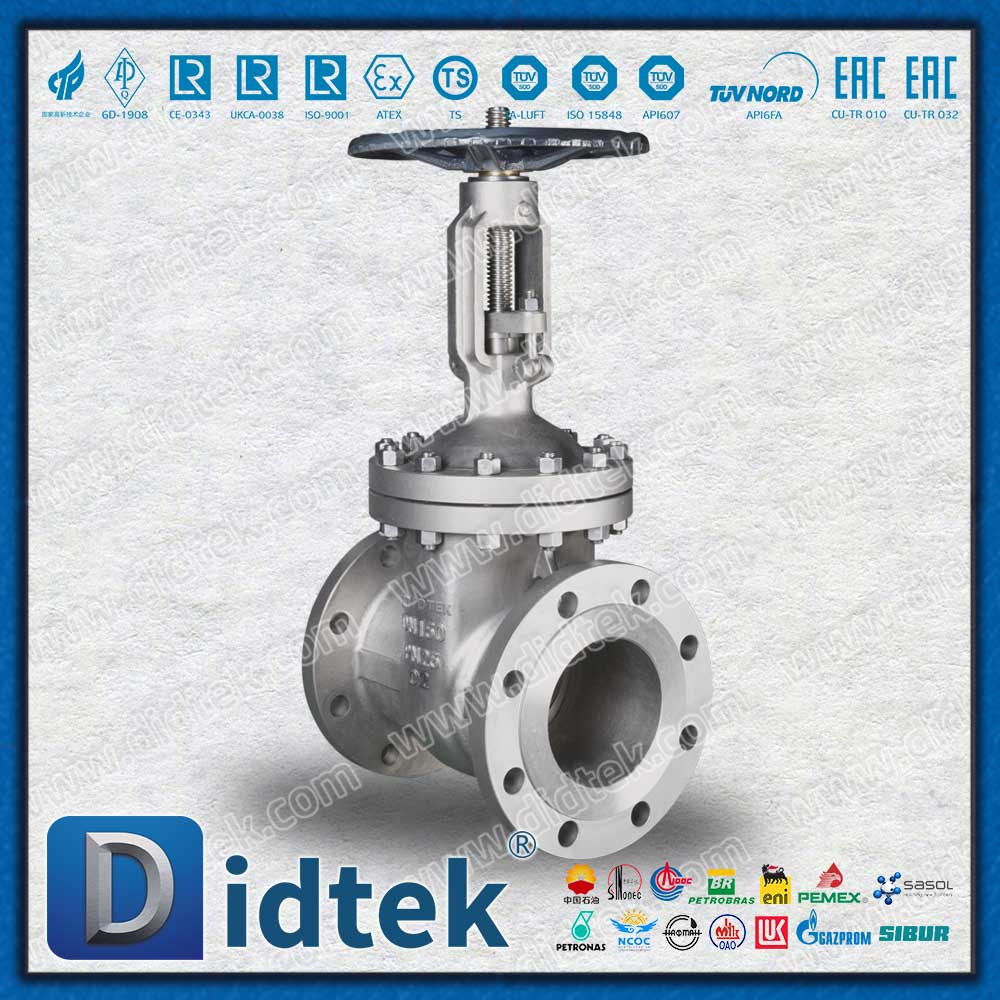

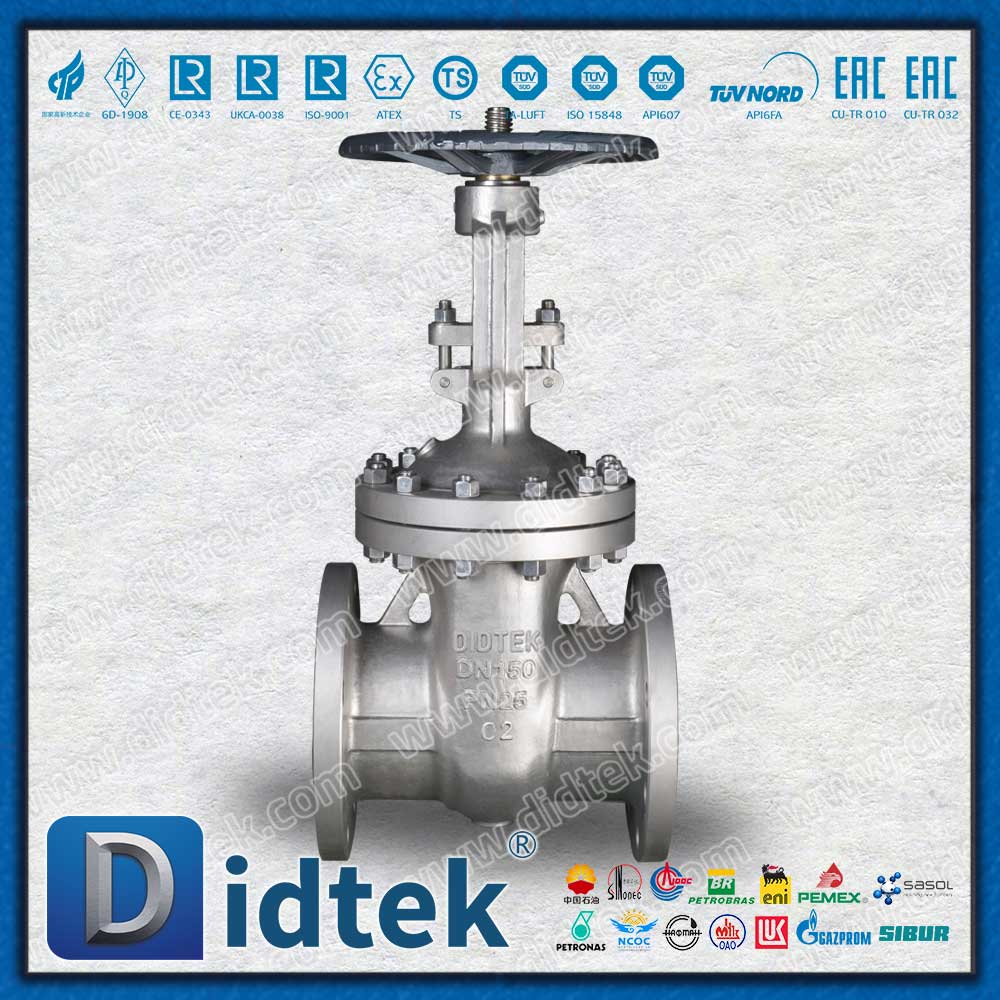

The Titanium DIN Gate Valve for Chemical & Marine Systems is an elite, highly specialized corrosion-resistant isolation valve engineered specifically for aggressive chemical processing, chlor-alkali plants, desalination units, and offshore marine seawater systems.
Product Parameters |
| Parameter Name | Parameter |
| Size Range | 6'' |
| Pressure Range | DN150 |
| Material | ASTM B367 C-2 |
| Disc | ASTM B367 C-2 |
| Temperature Range | -29°C~120°C |
| Design According | API 6D |
| Face to Face | EN 558-1 |
| End Flanges | EN 1092-1 |
| End Connection Type | RF |
| Fire Safety | / |
| Inspection and Test | API 598 |
| Operate | N/A |
| Body Type | Split Body |
| Type of Valve | Triple Offset Butterfly Valve |
| Suitable Medium | Water |
Design Description
Superior Titanium Metallurgy: Constructed from high-grade titanium (Gr. 2 / Gr. C3), providing exceptional resistance to oxidizing acids, chlorine water, hot brines, and aggressive marine corrosive media.
DIN / EN Standard Compliance: Designed to meet German DIN structural lengths and flange connection dimensions, ensuring precise interchangeability in European-standard process plants.
Zero-Flow-Resistance Gate Design: The straight-through wedge gate architecture offers minimal pressure drop when fully open, minimizing energy loss in large chemical fluid transfer loops.
Corrosion-Resistant Trim & Fasteners: Internal components, stem, and seating surfaces are engineered entirely from titanium or matched reactive metals, preventing galvanic corrosion in marine services.
Parameters |
| Brand | DIDTEK |
| Structure | Gate |
| Material | ASTM B367 C-2 |
| Type | DIN Gate Valve |
| Test | 100% quantity tested before delivery |
| Guarantee | 18 months after shipments and 12 months after installed |
| Delivery | 15 - 60 days |
| Sample | Sample Available by Didtek Valve |
| Color | Customer request |
| Packing | Plywood Case |
| MOQ | 1 Set |
| Certificate | API609, CE, UKCA, ISO9001, TS, EAC, ISO15848, TA-LUFT, API607, API6FA etc. |
| Place of Origin | Zhejiang, China (Mainland) |
| Delivery Detail | Shipped in 15-30 days after payment |
| Port | Shanghai Or Ningbo |
| Payment Terms | L/C,D/A,D/P,T/T, Western Union |
Application & Function |
Titanium DIN Gate Valve For Chemical & Marine System :
Chlor-Alkali & Chemical Processing: Handling wet chlorine gas, chlorine dioxide, hydrochloric acid, and corrosive bleaching agents.
Seawater Desalination Plants (RO/MSF): High-salinity brine lines, multi-stage flash evaporator feed loops, and seawater intake systems.
Marine & Offshore Engineering: Seawater cooling circuits, chemical injection skids on topsides, and marine flue gas desulfurization (FGD).
